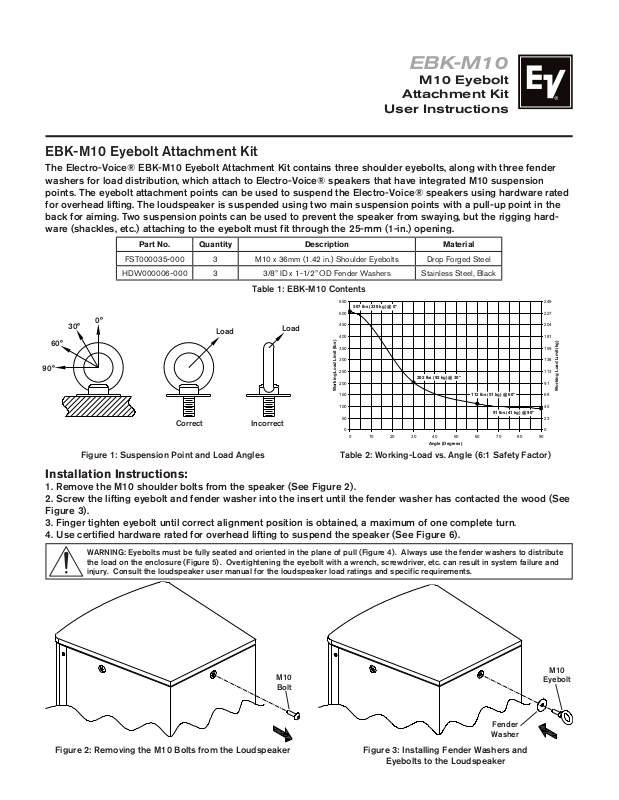

Electro-Voice EBK-M10 Users Guide

0

50

100

150

200

250

300

350

400

450

500

550

0 10 20 30 40 50 60 70 80 90

Angle (Degrees)

Working Load Limit (lbs)

0

23

45

68

91

113

136

159

181

204

227

249

Working Load Limit (kg)

507 lbs (230 kg) @ 0°

202 lbs (92 kg) @ 30°

112 lbs (51 kg) @ 60°

91 lbs (41 kg) @ 90°

EBK-M10

M10 Eyebolt

Attachment Kit

User Instructions

EBK-M10 Eyebolt Attachment Kit

The Electro-Voice® EBK-M10 Eyebolt Attachment Kit contains three shoulder eyebolts, along with three fender
washers for load distribution, which attach to Electro-Voice® speakers that have integrated M10 suspension
points. The eyebolt attachment points can be used to suspend the Electro-Voice® speakers using hardware rated
for overhead lifting. The loudspeaker is suspended using two main suspension points with a pull-up point in the
back for aiming. Two suspension points can be used to prevent the speaker from swaying, but the rigging hard­ware (shackles, etc.) attaching to the eyebolt must fit through the 25-mm (1-in.) opening.

Part No. Quantity Description Material

FST000035-000 3 M10 x 36mm (1.42 in.) Shoulder Eyebolts Drop Forged Steel

HDW000006-000 3 3/8” ID x 1-1/2” OD Fender Washers Stainless Steel, Black

Table 1: EBK-M10 Contents

0°

60°

30°

Load

Load

90°

Figure 1: Suspension Point and Load Angles

Installation Instructions:

1. Remove the M10 shoulder bolts from the speaker (See Figure 2).

2. Screw the lifting eyebolt and fender washer into the insert until the fender washer has contacted the wood (See
Figure 3).

3. Finger tighten eyebolt until correct alignment position is obtained, a maximum of one complete turn.

4. Use certified hardware rated for overhead lifting to suspend the speaker (See Figure 6).

WARNING: Eyebolts must be fully seated and oriented in the plane of pull (Figure 4). Always use the fender washers to distribute
the load on the enclosure (Figure 5). Overtightening the eyebolt with a wrench, screwdriver, etc. can result in system failure and
injury. Consult the loudspeaker user manual for the loudspeaker load ratings and specific requirements.

Figure 2: Removing the M10 Bolts from the Loudspeaker

Correct Incorrect

M10
Bolt

Table 2: Working-Load vs. Angle (6:1 Safety Factor)

M10

Eyebolt

Fender

Washer

Figure 3: Installing Fender Washers and

Eyebolts to the Loudspeaker

Figure 4a: Eyebolts shown oriented in the

plane of pull (CORRECT)

Washer

Used

Figure 5a: Eyebolt shown with Washer (CORRECT)

No Washer

Used

Figure 4b: Eyebolts NOT oriented in the

plane of pull (INCORRECT)

WARNING: Suspending any object is potentially
dangerous and should only be attempted by
individuals who have a thorough knowledge of the
techniques and regulations of suspending objects
overhead. Electro-Voice® strongly recommends

that loudspeakers be suspended taking into ac­count all current national, federal, state and local regulations. It
is the responsibility of the installer to ensure that all loudspeak­ers are safely installed in accordance with all such regulations.
When loudspeakers are suspended, Electro-Voice® strongly
recommends that the system be inspected at least once a year.
If any sign of weakness or damage is detected, remedial action
should be taken immediately. Any hardware used to suspend a
loudspeaker that is not associated with Electro-Voice® is the
responsibility of others.

Figure 5b: Eyebolt shown without Washer (INCORRECT)

Electro-Voice

12000 Portland Avenue South, Burnsville, MN 55337
Phone: [phone], Fax: [phone]

®

www.electrovoice.com

© Bosch Communications Systems 08/2008

Part Number LIT000262 Rev A

Anchor

Shackle

Threaded

Chain

Connector

Carabiner-

Type

Snap Hook

Figure 6: Examples of Useful Suspension Hardware

U.S.A. and Canada only. For customer orders, contact Customer Service at:

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

Other Internatonal locations. For customer orders, Contact Customer Service at:

For warranty repair or service information, contact the Service Repair department at:

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.
