Electronics Line EL-2620 User guide

2

EL2620 Wireless keypad – Funkbedienteil - Claviers radio – Draadlose keypads

Conrad No: 1276478

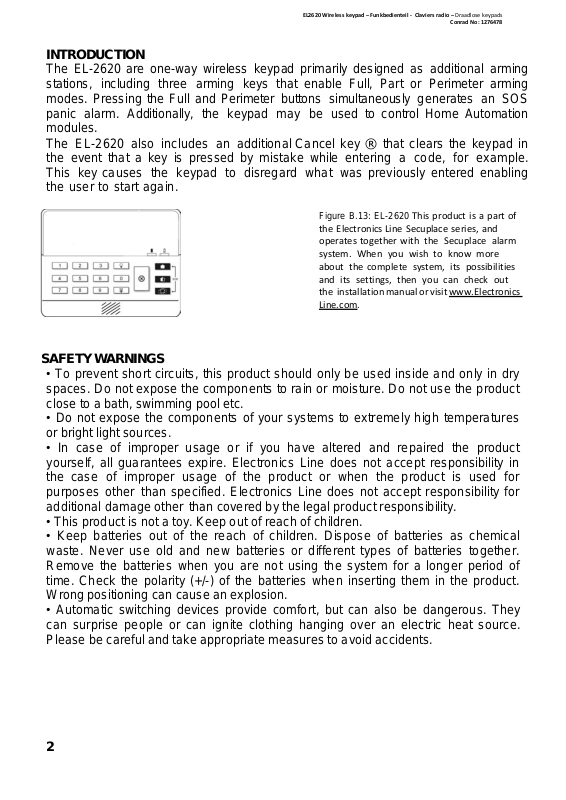

Figure B.13: EL-2620 This product is a part of

the Electronics Line Secuplace series, and
operates together with the Secuplace alarm
system. When you wish to know more
about the complete system, its possibilities
and its settings, then you can check out
the installation manual or visit www.Electronics
Line.com.

INTRODUCTION
The EL-2620 are one-way wireless keypad primarily designed as additional arming
stations, including three arming keys that enable Full, Part or Perimeter arming
modes. Pressing the Full and Perimeter buttons simultaneously generates an SOS
panic alarm. Additionally, the keypad may be used to control Home Automation
modules.
The EL-2620 also includes an additional Cancel key ® that clears the keypad in
the event that a key is pressed by mistake while entering a code, for example.
This key causes the keypad to disregard what was previously entered enabling
the user to start again.

SAFETY WARNINGS

•

To prevent short circuits, this product should only be used inside and only in dry
spaces. Do not expose the components to rain or moisture. Do not use the product
close to a bath, swimming pool etc.

•

Do not expose the components of your systems to extremely high temperatures
or bright light sources.

•

In case of improper usage or if you have altered and repaired the product
yourself, all guarantees expire. Electronics Line does not accept responsibility in
the case of improper usage of the product or when the product is used for
purposes other than specified. Electronics Line does not accept responsibility for
additional damage other than covered by the legal product responsibility.

•

This product is not a toy. Keep out of reach of children.

•

Keep batteries out of the reach of children. Dispose of batteries as chemical
waste. Never use old and new batteries or different types of batteries together.
Remove the batteries when you are not using the system for a longer period of
time. Check the polarity (+/-) of the batteries when inserting them in the product.
Wrong positioning can cause an explosion.

•

Automatic switching devices provide comfort, but can also be dangerous. They
can surprise people or can ignite clothing hanging over an electric heat source.
Please be careful and take appropriate measures to avoid accidents.

3

REGISTRATION PROCEDURE

Figure B.15: EL-2620 (back cover

To register wireless keypads:

1.

2.

From the Programming menu, select Devices, Keypads [913].
Select the keypad you want to register; the system initiates

Registration mode.

3.

Press a button on the keypad making sure that a LED lights
up when the button is pressed.

4.

Press the same button again. When Save? appears on the
panel’s LCD display, press ./.

BATTERY REPLACEMENT (EL-2620)
Every time a key is pressed, one of the battery status LEDs is lit. When the battery

needs to be replaced, the red Low Battery LED is lit.
To replace the battery:

1.

Insert a small screwdriver into the pry-off slots at the bottom of the unit
and twist to remove the back cover.

2.

3.

Observing correct polarity, replace the battery (9V, alkaline).
Replace the back cover making sure that the two covers click shut.

Tamper

Switch

9V
Alkaline
Battery

Buzzer

13
