WARNINGS AND RECOMMENDATIONS

Never cover a functioning radiator with clothing and/or objects as this may cause dan­gerous overheating.

When using the radiator, follow only the instructions found in this manual. Conserve this
instruction manual for the entire life of the product.

The Onice radiator has been conceived to heat a room. It must not be adopted for other uses.

It is dangerous to modify or alter in any way the characteristics of this radiator.

The radiator must be installed according to lawful standards which regulate electrical
installations.

It is recommended to consult a qualied professional for installation of electrical connections.

This radiator is to be used exclusively by adults. Children or others using the radiator must be
supervised.

Leave at least 50 cm of space between the radiator and any inammable objects.

For any cleaning or maintenance operations, the radiator must be turned o and unplugged.

The materials used in packing this radiator are recyclable. It is recommended to dispose of this
material in an appropriate manner.

If the electrical cord is damaged, it must be replaced by the manufacturer or an authorized
Service Assistant.

Do not utilize this radiator if the control panel (display) is damaged. In case of technical problems,
contact your retailer, distributor or installer.

Do not lean against or climb on the radiator. Do not touch the radiator with wet or damp
hands or feet.

Do not insert or place any items inside the radiator.

Sira Onice - WARNINGS AND RECOMMENDATIONS

01

COMPLIANCE DECLARATIONS

The manufacturer accepts responsibility that the radiator has been designed and constructed
in compliance with the following guidelines:

PRODUCT RANGE AND SIZES

ELECTRICITY SUPPLY

Installation must be carried out in accordance with national standards in force.
Before using the rst time, verify that the supply of current corresponds to that indicated on
the radiator.
This radiator is in Insulation Class II and therefore no ground connection is necessary.
Single-phase supply 230 V +10% - 10% 50Hz
Protection grade: IP24

Respect the color of the wires for the connections.
Brown = phase
Blue = neutral
Nero = pilot wire - Isolate the pilot wire if it is not in use.

Sira Onice - COMPLIANCE DECLARATIONS - RANGE AND SIZES - ELECTRICITY SUPPLY

É L E C T R I C I T É

Power (Watt)

1000
1600
2000

Width (mm)

535
775
935

Height (mm)

575
575
575

Depth (mm)

95
95
95

Weight (Kg)

12
17
21

English

02

INSTALLATION

Safety precaution: before and during installation, make sure that the radiator is not con­nected to the electricity supply.

This radiator is in Insulation Class II and can therefore be installed in all rooms of homes including
zones 2 and 3 (see gure below) of a bathroom, sheltered from any contact with water(see g.1).
In full compliance with existing regulations in France (NF C15-100), the radiator must be positioned
in such a way so as the control panel is out of reach of anyone in the shower or bath.
The radiator cannot be installed above an electrical outlet.
The radiator must be positioned at least 15 cm from any obstacle (walls, furniture, shelves etc.)

CORRECT POSITIONING OF RADIATOR

Unpack the radiator and place it carefully on the ground, using the polystyrene as protection.
Make sure that the radiator and cords have not been damaged during transport.
If damaged, do not use the radiator.
During installation, verify that the radiator is not plugged in.
Verify that the home voltage corresponds to that indicated on the radiator (220V – 230V).

For easy installation, your radiator is equipped with an installation kit containing 2 brackets, 4
screws, 4 screw anchors and a paper template (diagram indicating the position of holes to be
drilled) in function of the type and size of the radiator.

Sira Onice - INSTALLATION

ZONE 1

ZONE 2

ZONE 3

60 cm

240 cm

g. 1

min.

15 cm

min.15 cm

min.

60 cm

English

03

Follow the instructions below:

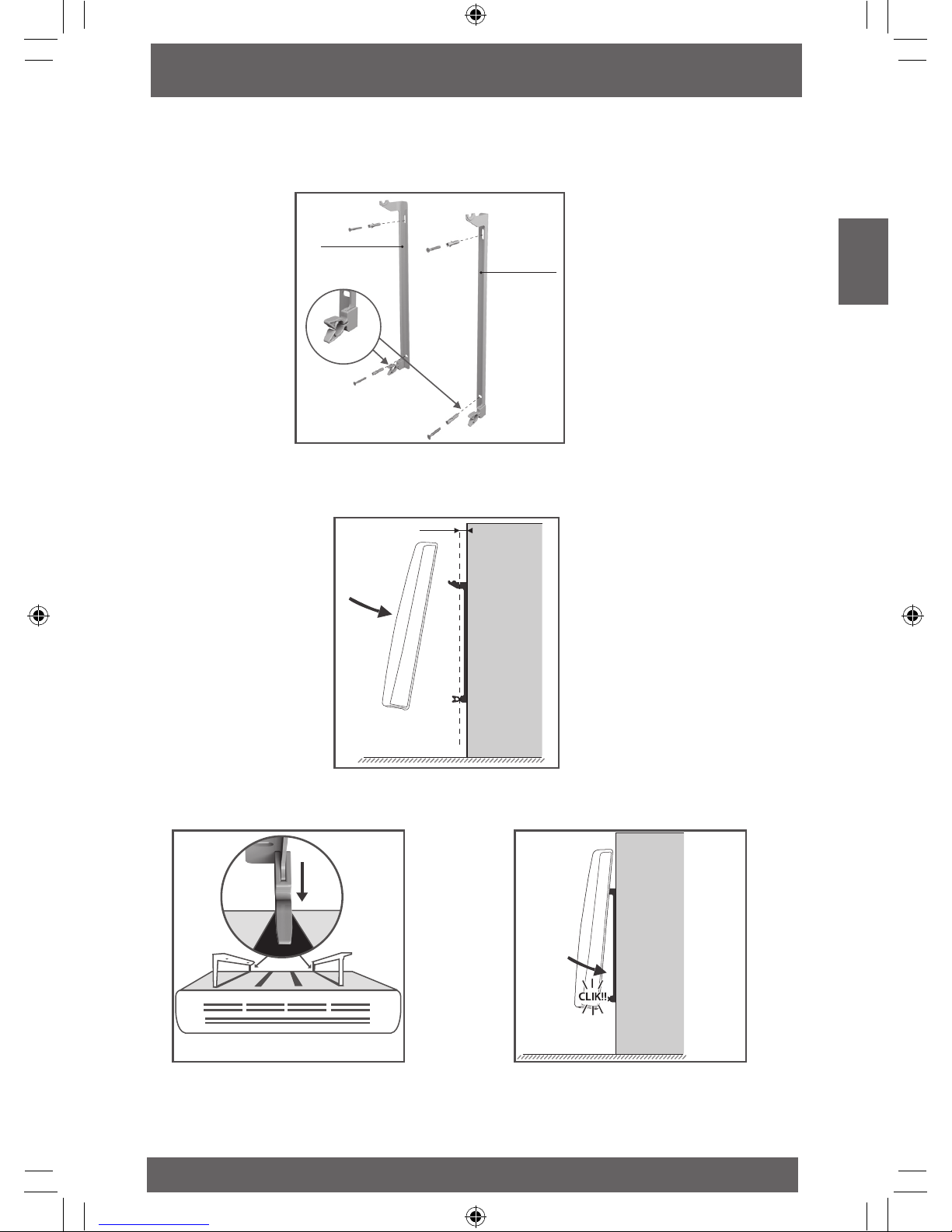

1. Position the paper template against the wall holding it perfectly parallel to the oor. The
lower end of the paper should just touch the oor. In this way the radiator will be positioned
at the correct height.

2. Using the template, use a pencil to mark the position of the 4 holes indicated for your model
of radiator. Drill 4 holes in the wall with a diameter of 10mm and a depth of 50-55mm (g. 2)
.

Sira Onice - INSTALLATION

TEMPLATE

g. 2

TEMPLATE

 10x55mm 10x55mm

 10x55mm 10x55mm

FLOOR

WALL

g. 3

English
