Electrolux Z4520, Z4590 User Manual

0 (0)
Electrolux Z4520, Z4590 User Manual

A range of complementary cleaning kits specially designed and distributed by Electrolux.

To purchase any of these kits please contact Electrolux Customer Services on 08706 055 055.

The Animal Kit

The Car Kit

Electrolux Group Floorcare Helpline

Telephone: 08706 055 055

www.electrolux.co.uk

Our advice

To get top performance from your vacuum

Z4520, Z4590



cleaner, use only Electrolux accessories.



4506 02 01 01

Z45xx_ifu_2.qxp 2005.04.27. 10:59 Page 2

Thank you for choosing an Electrolux Power Max vacuum cleaner. These operating instructions cover all Power Max models. This means that with your specific model, some accessories may not be included.

Accessories and safety precautions

3

Before starting

4

Getting the best results

4

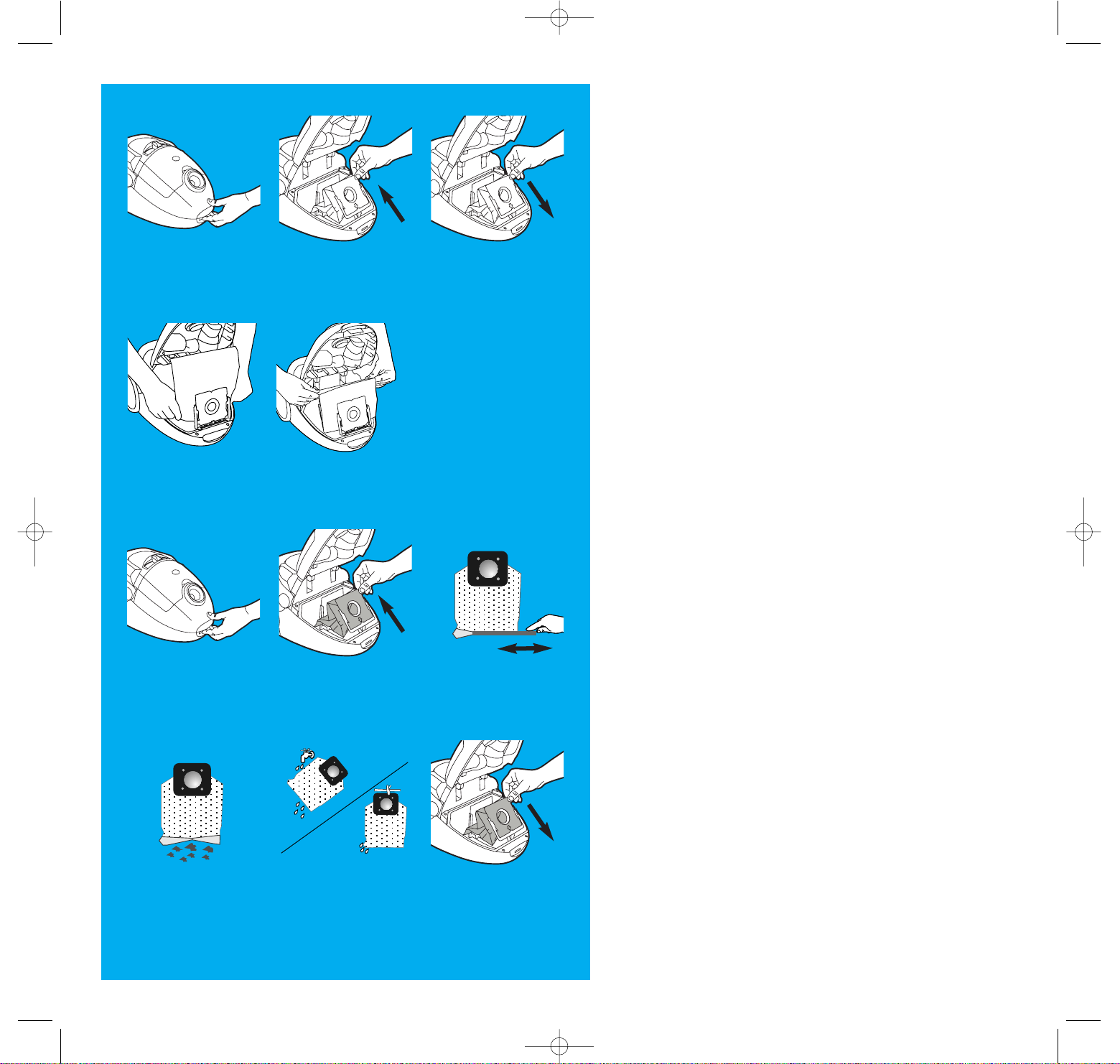

Replacing the paper dustbag

5

Replacing the reusable textile dustbag

5

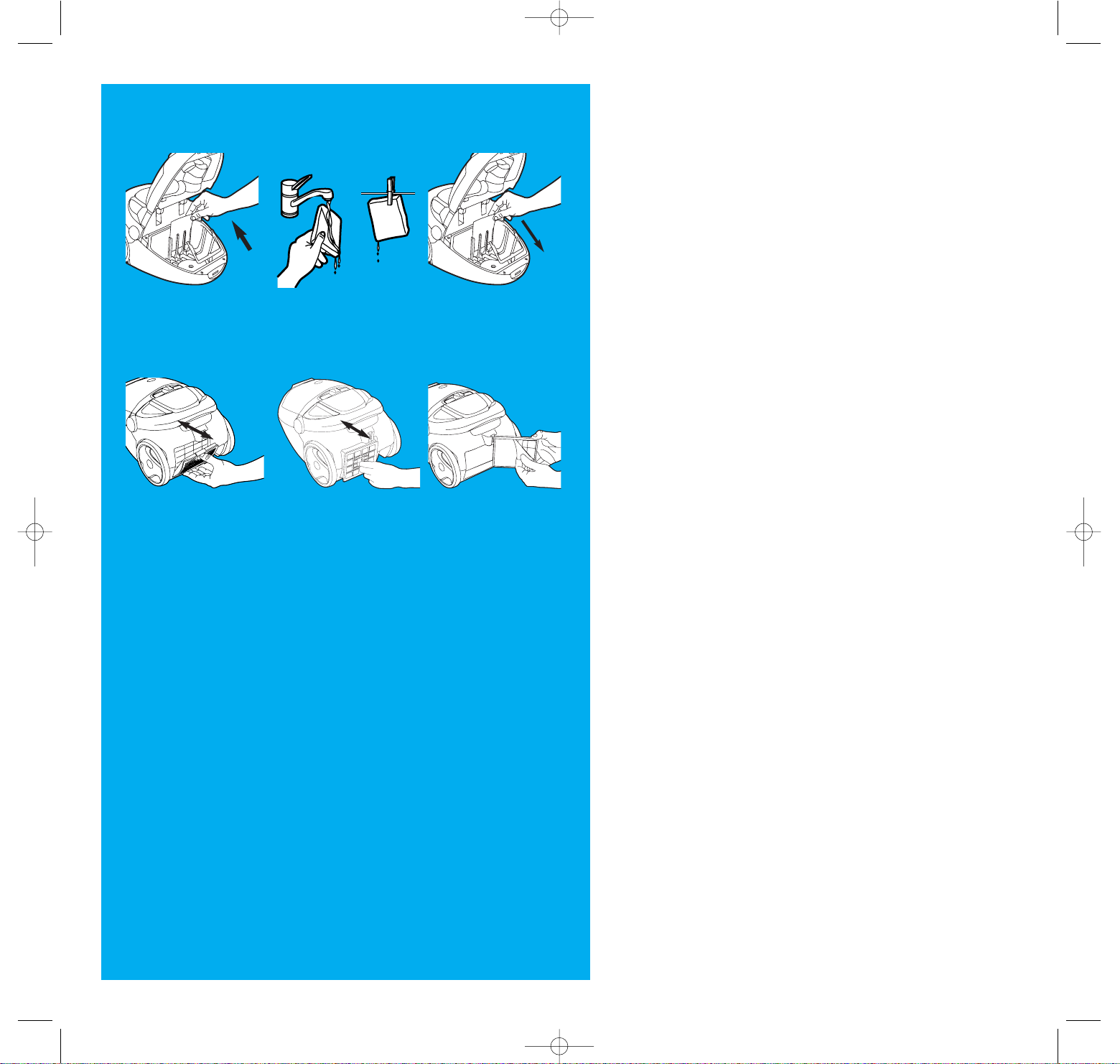

Cleaning the motor filter

6

Replacing the exhaust filter

6

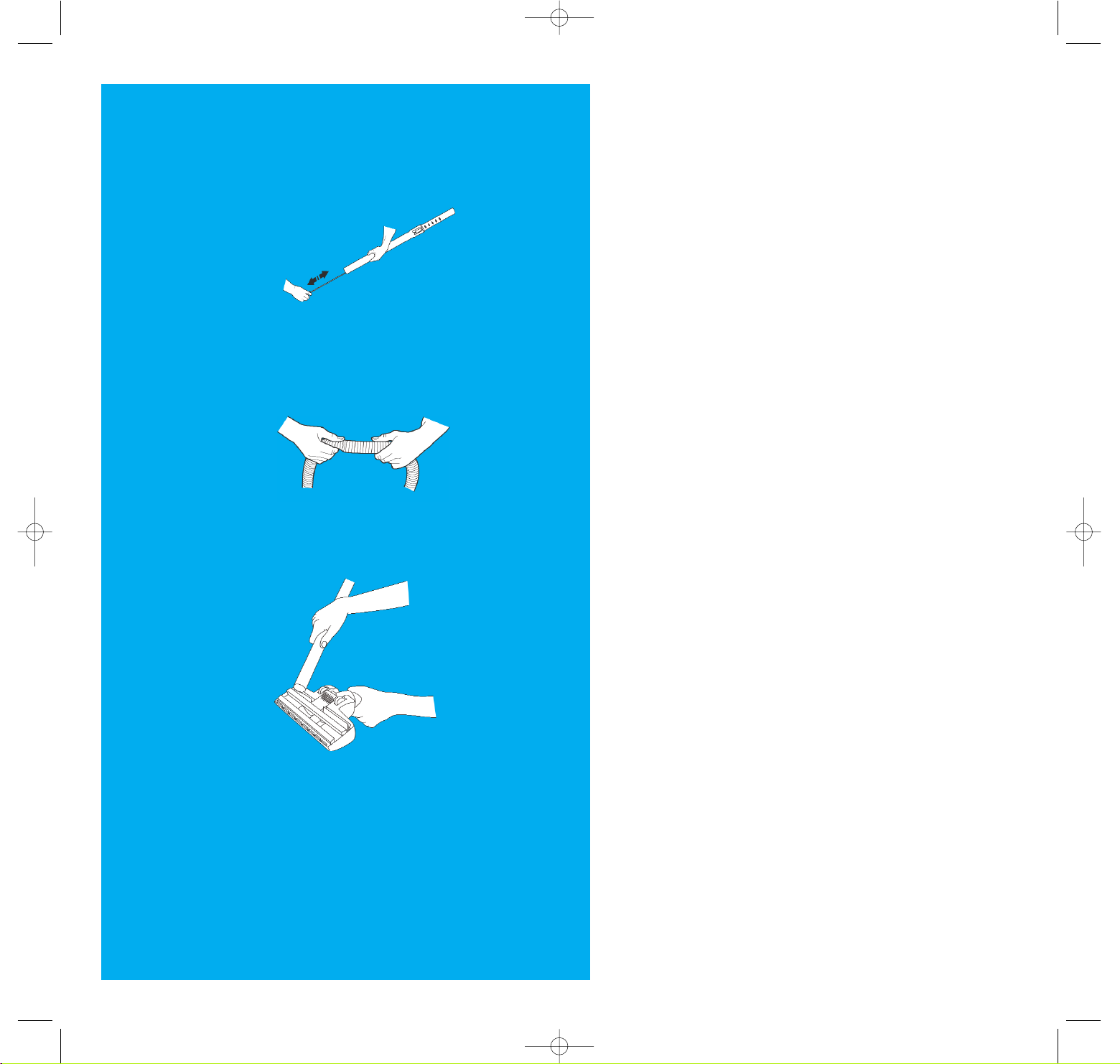

Cleaning the hose and nozzle

7

Troubleshooting and customer information

8

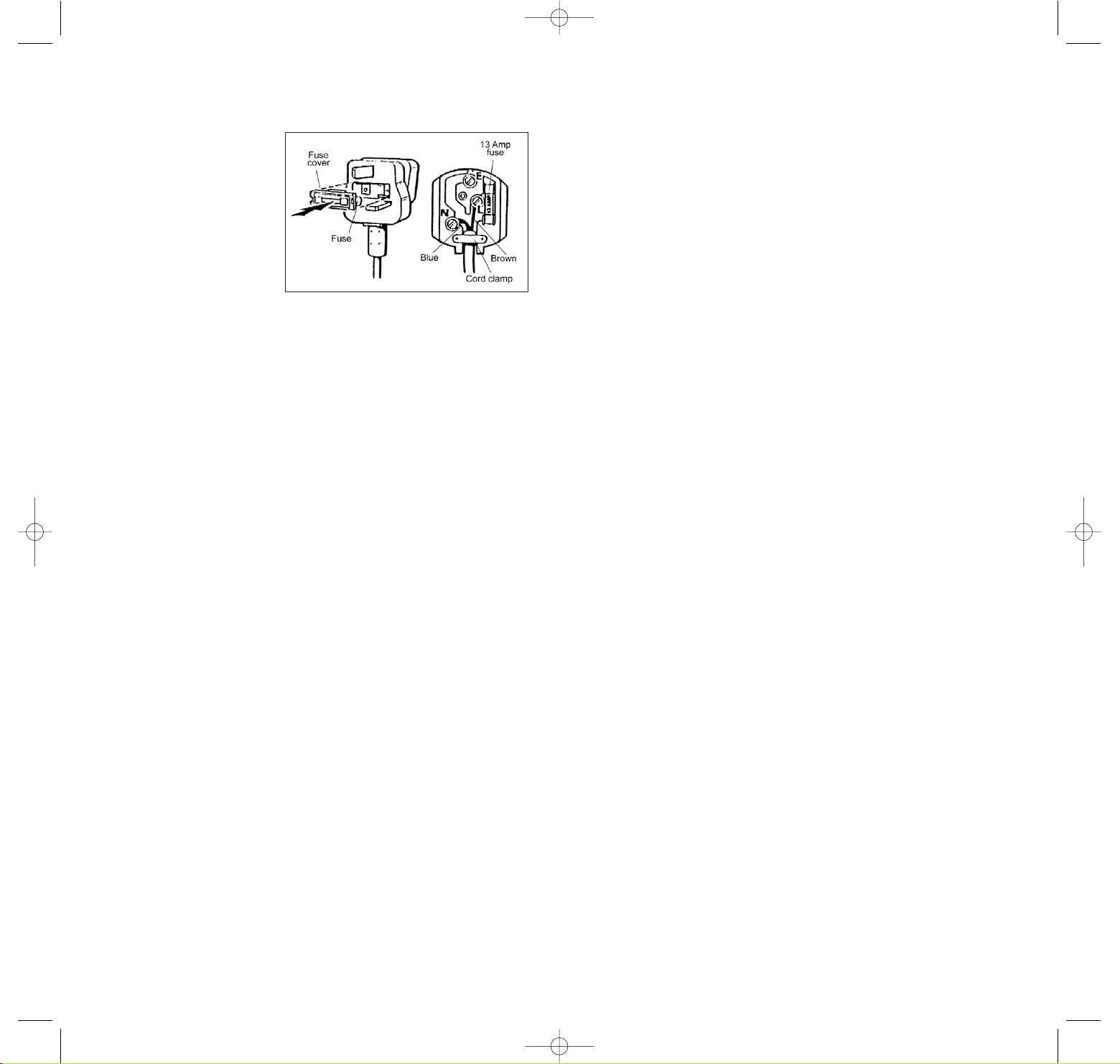

Electrical supply instructions

9

Warning instructions

10

Guarantee

11

2

Z45xx_ifu_2.qxp 2005.04.27. 10:59 Page 3

1

3

2



5

6



8. on board

9. on board

7



10. on board

11

ACCESSORIES AND SAFETY PRECAUTIONS

Accessories

1Paper dustbag

2Reusable textile dustbag (Z4590)

3Telescopic extension tube (Z4590)

4Metal extension tubes (Z4520)

5Hose

6Hose handle with suction control

7Dual purpose floor nozzle

8Upholstery nozzle (on board)

9Crevice nozzle (on board)

10Dusting brush (on board)

11Turbo nozzle (Z4590)

Safety precautions

The Power Max should only be used by adults for normal vacuuming in a domestic environment. The vacuum cleaner features double insulation and does not need to be earthed.

Never vacuum:

In wet areas

Close to flammable gas, etc.

Without a dustbag (this may damage the cleaner). A safety device is fitted which prevents the cover closing without a dustbag in place. Do not attempt to force the cover shut.

Never vacuum:

Sharp objects

Fluids (this can cause serious damage to the machine)

Hot or cold cinders, lit cigarette butts, etc.

Fine dust from plaster, concrete, flour or ash, for example.

The above can cause serious damage to the motor - damage which is not covered by the warranty.

Electrical cable precautions:

A damaged cable must be replaced by an authorised Electrolux service engineer. Damage to the cleaner cable will not be covered by the warranty.

Never pull or lift the vacuum cleaner by the cable.

Disconnect the plug from the mains before cleaning or maintenance of the vacuum cleaner.

Regularly check that the cable is not damaged. Never use the vacuum cleaner if the cable is damaged.

All service and repairs must be carried out by an authorised Electrolux service engineer. Always keep the vacuum cleaner in a dry place.

3

Z45xx_ifu_2.qxp 2005.04.27. 10:59 Page 4







BEFORE STARTING







1

Open the dustbag cover.







2

Check that the dustbag is in place.







3

Insert the hose until the catch clicks to engage (press









the catch to engage hose).







4

Attach the extension tube (Z4520) or the telescopic

1

2

3



tube (Z4590) to the hose handle and the floor nozzle.







5

Pull out the cable and plug it in. Press the foot pedal to









rewind the cable (take hold of the plug to prevent it









striking you).







6

Press the On/Off button with control your foot to start









the vacuum cleaner.







7

Adjust the suction power using the linear potentiometer

4

5

6



button on the vacuum cleaner or the suction control on









the hose handle.







GETTING THE BEST RESULTS







Hard floors: Use the dual purpose floor nozzle with the left







pedal in position (8).







Carpets: Use the dual purpose floor nozzle with the left

7





pedal in position (9).







Reduce suction power for rugs and fabrics.







Upholstered furniture: Use the upholstery nozzle.







Skirting boards, crevices, corners, etc.: Use the crevice







nozzle.







Lamps, pictures and bookshleves: Use the dusting







brush.



8

9

Short-pile carpets, for stubborn fluff and pet hairs: Use



the turbo nozzle.







4
