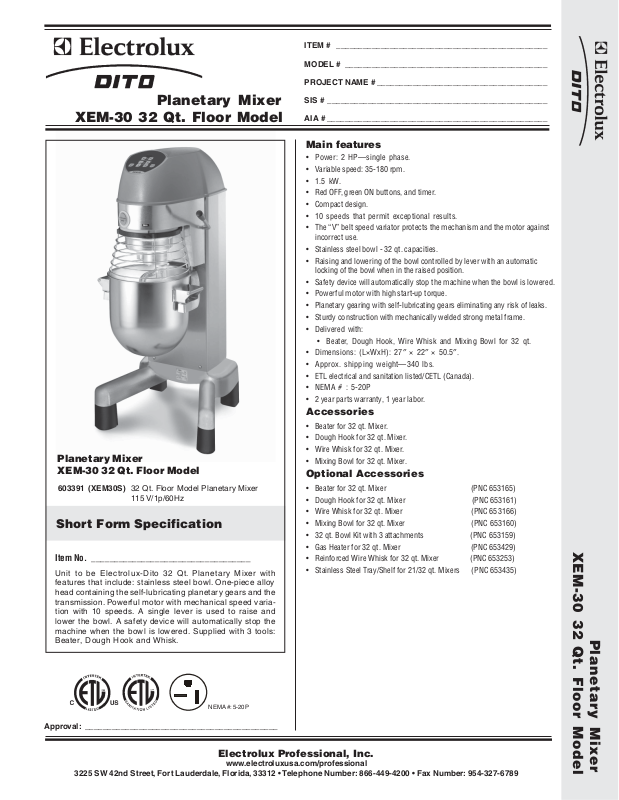

Planetary Mixer
XEM-30 32 Qt. Floor Model
Planetary Mixer
XEM-30 32 Qt. Floor Model
603391 (XEM30S) 32 Qt. Floor Model Planetary Mixer
115 V/1p/60Hz
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux-Dito 32 Qt. Planetary Mixer with
features that include: stainless steel bowl. One-piece alloy
head containing the self-lubricating planetary gears and the
transmission. Powerful motor with mechanical speed variation with 10 speeds. A single lever is used to raise and
lower the bowl. A safety device will automatically stop the
machine when the bowl is lowered. Supplied with 3 tools:
Beater, Dough Hook and Whisk.
SIS # _________________________________________________
AIA # _________________________________________________
Main features
• Power: 2 HP—single phase.
• Variable speed: 35-180 rpm.
•1.5 kW.
• Red OFF, green ON buttons, and timer.
• Compact design.
• 10 speeds that permit exceptional results.
• The “V” belt speed variator protects the mechanism and the motor against
incorrect use.
• Stainless steel bowl - 32 qt. capacities.
• Raising and lowering of the bowl controlled by lever with an automatic
locking of the bowl when in the raised position.
• Safety device will automatically stop the machine when the bowl is lowered.
• Powerful motor with high start-up torque.
• Planetary gearing with self-lubricating gears eliminating any risk of leaks.
• Sturdy construction with mechanically welded strong metal frame.
• Delivered with:
• Beater, Dough Hook, Wire Whisk and Mixing Bowl for 32 qt.
• Dimensions: (L×WxH): 27″ × 22″ × 50.5″.
• Approx. shipping weight—340 lbs.
• ETL electrical and sanitation listed/CETL (Canada).
• NEMA # : 5-20P
• 2 year parts warranty, 1 year labor.
Accessories
• Beater for 32 qt. Mixer.
• Dough Hook for 32 qt. Mixer.
• Wire Whisk for 32 qt. Mixer.
• Mixing Bowl for 32 qt. Mixer.
Optional Accessories
• Beater for 32 qt. Mixer (PNC 653165)
• Dough Hook for 32 qt. Mixer (PNC 653161)
• Wire Whisk for 32 qt. Mixer (PNC 653166)
• Mixing Bowl for 32 qt. Mixer (PNC 653160)
• 32 qt. Bowl Kit with 3 attachments (PNC 653159)
• Gas Heater for 32 qt. Mixer (PNC 653429)
• Reinforced Wire Whisk for 32 qt. Mixer (PNC 653253)
• Stainless Steel Tray/Shelf for 21/32 qt. Mixers (PNC 653435)
XEM-30 32 Qt. Floor Model
Planetary Mixer
NEMA #: 5-20P
Approval: ___________________________________________
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
www.electroluxusa.com/professional
Planetary Mixer
XEM-30 32 Qt. Floor Model
559
Front View
Top View
Electric
Supply voltage:
603391 (XEM30S) 115 V/1p/60Hz - 10.2 A
Key Information
Working capacity – lbs. of flour
Shortcrust pastry: 13
Cold water paste: 18
Sweet pastry: 11
Croissant: 13
Brioche: 12
Meat: 33
Potato Puree: 33
Side View
XEM-30 32 Qt. Floor Model
Planetary Mixer
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
7-22-09
