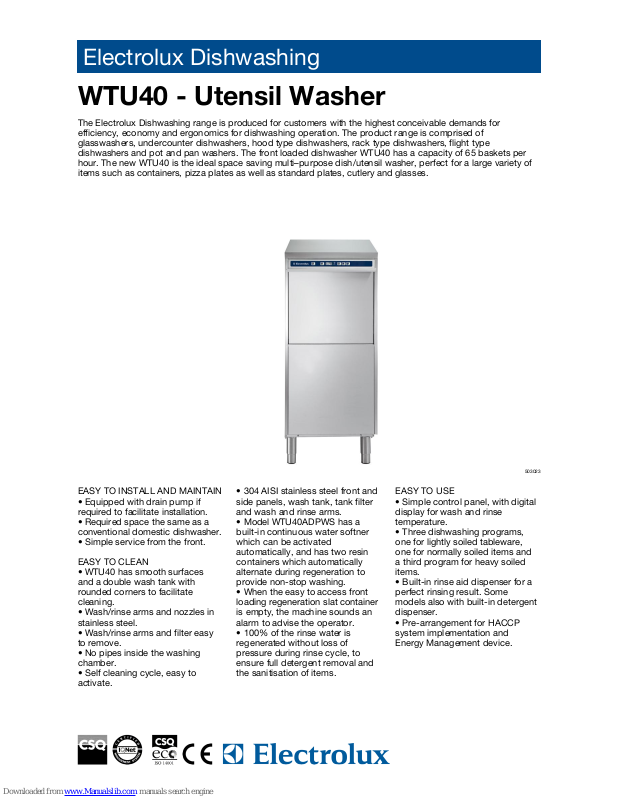

Page 1
Electrolux Dishwashing
WTU40 - Utensil Washer
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for
efficiency, economy and ergonomics for dishwashing operation. The product range is comprised of
glasswashers, undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type
dishwashers and pot and pan washers. The front loaded dishwasher WTU40 has a capacity of 65 baskets per
hour. The new WTU40 is the ideal space saving multi–purpose dish/utensil washer, perfect for a large variety of
items such as containers, pizza plates as well as standard plates, cutlery and glasses.
503023
EASY TO INSTALL AND MAINTAIN
• Equipped with drain pump if
required to facilitate installation.
• Required space the same as a
conventional domestic dishwasher.
• Simple service from the front.
EASY TO CLEAN
• WTU40 has smooth surfaces
and a double wash tank with
rounded corners to facilitate
cleaning.
• Wash/rinse arms and nozzles in
stainless steel.
• Wash/rinse arms and filter easy
to remove.
• No pipes inside the washing
chamber.
• Self cleaning cycle, easy to
activate.
• 304 AISI stainless steel front and
side panels, wash tank, tank filter
and wash and rinse arms.
• Model WTU40ADPWS has a
built-in continuous water softner
which can be activated
automatically, and has two resin
containers which automatically
alternate during regeneration to
provide non-stop washing.
• When the easy to access front
loading regeneration slat container
is empty, the machine sounds an
alarm to advise the operator.
• 100% of the rinse water is
regenerated without loss of
pressure during rinse cycle, to
ensure full detergent removal and
the sanitisation of items.
EASY TO USE
• Simple control panel, with digital
display for wash and rinse
temperature.
• Three dishwashing programs,
one for lightly soiled tableware,
one for normally soiled items and
a third program for heavy soiled
items.
• Built-in rinse aid dispenser for a
perfect rinsing result. Some
models also with built-in detergent
dispenser.
• Pre-arrangement for HACCP
system implementation and
Energy Management device.
Page 2
Electrolux Dishwashing
WTU40 - Utensil Washer
Internet: http://www.electrolux.com/foodservice
ICA0102010-09-17Subject to change without notice
YELLOW CUTLERY CONTAINER 864242 864242 864242 864242
WIRE BASKET-PIZZA PLATES,TRAYS,UTENSILS 867045 867045 867045 867045
WIRE BASKET (550x535) FOR UTENSILS 867046 867046 867046 867046
RINSE BOOSTER PUMP-SING.TANK PRESSURE DW 864051
KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050 864050 864050 864050
KIT HACCP EKIS 922166 922166 922166 922166
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574 865574 865574
INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001 864001 864001 864001
HACCP PRINTER KIT FOR UC, HT AND POTW 864002 864002 864002 864002
FILTER FOR TOTAL DEMINERALIZATION 864015 864015 864015
FILTER FOR PARTIAL DEMINERALIZATION 864017 864017 864017
DETERGENT PUMP KIT 864218 864218 864218
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016
BASKET SEMI-PROFESSIONAL 500X500X190MM 867024 867024 867024 867024
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 867002 867002 867002 867002
BASKET FOR 12 SOUP BOWLS 240MM-GREEN 867000 867000 867000
BASKET F.16 VERTIC.GLASSES (H70MM)-BLUE 867023 867023 867023 867023
8 L EXTERNAL AUTOMATIC WATER SOFTENER 860413 860413 860413
12 L EXTERNAL MANUAL WATER SOFTENER 860412 860412 860412
ACCESSORIES
YELLOW CUTLERY CONTAINER 2 2 2 2
WIRE BASKET-PIZZA PLATES,TRAYS,UTENSILS 1 1 1 1
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 1 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 97 97 100 97
total power 10.2 10.2 10.2 10.2
Rinse pump 0.35 0.35 0.35
drain pump 0.034 0.034 0.034 0.034
Power - kW
Boiler elements - kW 9 9 9 9
Boiler capacity - lt. 12 12 12 12
water consumption - lt./cycle 3.8 3.8 3.8 3.8
temperature during rinse - °C 80-90 84 84 84
duration - sec. 16 16 16 16
Hot rinse cycle
electrical elements - kW 3 3 3 3
power pump - kW 0.8 0.8 0.8 0.8
tank capacity - lt. 42 42 42 42
temperature -°C 55-65 55-65 55-65 55-65
Washing cycle
height 450 450 450 450
depth 570 570 570 570
width 554 554 554 554
Cell dimensions - mm
height 1477 1477 1477 1477
depth 723 723 723 723
width 642 642 642 642
External dimensions - mm
Basket capacity/h 65 65 65 65
Dishes capacity/h 1170 1170 1170 1170
Duration cycles - sec. 55/90/300 55/90/300 55/90/300 55/90/300
Detergent dispenser ●
Rinse box ●
Rinse Booster Pump ● ● ●
Drain pump ● ● ● ●
Water softener ●
hardness - °f 7-14 7-14 <40 7-14
temperature - °C 50 50 50 50
Water supply
TECHNICAL DATA
WTU40PDP
503023
WTU40ADP
503024
WTU40ADPWS
503025
WTU40ADPD
503026
• Models have atmospheric boiler
combined with the rinse booster
pump for perfect rinsing
performances in terms of
sanitation and water temperature
and pressure always constant
during rinsing cycles, independent
from the water pressure on the
network.
CONSTRUCTION FEATURES
• Automatic boiler emptying
function.
• Fault auto-diagnosis system.
• Double skinned insulated walls.
• Counterbalanced door with
double stop door.
• All models finished in top quality
materials to aid durability.
• Completely closed on the rear
by a cover plate.
EASY ON THE ENVIRONMENT
• Meets the requirement of H for
safety.
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level <65 dBA.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Page 3
Electrolux Dishwashing
WTU40 - Utensil Washer
Internet: http://www.electrolux.com/foodservice
ICA0102010-09-17Subject to change without notice
XR - Connection for detergent dispenser ● ● ● ●
HWI - Hot water inlet G 3/4" G 3/4" G 3/4" G 3/4"
EI - Electrical connection 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50
D - Water drain 20.5 mm 20.5 mm 20.5 mm 20.5 mm
LEGEND
WTU40PDP
503023
WTU40ADP
503024
WTU40ADPWS
503025
WTU40ADPD
503026
503023, 503026, 503025, 503024
