Electrolux WT420 User Manual

REPAIR PARTS MANUAL

MODEL NO. WT420 (PWT420A) Wheeled Weed Trimmer

532 18 64-85 Rev. 1 06.18.03 BY Printed in U.S.A.

WEED TRIMMER - - MODEL NUMBER WT420 (PWT420A)

6

5

30

29

11

18

20

33

12

15

9

8

9

26

27

23

24

22

2

1

7

23

24

10

16

21

26

27

19

28

35

34

3

38

36

37

PRODUCT NUMBER 964 77 74-00

2

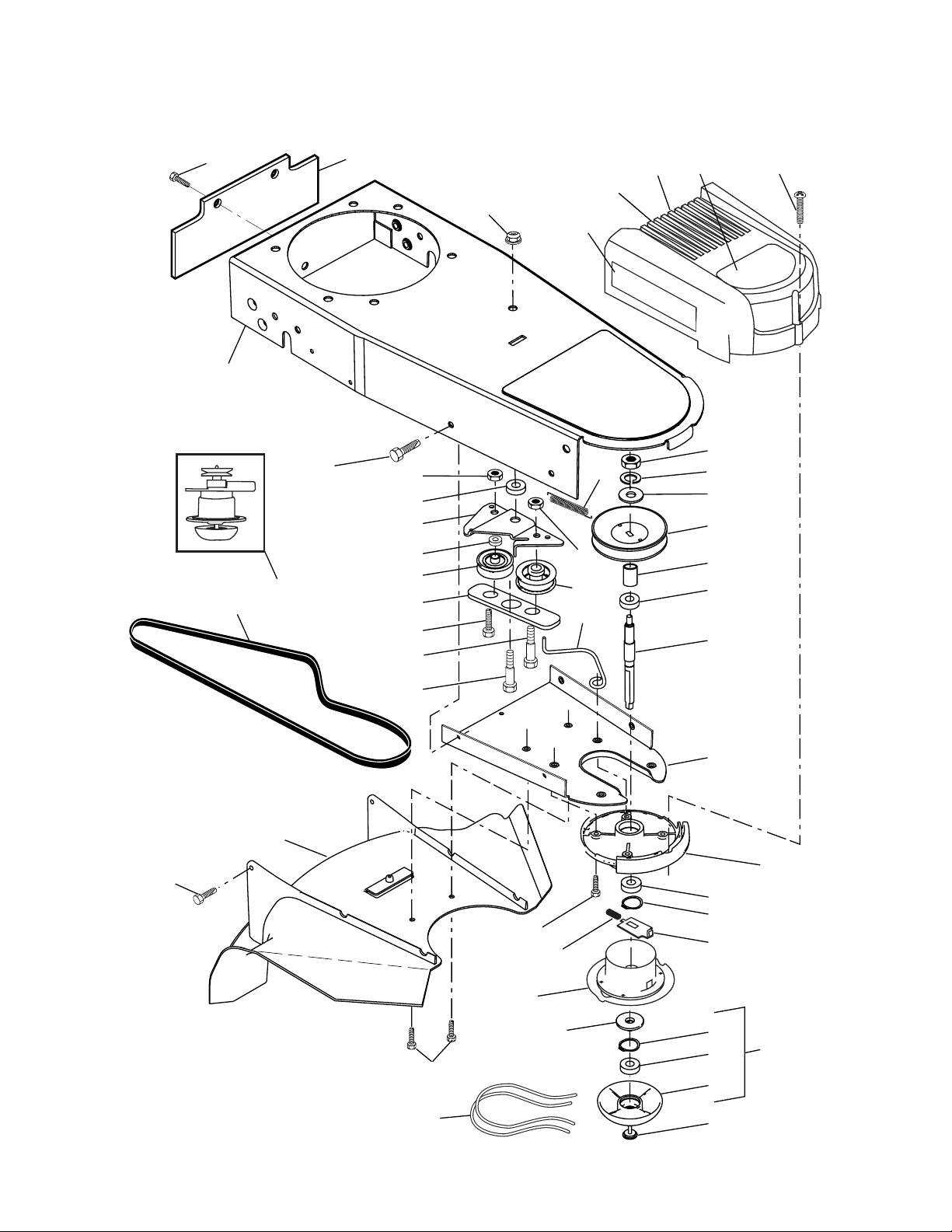

WEED TRIMMER - - MODEL NUMBER WT420 (PWT420A)

PRODUCT NUMBER 964 77 74-00

KEY PART NO. NO. DESCRIPTION

1 - - - Engine, Tecumseh, Model Number LEV120 (Order parts from Engine Manufacturer) 2 532 15 04-06 Bolt, Engine Mounting 3/8-16 3 532 17 94-66 Pulley, Engine (Includes Setscrew, Key #4) 5 532 18 17-01 Cover, Engine, with Screen 6 532 17 42-74 Knob, Engine Cover 7 532 17 40-30 Stud, Engine Cover 8 532 18 67-54 Handle, Lower 9 532 15 00-78 Screw, Hex Washer Head 5/16-18 x .75 10 532 18 67-55 Handle, Upper 11 532 17 09-80 Bolt, Handle 12 532 13 63-76 Knob, Handle 15 532 17 97-51 Handle Adjuster Assembly 16 532 17 95-85 Guide, Rope 18 532 06 64-26 Wire Tire 19 532 17 69-83 Control Bar 20 532 17 49-34 Throttle Control 21 532 15 87-55 Screw, Hex Washer Head 22 532 18 67-56 Axle Shaft Assembly 23 532 15 00-78 Screw, Hex Washer Head 5/16-18 x .75 24 532 05 21-60 Washer, Axle 26 532 17 02-58 Wheel, 14 x 2 27 532 08 39-23 Hex Flange Locknut 3/8-16 28 532 18 16-99 Drive Control Cable 29 532 17 40-34 Decal, Warning 30 532 17 83-03 Decal, Engine Cover 33 532 13 20-04 Nut 34 532 12 52-03 Bracket, Upstop 35 532 75 06-34 Screw, Thd. Roll. #10-24 x 5/8 36 532 85 10-84 Screw, Hex Head 3/8-24 x 1 37 532 85 02-63 Washer, Lock 38 532 85 10-74 Washer, Flat, Hardened

- - 532 18 74-78 Operator’s Manual, European

- - 532 18 74-79 Operator's Manual, Scandanivan

- - 532 18 64-85 Repair Parts Manual

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

3

WEED TRIMMER - - MODEL NUMBER WT420 (PWT420A)

PRODUCT NUMBER 964 77 74-00

52

1

4

40

17

51

8

12

5

41

6

45

10

7

14

43

11

9

19

42

15

20

44

21

22 23 24

25

26 27*

28

18

16

13

46

2

34

3

32

36

29

27 31

33

37 27

38

39

30*

35

4

WEED TRIMMER - - MODEL NUMBER WT420 (PWT420A)

PRODUCT NUMBER 964 77 74-00

KEY PART NO. NO. DESCRIPTION

1 532 18 67-60 Chassis Assembly

2 532 17 40-40 Line, Trimmer .155 diameter x 18.75 long 3 532 17 37-15 Screw, Self-Tapping 5/16-18 x 1 4 532 18 43-54 V-Belt 5 532 18 67-51 Bracket, Idler 6 532 16 60-42 Pulley, Idler, V-Groove 7 532 17 37-16 Bolt, Hex Head 3/8-16 x 1.25 8 532 75 15-92 Locknut, Hex 3/8-16 9 532 16 60-43 Pulley, Idler, Flat 10 532 16 08-29 Bolt, Shoulder 11 532 15 55-52 Locknut 5/16-18 12 532 17 37-17 Spacer 13 532 17 47-19 Bolt, Shoulder 14 532 14 52-12 Locknut, Flange 15 532 17 38-11 Spring, Return 16 532 18 02-68 Deﬂ ector, Bottom 17 532 05 78-08 Screw 1/4-20 x 1/2 18 532 17 88-48 Screw #10-24 x 3/4 19 532 18 73-36 Belt Keeper 20 532 17 83-90 Cover, Chassis, Top 21 532 14 97-46 Screw #10-24 x 1-3/4 22 873 80 06-00 Nut, Hex 3/8-24 UNF 23 810 04 06-00 Washer, Lock 3/8 24 532 05 17-85 Washer, Flat 3/8 25 532 18 03-40 Pulley, Driven 26 532 17 25-51 Spacer, Pulley 27 532 17 45-49 Bearing 28 532 17 25-20 Jackshaft 29 532 18 67-52 Cover, Chassis, Bottom 30 532 17 45-43 Spindle Housing Assembly (* Includes Upper Bearing, Key Number 27) 31 532 17 45-81 Ring, Retaining, External, 17mm 32 532 17 69-73 Spring, Locking Plate 33 532 17 25-19 Locking Plate 34 532 18 03-38 Carrier Plate Assembly 35 532 18 22-17 Mow Ball Assembly (Includes Key Numbers 27, 37 and 38) 36 532 17 25-16 Cover, Bearing 37 532 17 45-80 Ring, Retaining, Internal, 40mm 38 532 17 25-23 Mow Ball 39 532 18 03-34 Bolt, Mow Ball 40 532 18 03-33 Spindle Assembly, Complete (Includes Key Numbers 22-28 and 30-39) 41 532 17 40-29 Spacer 42 532 18 22-04 Decal, Safety 43 532 17 40-42 Decal, Instruction 44 532 17 82-16 Decal, Chassis Cover 45 532 18 67-53 Belt Keeper, Bottom 46 817 06 04-08 Screw, Self-Tapping 47 532 18 22-05 Decal, Instruction 51 532 17 98-75 Deﬂ ector, Rear 52 532 17 88-48 Screw

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

5

SERVICE NOTES

6

SERVICE NOTES

7

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we ﬁ nd to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine. Please refer to the applicable man u fac tur er's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by your dealer.

3. The Warranty period for any products used for rental or commercial purposes is limited to 45 days from the date of original purchase.

4. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in accordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

5. Exclusions: Excluded from this Warranty are belts, rotating lines, rotating line adapters, normal wear, normal adjustments, standard hardware and normal maintenance.

6. In case of any problem within the boundaries of this warranty, contact the nearest department store, indicate the model number, serial number and the date of purchase of your machine. This warranty does not apply to accidental damages. All implicit warranties are limited to the same time frames. Or contact:

E.M. Services 54 Rue Lambrechts 92400 Courbevoie France Telephone: (1) 46678078 Fax: (1) 46678095

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CON SE QUEN TIAL DAM AG ES. ANY IMPLIED WAR RAN TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN.
