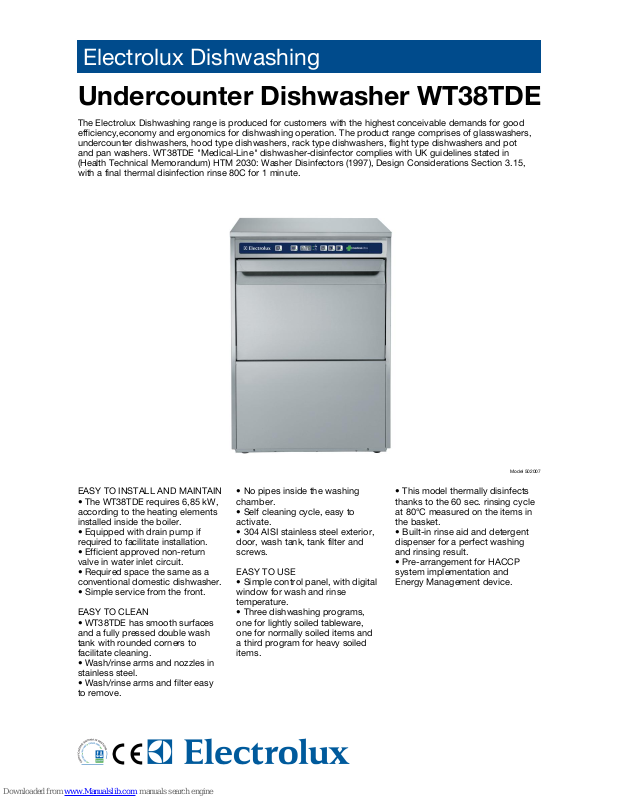

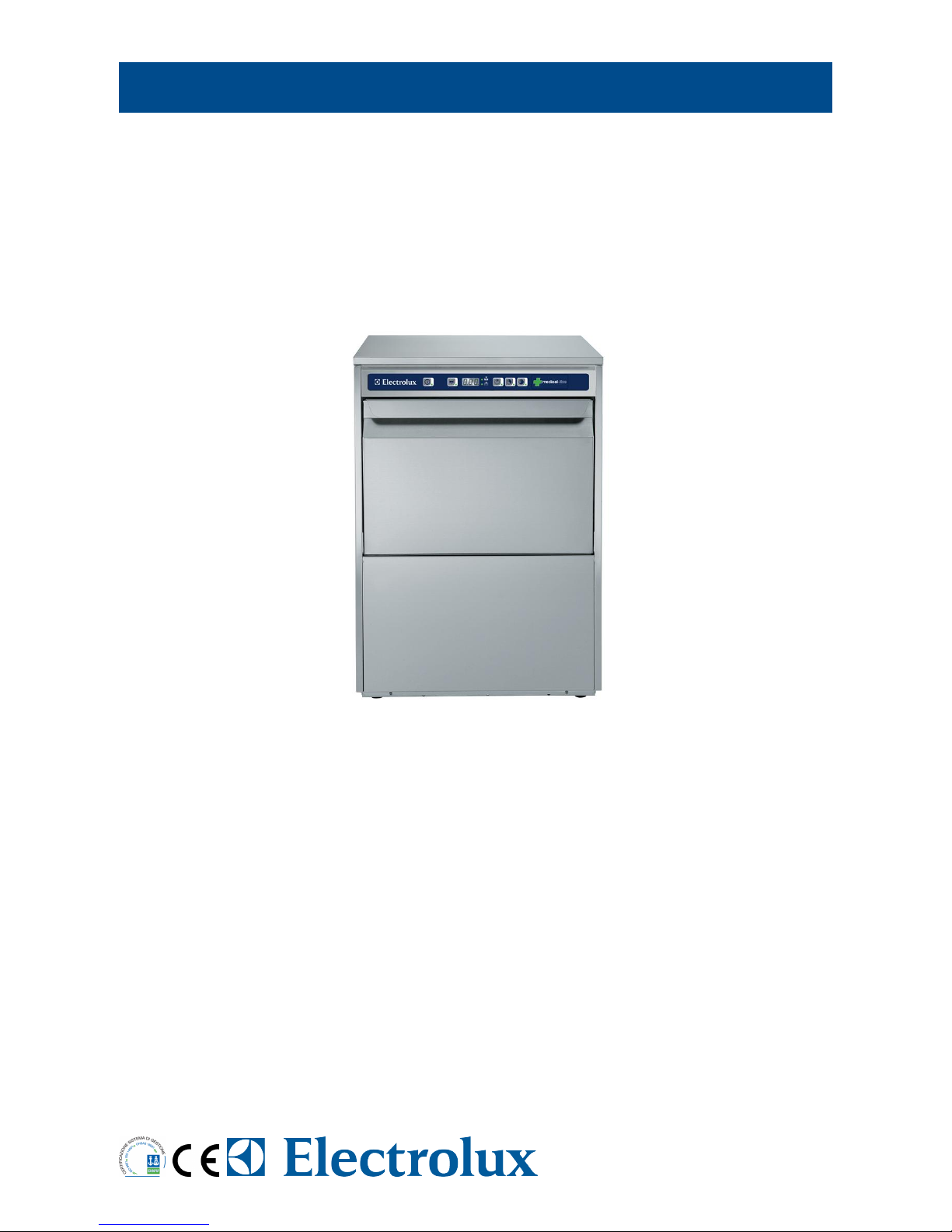

Electrolux Dishwashing
Undercounter Dishwasher WT38TDE
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency,economy and ergonomics for dishwashing operation. The product range comprises of glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. WT38TDE "Medical-Line" dishwasher-disinfector complies with UK guidelines stated in
(Health Technical Memorandum) HTM 2030: Washer Disinfectors (1997), Design Considerations Section 3.15,
with a final thermal disinfection rinse 80C for 1 minute.
Model 502007
EASY TO INSTALL AND MAINTAIN
• The WT38TDE requires 6,85 kW,
according to the heating elements
installed inside the boiler.
• Equipped with drain pump if
required to facilitate installation.
• Efficient approved non-return
valve in water inlet circuit.
• Required space the same as a
conventional domestic dishwasher.
• Simple service from the front.
EASY TO CLEAN
• WT38TDE has smooth surfaces
and a fully pressed double wash
tank with rounded corners to
facilitate cleaning.
• Wash/rinse arms and nozzles in
stainless steel.
• Wash/rinse arms and filter easy
to remove.
• No pipes inside the washing
chamber.
• Self cleaning cycle, easy to
activate.
• 304 AISI stainless steel exterior,
door, wash tank, tank filter and
screws.
EASY TO USE
• Simple control panel, with digital
window for wash and rinse
temperature.
• Three dishwashing programs,
one for lightly soiled tableware,
one for normally soiled items and
a third program for heavy soiled
items.
• This model thermally disinfects
thanks to the 60 sec. rinsing cycle
at 80°C measured on the items in
the basket.
• Built-in rinse aid and detergent
dispenser for a perfect washing
and rinsing result.
• Pre-arrangement for HACCP
system implementation and
Energy Management device.
Page 2
Electrolux Dishwashing
Undercounter Dishwasher WT38TDE
Internet: http://www.electrolux.com/foodservice
IBC0252009-07-04
STAND FOR UNDERCOUNTER DISHWASHER 860418
RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005
KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050
KIT 4 CASTORS F.DOUBLE SKINNED UNDERC.DW 864008
INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001
HACCP PRINTER KIT FOR UC, HT AND POTW 864002
FILTER FOR PARTIAL DEMINERALIZATION 864017
EXT.REVERSE OSMOSIS FILT-ATMOSPH. BOILER 864026
DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016
BASKET SEMI-PROFESSIONAL 500X500X190MM 867024
BASKET FOR WINE GLASSES 500X500X246 867019
BASKET FOR 5 TRAYS 530X325MM-RED 867006
8 L EXTERNAL AUTOMATIC WATER SOFTENER 860413
12 L EXTERNAL MANUAL WATER SOFTENER 860412
ACCESSORIES
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 1
BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 1
BASKET FOR 12 SOUP BOWLS 240MM-GREEN 1
INCLUDED ACCESSORIES
Net weight - kg. 68
total power 6.85
Rinse pump 0.26
drain pump 0.034
Power - kW
Boiler elements - kW 6
Boiler capacity - lt. 12
water consumption - lt./cycle 7.5
temperature during rinse - °C 92
duration - sec. 35
Hot rinse cycle
electrical elements - kW 2.2
power pump - kW 0.736
tank capacity - lt. 23
temperature -°C 55-65
Washing cycle
height 335
depth 500
width 500
Cell dimensions - mm
height 850
depth 612
width 600
External dimensions - mm
Basket capacity/h 10
Dishes capacity/h 180
N° of cycles 3
Rinse Booster Pump ●
Drain pump ●
Thermometer ●
hardness - °f 7-14
temperature - °C 65
Water supply
TECHNICAL DATA
WT38TDE
502007
• Atmospheric boiler combined
with the rinse booster pump for
perfect rinsing performances in
terms of sanitation, energy saving
(water temperature always
constant during rinsing cycles),
independence from the water
pressure on the network.
• Thermal lock on dishwasher
door - to prevent it being opened
during the wash and rinse cycles.
• Verification check point - for
on-site inspectors to carry out "on
the spot" inspections via front of
machine.
• Solenoid valve resistant to 65°C.
Complete cycles set at: 1st = 360
sec, 2nd = 540 sec, 3rd = 660 sec.
CONSTRUCTION FEATURES
• Automatic boiler emptying
function.
• Fault auto-diagnosis system.
• Double skinned insulated walls.
• Counterbalanced door.
• All models finished in top quality
materials to aid durability.
• Completely closed on the
reverse by a cover plate.
EASY ON THE ENVIRONMENT
• Meets the requirement of CE for
safety.
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level <63 dBA.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
• Complies with WRAS water
guidelines.
Page 3
Electrolux Dishwashing
Undercounter Dishwasher WT38TDE
Internet: http://www.electrolux.com/foodservice
IBC0252009-07-04

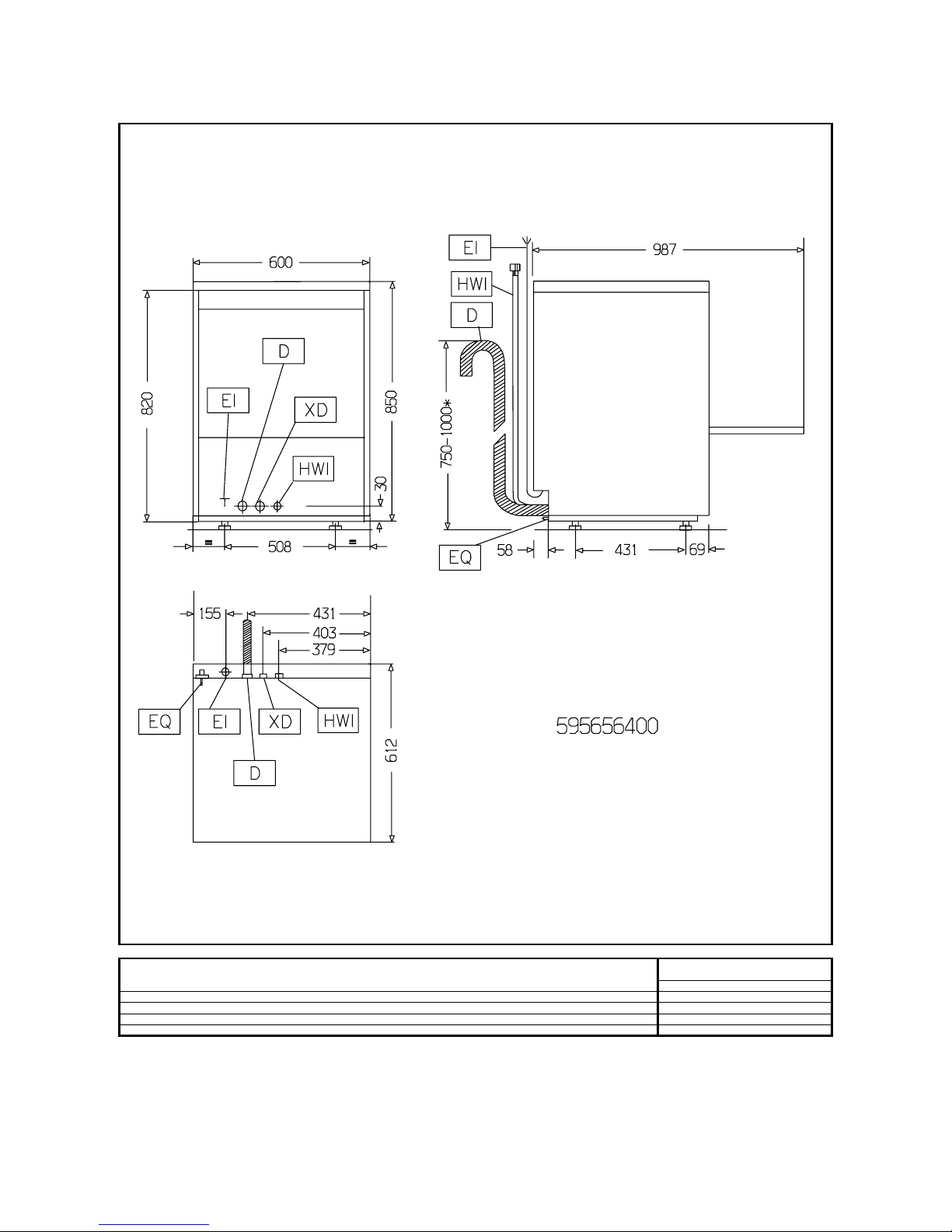

XR - Connection for detergent dispenser ●
HWI - Hot water inlet G 3/4"
EI - Electrical connection 400 V, 3N, 50
D - Water drain 20.5mm
LEGEND
WT38TDE
502007
