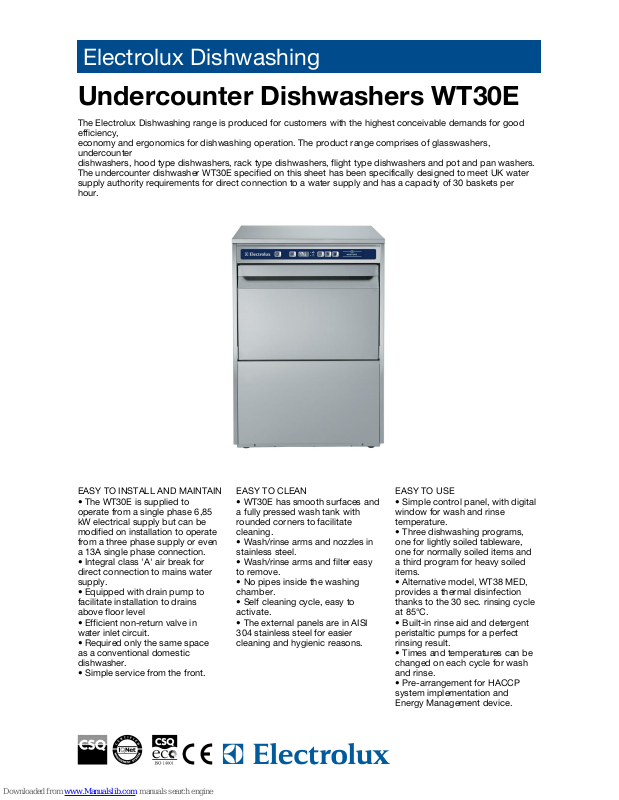

Page 1
Electrolux Dishwashing
Undercounter Dishwashers WT30E
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency,
economy and ergonomics for dishwashing operation. The product range comprises of glasswashers,
undercounter
dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot and pan washers.
The undercounter dishwasher WT30E specified on this sheet has been specifically designed to meet UK water
supply authority requirements for direct connection to a water supply and has a capacity of 30 baskets per
hour.
EASY TO INSTALL AND MAINTAIN
• The WT30E is supplied to
operate from a single phase 6,85
kW electrical supply but can be
modified on installation to operate
from a three phase supply or even
a 13A single phase connection.
• Integral class 'A' air break for
direct connection to mains water
supply.
• Equipped with drain pump to
facilitate installation to drains
above floor level
• Efficient non-return valve in
water inlet circuit.
• Required only the same space
as a conventional domestic
dishwasher.
• Simple service from the front.
EASY TO CLEAN
• WT30E has smooth surfaces and
a fully pressed wash tank with
rounded corners to facilitate
cleaning.
• Wash/rinse arms and nozzles in
stainless steel.
• Wash/rinse arms and filter easy
to remove.
• No pipes inside the washing
chamber.
• Self cleaning cycle, easy to
activate.
• The external panels are in AISI
304 stainless steel for easier
cleaning and hygienic reasons.
EASY TO USE
• Simple control panel, with digital
window for wash and rinse
temperature.
• Three dishwashing programs,
one for lightly soiled tableware,
one for normally soiled items and
a third program for heavy soiled
items.
• Alternative model, WT38 MED,
provides a thermal disinfection
thanks to the 30 sec. rinsing cycle
at 85°C.
• Built-in rinse aid and detergent
peristaltic pumps for a perfect
rinsing result.
• Times and temperatures can be
changed on each cycle for wash
and rinse.
• Pre-arrangement for HACCP
system implementation and
Energy Management device.
Page 2
Electrolux Dishwashing
Undercounter Dishwashers WT30E
Internet: http://www.electrolux.com/foodservice
IBC0302007-05-02
WIRE BASKET FOR 12 PLATES UP TO 320 MM 867014 867014
STAND FOR UNDERCOUNTER DISHWASHER 860418 860418
RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005 864005
KIT 4 CASTORS F.DOUBLE SKINNED UNDERC.DW 864008 864008
INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001 864001
HACCP PRINTER KIT FOR UC, HT AND POTW 864002 864002
DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004 864004
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016
BRASS INLET VALVE KIT FOR UC AND HT 864000 864000
BASKET FOR 5 TRAYS 530X325MM-RED 867006 867006
8 L EXTERNAL AUTOMATIC WATER SOFTENER 860413 860413
12 L EXTERNAL MANUAL WATER SOFTENER 860412 860412
*NOT TRANSLATED* 922166 922166
*NOT TRANSLATED* 867024 867024
*NOT TRANSLATED* 867019 867019
*NOT TRANSLATED* 864050 864050
*NOT TRANSLATED* 864026 864026
*NOT TRANSLATED* 864017 864017
*NOT TRANSLATED* 864015 864015
ACCESSORIES
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 1 1
BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 1 1
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 1 1
INCLUDED ACCESSORIES
Net weight - kg. 68 68
total power 6.85 6.85
Rinse pump 0.26 0.26
drain pump 0.034 0.034
Power - kW
Boiler elements - kW 6 6
Boiler capacity - lt. 12 12
water consumption - lt./cycle 3.8 3.8
temperature during rinse - °C 84 84
duration - sec. 16 16
Hot rinse cycle
electrical elements - kW 2.2 2
power pump - kW 0.736 0.736
tank capacity - lt. 23 23
temperature -°C 55-65 55-65
Washing cycle
height 335 335
depth 500 500
width 500 500
Cell dimensions - mm
height 850 850
depth 612 612
width 600 600
External dimensions - mm
Basket capacity/h 40 40
Dishes capacity/h 720 720
Duration cycles - sec. 90/120/240 90/120/240
N° of cycles 3 3
Rinse Booster Pump ● ●
Drain pump ● ●
Thermometer ● ●
hardness - °f 7-14 7-14
temperature - °C 50 50
Water supply
TECHNICAL DATA
WT30EBDD
502110
WT30EBDW
502217
• Atmospheric boiler combined
with the rinse booster pump for
perfect rinsing performances in
terms of sanitation, energy saving
(water temperature always
constant during rinsing cycles),
independence from the water
pressure on the network. A
thermal lock device automatically
extends the wash until a
temperature of 84°C is reached for
rinsing.
CONSTRUCTION FEATURES
• Automatic boiler emptying
function.
• Fault auto-diagnosis system.
• Meets the requirement of H for
safety.
• Double skinned construction.
• Counterbalanced door.
• All models finished in top quality
materials to aid durability.
• Completely closed on the
reverse by a cover plate.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level <65 dBA.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Page 3
Electrolux Dishwashing
Undercounter Dishwashers WT30E
Internet: http://www.electrolux.com/foodservice
IBC0302007-05-02
XR - Connection for detergent dispenser ● ●
HWI - Hot water inlet G 3/4" G 3/4"
EI - Electrical connection 400 V, 3N, 50 230 V, 1N, 50
D - Water drain 20.5mm 20.5mm
LEGEND
WT30EBDD
502110
WT30EBDW
502217
502110, 502217
