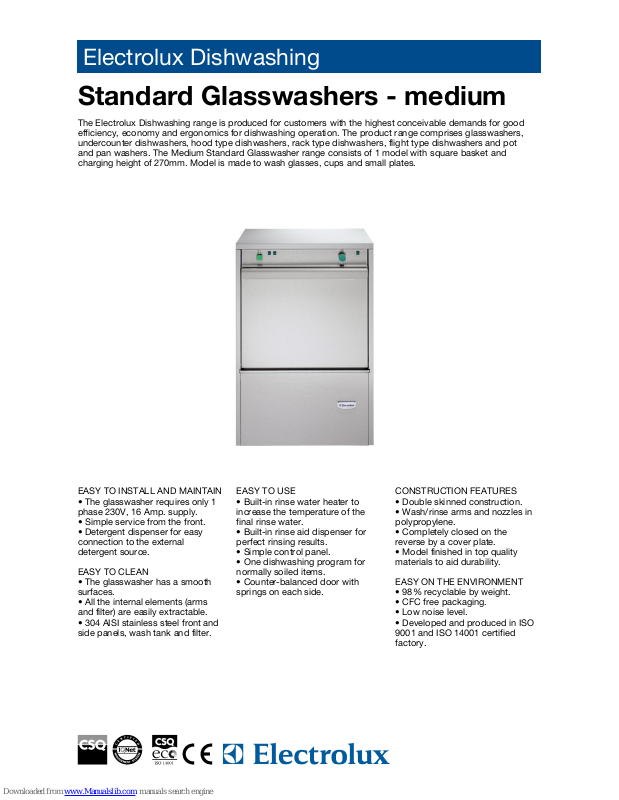

Page 1
Electrolux Dishwashing
Standard Glasswashers - medium
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The Medium Standard Glasswasher range consists of 1 model with square basket and
charging height of 270mm. Model is made to wash glasses, cups and small plates.
EASY TO INSTALL AND MAINTAIN
• The glasswasher requires only 1
phase 230V, 16 Amp. supply.
• Simple service from the front.
• Detergent dispenser for easy
connection to the external
detergent source.
EASY TO CLEAN
• The glasswasher has a smooth
surfaces.
• All the internal elements (arms
and filter) are easily extractable.
• 304 AISI stainless steel front and
side panels, wash tank and filter.
EASY TO USE
• Built-in rinse water heater to
increase the temperature of the
final rinse water.
• Built-in rinse aid dispenser for
perfect rinsing results.
• Simple control panel.
• One dishwashing program for
normally soiled items.
• Counter-balanced door with
springs on each side.
CONSTRUCTION FEATURES
• Double skinned construction.
• Wash/rinse arms and nozzles in
polypropylene.
• Completely closed on the
reverse by a cover plate.
• Model finished in top quality
materials to aid durability.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Page 2
Electrolux Dishwashing
Standard Glasswashers - medium
Internet: http://www.electrolux.com/foodservice
IAC00202009-07-24Subject to change without notice
SQUARE BASKET 400X400 MM-INCLINED BOTTOM 860150
SQUARE BASKET 400X400 MM (H. 180 MM) 860149
SQUARE BASKET 400X400 MM (H. 120 MM) 860139
S/S STAND FOR GW WITH BASKET 400X400MM 860154
ACCESSORIES
SQ. BASKET 400X400MM INCL.BOTTOM H=120MM 1
RECT.CUTLERY HOLDER(55X130X100H)-2 COMP. 1
INCLUDED ACCESSORIES
Net weight - kg. 42
total power 2.6
Power - kW
Boiler elements - kW 2.4
Boiler capacity - lt. 3.25
water consumption - lt./cycle 2
temperature during rinse - °C 80-90
duration - sec. 15
Hot rinse cycle
electrical elements - kW 2
power pump - kW 0.55
tank capacity - lt. 12
temperature -°C 55-65
Washing cycle
height 270
Cell dimensions - mm
height 745
depth 512
width 510
External dimensions - mm
Basket capacity/h 30
Duration cycles - sec. 120
N° of cycles 1
Detergent dispenser ●
hardness - °d 4-8
hardness - °f 7-14
temperature - °C 10
pressure min. , max. - bar 2, 4
Water supply
TECHNICAL DATA
WT2QD
727042
Page 3
Electrolux Dishwashing
Standard Glasswashers - medium
Internet: http://www.electrolux.com/foodservice
IAC00202009-07-24Subject to change without notice
EI - Electrical connection 230 V, 1N, 50
D - Water drain 25mm
CWI - Cold water inlet G 3/4"
LEGEND
WT2QD
727042
727042
