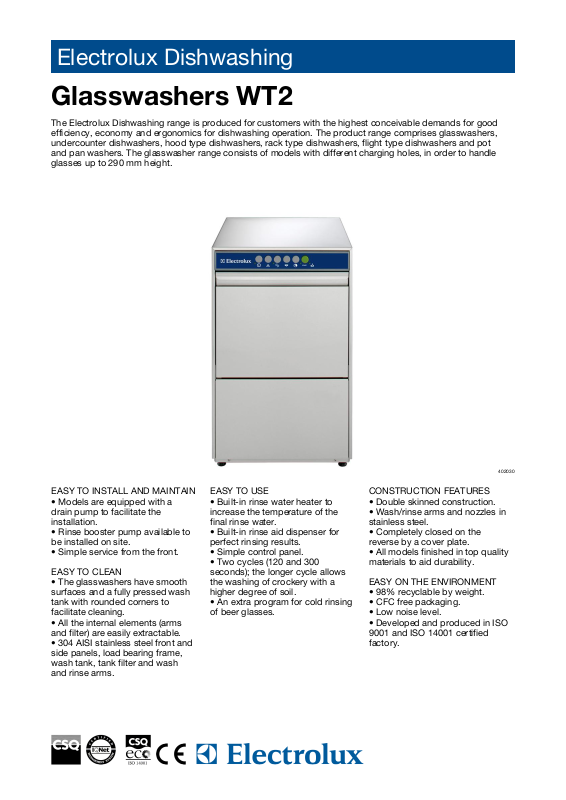

Electrolux Dishwashing
Glasswashers WT2
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The glasswasher range consists of models with different charging holes, in order to handle
glasses up to 290 mm height.
EASY TO INSTALL AND MAINTAIN
• Models are equipped with a
drain pump to facilitate the
installation.
• Rinse booster pump available to
be installed on site.
• Simple service from the front.
EASY TO CLEAN
• The glasswashers have smooth
surfaces and a fully pressed wash
tank with rounded corners to
facilitate cleaning.
• All the internal elements (arms
and filter) are easily extractable.
• 304 AISI stainless steel front and
side panels, load bearing frame,
wash tank, tank filter and wash
and rinse arms.
EASY TO USE
• Built-in rinse water heater to
increase the temperature of the
final rinse water.
• Built-in rinse aid dispenser for
perfect rinsing results.
• Simple control panel.
• Two cycles (120 and 300
seconds); the longer cycle allows
the washing of crockery with a
higher degree of soil.
• An extra program for cold rinsing
of beer glasses.
402030
CONSTRUCTION FEATURES
• Double skinned construction.
• Wash/rinse arms and nozzles in
stainless steel.
• Completely closed on the
reverse by a cover plate.
• All models finished in top quality
materials to aid durability.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Electrolux Dishwashing
Glasswashers WT2
WT2
402061
TECHNICAL DATA
Water supply
pressure min. , max. - bar 2, 3 2, 3 2, 3 2, 3 2, 3 2, 3 2, 3 2, 3
temperature - °C 10 10 10 10 10 10 10 10
hardness - °f 7-14 >14 7-14 >14 >14 >14 >14 7-14
hardness - °d 4-8 >8 4-8 >8 >8 >8 >8 4-8
Cold rinse ● ● ● ● ● ● ● ●
Water softener ● ● ● ● ●
Drain pump ● ● ● ● ● ●
Rinse Booster Pump ● ●
Detergent dispenser ● ●
N° of cycles 2 2 2 2 2 2 2 2
Duration cycles - sec. 120/300 120/300 120/300 120/300 120/300 120/300 120/300 120/300
Basket capacity/h 30 30 30 30 30 30 30 30
External dimensions - mm
width 460 460 460 460 460 460 460 460
depth 565 565 565 565 565 565 565 565
height 715 715 715 715 715 715 715 715
Cell dimensions - mm
width 400 400 400 400 400 400 400 400
depth 400 400 400 400 400 400 400 400
height 290 290 290 290 290 290 290 290
Washing cycle
temperature -°C 55-65 55-65 55-65 55-65 55-65 55-65 55-65 55-65
tank capacity - lt. 6 6 6 6 6 6 6 6
power pump - kW 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
electrical elements - kW 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Cold rinse cycle
duration - sec. 10 10 10 10 10 10 10 10
temperature - °C 10 10 10 10 10 10 10 10
water consumption - lt./cycle 2 2 2 2 2 2 2 2
Hot rinse cycle
duration - sec. 16 16 16 16 16 16 16 16
temperature during rinse - °C 80-90 80-90 80-90 80-90 80-90 80-90 80-90 80-90
water consumption - lt./cycle 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3
Boiler capacity - lt. 5 5 5 5 5 5 5 5
Boiler elements - kW 3 3 4.5 3 3 3 3 4.5
Power - kW
drain pump 0.034 0.034 0.034 0.034 0.034 0.034
total power 3.3 3.3 4.8 3.3 3.3 3.3 3.3 4.8
Net weight - kg. 37 37 37 37 37 37 37 37
INCLUDED ACCESSORIES
BASKET FOR GLASSES-395X395X200
MM
ACCESSORIES
BASKET F.GLASSES-ANGLED
BASE-395X395X200
BASKET FOR 16/8 PLATES DIAM.190/240MM867052 867052 867052 867052 867052 867052 867052 867052
1 1 1 1 1 1 1 1
867056 867056 867056 867056 867056 867056 867056 867056
WT2N
402035
WT2N4
402047
WT2TOP
402044
WT2TOP60
402015
WT2WSDP
402030
WT2WSDPD
402032
WT2DPD3
402067
IAB0102009-06-19Subject to change without notice
BASKET FOR
GLASSES+SAUCERS/CUTLERY INS.
BASKET FOR GLASSES-395X395X100
MM
BASKET FOR GLASSES-395X395X200
MM
COVER GRID FOR SMALL/LIGHT ITEMS
IN RACK
FILTER FOR PARTIAL
DEMINERALIZATION
FILTER FOR TOTAL DEMINERALIZATION 864015 864015 864015 864015 864015
INCLINED INSERT FOR CUPS 867061 867061 867061 867061 867061 867061 867061 867061
INSERT FOR 14 SAUCERS 867060 867060 867060 867060 867060 867060 867060 867060
INSERT FOR 7 PLATES DIAM. 240 MM 867062 867062 867062 867062 867062 867062 867062 867062
INSERT FOR"FLUTE"GLASSES 867058 867058 867058 867058 867058 867058 867058 867058
KIT 4 PLASTIC BOXES FOR
CUTLERY-YELLOW
KIT TO MEASURE TOTAL/PART.WATER
HARDNESS
RINSE BOOSTER PUMP KIT 867063 867063 867063 867063 867063 867063
ROUND BASKET KIT WITH SQUARE
FRAME
YELLOW CUTLERY CONTAINER 864242 864242 864242 864242 864242 864242 864242 864242
867055 867055 867055 867055 867055 867055 867055 867055
867053 867053 867053
867054 867054 867054 867054 867054 867054 867054 867054
867016 867016 867016 867016 867016 867016 867016 867016
864017 864017 864017 864017 864017
865574 865574 865574
864050 864050 864050 864050 864050 864050 864050 864050
867057 867057 867057 867057 867057 867057 867057 867057
Internet: http://www.electrolux.com/foodservice
