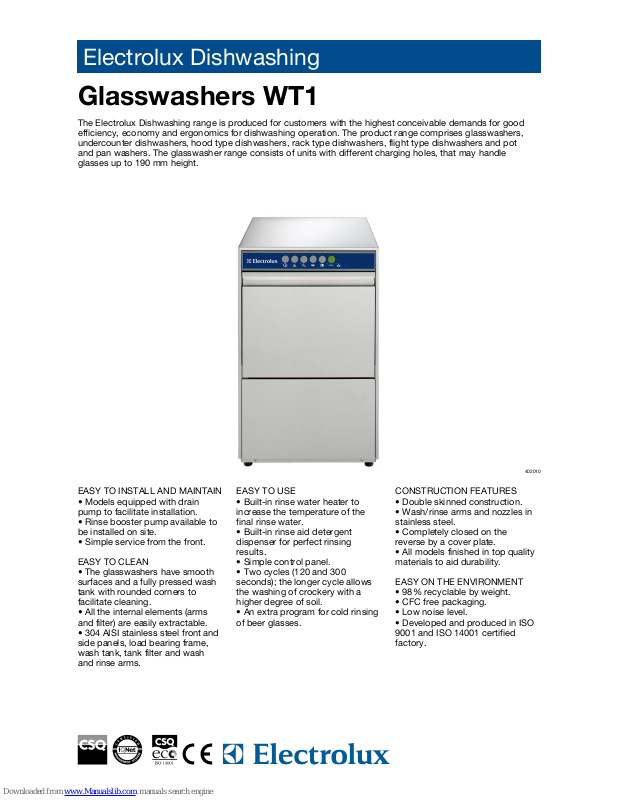

Page 1
Electrolux Dishwashing
Glasswashers WT1
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The glasswasher range consists of units with different charging holes, that may handle
glasses up to 190 mm height.
402010
EASY TO INSTALL AND MAINTAIN
• Models equipped with drain
pump to facilitate installation.
• Rinse booster pump available to
be installed on site.
• Simple service from the front.
EASY TO CLEAN
• The glasswashers have smooth
surfaces and a fully pressed wash
tank with rounded corners to
facilitate cleaning.
• All the internal elements (arms
and filter) are easily extractable.
• 304 AISI stainless steel front and
side panels, load bearing frame,
wash tank, tank filter and wash
and rinse arms.
EASY TO USE
• Built-in rinse water heater to
increase the temperature of the
final rinse water.
• Built-in rinse aid detergent
dispenser for perfect rinsing
results.
• Simple control panel.
• Two cycles (120 and 300
seconds); the longer cycle allows
the washing of crockery with a
higher degree of soil.
• An extra program for cold rinsing
of beer glasses.
CONSTRUCTION FEATURES
• Double skinned construction.
• Wash/rinse arms and nozzles in
stainless steel.
• Completely closed on the
reverse by a cover plate.
• All models finished in top quality
materials to aid durability.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Page 2
Electrolux Dishwashing
Glasswashers WT1
Internet: http://www.electrolux.com/foodservice
IAA0102011-04-12Subject to change without notice
YELLOW CUTLERY CONTAINER 864242 864242 864242 864242 864242
ROUND BASKET KIT WITH SQUARE FRAME 867057 867057 867057 867057 867057
RINSE BOOSTER PUMP-SING.TANK PRESSURE DW 864051 864051 864051 864051
KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050 864050 864050 864050 864050
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574 865574 865574 865574
INSERT FOR"FLUTE"GLASSES 867058 867058 867058 867058 867058
INSERT FOR 14 SAUCERS 867060 867060 867060 867060 867060
INCLINED INSERT FOR CUPS 867061 867061 867061 867061 867061
FILTER FOR TOTAL DEMINERALIZATION 864015 864015 864015
FILTER FOR PARTIAL DEMINERALIZATION 864017 864017 864017
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016 867016
BASKET FOR GLASSES-395X395X200 MM 867054 867054 867054 867054 867054
BASKET FOR GLASSES-395X395X100 MM 867053 867053 867053 867053 867053
BASKET FOR GLASSES+SAUCERS/CUTLERY INS. 867055 867055 867055 867055 867055
BASKET F.GLASSES-ANGLED BASE-395X395X200 867056 867056 867056 867056 867056
ACCESSORIES
YELLOW CUTLERY CONTAINER 1
INSERT FOR 14 SAUCERS 1
BASKET FOR GLASSES-395X395X100 MM 1
BASKET FOR GLASSES+SAUCERS/CUTLERY INS. 1 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 34 34 34 34 34
total power 3.3 3.3 3.3 3.3 4.8
drain pump 0.034 0.034 0.034
Power - kW
Boiler elements - kW 3 3 3 3 4.5
Boiler capacity - lt. 5 5 5 5 5
water consumption - lt./cycle 2.3 2.3 2.3 2.3 2.3
temperature during rinse - °C 80-90 80-90 80-90 80-90 80-90
duration - sec. 16 16 16 16 16
Hot rinse cycle
water consumption - lt./cycle 2 2 2 2 2
temperature - °C 10 10 10 10 10
duration - sec. 10 10 10 10 10
Cold rinse cycle
electrical elements - kW 0.8 0.8 0.8 0.8 0.8
power pump - kW 0.3 0.3 0.3 0.3 0.3
tank capacity - lt. 6 6 6 6 6
temperature -°C 55-65 55-65 55-65 55-65 55-65
Washing cycle
height 210 210 210 210 210
depth 400 400 400 400 400
width 400 400 400 400 400
Cell dimensions - mm
height 635 635 635 635 635
depth 565 565 565 565 565
width 460 460 460 460 460
External dimensions - mm
Basket capacity/h 30 30 30 30 30
Duration cycles - sec. 120/300 120/300 120/300 120/300 120/300
N° of cycles 2 2 2 2 2
Rinse Booster Pump ●
Drain pump ● ● ●
Water softener ● ● ●
Cold rinse ● ● ● ● ●
hardness - °d 4-8 >8 >8 >8 4-8
hardness - °f 7-14 >14 >14 >14 7-14
temperature - °C 10 10 10 10 10
pressure min. , max. - bar 2, 3 2, 3 2, 3 2, 3 2, 3
Water supply
TECHNICAL DATA
WT1N
402041
WT1
402010
WT1WS
402042
WT1TOP
402043
WT1N4
402046
Page 3
Electrolux Dishwashing
Glasswashers WT1
Internet: http://www.electrolux.com/foodservice
IAA0102011-04-12Subject to change without notice
EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50
D - Water drain 22mm 22mm
CWI - Cold water inlet G 3/4" G 3/4"
LEGEND
WT1N
402041
WT1WS
402042
402041, 402042
Page 4
Electrolux Dishwashing
Glasswashers WT1
Internet: http://www.electrolux.com/foodservice
IAA0102011-04-12Subject to change without notice
EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 400 V, 3N, 50
D - Water drain 27mm 27mm 27mm
CWI - Cold water inlet G 3/4" G 3/4" G 3/4"
LEGEND
WT1
402010
WT1TOP
402043
WT1N4
402046
402010, 402046, 402043
