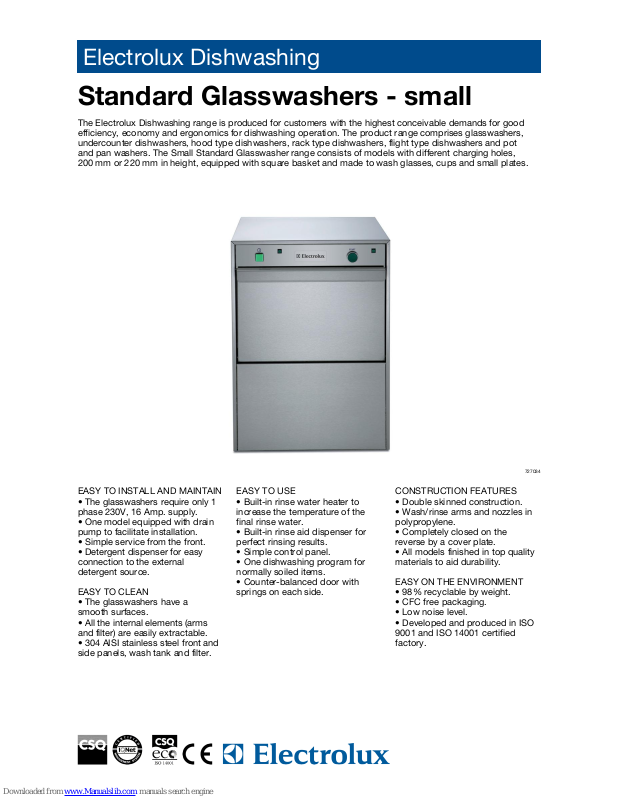

Electrolux Dishwashing
Standard Glasswashers - small
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The Small Standard Glasswasher range consists of models with different charging holes,
200 mm or 220 mm in height, equipped with square basket and made to wash glasses, cups and small plates.
727034
EASY TO INSTALL AND MAINTAIN
• The glasswashers require only 1
phase 230V, 16 Amp. supply.
• One model equipped with drain
pump to facilitate installation.
• Simple service from the front.
• Detergent dispenser for easy
connection to the external
detergent source.
EASY TO CLEAN
• The glasswashers have a
smooth surfaces.
• All the internal elements (arms
and filter) are easily extractable.
• 304 AISI stainless steel front and
side panels, wash tank and filter.
EASY TO USE
• Built-in rinse water heater to
increase the temperature of the
final rinse water.
• Built-in rinse aid dispenser for
perfect rinsing results.
• Simple control panel.
• One dishwashing program for
normally soiled items.
• Counter-balanced door with
springs on each side.
CONSTRUCTION FEATURES
• Double skinned construction.
• Wash/rinse arms and nozzles in
polypropylene.
• Completely closed on the
reverse by a cover plate.
• All models finished in top quality
materials to aid durability.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Low noise level.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
Page 2
Electrolux Dishwashing
Standard Glasswashers - small
Internet: http://www.electrolux.com/foodservice
IAC00102010-05-28Subject to change without notice
SQUARE BASKET 350X350 MM-INCLINED BOTTOM 860148 860148 860148 860148
SQUARE BASKET 350X350 MM (H. 180 MM) 860147 860147 860147 860147
SQUARE BASKET 350X350 MM (H. 120 MM) 860138 860138 860138 860138
SQ. BASKET 350X350MM INCL.BOTTOM H=120MM 860151 860151 860151 860151
S/S STAND FOR GW WITH BASKET 350X350MM 860153 860153 860153
RECT.CUTLERY HOLDER(55X130X100H)-2 COMP. 860140 860140 860140 860140
ACCESSORIES
SQUARE BASKET 350X350 MM (H. 120 MM) 1 1
SQ. BASKET 350X350MM INCL.BOTTOM H=120MM 1 1
RECT.CUTLERY HOLDER(55X130X100H)-2 COMP. 1 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 32 36 36 36
total power 2.5 2.6 2.6 2.6
drain pump 0.034
Power - kW
Boiler elements - kW 2.4 2.4 2.4 2.4
Boiler capacity - lt. 2.5 3.25 3.25 3.25
water consumption - lt./cycle 2 2 2 2
temperature during rinse - °C 80-90 80-90 80-90 80-90
duration - sec. 15 15 15 15
Hot rinse cycle
electrical elements - kW 2 2 2 2
power pump - kW 0.08 0.2 0.2 0.2
tank capacity - lt. 8 9.5 9.5 9.5
temperature -°C 55-65 55-65 55-65 55-65
Washing cycle
height 200 220 220 220
Cell dimensions - mm
height 600 670 670 670
depth 470 467 467 467
width 435 460 460 460
External dimensions - mm
Basket capacity/h 30 30 30 30
Duration cycles - sec. 120 120 120 120
N° of cycles 1 1 1 1
Detergent dispenser ● ●
Drain pump ●
hardness - °d 4-8 4-8 4-8 4-8
hardness - °f 7-14 7-14 7-14 7-14
temperature - °C 10 10 10 10
pressure min. , max. - bar 2, 4 2, 4 2, 4 2, 4
Water supply
TECHNICAL DATA
WT1CQ
727034
WT1Q
727038
WT1QD
727039
WT1QDD
727040
Page 3
Electrolux Dishwashing
Standard Glasswashers - small
Internet: http://www.electrolux.com/foodservice
IAC00102010-05-28Subject to change without notice
EI - Electrical connection 230 V, 1N, 50
D - Water drain 25mm
CWI - Cold water inlet G 3/4"
LEGEND
WT1CQ
727034
727034
Page 4
Electrolux Dishwashing
Standard Glasswashers - small
Internet: http://www.electrolux.com/foodservice
IAC00102010-05-28Subject to change without notice

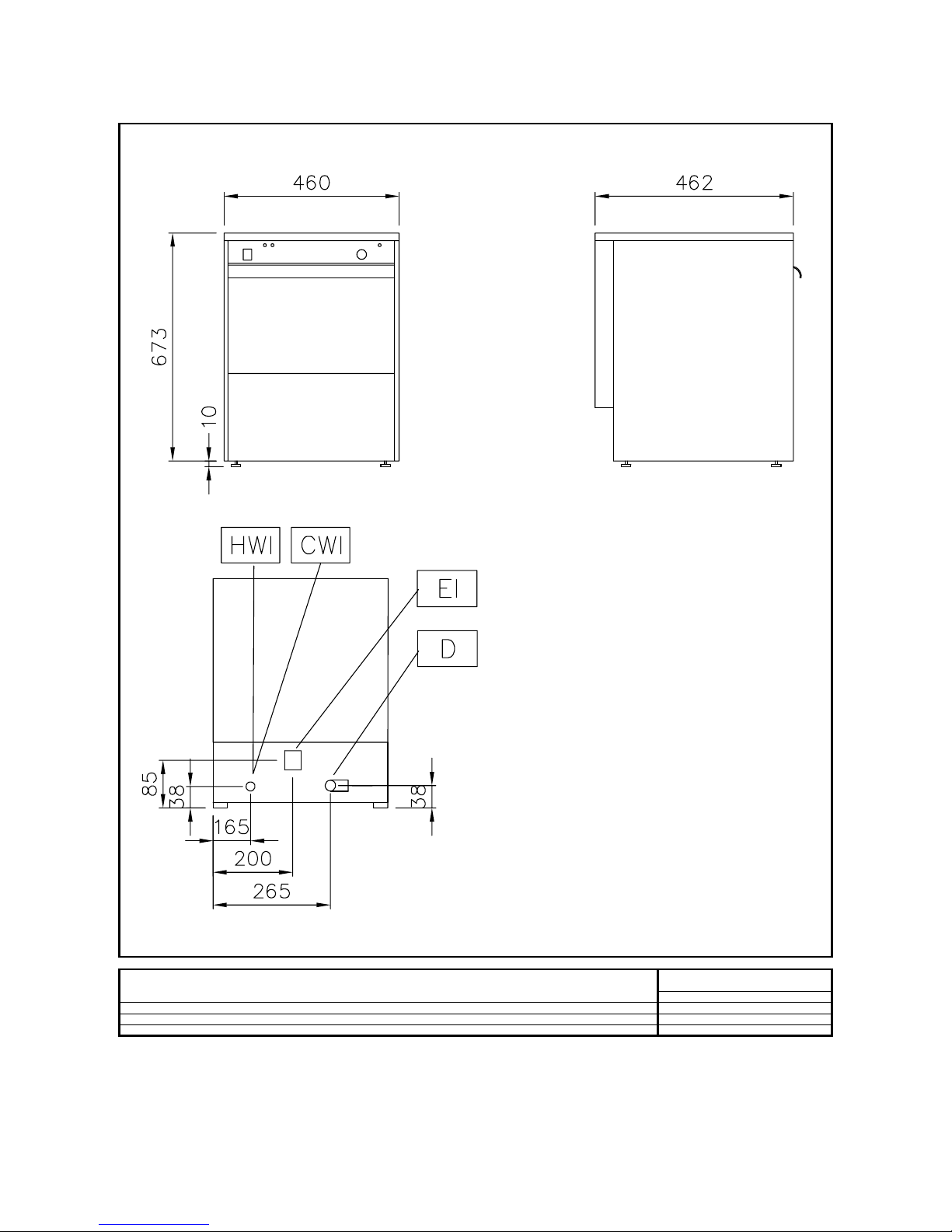

EI - Electrical connection 230 V, 1N, 50
D - Water drain 25mm
CWI - Cold water inlet G 3/4"
LEGEND
WT1Q
727038
727038
Page 5
Electrolux Dishwashing
Standard Glasswashers - small
Internet: http://www.electrolux.com/foodservice
IAC00102010-05-28Subject to change without notice
EI - Electrical connection 230 V, 1N, 50
D - Water drain 25mm
CWI - Cold water inlet G 3/4"
LEGEND
WT1QD
727039
727039
Page 6
Electrolux Dishwashing
Standard Glasswashers - small
Internet: http://www.electrolux.com/foodservice
IAC00102010-05-28Subject to change without notice

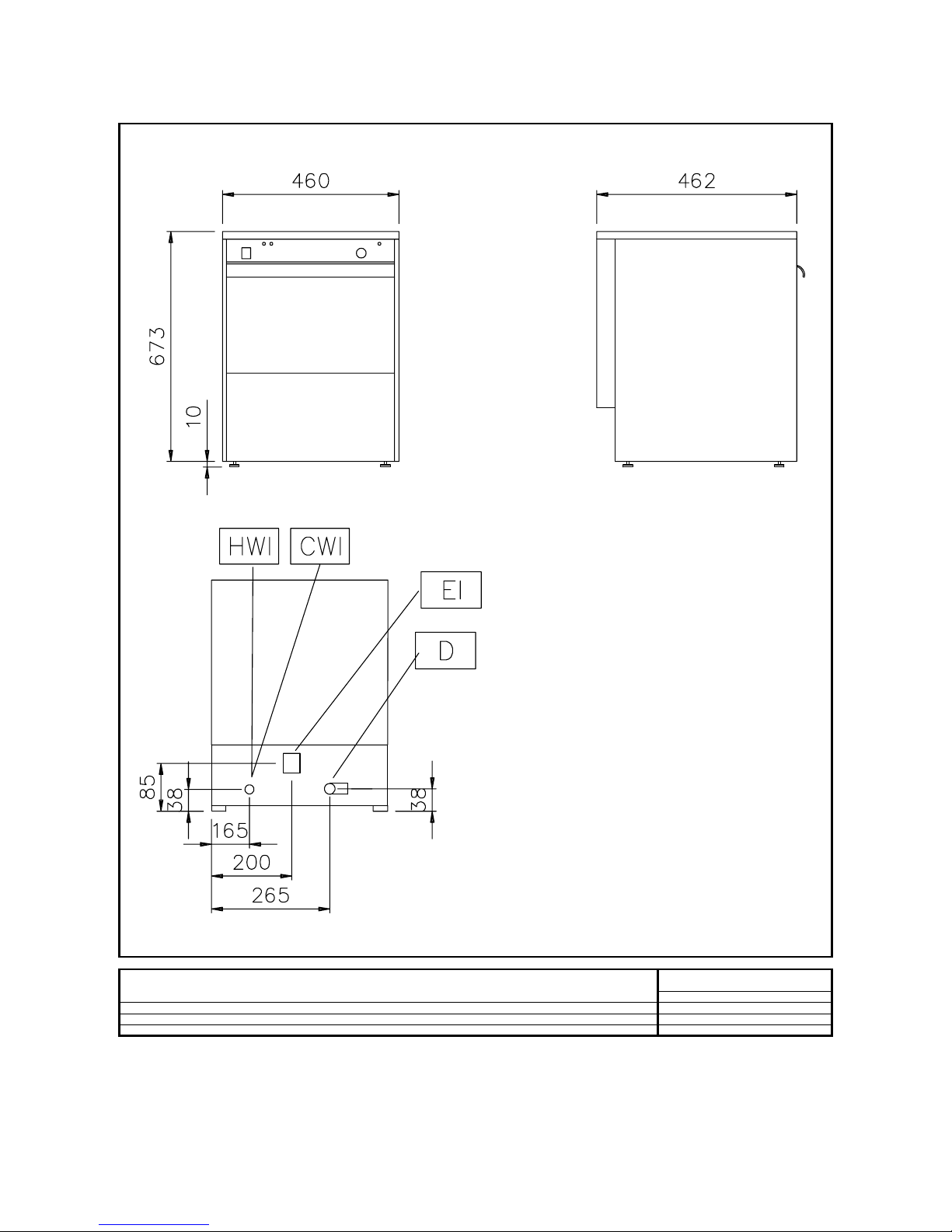

EI - Electrical connection 230 V, 1N, 50
D - Water drain 25mm
CWI - Cold water inlet G 3/4"
LEGEND
WT1QDD
727040
727040
