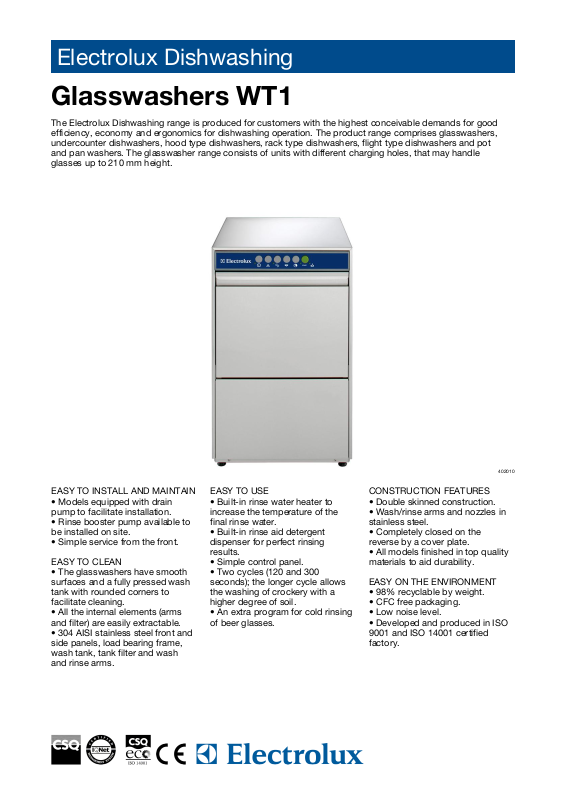

Electrolux Dishwashing
Glasswashers WT1
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers, undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot and pan washers. The glasswasher range consists of units with different charging holes, that may handle glasses up to 210 mm height.
402010
EASY TO INSTALL AND MAINTAIN
•Models equipped with drain pump to facilitate installation.
•Rinse booster pump available to be installed on site.
•Simple service from the front.
EASY TO CLEAN
•The glasswashers have smooth surfaces and a fully pressed wash tank with rounded corners to facilitate cleaning.
•All the internal elements (arms and filter) are easily extractable.
•304 AISI stainless steel front and side panels, load bearing frame, wash tank, tank filter and wash and rinse arms.
EASY TO USE
•Built-in rinse water heater to increase the temperature of the final rinse water.
•Built-in rinse aid detergent dispenser for perfect rinsing results.
•Simple control panel.
•Two cycles (120 and 300 seconds); the longer cycle allows the washing of crockery with a higher degree of soil.
•An extra program for cold rinsing of beer glasses.
CONSTRUCTION FEATURES
•Double skinned construction.
•Wash/rinse arms and nozzles in stainless steel.
•Completely closed on the reverse by a cover plate.
•All models finished in top quality materials to aid durability.
EASY ON THE ENVIRONMENT
•98% recyclable by weight.
•CFC free packaging.
•Low noise level.
•Developed and produced in ISO 9001 and ISO 14001 certified factory.
Electrolux Dishwashing
Glasswashers WT1
|
WT1N |
WT1 |
WT1WS |
WT1TOP |
WT1N4 |
|
|
|
402041 |
402010 |
402042 |
402043 |
402046 |
|
|
TECHNICAL DATA |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Water supply |
|
|
|
|
|
|
|
pressure min. , max. - bar |
2, 3 |
2, 3 |
2, 3 |
2, 3 |
2, 3 |
|
|
temperature - °C |
10 |
10 |
10 |
10 |
10 |
|
|
hardness - °f |
7-14 |
>14 |
>14 |
>14 |
7-14 |
|
|
hardness - °d |
4-8 |
>8 |
>8 |
>8 |
4-8 |
|
|
Cold rinse |
● |
● |
● |
● |
● |
|
|
Water softener |
|
● |
● |
● |
|
|
|
Drain pump |
|
● |
|
● |
● |
|
|
Rinse Booster Pump |
|
|
|
● |
|
|
|
N° of cycles |
2 |
2 |
2 |
2 |
2 |
|
|
Duration cycles - sec. |
120/300 |
120/300 |
120/300 |
120/300 |
120/300 |
|
|
Basket capacity/h |
30 |
30 |
30 |
30 |
30 |
|
|
External dimensions - mm |
|
|
|
|
|
|
|
width |
460 |
460 |
460 |
460 |
460 |
|
|
depth |
565 |
565 |
565 |
565 |
565 |
|
|
height |
635 |
635 |
635 |
635 |
635 |
|
|
Cell dimensions - mm |
|
|
|
|
|
|
|
width |
400 |
400 |
400 |
400 |
400 |
|
|
depth |
400 |
400 |
400 |
400 |
400 |
|
|
height |
210 |
210 |
210 |
210 |
210 |
|
|
Washing cycle |
|
|
|
|
|
|
|
temperature -°C |
55-65 |
55-65 |
55-65 |
55-65 |
55-65 |
IAA010 |
|
tank capacity - lt. |
6 |
6 |
6 |
6 |
6 |
||
|
|||||||
power pump - kW |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
|
electrical elements - kW |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Cold rinse cycle |
|
|
|
|
|
|
|
duration - sec. |
10 |
10 |
10 |
10 |
10 |
|
|
temperature - °C |
10 |
10 |
10 |
10 |
10 |
|
|
water consumption - lt./cycle |
2 |
2 |
2 |
2 |
2 |
|
|
Hot rinse cycle |
|
|
|
|
|
|
|
duration - sec. |
16 |
16 |
16 |
16 |
16 |
-19 |
|
temperature during rinse - °C |
80-90 |
80-90 |
80-90 |
80-90 |
80-90 |
||
water consumption - lt./cycle |
2.3 |
2.3 |
2.3 |
2.3 |
2.3 |
-06 |
|
Boiler capacity - lt. |
5 |
5 |
5 |
5 |
5 |
2009 |
|
Boiler elements - kW |
3 |
3 |
3 |
3 |
4.5 |
|
|
Power - kW |
|
|
|
|
|
|
|
drain pump |
|
0.034 |
|
0.034 |
0.034 |
|
|
total power |
3.3 |
3.3 |
3.3 |
3.3 |
4.8 |
|
|
Net weight - kg. |
34 |
34 |
34 |
34 |
34 |
|
|
INCLUDED ACCESSORIES |
|
|
|
|
|
|
|
BASKET FOR GLASSES+SAUCERS/CUTLERY INS. |
1 |
1 |
1 |
1 |
|
|
|
BASKET FOR GLASSES-395X395X100 MM |
|
|
|
|
1 |
|
|
INSERT FOR 14 SAUCERS |
|
|
|
|
1 |
|
|
YELLOW CUTLERY CONTAINER |
|
|
|
|
1 |
|
|
ACCESSORIES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BASKET F.GLASSES-ANGLED BASE-395X395X200 |
867056 |
867056 |
867056 |
867056 |
867056 |
|
|
BASKET FOR GLASSES+SAUCERS/CUTLERY INS. |
867055 |
867055 |
867055 |
867055 |
867055 |
|
|
BASKET FOR GLASSES-395X395X100 MM |
867053 |
867053 |
867053 |
867053 |
867053 |
|
|
BASKET FOR GLASSES-395X395X200 MM |
867054 |
867054 |
867054 |
867054 |
867054 |
|
|
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK |
867016 |
867016 |
867016 |
867016 |
867016 |
|
|
FILTER FOR PARTIAL DEMINERALIZATION |
864017 |
|
|
864017 |
864017 |
notice |
|
FILTER FOR TOTAL DEMINERALIZATION |
864015 |
|
|
864015 |
864015 |
||
|
|
without |
|||||
INSERT FOR 14 SAUCERS |
867060 |
867060 |
867060 |
867060 |
867060 |
||
INCLINED INSERT FOR CUPS |
867061 |
867061 |
867061 |
867061 |
867061 |
|
|
|
|
|
|
|
|
change |
|
INSERT FOR"FLUTE"GLASSES |
867058 |
867058 |
867058 |
867058 |
867058 |
||
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW |
865574 |
865574 |
865574 |
865574 |
865574 |
||
KIT TO MEASURE TOTAL/PART.WATER HARDNESS |
864050 |
864050 |
864050 |
864050 |
864050 |
to |
|
Subject |
|||||||
RINSE BOOSTER PUMP KIT |
867063 |
867063 |
867063 |
|
867063 |
||
|
|
||||||
ROUND BASKET KIT WITH SQUARE FRAME |
867057 |
867057 |
867057 |
867057 |
867057 |
|
|
YELLOW CUTLERY CONTAINER |
864242 |
864242 |
864242 |
864242 |
864242 |
|
