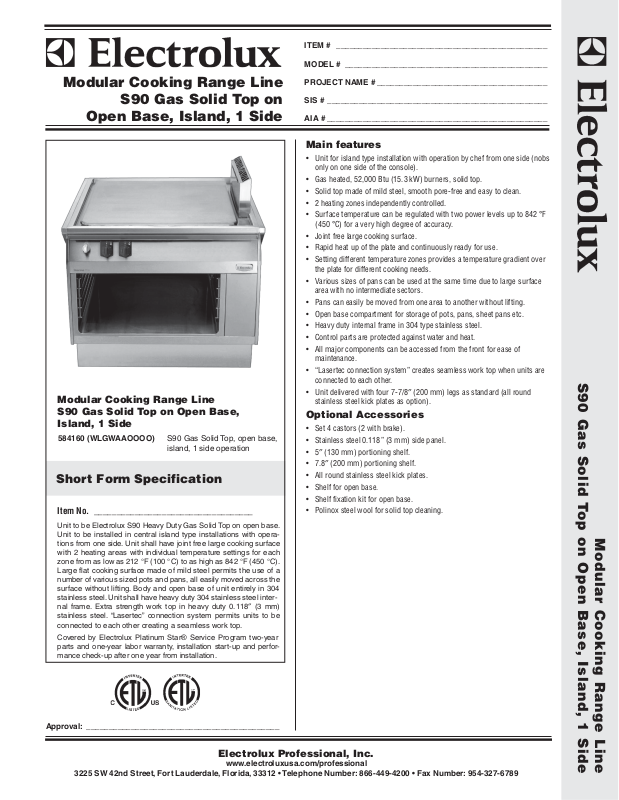

Modular Cooking Range Line
S90 Gas Solid Top on
Open Base, Island, 1 Side
Modular Cooking Range Line
S90 Gas Solid Top on Open Base,
Island, 1 Side
584160 (WLGWAAOOOO) S90 Gas Solid Top, open base,
island, 1 side operation
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux S90 Heavy Duty Gas Solid Top on open base.
Unit to be installed in central island type installations with operations from one side. Unit shall have joint free large cooking surface
with 2 heating areas with individual temperature settings for each
zone from as low as 212 °F (100 °C) to as high as 842 °F (450 °C).
Large flat cooking surface made of mild steel permits the use of a
number of various sized pots and pans, all easily moved across the
surface without lifting. Body and open base of unit entirely in 304
stainless steel. Unit shall have heavy duty 304 stainless steel inter-
nal frame. Extra strength work top in heavy duty 0.118″ (3 mm)
stainless steel. “Lasertec” connection system permits units to be
connected to each other creating a seamless work top.
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and performance check-up after one year from installation.
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
• Unit for island type installation with operation by chef from one side (nobs
only on one side of the console).
• Gas heated, 52,000 Btu (15.3 kW) burners, solid top.
• Solid top made of mild steel, smooth pore-free and easy to clean.
• 2 heating zones independently controlled.
• Surface temperature can be regulated with two power levels up to 842 °F
(450 °C) for a very high degree of accuracy.
• Joint free large cooking surface.
• Rapid heat up of the plate and continuously ready for use.
• Setting different temperature zones provides a temperature gradient over
the plate for different cooking needs.
• Various sizes of pans can be used at the same time due to large surface
area with no intermediate sectors.
• Pans can easily be moved from one area to another without lifting.
• Open base compartment for storage of pots, pans, sheet pans etc.
• Heavy duty internal frame in 304 type stainless steel.
• Control parts are protected against water and heat.
• All major components can be accessed from the front for ease of
maintenance.
• “Lasertec connection system” creates seamless work top when units are
connected to each other.
• Unit delivered with four 7-7/8″ (200 mm) legs as standard (all round
stainless steel kick plates as option).
Optional Accessories
• Set 4 castors (2 with brake).
• Stainless steel 0.118” (3 mm) side panel.
•5″ (130 mm) portioning shelf.
•7.8″ (200 mm) portioning shelf.
• All round stainless steel kick plates.
• Shelf for open base.
• Shelf fixation kit for open base.
• Polinox steel wool for solid top cleaning.
S90 Gas Solid Top on Open Base, Island, 1 Side
Modular Cooking Range Line
Approval: ___________________________________________
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
www.electroluxusa.com/professional
Modular Cooking Range Line
S90 Gas Solid Top on Open Base,
Island, 1 Side
Front View
Top View
Side View
Gas
Gas Power: 52,000 Btu/hr (15.3 kW)
Gas Type Option: Butane, Natural Gas, Propane
(must be specified when
ordered)
Natural Gas Pressure: 7″ w.c. (17.7 mbar)
LPG Gas Pressure: 11″ w.c. (27.7 mbar)
Gas Inlet: 3/4″ NPT
Key Information
Solid top usable surface
(width): 30″ (840 mm)
Solid top usable surface
(depth): 29″ (740 mm)
Solid top working
temperature: 212 °F (100 °C) MIN
Solid top working
temperature: 842 °F (450 °C) MAX
Storage Cavity Dimensions
(width): 30-5/16″ (770 mm)
Storage Cavity Dimensions
(height): 14-1/16″ (358 mm)
Storage Cavity Dimensions
(depth): 29-1/16″ (738 mm)
Net weight: 463 lb (210 kg)
Shipping weight: 507 lb (230 kg)
Shipping width: 47-1/4″ (1200 mm)
Shipping height: 43-5/16″ (1100 mm)
Shipping depth: 43-5/16″ (1100 mm)
Shipping volume: 51.2 cu.ft (1.45 m3 )
If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap off approximately 6″ (150 mm)
should be maintained or some form of heat insulation fitted.
S90 Gas Solid Top on Open Base, Island, 1 Side
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
