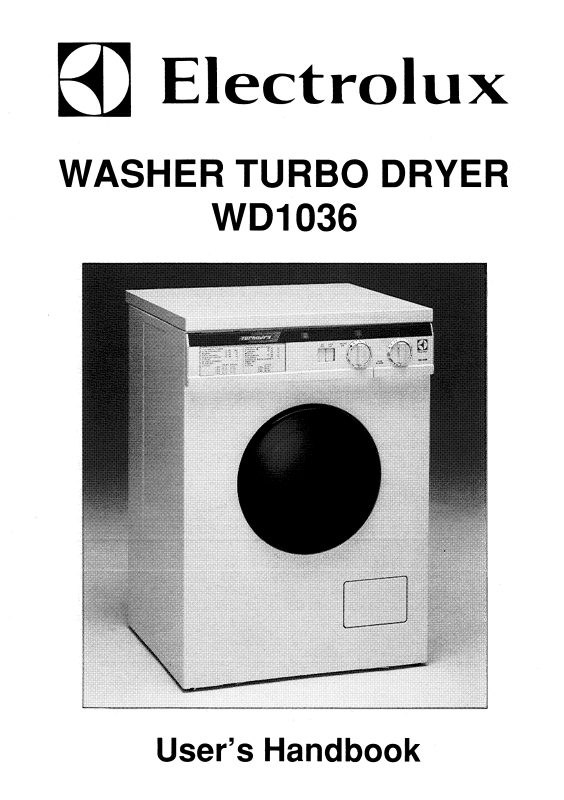

Electrolux WD1036 User Manual

Specifications and Main Features

  • Height:
  • By 110 centimetres
  • Body Dimensions:
  • Length: 60cm
  • Depth: 58 cm
  • Weight: 80 kg
  • Washing and Drying Capacity:
  • With regard to laundry, the maximum area to be washed: 4.5 kg (ten pounds)
  • The maximum area that can be dried is 2.25 kg (Five pounds)
  • Machine Performance:
  • Machine revolutions per minute max will be at 1100
  • The total power will be at 250 W while washing and 350 W while drying.
  • In case of washing, heater rating must be 2200 W.
  • While drying the heater rating should be around 2000 W.
  • The motor rating will be around 150 W when washing and 250 W when spinning.
  • Machine Power Supply and Frequency:
  • The required voltage supply is between:220/240 V.
  • Operating frequency must be kept at 50Hz.
  • Water Parameters:
  • Normal condition: 13 litres
  • High using condition: 20 litres
  • Pressure psi:
  • Maximum using limit: 110 psi
  • Minimum using limit (hot): 4 psi
  • Minimum using limit (cold): 7 psi
  • Machine Control Display Features:
  • Dial for programme selection
  • an On or Off button
  • Drying time interval control.
  • An Auto dry push button attached
  • Lid Opening release button with “Door Locked” indicator lamp
  • Automatic detergent dispenser: prewash powder and main wash powder and fabric conditioner
  • Pump filter situated behind of a flap cover
  • Automatic Washing Cycles:
  • 17 different cycles for washing clothes of different materials such as cotton, and nylon and delicate materials.
  • Provision for Economy options used.
  • Automatic washing cycles provided take clothes through washing rinsing, spin-drying and draining.
  • Drying System:
  • Turbo dry facility which utilizes a constant stream of hot air with condensation drying system to achieve maximum efficiency.
  • Drying time for natural fabrics may be set to maximum of 120 minutes while for synthetic fabrics a maximum of 80 minutes only.

Frequently Asked Questions

  • Q: How do I initiate any washing cycle?
  • A: To initiate a washing cycle, you would start by loading the machine with the laundry and closing the door. Then, select the desired program that you wish to use to wash your clothes using the program selector dial. After that, pour into the machine some detergent and just hit the on or off button.
  • Q: What do I need to do if the washing machine does not fill water?
  • A: Firstly check if all the water taps are opened, check the hoses for any bends or blocked areas, and lastly if water pressure is sufficient to fill the machine.
  • Q: Is it possible to put for dry the woolen fabrics in this machine?
  • A: Absolutely no, for this device contains a woolen fabric dryer which should not be used for this purpose. All fabrics labeled as machine washable but are not suitable for tumble should not be used.
  • Q: May I know the maximum load I can wash?
  • A: The maximum load for washing is 4.5 kilograms for Cottons and 1.5 to 2 Kilogram for synthetics.
  • Q: How can the pump filter be cleaned?
  • A: The small bottom flap on the machine's right side should be unclipped, the filter should be held in place while the strong winds push any remaining fluff or objects off. The machine can securely hold this for a decent amount of time.
  • Q: The machine shakes while spinning. What is the remedy for this?
  • A: Level the machine and some space around it is needed. All the packing material installed inside the machine should be uninstalled.
  • Q: Something went off during the drying cycle. Is this something to be afraid of?
  • A: As soon as the drying cycle begins, do not press any buttons as it may interfere with the cycle. Once the cycle is over, the machine will yield results.
