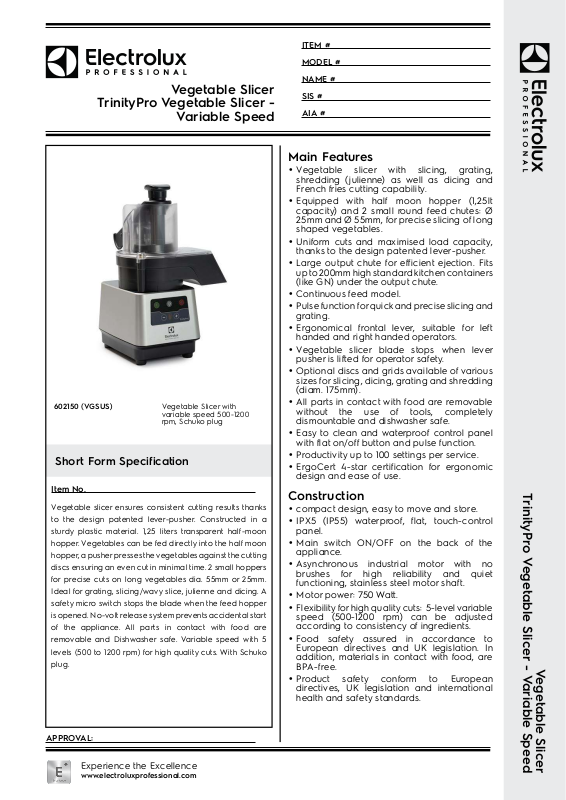

Page 1
Vegetable Slicer
TrinityPro Vegetable Slicer -
Variable Speed
602150 (VGSUS)Vegetable Slicer with
Short Form Specification
Item No.
Vegetable slicer ensures consistent cutting results thanks
to the design patented lever-pusher . Constructed in a
sturdy plastic material. 1,25 liters transparent half-moon
hopper. Vegetables can be fed directly into the half moon
hopper, a pusher presses the vegetables against the cutting
discs ensuring an even cut in minimal time. 2 small hoppers
for precise cuts on long vegetables dia. 55mm or 25mm.
Ideal for grating, slicing/wavy slice, julienne and dicing. A
safety micro switch stops the blade when the feed hopper
is opened. No-volt release system prevents accidental start
of the appliance. All parts in contact with food are
removable and Dishwasher safe. Variable speed with 5
levels (500 to 1200 rpm) for high quality cuts. With Schuko
plug.
variable speed 500-1200
rpm, Schuko plug
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Vegetable slicer with slicing, grating,
shredding (julienne) as well as dicing and
French fries cutting capability.
•Equipped with half moon hopper (1,25lt
capacity) and 2 small round feed chutes: Ø
25mm and Ø 55mm, for precise slicing of long
shaped vegetables.
•Uniform cuts and maximised load capacity,
thanks to the design patented lever-pusher.
•Large output chute for efficient ejection. Fits
up to 200mm high standard kitchen containers
(like GN) under the output chute.
•Continuous feed model.
•Pulse function for quick and precise slicing and
grating.
•Ergonomical frontal lever, suitable for left
handed and right handed operators.
•Vegetable slicer blade stops when lever
pusher is lifted for operator safety.
•Optional discs and grids available of various
sizes for slicing, dicing, grating and shredding
(diam. 175mm).
•All parts in contact with food are removable
without the use of tools, completely
dismountable and dishwasher safe.
•Easy to clean and waterproof control panel
with flat on/off button and pulse function.
•Productivity up to 100 settings per service.
•ErgoCert 4-star certification for ergonomic
design and ease of use.
Construction
•compact design, easy to move and store.
•IPX5 (IP55) waterproof, flat, touch-control
panel.
•Main switch ON/OFF on the back of the
appliance.
•Asynchronous industrial motor with no
brushes for high reliability and quiet
functioning, stainless steel motor shaft.
•Motor power: 750 Watt.
•Flexibility for high quality cuts: 5-level variable
speed (500-1200 rpm) can be adjusted
according to consistency of ingredients.
•Food safety assured in accordance to
European directives and UK legislation. In
addition, materials in contact with food, are
BPA-free.
•Product safety conform to European
directives, UK legislation and international
health and safety standards.
TrinityPro Vegetable Slicer - Variable Speed
Vegetable Slicer
APPROV AL:
Experience the Excellence
www.electroluxprofessional.com
Page 2
Included Accessories
•1 of Ejector for Vegetable Slicer PNC 650232
Optional Accessories
•Cleaning tool for TRS, TRK & TR210
5-8-10 mm dicing grids
•Kit including 3 discs (slicer 2mm,
slicer 5mm, grater 3mm)
•Kit including 6 discs (slicer 2mm,
slicer 5mm, grater 3mm, grater 7mm,
slicer 10mm, grid 10x10mm)
•Stainless steel grating disc 2 mm
(dia. 175mm)
•Stainless steel grating disc 3 mm
(dia. 175mm)
•Stainless steel grating disc 4 mm
(dia. 175mm)
•Stainless steel grating disc 7 mm
(dia. 175mm)
•Parmesan DiscPNC 650208❑
•Stainless steel shredding disc 2 mm
(dia. 175mm)
•Stainless steel shredding disc 4 mm
(dia. 175mm)
•Stainless steel shredding disc 8 mm
for French fries (dia. 175mm)
•Stainless steel slicing disc 1 mm (dia.
175mm)
•Stainless steel slicing disc 2 mm (dia.
175mm)
•Stainless steel slicing disc 3 mm (dia.
175mm)
•Stainless steel slicing disc 5 mm (dia.
175mm)
•Stainless steel slicing disc 6 mm (dia.
175mm)
•Stainless steel wavy slicing disc 3
mm (dia. 175mm)
•Stainless steel wavy slicing disc 5
mm (dia. 175mm)
•Aluminum slicing disc 8 mm (dia.
175mm)
•Aluminum slicing disc 10 mm (dia.
175mm)
•Dicing grid 8x8 (dia 175mm)PNC 650222❑
•Dicing grid 10x10 (dia 175mm)PNC 650223❑
•Dicing kit 8mm (aluminum slicer
8mm, grid 8x8mm) (dia. 175mm)
•Dicing kit 10mm (aluminum slicer
10mm, grid 10x10 mm) (dia. 175mm)
•Ejector for Vegetable Slicer PNC 650232❑
•Stainless steel slicing disc 4 mm (dia.
175mm)
•Support for 1 disc (dia. 175mm and
205mm)
PNC 650110❑
PNC 650196❑
PNC 650197❑
PNC 650198❑
PNC 650199❑
PNC 650205❑
PNC 650207❑
PNC 650209❑
PNC 650210❑
PNC 650211❑
PNC 650213❑
PNC 650214❑
PNC 650215❑
PNC 650216❑
PNC 650217❑
PNC 650218❑
PNC 650219❑
PNC 650220❑
PNC 650221❑
PNC 650224❑
PNC 650225❑
PNC 650237❑
PNC 653050❑
Vegetable Slicer
TrinityPro Vegetable Slicer -
Variable Speed
TrinityPro V egetable Slicer - V ariable Speed
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Vegetable Slicer
2021.08.24
Page 3
Vegetable Slicer
TrinityPro Vegetable Slicer -
Variable Speed
Front
Electric
Supply voltage:
602150 (VGSUS)220-240 V /1N ph/50/60 Hz
Electrical power max.:0.75 kW
Total W atts:0.75 kW
Capacity:
Performance (up to):
Key Information:
External dimensions, Width:348 mm
External dimensions, Height:527 mm
External dimensions, Depth:315 mm
Shipping weight:19.7 kg
Side
EI=Electrical inlet (power )
Top
TrinityPro V egetable Slicer - V ariable Speed
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Vegetable Slicer
2021.08.24
