Use & Care Guide
Installation Instructions
Vent Hood
316495008 - 09/2007
2
Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the service life of your
new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number (see picture for location)
NOTE
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxusa.com or by dropping your
Product Registration Card in the mail.
Questions?
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and Internet product information visit http://www.electroluxusa.com
Table of contents
Finding information ................................................ 2
SAFETY .............................................................. 3
Verify package contents............................................5
Installation ........................................................... 6
• Install the ductwork .............................................................. 6
• Install support system..........................................................7
• Prepare the hood .................................................................. 8
• Connect decorative flue ........................................................ 9
• Install the hood ..................................................................... 9
• Connect ductwork ............................................................... 10
• Install filters.......................................................................10
Maintenance ....................................................... 11
• Grease filters ....................................................................... 11
• Non-Ducted recirculation filters.......................................... 11
• Hood cleaning .................................................................... 11
Operation ........................................................... 12

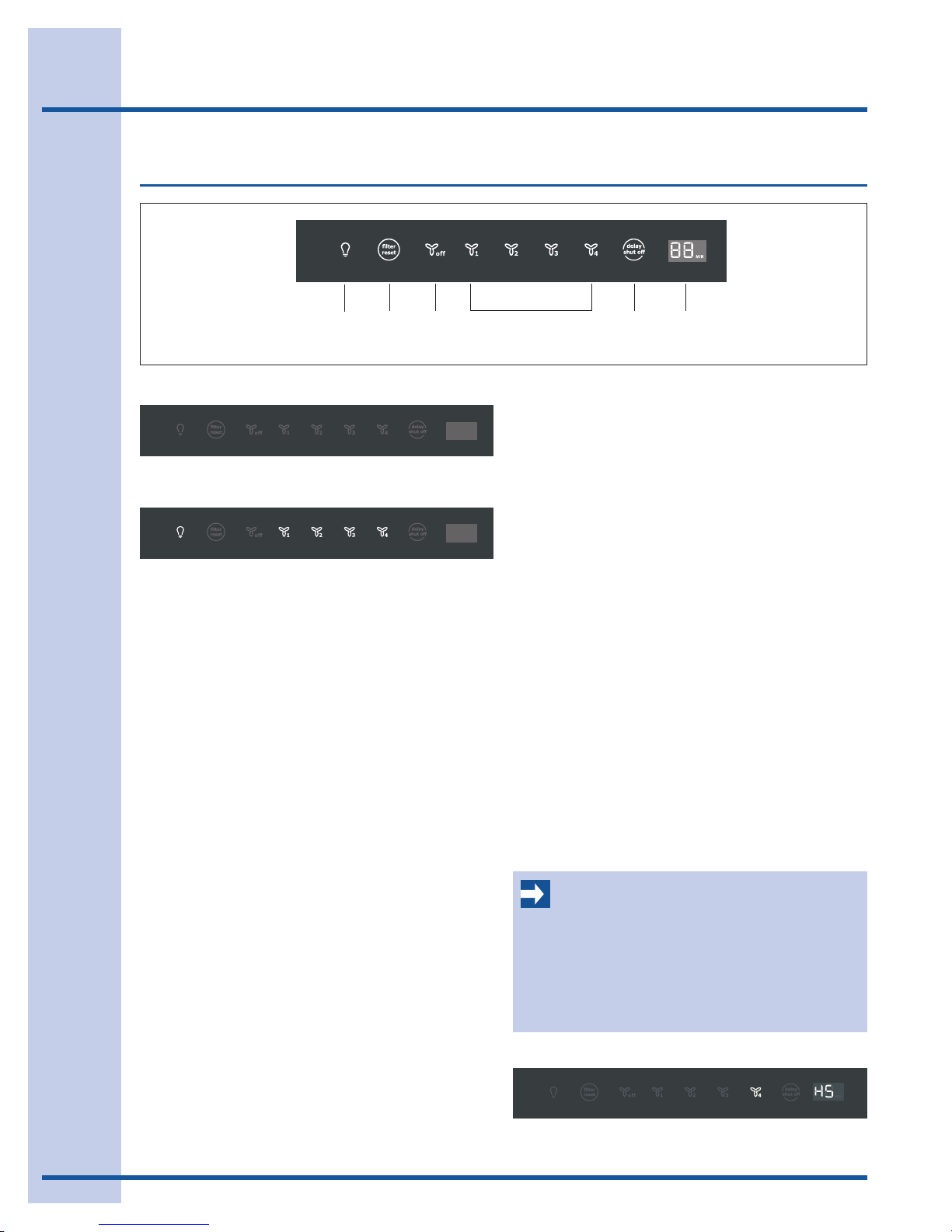

• Controls.............................................................................12
• Halogen bulbs....................................................................13
• Fuse replacement...............................................................13
Wiring................................................................14
Warranty information..............................................15
©2007 Electrolux Home Products, Inc.
All rights reserved. Printed in Italy
Important Safety Instructions
Read all instructions before using this
appliance.
Save these instructions for future
reference.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION based on the risk type.
This symbol alerts you to
situations that may cause
serious body harm,
death or property
damage.
This symbol alerts you to
situations that may cause
bodily injury or property
damage.
Safety
3
INTENDED FOR DOMESTIC COOKING
ONLY
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
2. Before servicing or cleaning unit, switch power off
at service panel and lock service panel to prevent
power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such
as a tag, to the service panel.
3. Installation work and electrical wiring must be done
by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guide-
lines and safety standards such as those published
by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and
the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state
speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
A.Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low
or medium settings.
B.Always turn hood ON when cooking at high heat or
when flambeing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe’).
C.Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
D.Use proper pan size. Always use cookware
appropriate for the size of the surface element.
4
Safety
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie
sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames
do not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
6. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated. The motor will restart when it cools down.
If the motor continues to shut off and restart, have
the hood serviced.
7. For best capture of cooking impurities, the bottom
of the hood should be a minimum of 24" and a
maximum of 30" above the cooking surface.
8. Two installers are recommended because of the
large size and weight of this hood.
2. NEVER PICK UP A FLAMING PAN - You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A.You know you have a Class ABC extinguisher
and you already know how to operate it.
B. The fire is small and contained in the area where
it started.
C.The fire department is being called.
D.You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published
by NFPA.
1. To reduce risk of fire and to properly exhaust air,
be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics,
crawl spaces, or garages.
9. This product is equipped with a thermostat which
may start blower automatically. To reduce the risk
of injury and to prevent power from being switched
on accidentally, switch power off at service panel
and lock or tag service panel.
10. Please read specification label on product for
further information and requirements.
AUTOMATICALLY OPERATED DEVICE.
TO REDUCE THE RISK OF INJURY, DISCONNECT
FROM POWER SUPPLY BEFORE SERVICING.
THE UNIT IS EQUIPPED WITH AN INTEGRAL
DISCONNECTING SWITCH LOCATED INSIDE THE
BLOWER HOUSING.
INTEGRAL DISCONNECTING SWITCH
2. Take care when using cleaning agents or
detergents.
3. Avoid using food products that produce flames
under the Range Hood.
4. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
5. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1- Support Frame
1 - Parts Bag containing:
1 - Support Frame Bracket
1 - Discharge Collar
4 - Mounting Screws (6 x 70)
16 - Mounting Screws (3,9 x 9,5mm Pan Head)
4 - Washers D.6.4mm
6 - Serrated Washers
1 - Wiring Box Cover
1 - Wire Clamp
1 - Installation Instructions
1 - Warranty Card
Verify package contents
5
DECORATIVE
FLUE
DISCHARGE
COLLAR
SUPPORT
FRAME
SUPPORT FRAME
BRACKET
WIRE
CLAMP
4 WASHERS
D.6.4mm
6 SERRATED
WASHERS
16 MOUNTING SCREWS
(3.9 x 9.5mm Pan Head)
WIRING BOX
COVER
4 MOUNTING
SCREWS (6 x
70mm)
6
Installation

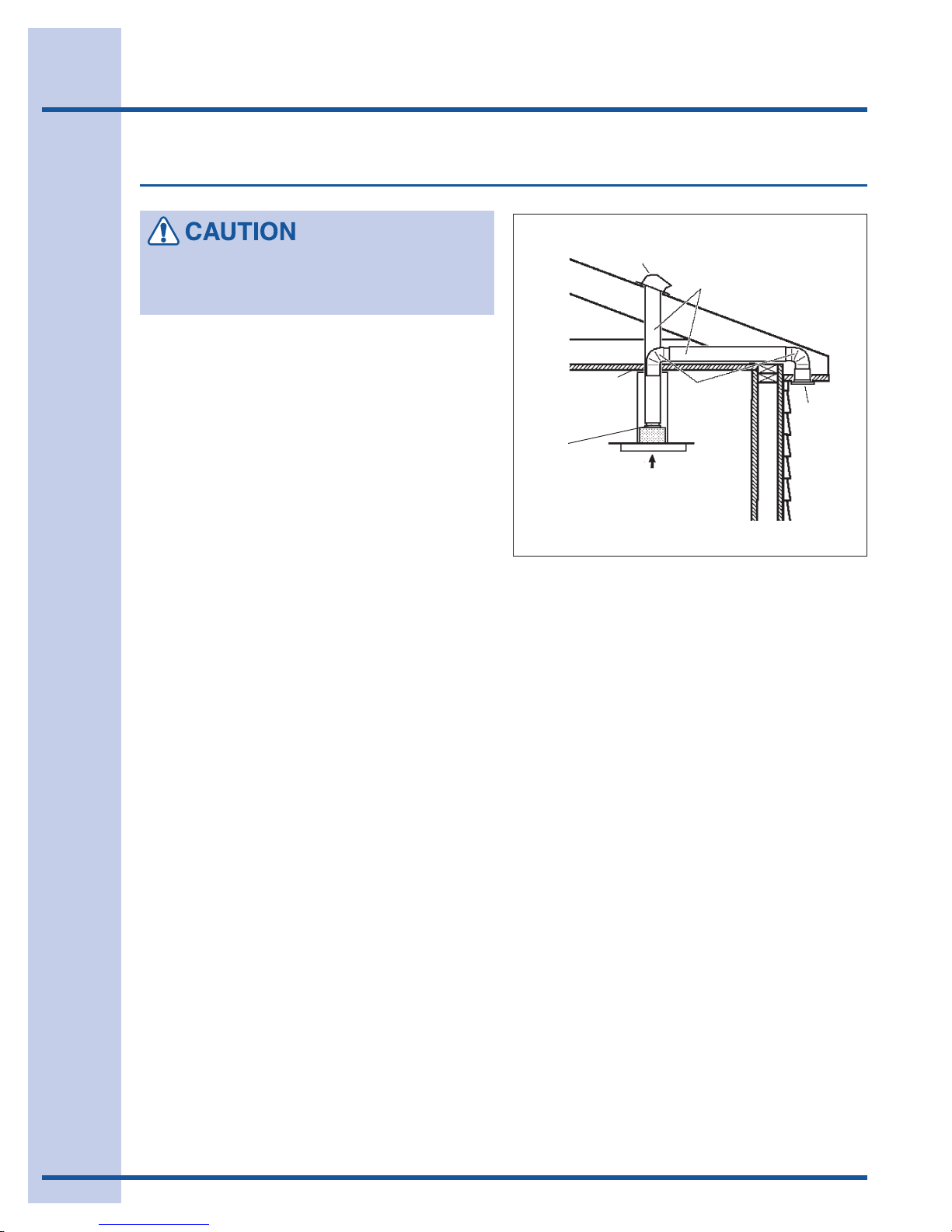

Install the ductwork
To reduce the risk of fire, use only metal
ductwork.
1. Decide where the ductwork will run between the
hood and the outside.
2. A straight, short duct run will allow the hood to
perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce
the performance of the hood. Use as few of them
as possible. Larger ducting may be required for best
performance with longer duct runs.
4. Install a roof or wall cap. Connect round metal
ductwork to cap and work back towards hood
location. Use duct tape to seal the joints between
ductwork sections.
5. Never make the size or area of the ductwork smaller
than the size that originates at the hood.
6” ADAPTER
ROOF CAP
DECORA-
TIVE
FLUE
24” TO 30” ABOVE
COOKING SURFACE
ROUND
DUCT
ROUND
ELBOW
HOOD
EAVE
VENT
6. Bigger ductwork is better.
7. Keep duct lenght less than 50 linear feet.
8. Minimize use of elbows and transitions (4 or less).
9. Always separate 90 degree elbows with at least 2
feet of straight ductwork.
10. Place transitions at least 1 foot from the hood
outlet.

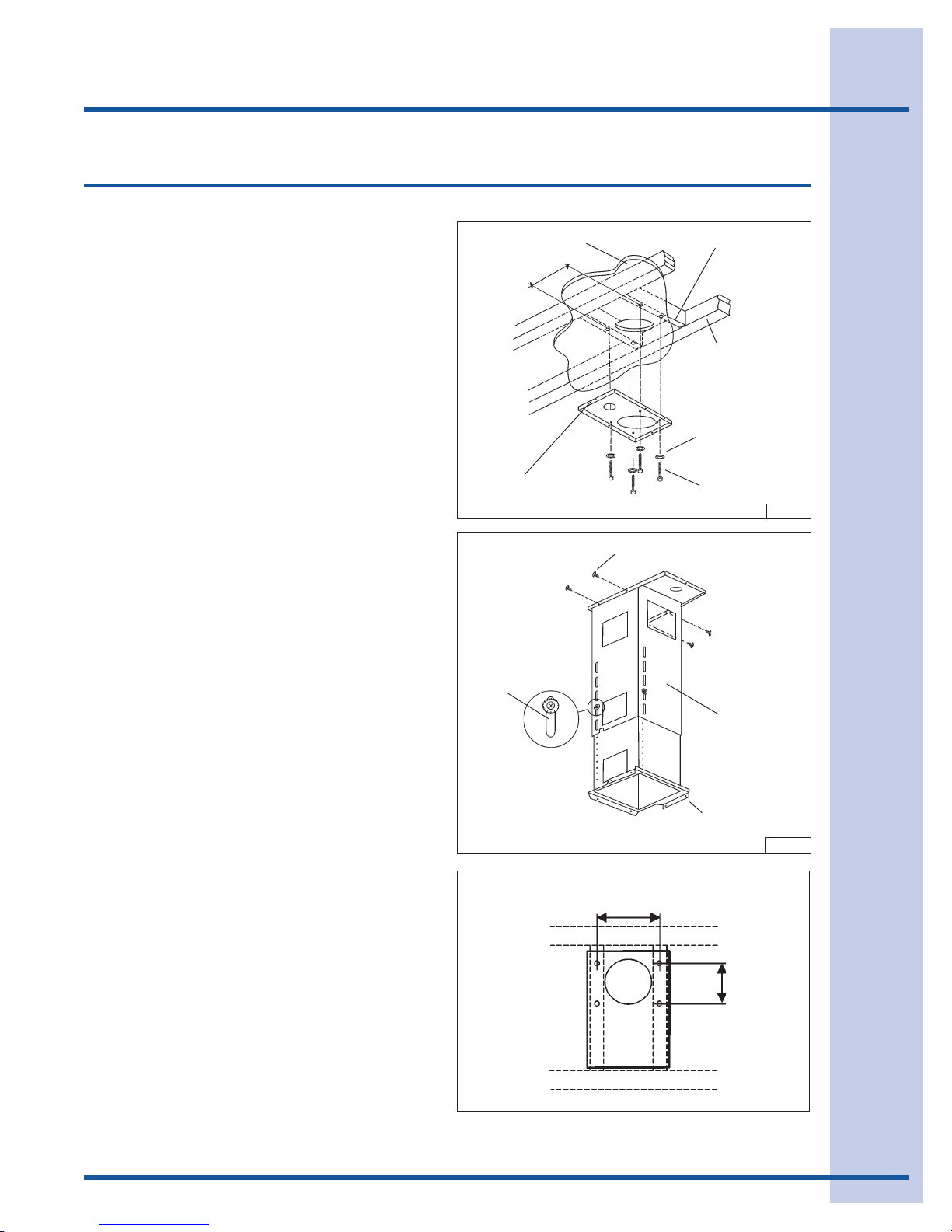

Install support system
Installation
7
1. At hood location, install 2 X 4 cross framing between
ceiling joists using dimensions shown.
2. Finish the ceiling surface. Be sure to mark the location
of the ceiling joists and cross framing.
3. Secure the support frame bracket to joists and cross
framing with four screws provided (6x70mm) and four
washers (D. 6.4mm). Make sure screws are driven
into center of joists and framing for maximum strength.
4. Fix the support frame to the support frame bracket
with (4) 3.9x9.5mm mounting screws. Fig. 2.
5. Adjust the overall height of the support frame. Loosen
and re-tighten the 4 screws in the height adjustment
slots as necessary.
515/16”
FRONT
HEIGHT
ADJUSTMENT
SLOTS
DRYWALL
CROSS FRAMING
CEILING JOISTS
WASHERS (Ø6.4mm)
MOUNTING SCREWS
(6x70mm)
MOUNTING SCREWS
(3.9x9.5mm)
FIG. 1
FRONT
SUPPORT
FRAME
TOP VIEW OF SUPPORT FRAME
515/16”
515/16”
FIG. 2
8
Installation

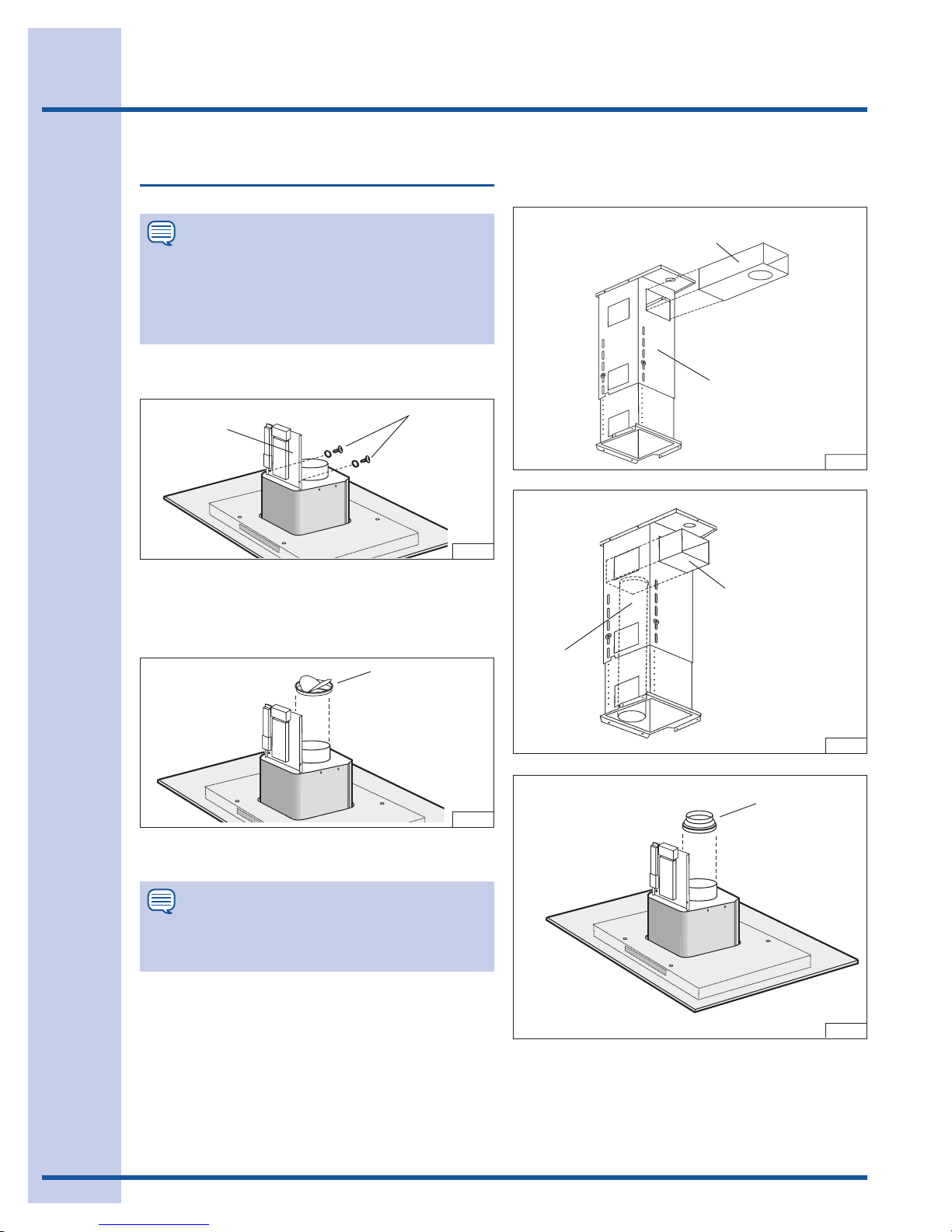

Prepare the hood
NOTE
On stainless steel hoods, carefully remove the
plastic protective film from all exterior surfaces
of the hood and decorative flues, prior to final
installation.
Fix the electrical mounting plate with (2) 3.9x9.5mm
screws and (2) serrated washers. Fig. 3.
ELECTRICAL MOUNTING
PLATE
DUCTED CONFIGURATION
MOUNTING
SCREWS
(3.9x9.5mm)
FIG. 3
recirculation plenum. Fig.6.
4. Mount the 6”/5” adapter above hood. Fig. 7.
NON-DUCTED
RECIRCULATION PLENUM
FRONT
DUCT
CONNECTOR
FIG. 5
Mount the discharge collar above the hood. Fig. 4.
DISCHARGE
COLLAR
FIG. 4
NON- DUCTED CONFIGURATION
NOTE
Purchase a Non-ducted recirculation KIT from
your dealer (Model DFKTPC40EC).
1. Insert the non-ducted recirculation plenum through
the support frame openings. Fig. 5.
2. Through the support frame openings fit the duct
connector to the plenum locking it with a turning
movement. Fig. 6.
5” DUCT
FIG. 6
6”/5”
ADAPTER
FIG. 7
3. Fix a 5” duct to the duct connector of the non-ducted
Installation
9

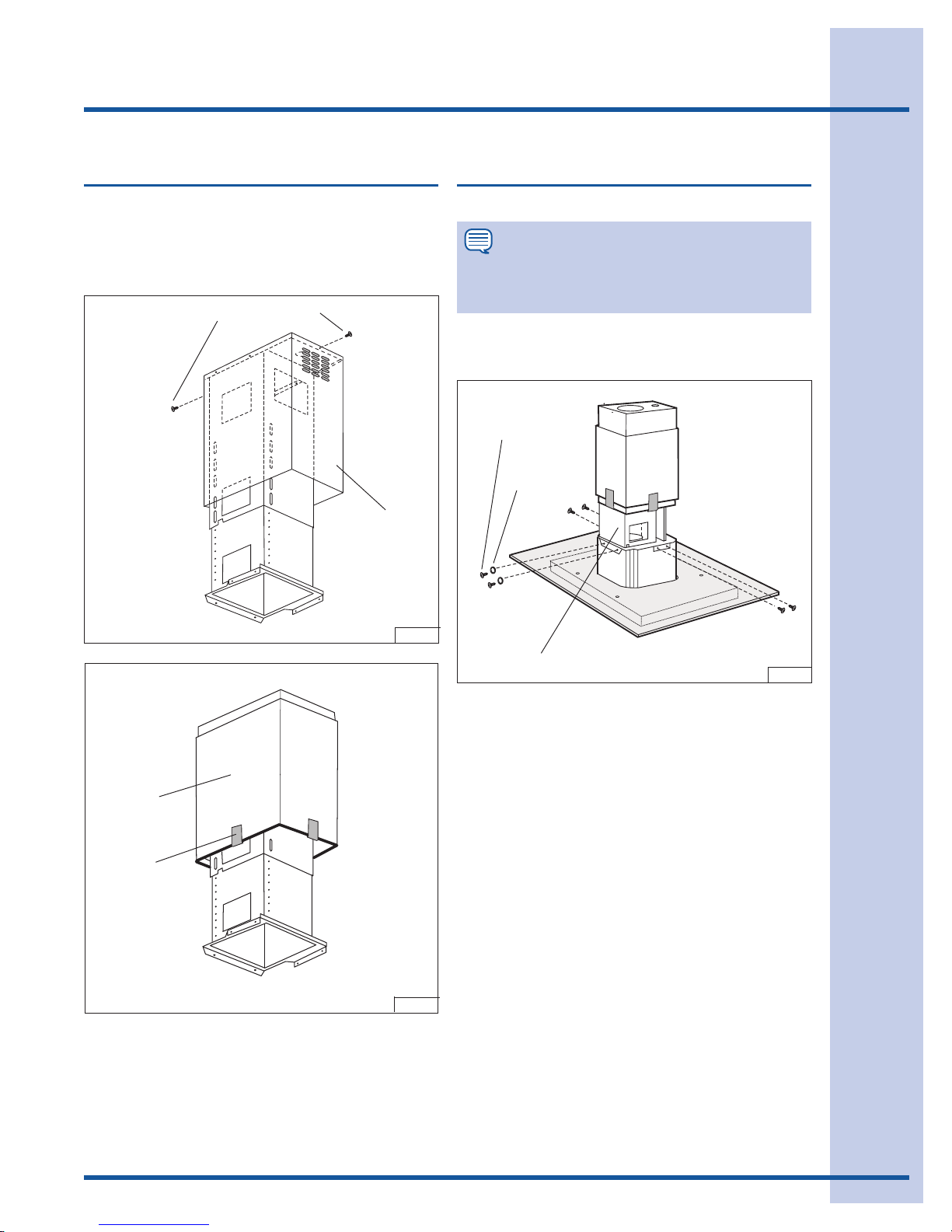

Connect decorative flue
1. Secure the upper flue to the upper support frame
with the mounting screws (3.9x9.5mm). Fig. 8.
2. Insert the lower flue moving it completely towards
the top and fix it temporarily with a tape. Fig. 9.
MOUNTING SCREWS
(3.9x9.5mm)
UPPER
FLUE
Install the hood
NOTE
At least three people will be required to mount
the hood.
Fix the hood to the support frame with (6) 3.9x9.5mm
mounting screws and (2) serrated washers (Fig. 10).
MOUNTING SCREWS
(3.9x9.5mm)
SERRATED
WASHERS
FIG. 8
LOWER
FLUE
TAPE
FIG. 9
ROOMS WITH 10-FOOT CEILINGS
Rooms with 10-foot ceilings require flue extension
model EXPC75GS, available from your local dealer.
Discard the flue supplied with the product. Replace it
with the flue extension EXPC75GS.
Continue with the instructions above (points 1 and 2).
REAR
FIG.10
10
Installation

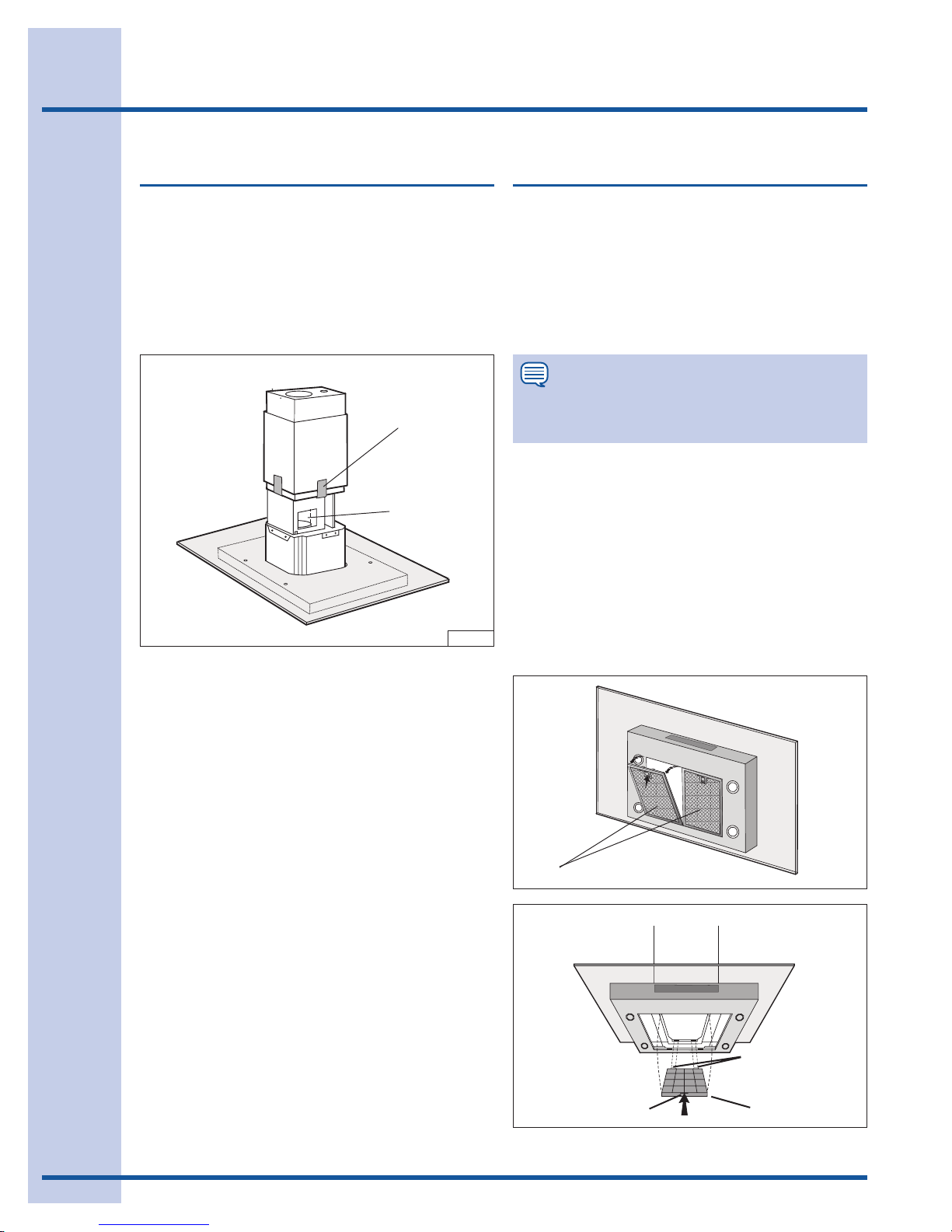

Connect ductwork
(DUCTED HOODS ONLY)
1. Use 6" round metal duct to connect the discharge
collar on the hood to the ductwork above (Fig. 11).
2. Use duct tape to make all joints secure and air tight.
3. Remove the tape from the lower flue and set it in
place on the hood (Fig. 11).
TAPE
6” ROUND METAL
DUCT
FIG.11
Install filters
(DUCTED AND NON-DUCTED HOODS)
1. To remove the GREASE filters, pull the metal latch
tab outside and unlock the filter.
2. To install the GREASE filters, align rear filter tabs
with slots in the hood. Depress the metal latch tab,
push filter into position and release. Make sure
filter is securely engaged after installation.
NOTE
Prior to use, remove protective film from the
filter frame.
(NON-DUCTED HOODS ONLY)
1. To remove the CHARCOAL filter, push in on the
front filter latch. Pull the filter down to disengage
the rear filter tabs.
2. To install the CHARCOAL filter, align the rear filter
tabs with slots in the hood. Push the filter up into
place until the front latch snaps securely into the
slot. Make sure the filter is securely engaged after
assembly.
3. Install GREASE filters after charcoal filter is installed.
GREASE FILTERS
LATCH
TABS
NON-DUCTED
RECIRCULATION
FILTER
Maintenance
Proper maintenance of the Range Hood will assure proper performance of the unit.
11
Grease filters
The grease filters should be cleaned when the filter
reset switch will be illuminated.
Use a warm detergent solution. Grease filters are
dishwasher safe.
See “INSTALL FILTERS” section for removal and
installation instructions.
Once the grease filters are cleaned and installed, press
in and hold the “filter reset switch” for approximately 3
seconds.
Non-Ducted Recirculation
filters
The non-ducted recirculation filter should be changed
when the filter reset switch will be illuminated and blink.
See “INSTALL FILTERS” section for removal and
installation instructions.
Once the new charcoal filter is installed, press in and
hold the “filter reset switch” for approximately 3
seconds.
Hood cleaning
Stainless steel is one of the easiest materials to keep
clean. Occasional care will help preserve its fine
appearance.
Cleaning tips:
O Hot water with soap or detergent is all that is usu-
ally needed.
O Follow all cleaning by rinsing with clear water. Wipe
dry with a clean, soft cloth to avoid water marks.
O For discolorations or deposits that persist, use a
non-scratching household cleanser or stainless steel
polishing powder with a little water and a soft cloth.
O For stubborn cases, use a plastic scouring pad or
soft bristle brush together with cleanser and water.
Rub lightly in direction of polishing lines or "grain"
of the stainless finish. Avoid using too much
pressure which may mar the surface.
O DO NOT allow deposits to remain for long periods
of time.
O DO NOT use ordinary steel wool or steel brushes.
Small bits of steel may adhere to the surface causing
rust.
O DO NOT allow salt solutions, disinfectants,
bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods.
Many of these compounds contain chemicals which
may be harmful. Rinse with water after exposure
and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water
and mild detergent only.
12
Operation
Controls
filter
light
switch
Dead-front mode
Stand-by mode
In dead-front mode, press any key for enter in standby mode.
If the hood is in stand-by mode, after 10 seconds on
return automatically in dead-front mode.
Light switch
Press any key for enter in stand-by mode.
Push the light switch once to turn the lights ON to a
dim level.
Push a second time to turn the lights ON to a brighter
level.
Push a third time to turn the lights OFF (stand-by
mode).
Fan speed switches
Press any key for enter in stand-by mode.
The fan speed switches turns the fan on.
1 : fan ON at low speed
2 : fan ON at medium-low speed
3 : fan ON at medium-high speed
4 : fan ON at high speed
Fan on/off switch
Push this fan switch to turn OFF the fan.
The hood turns in the stand-by mode.
reset
switch
fan
on/off
switches
display
fan speed
switches
Push this switch once to turn the timer Off.
Filter reset switch
When the filter switch is illuminated, it is necessary to
clean the GREASE FILTERS. Once the grease filters
are cleaned and installed, press in and hold the “filter
reset switch” for approximately 3 seconds.
When the filter switch is illuminated and blink, it is
necessary to replace the CHARCOAL FILTER. Once
the new charcoal filter is installed, press in and hold
the “filter reset switch” for approximately 3 seconds.
Heat Sentry
Your hood is equipped with a HEAT SENTRY™
thermostat. This thermostat is a device that will turn
on or speed up the blower if it senses excessive heat
above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns
blower up to HIGH speed.
When the Heat Sentry is active, the word “HS” appears
in the display and the tone alarm is active. To disarm
the tone alarm, press the 4 fan speed switch.
When the temperature level drops to normal, the blower
will return to its original setting.
delay
shut
off
IMPORTANT
The HEAT SENTRY thermostat can start the
blower even if the hood is turned OFF. When
this occurs, it is impossible to turn the blower
OFF with its switch. If you must stop the blower,
do it from the integral disconnecting switch
located inside the blower housing.
Heat Sentry active
Delay shut off switch
Pressing this switch when is active any speed, sets a
timer which keeps the fan operating at this speed for
10 minutes (the number “10” appears in the display).
After 10 minutes, the hood turns in the stand-by mode.
Operation
13

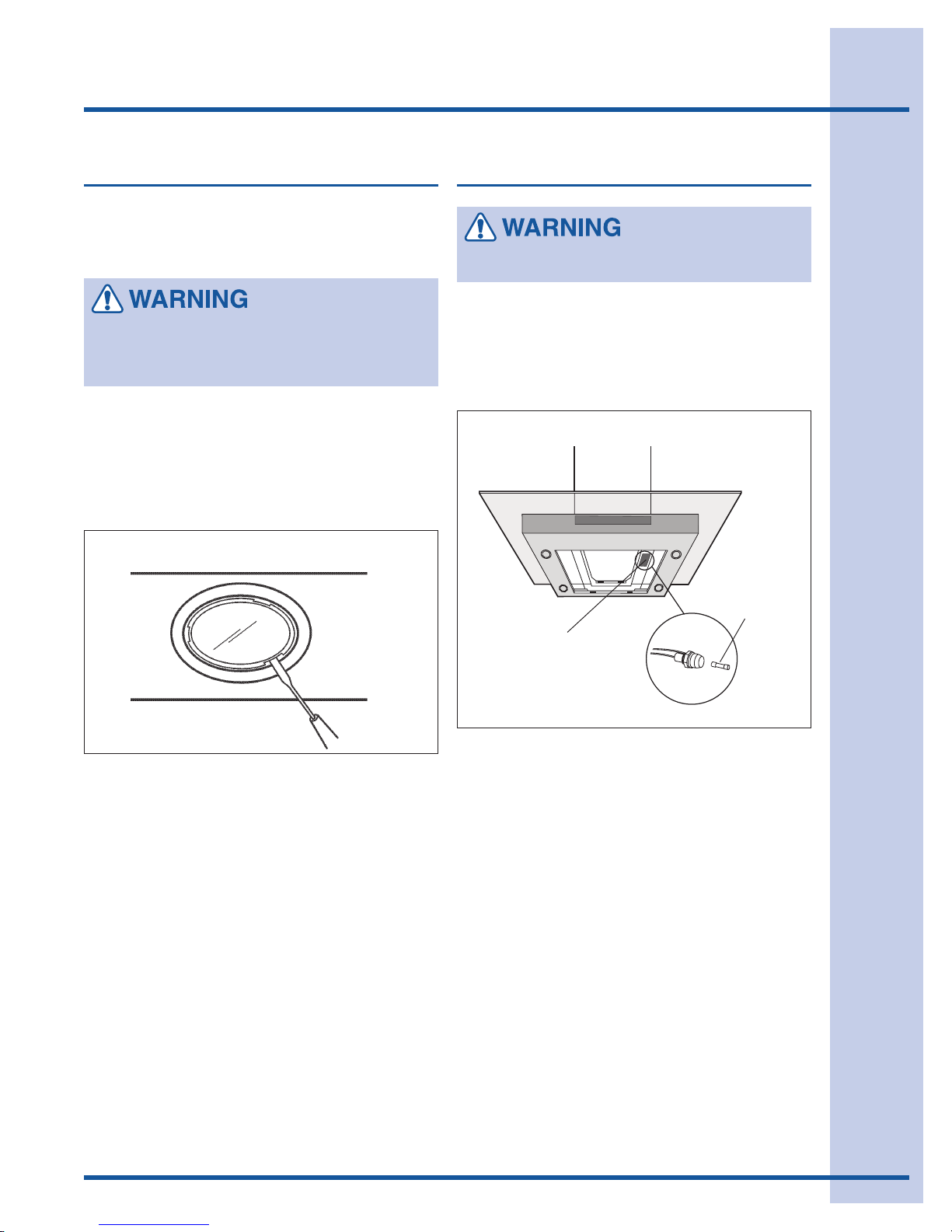

Halogen bulbs
This range hood requires four halogen bulbs (max 20W,
12V, Type T3 bulb, G4 Base).
Halogen Bulb Key : 5304454951
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY
BEFORE CARRYING OUT ANY OPERATIONS ON THE
APPLIANCE.
To change bulbs:
1. Open the cover by prying from the proper slots. - D O
NOT ROTATE. CAUTION: BULB MAY BE HOT!
3. Replace with a max 20W, 12V, Type T3 bulb, G4 Base
bulb. Do not touch replacement bulb with bare hands! If
the bulb is touched with the bare hand, it should be
cleaned with a lint-free cloth moistened with methylated
spirit.
Fuse replacement
SWITCH OFF THE ELECTRICITY SUPPLY.
Remove the grease filters.
Open the fuse box.
Replace with the same type of fuse (5x20mm, 4A, 125V).
Fuse Key : 5304455332
FUSE
FUSE BOX
14

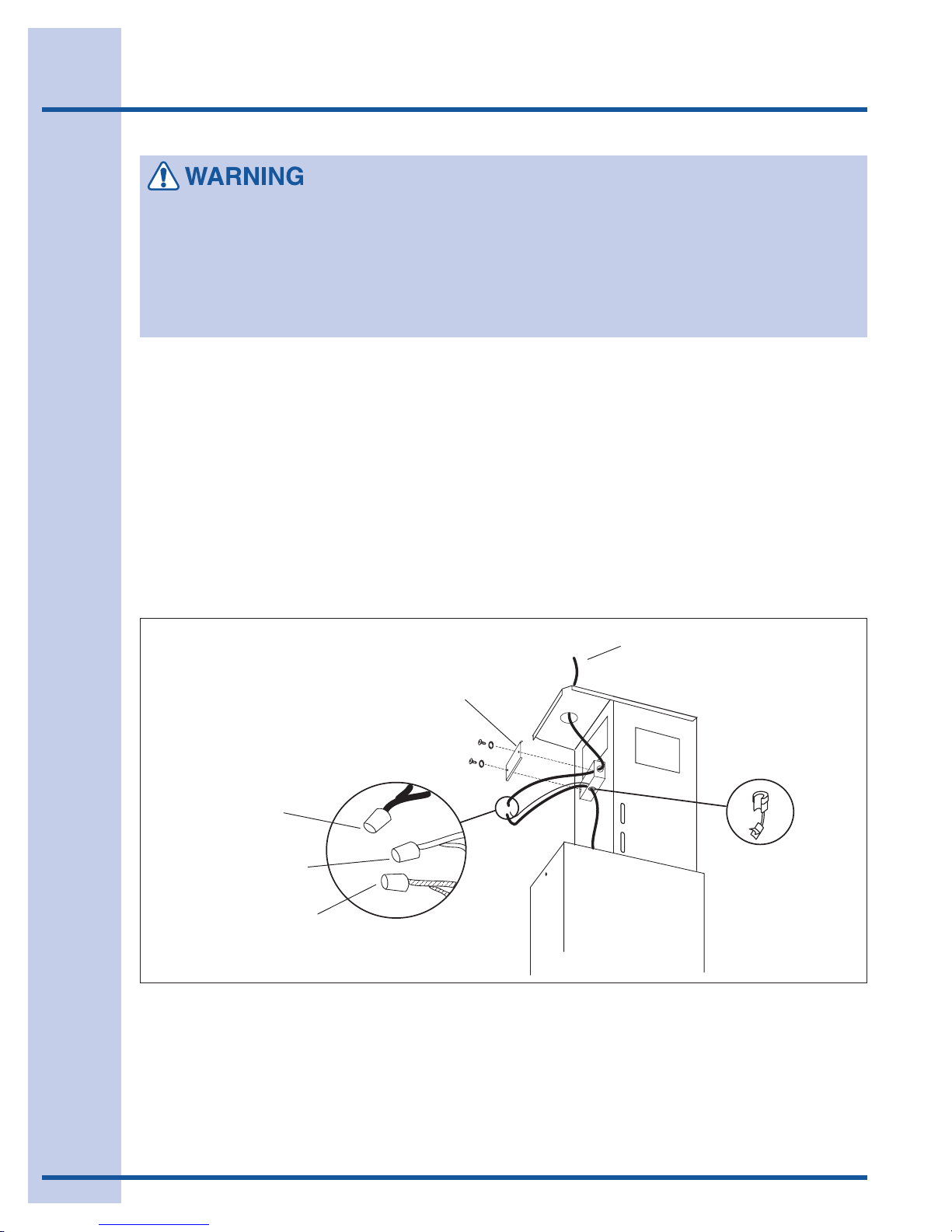

Wiring
This range hood must be properly grounded.
Improper grounding can result in a risk of electric shock.
The unit should be installed by a qualified electrician in accordance with all applicable national and
local electrical codes.
Turn off electrical power at service entrance before wiring.
1. Remove the (2) screws of the upper flue and move the upper flue towards the bottom.
2. Feed 6” of power cable through the top opening of the support frame bracket (installed on ceiling) and into
the wiring box. For the Non-Ducted Hoods, do not use the upper hole of the wiring box.
Secure cable to the wiring box using an appropriate connector.
3. Feed the range hoods power cable through the lower hole of the wiring box (use a wire clamp located in the
Hardware Package.
4. Make electrical connections. Wire white-to-white, black-to-black and green-to-green.
5. Push all wiring inside the wiring box. Install the wiring box cover with (2) 3.9x9.5mm screws and (2)
serrated washers making sure wires are not pinched.
6. Tuck excess power cable inside the flue.
7. Reinstall the upper flue.
BLK-BLK
WHT-WHT
GRN-GRN
WIRING BOX
COVER
LINE IN 120 VOLTS - 60 HZ
WIRE CLAMP
Warranty Information
In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White Consolidated Industries,
Inc. We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts
under this warranty must be performed by us or authorized Electrolux Home Products North America servicer. In Canada, our
appliance is warranted by Electrolux Canada Corp.
15
FULL ONE-YEAR
WARRANTY
LIMITED
WARRANTY
(Applicable to
the State of Alaska)
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
WARRANTY
PERIOD
One year from
original purchase
date
Time periods
listed above
This warranty applies only to products in ordinary household use and the consumer is responsible for
the items listed below.
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance
and in accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to grounded power supply of sufficient voltage, replacement of blown fuses, repair of
loose connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so
this limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances
not in ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products North
America or its authorized servicers; use of parts other than genuine Electrolux Home Products parts;
obtained from persons other that such servicers; or external causes such as abuse, misuse, inadequate
power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily
determined.
THROUGH OUR AUTHORIZED SERVICERS,
WE WILL:
Pay all costs for repairing or replacing any parts of
this appliance which prove to be defective in
materials or workmanship.
All of the provisions of the full and limited
warranties above and the exclusions listed below
apply.
THE CONSUMER WILL BE
RESPONSIBLE FOR:
Costs of service calls that are listed
under NORMAL RESPONSIBILITIES OF
THE CONSUMER.*
Costs of the technician’s travel to the
home and any costs for pick up and
delivery of the appliance required
because of service.
IF YOU NEED
SERVICE
This warranty only applies in the 50 states of the U.S.A., Puerto Rico and Canada. Product features or specifications as described or
illustrated are subject to change without notice. All warranties are made by Electrolux Home Products North America, a division of
White Consolidation Industries, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
USA
1-800-944-9044
Electrolux Home Products
North America
P.O. Box 212378
Augusta, GA 30917
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill
establishes the warranty period should service be required. If service is performed, it is in your best
interest to obtain and keep all receipts. This written warranty gives you specific legal rights. You may also
have other rights that vary from state to state. Service under this warranty must be obtained by contacting
Electrolux Home Products.
Canada
1-866-294-9911
Electrolux Home Products
North America
802, boul. L’Ange-Gardien
L’Assomption, Quebec J5W 1T6
04307839/2S
Loading...
