Electrolux UR15IM20RS Owner's Guide
EN ICE MAKER
FR ICE MAKER
ES ICE MAKER
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
A04236401 August 2015
(41014070 August 2015)
2
Finding Information
Please Read and Save
This Guide
Thank you for choosing Electrolux, the
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new ice maker.
We view your purchase as the beginning
of a relationship. To ensure our ability to
continue serving you, please use this page
to record key product information.
IMPORTANT
PLEASE READ all instructions
completely before attempting to install
or operate the unit.
All ice makers require a connection to
both a water supply and an electrical
power source. Improper hook-up can
result in substantial property damage!
Proper installation, in accordance with
the manufacturer’s specifications and
all local codes, is the sole responsibility
of the consumer. The manufacturer
is not responsible for any installation
expenses or damages incurred due to
improper installation. If you are unsure
of your ability to safely make electric
power, water supply, and water drain
connections to the unit, consult licensed
and insured professionals to perform all
electrical and plumbing work.
Once you have your unit installed,
we suggest you keep this manual
in a safe place for future reference.
Should any problems occur, refer to the
Troubleshooting section of this manual.
This information will help you quickly
identify a problem and get it remedied. In
the event you require assistance, please
contact the dealer where you purchased
your unit.
Keep a record for quick
reference
Whenever you call to request information
or service, you will need to know your
model number and serial number. You
can find this information on the serial plate
located on the inside wall of your unit and
on the product registration card.
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You
can register online at
www.electroluxappliances.com or by
dropping your Product Registration
Card in the mail. Complete and mail the
Product Registration Card as soon as
possible to validate the registration date.
Please record the purchase date of your
Electrolux unit and your dealer’s name,
address and telephone number.
____________________________________
Purchase Date
____________________________________
Electrolux Model Number
____________________________________
Electrolux Serial Number
____________________________________
Dealer Name
____________________________________
Dealer Address
____________________________________
Dealer Telephone
Keep this manual and the sales receipt
together in a safe place for further
reference.
Questions?
For toll-free telephone support in the U.S.
and Canada:1-877- 4ELECTROLUX
(1-877-435-3287)
For online support and Internet product
information: www.electroluxappliances.com
Finding Information
Table of Contents
3
Finding Information ..............................2
Please Read and Save this Guide ......... 2
Keep a Record for Quick Reference .....2
Questions? ........................................... 2
Table of Contents .................................. 3
Safety ....................................................4
Important Safety Instructions ................ 4
Safety Precautions..........................4
Definitions.......................................4
General Precautions .......................4
Site Preparation ....................................5
Preparing the Site ................................. 5
Installation ............................................6
Select Location ..................................... 6
Cabinet Clearance ................................ 6
Installing the Drain ................................. 6
Drain Plumbing ...............................6
Installation Dimensions ........................ 7
Factory Installed Drain Pump ..........7

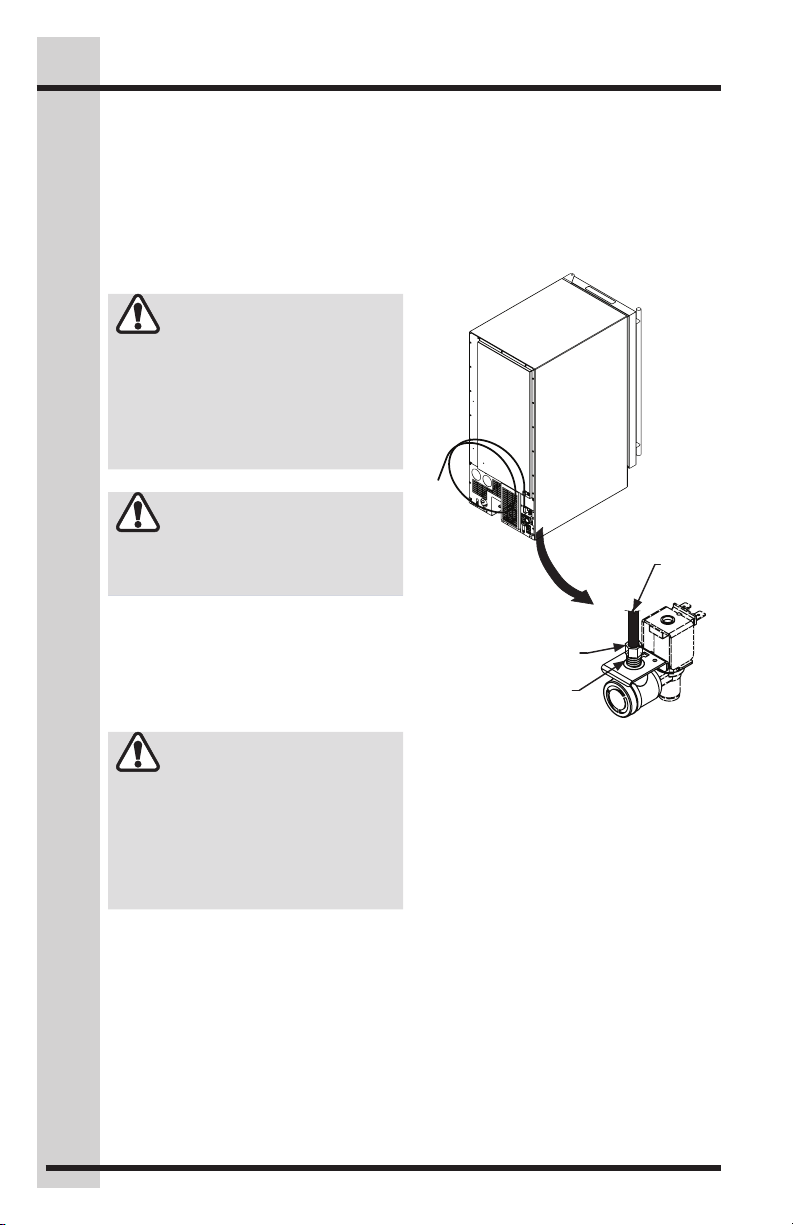

Connecting the Water Supply ............... 8
Electrical Connection ............................ 9
Leveling Legs ...................................... 10
Leveling the Unit ................................. 10
Door Adjustment ................................11
Adjusting the Door ............................. 11
Operation of Ice Machine ...................12
Ice Making Process ............................ 12
Ice Production .................................... 12
New Sounds ....................................... 13
Built-In Installation/Start-Up ..............14
Installing a Built-In ............................... 14
Initial Start-Up .................................... 14
Using your Electronic Control .............. 14
Display Icons ................................14
Display Area Text ..........................14
Starting your Clear Ice Machine ....15
Turning your Ice Machine On/Off ..15
Control Lock .................................15
Delay Start/Vacation Mode ...........15
Clean Reminder ............................15
Door Ajar Alarm ............................16
Options Menu ..................................... 16
Normal and ECO Mode ................16
Clean Mode ..................................16
Once You have your Cleaner ........16
Maintenance .......................................18
Special Considerations ....................... 18
Maintaining & Cleaning your Ice Maker ..... 18
Exterior Cleaning - As Required ....18
Stainless Steel Models ..................18
Interior Cleaning - As Required .....18
Condenser Cleaning - Every 3 Months 19
Automatic Cleaning - Every 6 Months . 19
Preparing the Ice Machine for Storage 20
Clean the Ice Maker......................20
Draining & Removing Water
from the Ice Making System
with a Gravity Drain ....................20
Draining Water for Factory In-
stalled Drain Pump Application ...21
To Restart the Ice Maker ...............22
Drain Pump Removal Instructions ....... 23
Troubleshooting ..................................24
Before you Call for Service .................. 24
Troubleshooting Guide ........................ 24
Troubleshooting the Drain Pump ......... 28
If Service is Required .......................... 28
Warranty Information ..........................29
WARNING
You must follow these guidelines to ensure that your refrigerator’s safety
mechanisms are operating correctly.
4
Safety
Important Safety
Instructions
Safety Precautions
Do not attempt to install or operate
your unit until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
Danger, Warning or Caution based on the
risk type.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
General Precautions
WARNING
RISK OF CHILD ENTRAPMENT.
Before you throw away your old
appliance, take off the doors and
leave shelves in place so that
children may not easily climb inside.
IMPORTANT
To turn off power to your ice maker, unplug
the power cord from the wall outlet.
WARNING
• Never attempt to repair or perform
maintenance on the unit until the
electricity has been disconnected.
• Altering, cutting of power cord,
removal of power cord, removal
of power plug, or direct wiring
can cause serious injury, fire and/
or loss of property and/or life and
will void the warranty.
• Do not lift unit by door handle.
CAUTION
• Use care when moving the
unit. Some edges are sharp
and may cause personal injury.
Wear gloves when moving or
repositioning the unit.
• Never install the unit behind closed
doors. Be sure front grille is free of
obstruction. Obstructing free air flow
can cause the unit to malfunction,
and may void the warranty.
• Allow unit temperature to stabilize
for 24 hours before use.
• Never use an ice pick or other
sharp instrument to help speed
up defrosting. These instruments
can puncture the inner lining or
damage cooling unit
• Failure to clean the condenser
every three months can cause the
unit to malfunction. This could
void the warranty.
CAUTION
• Using a heater to speed up
defrosting can cause personal
injury and damage to the inner
lining. DO NOT use any type of
heater to defrost.
• Use only genuine Electrolux
replacement parts. Imitation parts
can damage the unit and may
void the warranty.
5Site Preparation
Preparing the Site
IMPORTANT
It is extremely important that the unit is
level. If it is not level, the ice mold will not
fill evenly. This can cause a reduction in ice
rate, uneven sized cubes or water spilling
into the storage area which will cause
the ice in the bin to melt pre-maturely.
Remember that floors near drains have a
tendency to slope towards the drain.
1 Position the unit on a flat, level
surface, capable of supporting the
entire weight of the unit. Remember
that the unit will be significantly
heavier once it is fully loaded.
2 The surrounding air temperature must
be at least 50°F (10°C) but must not
exceed 110°F (43°C).
3 The unit must not be located near
heat-generating equipment or in
direct sunlight.
DANGER
ELECTROCUTION HAZARD!
Electrical Grounding Required. This
appliance is equipped with a three
prong (grounding) polarized plug
for your protection against possible
shock hazards.
• NEVER remove the round
grounding prong from the plug.
• NEVER use a two-prong
grounding adapter.
• NEVER use an extension cord to
connect power to the unit.
Where a two-prong wall receptacle is
encountered or a longer power cord is
required, contact a qualified electrician
to have it replaced in accordance with
applicable electrical codes.
5 Connect the unit to a grounded and
polarized 115 VAC, 60 Hz, 15 A
circuit (normal household current).
6 Avoid connecting the unit to a Ground
Fault Interrupter (GFI). GFIs are prone
to nuisance tripping which will cause
the unit to shut down. GFIs are
generally not used on circuits which
power equipment that must run
unattended for long periods of time.
7 The unit must be installed according
to your local codes and ordinances.
NOTE
The door of this unit is not reversible
but a separate model is available with a
door that swings open in the opposite
direction. Electrolux stainless steel
models require a minimum 2-3/4 inch
handle clearance when installed against
a wall or cabinet that extends beyond
the front edge of the unit (Figure 1).
Cabinet
or Wall
Door
Swing
Figure 1
8 Position the unit to allow free air flow
through the front grille (Figure 2).
9 Wipe out inside of unit with a damp
cloth.
2 - 3/4"
Clearance
Needed
IMPORTANT
This unit is designed for indoor use only.
4 The unit must be located to allow
clearance for water, drain and electrical
connections in the rear of the ice maker.
Intake Exhaust
Figure 2
6
Legs
Legs
Water
supply
Installation
Select Location
The proper location will ensure peak
performance of your appliance. We
recommend a location where the ice
machine will be out of direct sunlight
and away from heat sources. To ensure
your product performs to specifications,
the recommended installation location
temperature range is from 55 to 90°F (13
to 32°C) for built in ice machines and 55
to 100°F (13 to 38°C) for freestanding ice
machines. Ice machines will not perform
correctly in ambient temperatures less
than 55°F (13°C). This unit is not intended
to be installed outdoors.
Cabinet Clearance
Ventilation is required from the bottom
front of the appliance. Keep this area open
and clear of any obstructions. Adjacent
cabinets and counter top can be installed
around the appliance as long as the front
grille remains unobstructed.
CAUTION
Do not obstruct the front grille. The
openings within the front grille allow
air to flow through the condenser
heat exchanger. Restrictions to this
air flow will result in increased energy
usage and loss of cooling capacity.
For this reason it is important this
area not be obstructed and the grille
openings kept clean. Electrolux does
not recommend the use of a custom
made grille as air flow may be
restricted (Figure 1).
Front Grille,
keep this area
open
Installing the Drain
CAUTION
PLEASE READ all instructions
completely before attempting to
install or operate the unit. Plumbing
installation must observe all state and
local codes. All ice makers require
a connection to the water supply
and improper hook-up can result
in substantial property damage! All
water and drain connections MUST
BE made by a licensed/qualified
plumbing contractor. Failure to follow
recommendations and instructions
may result in damage and/or harm.
Drain Plumbing
Your ice machine requires drain plumbing.
Follow these guidelines when installing
drain lines to prevent water from flowing
back into the ice maker storage bin and/
or potentially flowing onto the floor causing
water damage.
CAUTION
Observe and follow all local building
codes when installing this ice
machine and drain lines.
inlet
C
L
Drain access in
bottom of unit
(if using gravity
drain)
1
⁄2"
21
(54.6 cm)
Figure 2
11
⁄16"
(17mm)
43⁄32"
(10.4 cm)
17
⁄32"
4
(11.5 cm)
11⁄4"
(3.2 cm)
C
(37.8 cm)
L
147⁄8"
Front Leveling
Figure 1
Rear
Leveling
CAUTION
Failure to use an adequate drainage
system, will result in surrounding
water damage and/or poor ice
production.
Installation Dimensions
24"
(55.2cm)
14 7/8"
Drain line coiled and
7Installation
Figure 3
33 5/8"
(85.4cm)
Adjustable
to 34 3/4"
(88.3cm)
Water
Drain
5"
(12.7cm)
Water
Outlet
(37.8cm)
(61cm)
Water
Valve
21 3/4"
Factory Installed Drain Pump
This pump is designed to remove drain water from ice machines installed in areas without
direct drainage access. The sealed reservoir pump collects the melted ice water and pumps
it to a maximum lift of eight feet (2.44 meters) through 3⁄8” I.D. vinyl tubing to a drain.
The discharge tubing is coiled up and attached to the back of the ice machine. The 3⁄8
inch I.D. tubing needs to be plumbed and connected to a sanitary sewer (Figure 4).
CAUTION
This drain pump is designed to be
installed in Electrolux ice machines
only and has been evaluated for use
with water only. Drain line vertical rise
is not to exceed 8 feet and total drain
line length is not to exceed 20 feet;
otherwise, the ice machine may not
operate correctly.
secured to the back of the
cabinet. Uncoil, route to
an appropriate drain and
cut to length.
WARNING
Electrical Shock Hazard
Risk of electrical shock or personal injury
could occur due to moving components,
if the machine compartment access
cover is removed before unplugging the
ice machine power cord.
Drain pump
vent tube. Keep
this open to assure
air ows freely as
water enters the
pump reservoir.
Figure 4
8
Installation
Connecting the Water
Supply
CAUTION
Observe and follow all local plumbing
codes when installing this appliance.
After completing the installation, turn
on the water and recheck the drain
and water connections for leaks.
This ice machine must be connected to a
potable cold water supply line delivering
water pressure between a minimum of 20
psi and a maximum of 120 psi.
Use 1⁄4" copper tubing for your water
supply which is available at any local
hardware or plumbing supply store.
Route the 1⁄4" copper tubing to suit your
installation being sure not to kink the
tubing. Purchase enough copper tubing
length to allow a coil to be formed behind
the unit for a "service loop" which will allow
the appliance to be pulled out from the
installation for servicing or cleaning (Figure
5). Connect the copper tubing to the "top
side" of a cold water pipe to prevent the
ice-maker from plugging with sediment.
A shutoff valve is recommended on the
water supply line to ease servicing the
appliance. NOTE: A SELF-PIERCING
TYPE VALVE IS NOT RECOMMENDED as
they are prone to clogging with sediment
which will create pressure drop reducing
the water supply to the unit.
Connect the copper tubing water supply to
the water valve inlet with the compression
nut fitting provided. Secure the water
supply line to the back of the cabinet with
the screw and strain relief clamp provided
in the corner of the back panel (Figure 5).
Make certain all connections are watertight
after installation. Form the tubing so that it
will not vibrate against the cabinet body or
kink when your appliance is moved in and
out of position.
This ice machine is designed to make
clear ice from the majority of water
sources on a daily basis. If your results are
unsatisfactory, your water may need to be
filtered or treated. A water specialist can
recommend proper water treatment.
Water Supply
Line
Clamp and
Screw
Water
supply
Water supply
service loop
(to shut
o valve)
Compression
tting
Water valve
inlet
Figure 5 Back view of ice machine
line
NOTE
• The water line fitting is to be used
with copper tubing only. Do not
use with plastic tubing since it
may crack or rupture with age.
• Do not use any thread sealers on
this water line fitting.
• Reverse osmosis, (RO), water,
softened water, and de-ionized
water are not recommended as
they will adversely affect the
quality of the ice.
Once all connections have been made,
plug in the power cord and gently push
the unit into position. Allow at least
1-1/2 inches clearance behind the unit
for electrical, water supply and drain
connections.
Electrical Connection
Do not remove
A grounded 115 volt, 15 amp dedicated
circuit is required.
This product is factory equipped with
a power supply cord that has a threepronged, grounded plug. It must be
plugged into a mating grounding type
receptacle in accordance with the National
Electrical Code and applicable local
codes and ordinances (Figure 6). If the
circuit does not have a grounding type
receptacle, it is the responsibility and
obligation of the customer to provide
the proper power supply. The third
ground prong should not, under any
circumstances, be cut or removed.
Installation
WARNING
Electrical Shock Hazard
• Do not use an extension cord
with this appliance. They can
be hazardous and can degrade
product performance.
• This appliance should not, under
any circumstances, be installed to
an ungrounded electrical supply.
• Do not remove the grounding
prong from the power cord
(Figure 7).
• Do not use an adapter (Figure 8).
• Do not splash or spray water from a
hose on the appliance. Doing so may
cause an electrical shock, which may
result in severe injury or death.
ground prong
Figure 7
9
Figure 6
NOTE
Ground Fault Circuit Interrupters (GFCI)
are prone to nuisance tripping which
will cause the appliance to shut down.
GFCI’s are generally not used on circuits
with power equipment that must run
unattended for long periods of time,
unless required to meet local building
codes and ordinances.
Figure 8
WARNING
Electrical Shock Hazard
Reasonable care and safe methods
should be practiced. Do NOT work with
energized electrical equipment in a wet
area. Read and follow the installation
instructions listed in this manual.
Loading...
