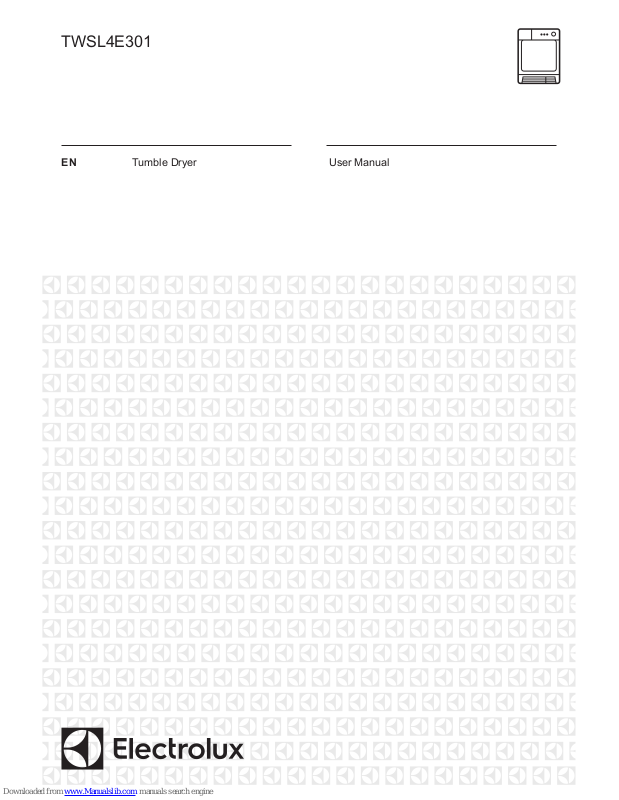

Page 1
TWSL4E301
EN Tumble Dryer User Manual
Page 2
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve
chosen a product that brings with it decades of professional
experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that
you have the following data available: Model, PNC, Serial
Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2/48
Page 3
CONTENTS
1. SAFETY INFORMATION.......................................................... 5
1.1 Children and vulnerable people safety
.............................5
1.2 General Safety ................................................................ 5
2. SAFETY INSTRUCTIONS.........................................................8
2.1 Installation........................................................................ 8
2.2 Electrical connection........................................................ 8
2.3 Use...................................................................................9
2.4 Internal light......................................................................9
2.5 Care and cleaning............................................................ 9
2.6 Compressor....................................................................10
2.7 Disposal......................................................................... 10
3. PRODUCT DESCRIPTION......................................................11
4. CONTROL PANEL..................................................................12
4.1 Display........................................................................... 12
5. PROGRAM (PROGRAMME)...................................................14
5.1 Programmes and options selection................................17
5.2 Consumption data.......................................................... 18
6. OPTIONS.................................................................................20
6.1
Dryness (Trockengrad) ............................................ 20
6.2 Extra Silent (Extra Leise)............................................20
6.3
ECO.........................................................................
20
6.4
Anticrease (Knitterschutz) ......................................... 20
6.5
Refresh (Auffrischen)................................................. 20
6.6 Time Dry (Zeitwahl) .................................................. 20
6.7 Time Dry (Zeitwahl) on Wool (Wolle) program.......... 21
6.8
Delay Start (Zeitvorwahl)........................................... 21
6.9 Buzzer (Signal)
..................................................21
7. BEFORE FIRST USE
.............................................................. 22
8. DAILY USE..............................................................................23
8.1 Preparing the laundry.....................................................23
8.2 Loading the laundry........................................................24
8.3 Turning on the appliance................................................24
3/48
Page 4
8.4 Auto Off
function............................................................ 24
8.5 Setting a program...........................................................25
8.6 Options...........................................................................25
8.7 Child lock option.............................................................26
8.8 Starting a program......................................................... 26
8.9 Program change.............................................................27
8.10 Program end................................................................ 27
9. HINTS AND TIPS.................................................................... 28
9.1 Ecological hints.............................................................. 28
9.2 Adjustment of default dryness level............................... 28
9.3 Deactivating the tank indicator
...................................29
10. CARE AND CLEANING
........................................................ 30
10.1 Cleaning the filter......................................................... 30
10.2 Emptying the water container.......................................31
10.3 Cleaning the condenser............................................... 32
10.4 Cleaning the drum........................................................33
10.5 Cleaning the control panel and housing.......................33
10.6 Cleaning the airflow slots............................................. 34
11. TROUBLESHOOTING.......................................................... 35
12. TECHNICAL DATA............................................................... 40
13. ACCESSORIES.....................................................................42
13.1 Stacking kit...................................................................42
13.2 Draining kit................................................................... 42

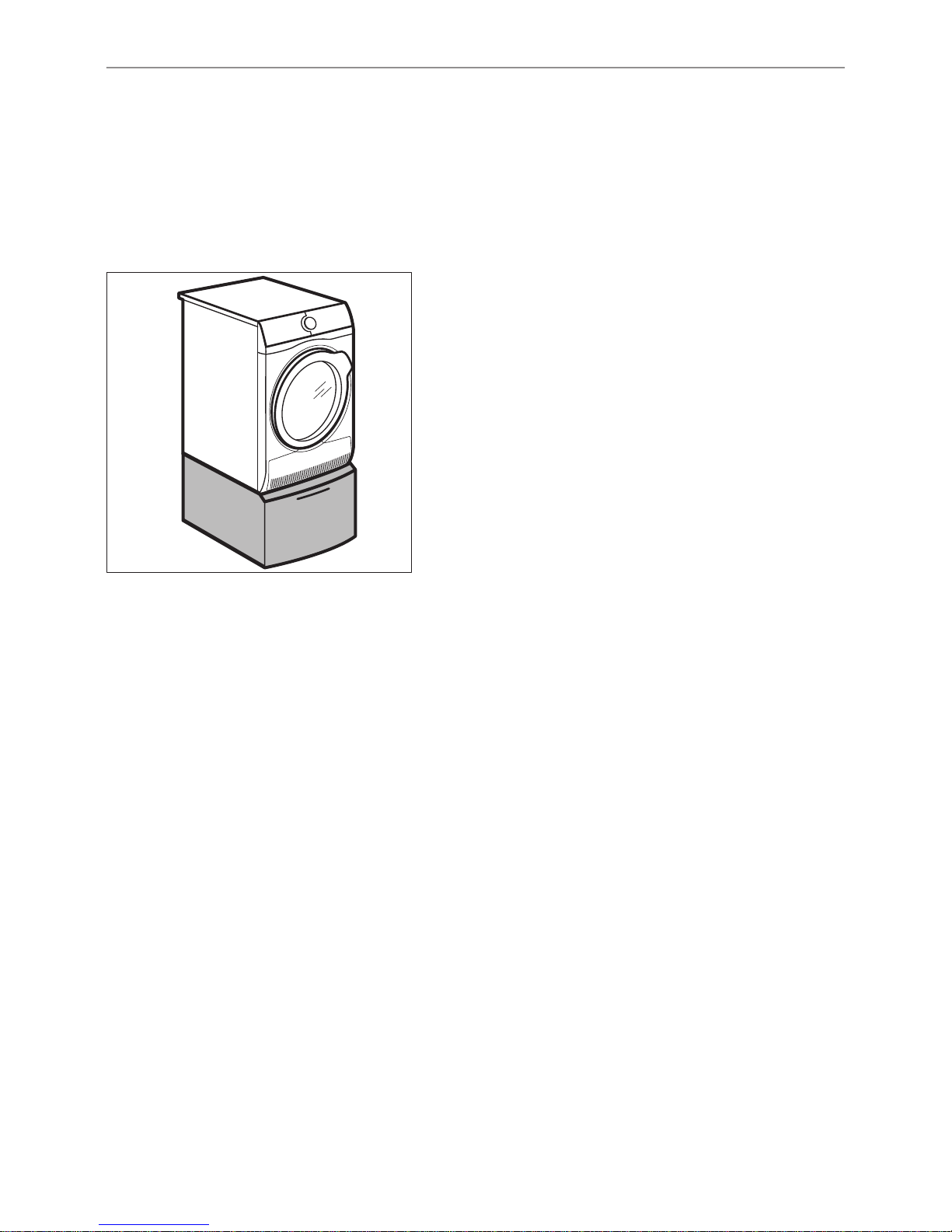

13.3 Pedestal with drawer....................................................43
14. GUARANTEE ....................................................................... 44
4/48
CONTENTS
Page 5
1. SAFETY INFORMATION
Before beginning the installation and use of this appliance,
carefully read the supplied instructions. The manufacturer is
not responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Do not let children play with the appliance.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• Do not change the specification of this appliance.
5/48
Page 6

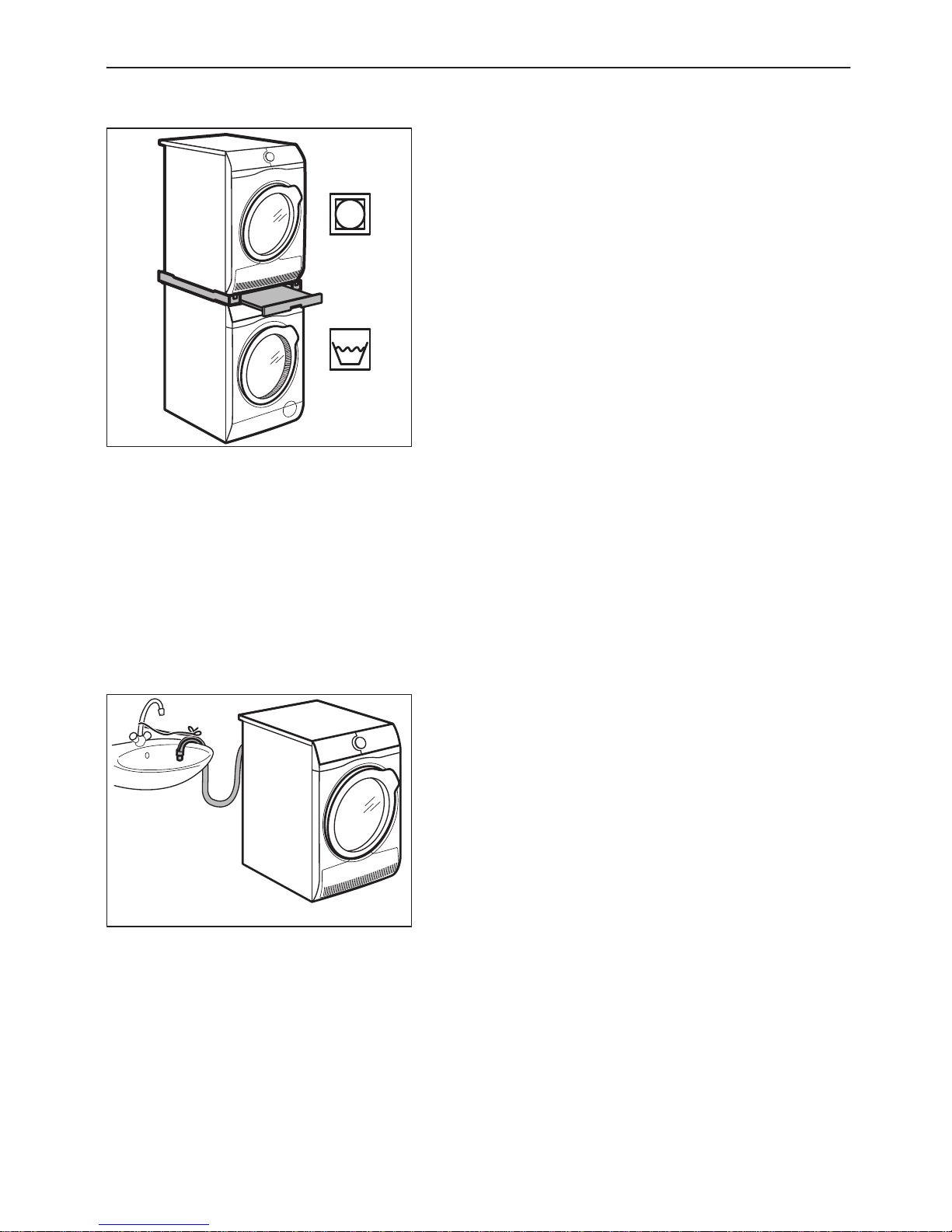

• If the tumble dryer is put on top of a washing machine, use
the stacking kit. The stacking kit, available from your
authorized vendor, can be used only with the appliance
specified in the instructions, supplied with the accessory.
Read it carefully before installation (Refer to the Installation
leaflet).
• The appliance can be installed as freestanding or below the
kitchen counter with correct space (Refer to the Installation
leaflet).
• Do not install the appliance behind a lockable door, a sliding
door or a door with a hinge on the opposite side, that would
prevent the appliance door from being fully opened.
• The ventilation opening in the base must not be covered by
a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied through an
external switching device, such as timer, or connected to a
circuit that is regularly switched on and off by a utility.
• Connect the mains plug to the mains socket only at the end
of the installation process. Make sure that the mains plug is
accessible after installation.
• Ensure good air ventilation in the located room to avoid the
backflow of unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Do not exceed the maximum load of
8 kg (refer to the
"Programme chart" chapter).
• Do not use the appliance if items have been soiled with
industrial chemicals.
• Wipe away lint or packaging debris that has accumulated
around the appliance.
6/48
SAFETY INFORMATION
Page 7
• Do not run the appliance without a filter. Clean the lint filter
before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
• Fabric softeners, or similar products, should only be used as
specified by the product manufacturer’s instructions.
• Remove all objects from items that could be a source of fire
ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
7/48
SAFETY INFORMATION
Page 8
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
•
Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy.
Always use safety gloves and enclosed footwear.
• Do not install or use the appliance where the temperature can be
less than 5°C or higher than 35°C.
• The floor area on which the appliance is to be installed must be
flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and
the floor.
• Always keep the appliance vertical when being moved.
• The rear surface of the appliance must be put against the wall.
• When the appliance is in its permanent position, check that it is
fully level with the aid of a spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• Connect the mains plug to the mains socket only at the end of the
installation. Make sure that there is access to the mains plug after
the installation.
•
The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible
with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Do not pull the mains cable to disconnect the appliance. Always
pull the mains plug.
8/48
Page 9
• Do not touch the mains cable or the mains plug with wet hands.
•
This appliance complies with the E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock, fire, burns or damage to the
appliance.
• This appliance is for household use only.
•
Do not dry damaged (torn, frayed) items that contain padding or
fillings.
• Only dry fabrics which are applicable to dry in the tumble dryer.
Follow the instructions on the fabric label.
• If you have washed your laundry with a stain remover start an
extra rinse cycle before you start the dryer.
• Do not drink or prepare food with the condensed water/distilled
water. It can cause health problems to people and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the tumble dryer.
2.4 Internal light
WARNING!
Risk of injury.
• Visible LED radiation, do not look directly into the beam.
•
The LED lamp is dedicated to drum lighting. This lamp cannot be
reused for other lighting purposes.
• To replace the internal light, contact the Authorised Service
Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
• Do not use water spray and steam to clean the appliance.
9/48
SAFETY INSTRUCTIONS
Page 10
• Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use any abrasive products, abrasive cleaning
pads, solvents or metal objects.
•
To prevent damage to the cooling system be careful when you
clean the appliance.
2.6 Compressor
WARNING!
Risk of damage to the appliance.
• The compressor and its system in the tumble dryer is filled with
the special agent which is free from fluoro-chloro-hydrocarbons.
This system must stay tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains electrical and water
supplies.
•
Cut off the mains electrical cable close to the appliance and
dispose of it.
• Remove the door catch to prevent children or pets from
becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements
for the disposal of Waste Electrical and Electronic Equipment
(WEEE).
10/48
SAFETY INSTRUCTIONS
Page 11
3. PRODUCT DESCRIPTION
1 2
8
3
4
5
6
7
10
9
1
Water container
2
Control panel
3
Internal light
4
Appliance door
5
Filter
6
Rating plate
7
Airflow slots
8
Condenser lid
9
Condenser cover
10
Adjustable feet
For ease of loading laundry or ease of installation the door is
reversible. (see separate leaflet).
11/48
Page 12

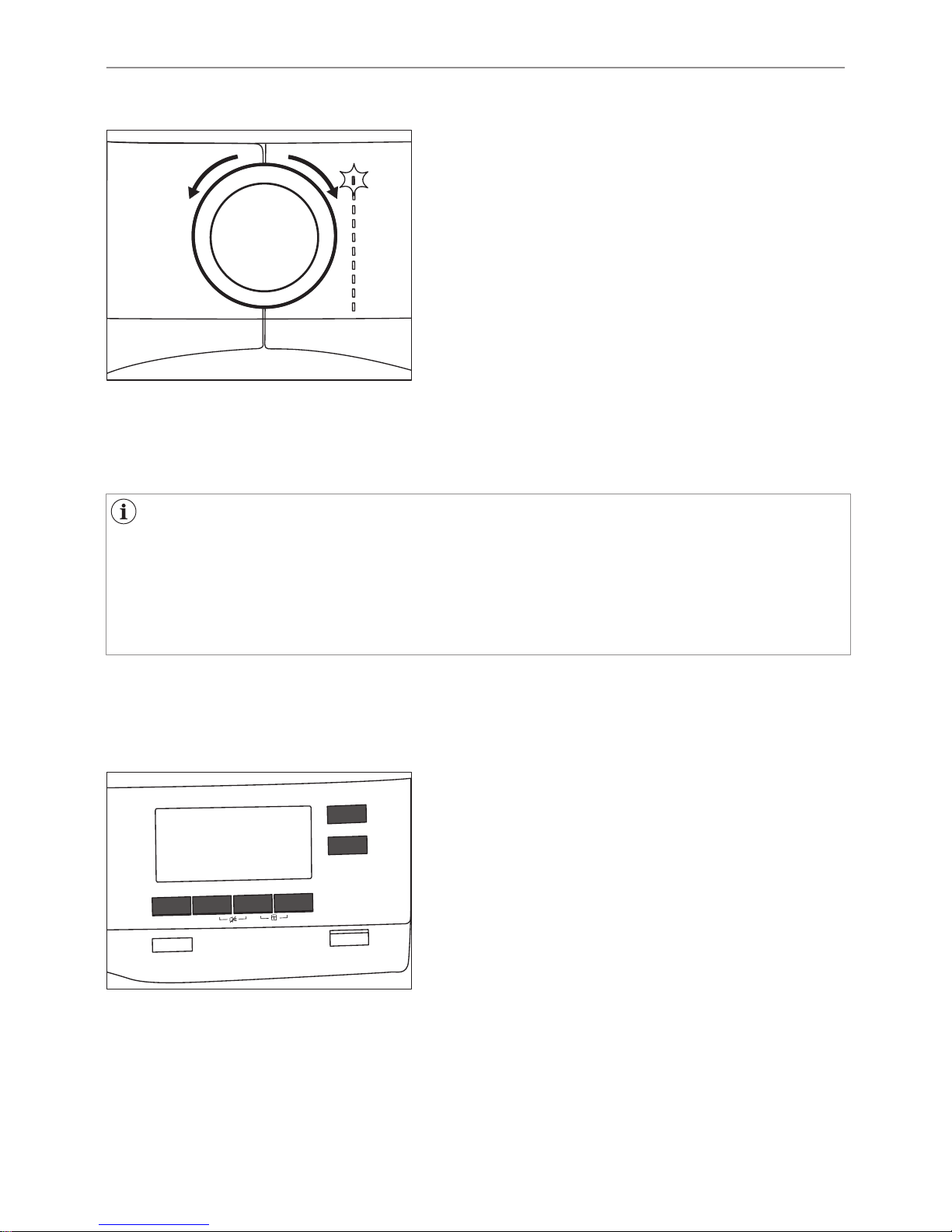

4. CONTROL PANEL
2
3
5
1
6
4
1
Programme dial
2
Display
3
Start/Pause button
4
Options
5
On/Off (Ein/Aus) button with
Auto Off
function
6
Programmes
4.1 Display
Symbol on the display Symbol description
laundry maximum load
delay start option on
-
delay start selection (30min-20h)
12/48
Page 13
Symbol on the display Symbol description
cycle time indication
buzzer off
child lock on
time drying option on
-
time drying selection (10min-2h)
indicator:
drain the water container
indicator:
clean filter
indicator:
check condenser
, , ,
laundry dryness option: iron dry, cup‐
board dry, cupboard dry +, extra dry
ECO ECO option on
Extra Silent (Extra Leise) option on
Refresh (Auffrischen) option on
, ,
extension of default anti-crease
phase: +30min, +60min, +90min)
indicator:
drying phase
indicator:
cooling phase
indicator:
crease guard phase
13/48
CONTROL PANEL
Page 14
5. PROGRAM (PROGRAMME)
Program (Pro‐
gramme)
Load
1)
Properties / Fabric mark
2)
3)
Cotton (Baum‐
wolle)
ECO
8 kg
Cotton fabrics - Cupboard
dry
/
Cotton (Baum‐
wolle)
8 kg
Cotton fabrics.
Programme for daily us‐
age.
/
Synthetic (Mis‐
chgewebe)
3,5 kg
Synthetic and mixed fab‐
rics.
/
Mix XL 6 kg
Mix of garments made of
cotton, cotton-synthetic
blend and synthetic fab‐
ric.
/
Delicates
(Feinwäsche)
4 kg Delicate fabrics.
/
14/48
Page 15
Program (Pro‐
gramme)
Load
1)
Properties / Fabric mark
2)
Wool (Wolle)
1 kg
Woollen fabrics. Gentle drying for
hand-washable woollens. Remove
items immediately when the pro‐
gramme is completed.
The wool drying cycle of this machine
has been approved by The Woolmark
Company for the drying of wool gar‐
ments labelled as "hand wash" provi‐
ded that the garments are dried ac‐
cording to the instructions issued by
the manufacturer of this machine.
Follow the garment care label for oth‐
er laundry instructions.
M1741
The Woolmark symbol is a Certifica‐
tion mark in many countries.
Silk (Seide)
1 kg
Gentle drying of handwashable silks.
/
Bed Linen
(Bettwäsche)
XL
4,5 kg
Up to three bed linen
sets, one of which can be
double size.
/
15/48
PROGRAM (PROGRAMME)
Page 16
Program (Pro‐
gramme)
Load
1)
Properties / Fabric mark
2)
Outdoor
2 kg
Outdoor clothing, techni‐
cal, sports fabrics, water‐
proof and breathable
jackets, shell jackets with
a removable fleece or in‐
ner insulation. Suitable for
drying in tumble dryer.
/
Easy Iron
(Leichtbügeln)
1,5 kg
(or 5
shirts)
Easy care fabrics for which a mini‐
mum of ironing is necessary. The
drying results can be different from
one type of fabric to another. Shake
the items before putting them in the
appliance. When the programme has
ended, immediately remove the items
and put them on a hanger.
/
1)
The maximum weight refers to dry items.
2)
For fabric mark meaning see chapter
DAILY USE: Preparing the laundry.
3)
The Cotton (Baumwolle) programme in combination with the
cupboard dry
Dryness
(Trockengrad)
selection is the “Standard cotton programme”. It is suitable for drying normal wet cot‐
ton laundry and it is the most efficient programme in terms of energy consumption for drying wet cot‐
ton laundry.
16/48
PROGRAM (PROGRAMME)
Page 17
5.1 Programmes and options selection
Options
Programmes
1)
Dry‐
ness
(Troc
ken‐
grad)
Ex‐
tra Si‐
lent
(Extra
Leise)
An‐
ti‐
creas
e
(Knit‐
ter‐
schut
z)
Re‐
fresh
(Auf‐
fri‐
schen
)
Time
Dry
(Zeit‐
wahl)
Cotton (Baum‐
wolle)
ECO
Cotton (Baumwolle)
Synthetic (Mischge‐
webe)
Mix XL
Delicates (Feinwä‐
sche)
Wool (Wolle)
2)
Silk (Seide)
Bed Linen (Bettwä‐
sche) XL
Outdoor
17/48
PROGRAM (PROGRAMME)
Page 18
Options
Programmes
1)
Dry‐
ness
(Troc
ken‐
grad)
Ex‐
tra Si‐
lent
(Extra
Leise)
An‐
ti‐
creas
e
(Knit‐
ter‐
schut
z)
Re‐
fresh
(Auf‐
fri‐
schen
)
Time
Dry
(Zeit‐
wahl)
Easy Iron (Leichtbü‐
geln)
1)
Aside from the programme, you can set one or more options at the same time.
2)
See chapter OPTIONS: Time Dry (Zeitwahl) on Wool (Wolle)
programme
5.2 Consumption data
Program
Spun at / residual hu‐
midity
Drying
time
Energy
con‐
sump‐
tion
Cotton (Baumwolle) 8 kg
cupboard
dry (Schrank‐
trocken)
1400 rpm / 50% 134 min
1,30
kWh
1000 rpm / 60% 152 min
1,47
kWh
iron dry
(Bügeltrocken)
1400 rpm / 50% 103 min
0,93
kWh
18/48
PROGRAM (PROGRAMME)
Page 19
Program
Spun at / residual hu‐
midity
Drying
time
Energy
con‐
sump‐
tion
1000 rpm / 60% 125 min
1,09
kWh
Synthetic (Mischgewebe) 3,5 kg
cupboard
dry (Schrank‐
trocken)
1200 rpm / 40% 57 min
0,47
kWh
800 rpm / 50% 66 min
0,58
kWh
19/48
PROGRAM (PROGRAMME)
Page 20
6. OPTIONS
6.1 Dryness (Trockengrad)
This option helps to achieve requested laundry dryness. Possible
selections:
- ready to iron - iron dry level.
- ready to store - cupboard dry level - default selection
which is related to the programme.
- ready to store - cupboard dry + level.
- ready to store - extra dry
level.
6.2
Extra Silent (Extra Leise)
The appliance operates with low noise without effect on the drying
quality. The appliance operates slowly with longer cycle time.
6.3
ECO
This option is on by default with all programs.
The power consumption is at the minimum level.
6.4 Anticrease (Knitterschutz)
Extends up to 120 minutes the anti-crease phase (30 minutes) at
the end of the drying cycle. After drying phase drum rotates from
time to time to prevent creases. Laundry can be removed during
the anti-crease phase.
6.5 Refresh (Auffrischen)
To refresh clothes that were in storage. Maximal load cannot
exceed 1 kg.
6.6 Time Dry (Zeitwahl)
For cottons, synthetics and mixed. Lets the user to set drying time
from minimum 10 min to maximum of 2 hours (in 10 min steps).
When this option is maximum, load indicator disappears.
20/48
Page 21
6.7 Time Dry (Zeitwahl) on Wool (Wolle) program
Option applicable to
Wool (Wolle) program to adjust final dryness
level to more dry or less dry.
6.8
Delay Start (Zeitvorwahl)
Lets to delay the start of a drying program from minimum of 30
minutes to maximum of 20 hours.
1. Set the drying program and options.
2. Touch Delay Start (Zeitvorwahl) button again and again.
Time of delay is on the display (e.g. if the program has to
start after 12 hours.)
3. To activate Delay Start (Zeitvorwahl) option, touch the
Start/Pause button.
Time to start decreases on the display.
6.9 Buzzer (Signal)
The sound is heard at the:
•
cycle end
• start and end of crease guard phase
The buzzer option is by default always on. You can use this option
to activate or deactivate the sound.
21/48
OPTIONS
Page 22
7. BEFORE FIRST USE
Rear drum packaging is removed automatically when dryer is
activated for the first time. Possible to hear some noise.
Before you use the appliance for the first time:
•
Clean the tumble dryer drum with a moist cloth.
• Start a short programme (e.g. 30 minutes) with moist laundry.
At the beginning of the drying cycle (first 3-5 min) there could be
a slightly higher sound level. This is due to the compressor
starting up. This is normal for compressor powered appliances
such as refrigerators and freezers.
22/48
Page 23
8. DAILY USE
8.1 Preparing the laundry
• Close the zips.
•
Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them
before you start a programme.
• Remove all items from pockets.
• Turn items with internal layer made of cotton inside out. Cotton
layer must be faced outward.
• Always set the programme suitable for the type of laundry.
• Do not put light and dark colours together.
• Use suitable programme for cottons, jersey and knitwear to
reduce shrinkage.
• Do not exceed the maximum load stated in programmes chapter
or shown on the display.
• Dry only the laundry that is suitable for tumble drying. Refer to
the fabric label on the items.
• Do not dry large and small items together. Small items can be
trapped inside the large items and remain wet.
Fabric la‐
bel
Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher tem‐
peratures.
Laundry is suitable for tumble drying at low temper‐
atures only.
Laundry is not suitable for tumble drying.
23/48
Page 24
8.2 Loading the laundry
CAUTION!
Ensure the laundry is not trapped between the appliance door
and rubber seal.
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
8.3 Turning on the appliance
4
To turn on the appliance:
Push the On/Off (Ein/Aus) button.
If the appliance is on, some indicators appear on the display.
8.4 Auto Off function
To decrease the energy consumption, the Auto Off function turns
off the appliance automatically:
•
if the
Start/Pause touch button was not touched within 5
minutes.
•
5 minutes after cycle ends.
Push the
On/Off (Ein/Aus) button to turn on the appliance.
If the appliance is on, some indications come in to the view on the
display.
24/48
DAILY USE
Page 25
8.5 Setting a program
Use the program dial to set the program.
The possible time to complete the program comes into the view on
the display.
The drying time you see is related to the load of 5 kg for cotton
program. For the other programs the drying time is related to the
recommended loads. The drying time of the cotton program with
the load more than 5 kg is longer.
8.6 Options
Together with the program you can set 1 or more special options.
To activate or deactivate an option touch the relevant button or 2
buttons combination.
When the option is activated, the LED above the button or symbol
illuminates on the display.
25/48
DAILY USE
Page 26

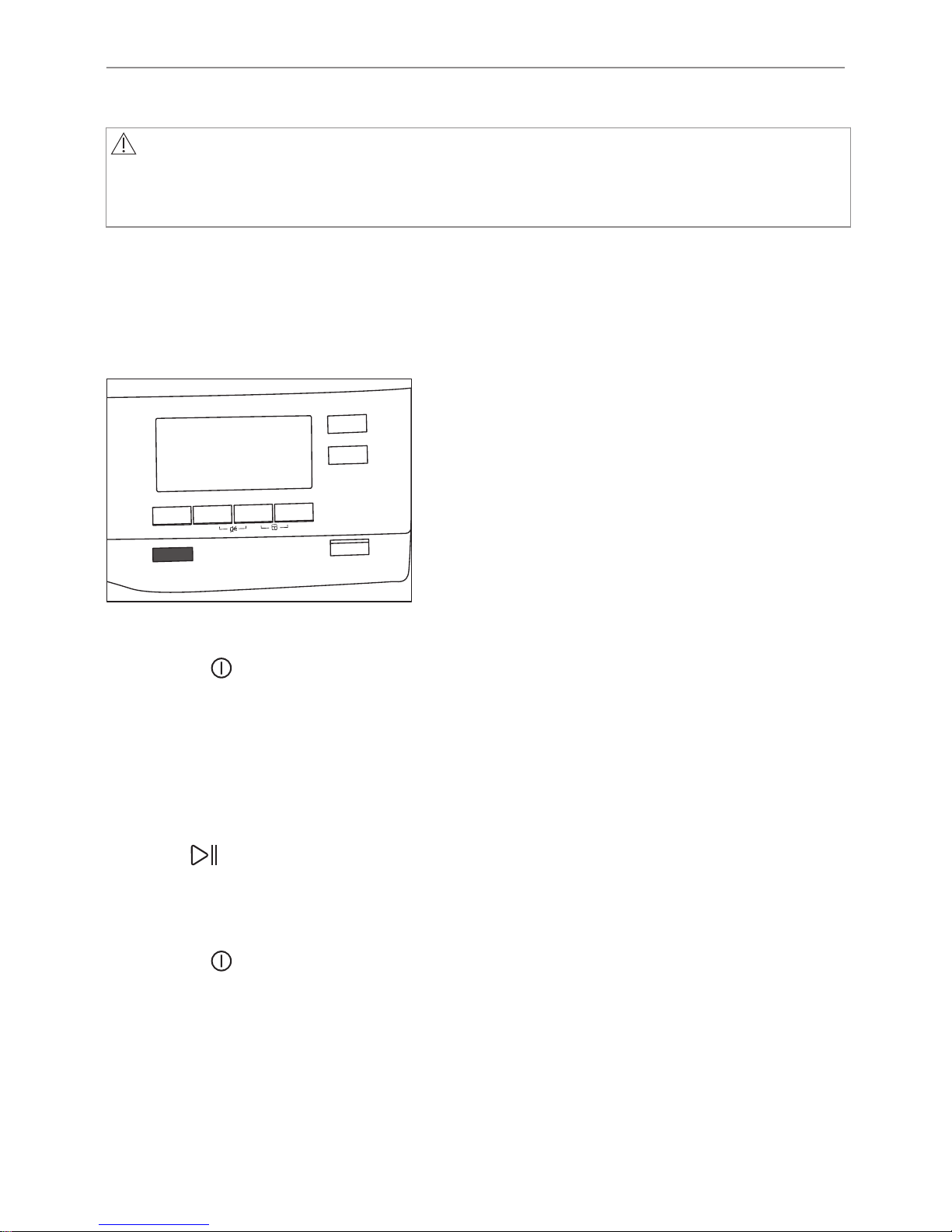

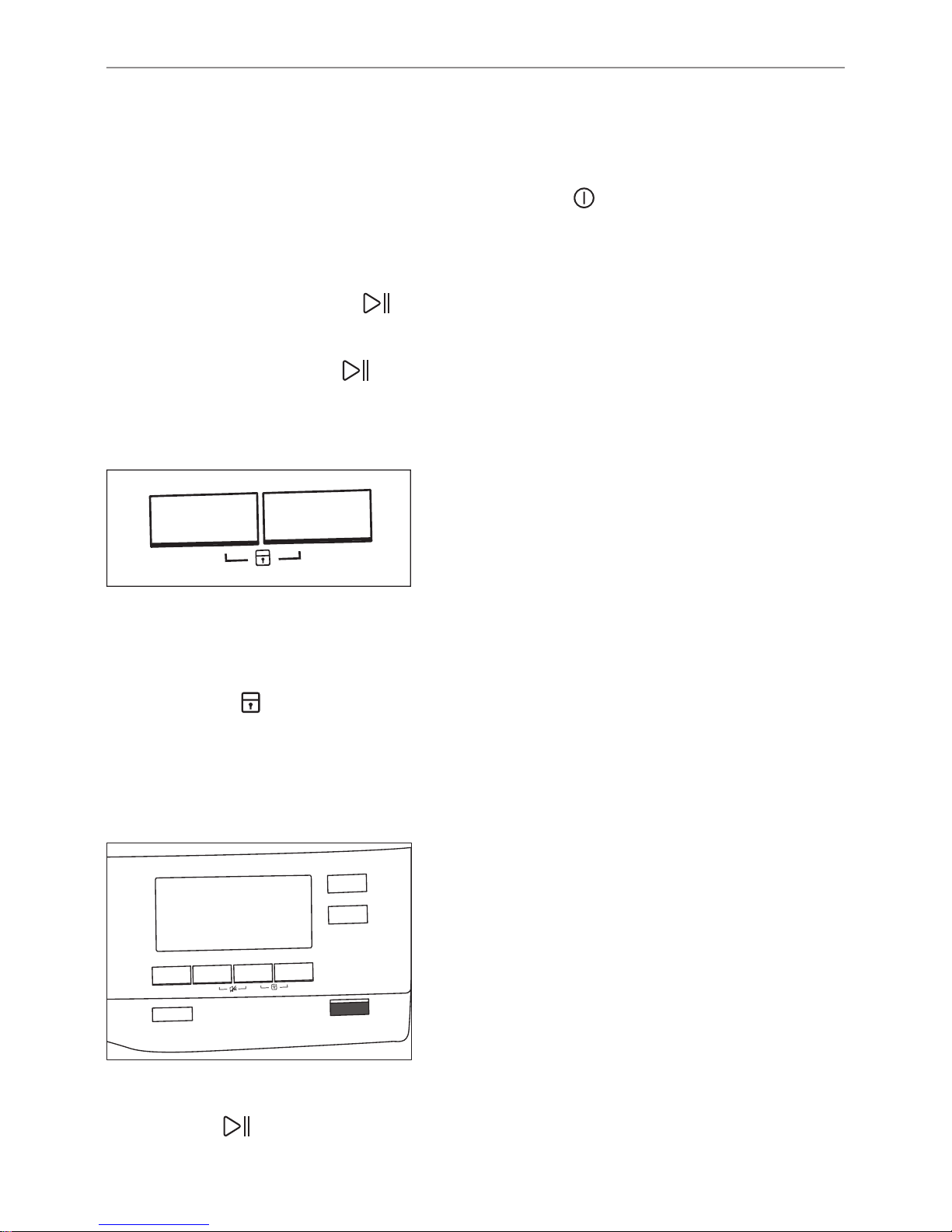

8.7 Child lock option
The child lock can be set to prevent children from playing with the
appliance. The child lock option locks all touch buttons and the
program dial (this option does not lock the
On/Off (Ein/Aus)
button).
You can activate the child lock option:
•
before you touch the
Start/Pause button - the appliance
cannot start
•
after you touch the
Start/Pause button - programs and option
selection is unavailable.
Child lock option activation:
1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down 2 buttons at the same time.
The symbol appears on the display.
4. To deactivate the child lock, touch the above buttons again until
the symbol disappears.
8.8 Starting a program
4
To start the program:
Touch the Start/Pause button.
26/48
DAILY USE
Page 27
The appliance starts and the LED above the button stops flashing
and stays on.
8.9 Program change
To change a program:
1. Push the On/Off (Ein/Aus) button to turn the appliance off.
2. Push the On/Off (Ein/Aus) button again to turn on the
appliance.
3. Set a new program.
8.10 Program end
Clean the filter and drain the water container after each drying
cycle. (See chapter CARE AND CLEANING.)
If the drying cycle is finished, the symbol appears on the display.
If the Buzzer (Signal) option is activated, the acoustic signal
sounds intermittently for 1 minute.
If you do not turn off the appliance, the anti-crease phase starts
(not active with all programs). Flashing symbol signals the
execution of the anticrease phase. Laundry can be removed
during this phase.
To remove the laundry:
1. Push the On/Off (Ein/Aus) button for 2 seconds to turn the
appliance off.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
27/48
DAILY USE
Page 28
9. HINTS AND TIPS
9.1 Ecological hints
• Spin the laundry well before drying.
•
Do not exceed the load sizes which are specified in the programs
chapter.
• Clean the filter after each drying cycle.
• Do not use fabric softener to wash and then dry. In the tumble
dryer laundry becomes soft automatically.
• Use distilled water like that used for steam ironing. If it is
necessary, clean the distilled water before (e.g. with a coffee
filter) to remove any particles.
• Always keep the airflow slots at the bottom of the appliance clear.
• Make sure there is good airflow where the appliance is to be
installed.

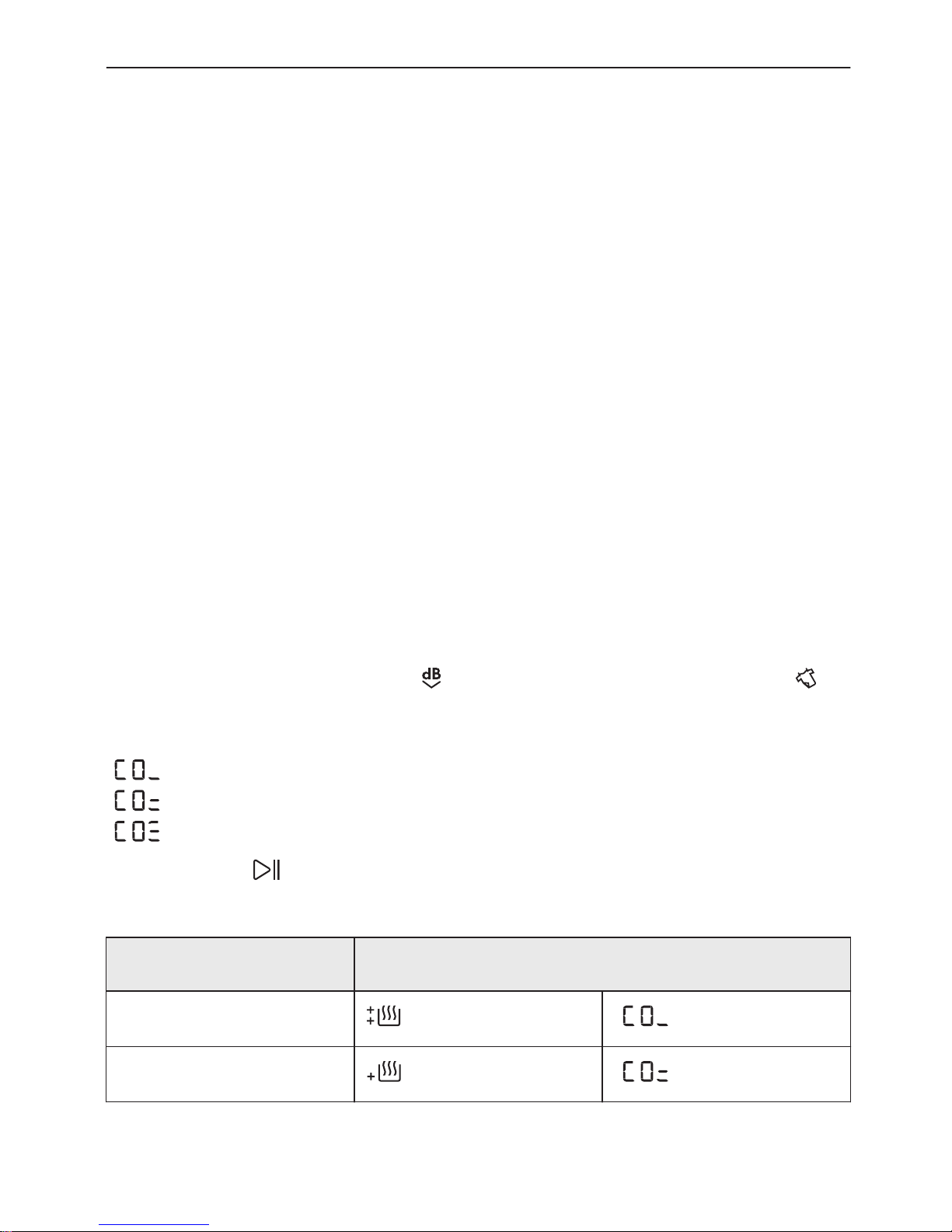

9.2 Adjustment of default dryness level
To change the default dryness level:
1. Turn the appliance on.
2. Select 1 of the available programs.
3. Touch and hold down the
Extra Silent (Extra Leise) and
Refresh (Auffrischen) buttons at the same time.
One of the symbols appears on the display:
- Maximum dryness
- Extra dryness
- Standard dryness
4. Touch the Start/Pause button repeatedly until you reach the
desired dryness level.
Dryness level Display symbol
Maximum dryness
Extra dryness
28/48
Page 29
Dryness level Display symbol
Standard dryness
5. To memorise the setting touch and hold down the Extra Silent
(Extra Leise) and
Refresh (Auffrischen) buttons at the same
time for approximately 2 seconds.
9.3 Deactivating the tank indicator
The water container indicator is activated by default. It illuminates
at the end of the drying cycle or during the cycle if the water
reservoir is full. If the draining kit is installed the water container is
drained automatically and the indicator can be deactivated.
To deactivate the indicator:
1. Turn the appliance on.
2. Select 1 of the available programs.
3. Touch and hold down
Refresh (Auffrischen) and Time
Dry (Zeitwahl)
buttons at the same time.
One of 2 configurations is possible:
• the tank (Behälter) indicator:
is on if the symbol
appears - the water container indicator is permanently
activated
•
the tank (Behälter) indicator:
is off if the symbol
appears - the water container indicator is permanently
deactivated
29/48
HINTS AND TIPS
Page 30
10. CARE AND CLEANING

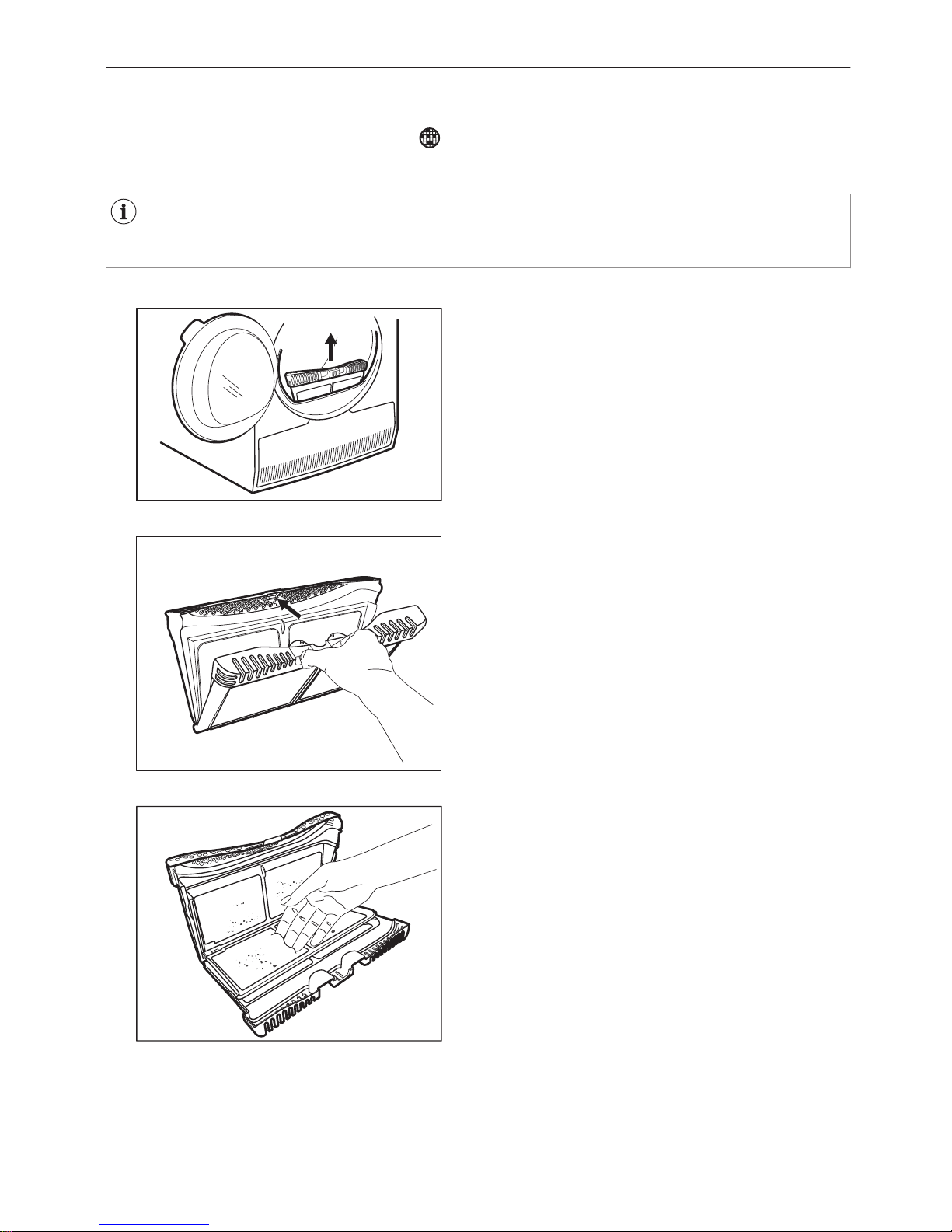

10.1 Cleaning the filter
At the end of each cycle the
filter (Sieb)
symbol comes on the
display and you must clean the filter.
The filter collects the fluff during the drying cycle.
1. Open the door. Pull the filter up.
2. Push the hook to open the filter.
3. Use a moist hand to clean both parts of the filter.
4. If necessary, clean the filter with a vacuum cleaner. Close the
filter.
30/48
Page 31

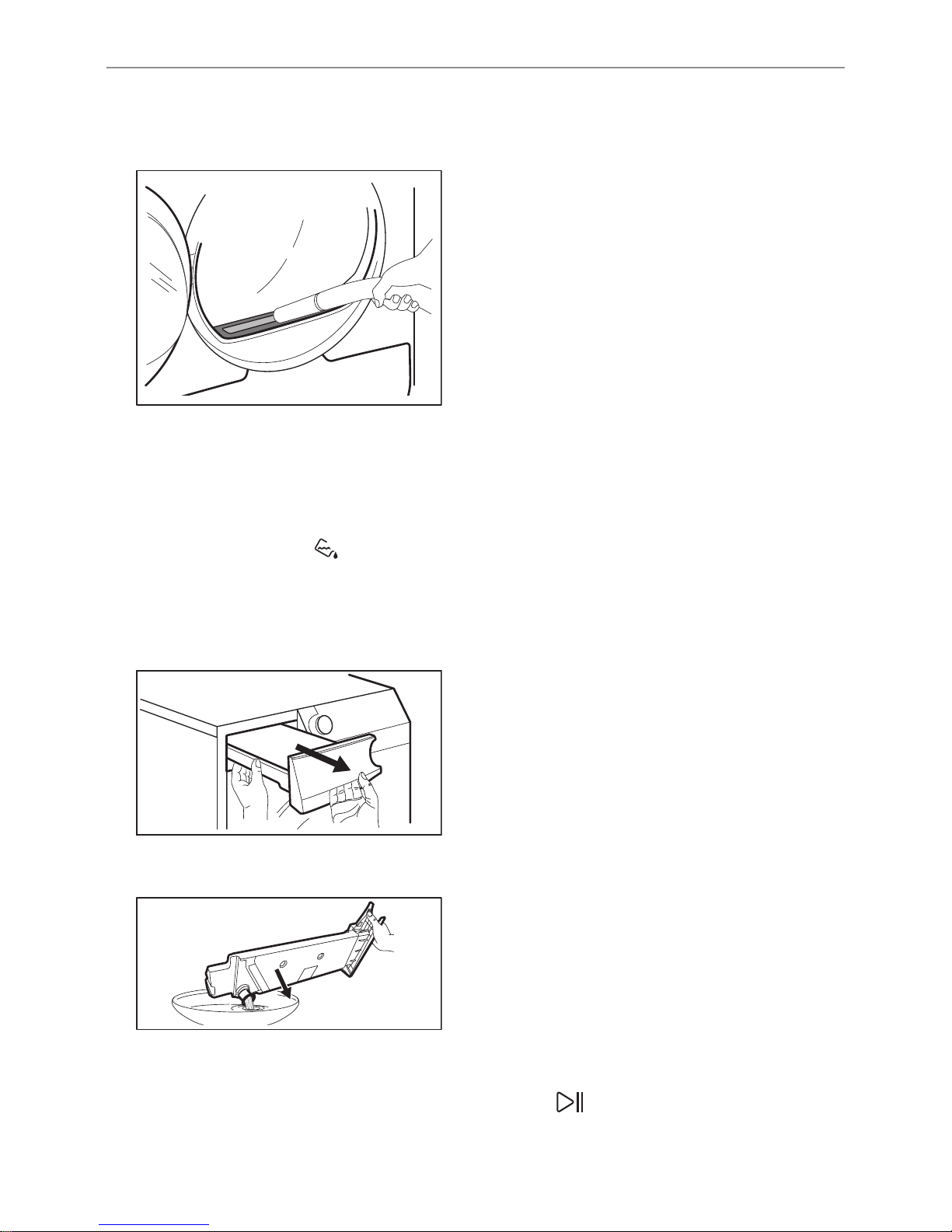

5. If necessary, remove fluff from the filter socket and gasket. You
can use a vacuum cleaner. Place the filter back inside the filter
socket.
10.2 Emptying the water container
Empty the condensed water container after each drying cycle.
If the condensed water container is full, the programme stops
automatically. The
tank (Behälter)
symbol comes on the display
and you must empty the water container.
To empty the water container:
1. Pull the water container out keeping it in a horizontal position.
2. Pull the plastic connection out and drain the water into a basin or
equivalent receptacle.
3. Push the plastic connection back in and place the water
container back into position.
4. To continue the programme press the Start/Pause button.
31/48
CARE AND CLEANING
Page 32

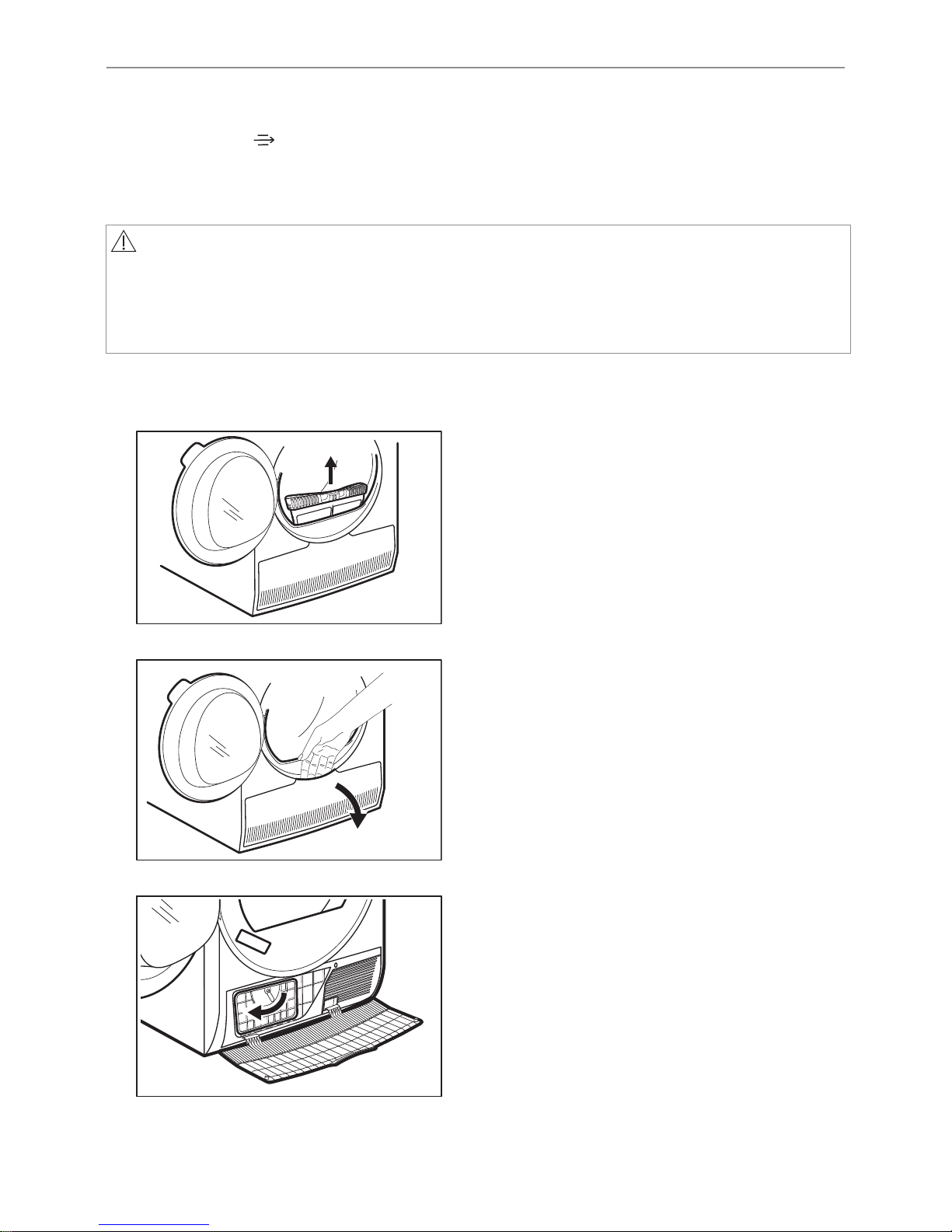

10.3 Cleaning the condenser
If the symbol
condenser (Kondensator)
flashes on the display,
inspect the condenser and its compartment. If it is dirty, clean it. Do
the check not less than once a 6 months.
WARNING!
Do not touch the metal surface with bare hands. Risk of injury.
Wear protective gloves. Clean carefully to avoid damaging the
metal surface.
To inspect:
1. Open the door. Pull the filter up.
2. Open the condenser cover.
3. Turn the lever to unlock the condenser lid.
32/48
CARE AND CLEANING
Page 33

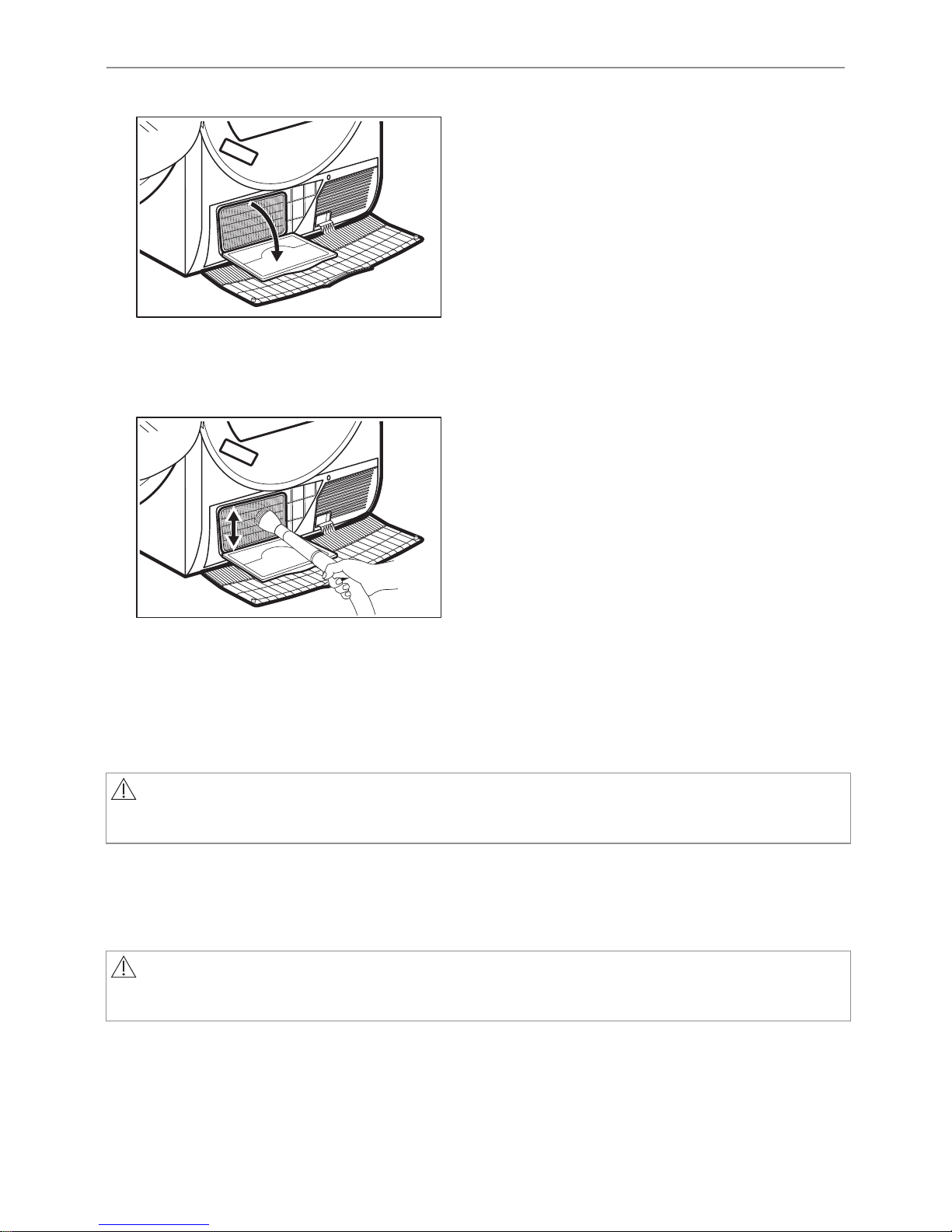

4. Lower the condenser lid.
5. If necessary, remove the fluff from the condenser and its
compartment. You can use a wet cloth and/or a vacuum cleaner
with a brush attachment.
6. Close the condenser lid.
7. Turn the lever until it clicks into position.
8. Put the filter back.
10.4 Cleaning the drum
WARNING!
Disconnect the appliance before you clean it.
Use a standard neutral soap detergent to clean the inner surface of
the drum and drum lifters. Dry the cleaned surfaces with a soft
cloth.
CAUTION!
Do not use abrasive materials or steel wool to clean the drum.
10.5 Cleaning the control panel and housing
Use a standard neutral soap detergent to clean the control panel
and housing.
33/48
CARE AND CLEANING
Page 34
Use a moist cloth to clean. Dry the cleaned surfaces with a soft
cloth.
CAUTION!
Do not use furniture cleaning agents or cleaning agents which
can cause corrosion.
10.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff from the airflow slots.
34/48
CARE AND CLEANING
Page 35
11. TROUBLESHOOTING
Problem
1)
Possible cause Remedy
The tumble
dryer does
not oper‐
ate.
The tumble dryer is not
connected to the mains
supply.
Connect to the mains
socket. Check fuse in
fuse box (domestic in‐
stallation).
The door is open. Close the door.
The
On/Off (Ein/Aus)
button was not pushed.
Push the On/Off (Ein/
Aus) button.
The
Start/Pause but‐
ton was not touched.
Touch the Start/
Pause button.
The appliance is in
standby mode.
Push the On/Off (Ein/
Aus) button.
35/48
Page 36
Problem
1)
Possible cause Remedy
Unsatisfac‐
tory drying
result.
Incorrect program selec‐
tion.
Select a suitable pro‐
gram.
2)
The filter is clogged.
Clean the filter.
3)
Dryness (Trocken‐
grad) option was set to
iron dry (Bügeltrock‐
en)
.
4)
Change
Dryness
(Trockengrad)
option to
higher level.
The load was too large. Do not exceed the maxi‐
mum load size.
The airflow slots are
clogged.
Clean the airflow slots at
the bottom of the appli‐
ance.
Dirt on the humidity sen‐
sor in the drum.
Clean the front surface
of the drum.
Dryness level not set to
desired level.
Adjust the dryness lev‐
el.
5)
The condenser is clog‐
ged.
Clean the condenser.
3)
The load‐
ing door
does not
close
The filter is not locked
into position.
Put the filter in the cor‐
rect position.
Laundry is trapped be‐
tween the door and the
seal.
Remove trapped items
and close the door.
36/48
TROUBLESHOOTING
Page 37
Problem
1)
Possible cause Remedy
Not possi‐
ble to
change the
program or
option.
After cycle start it is not
possible to change the
program or option.
Turn the tumble dryer off
and on. Change the pro‐
gram or option as re‐
quired.
Not possi‐
ble to se‐
lect an op‐
tion.
Acoustic
signal is
emitted.
The option you tried to
select is not available for
the selected program.
Turn the tumble dryer off
and on. Change the pro‐
gram or option as re‐
quired.
No drum
light
Defective drum lamp. Contact the service cen‐
tre to replace the drum
lamp.
Unexpec‐
ted dura‐
tion time
on the dis‐
play.
The drying duration is
calculated according to
load size and damp‐
ness.
This is automated — the
appliance is working cor‐
rectly.
Program
inactive.
The water container is
full.
Drain the water contain‐
er, push the
Start/
Pause button.
3)
37/48
TROUBLESHOOTING
Page 38
Problem
1)
Possible cause Remedy
Drying cy‐
cle too
short.
Load size is small. Select time program.
The time value must be
related to the load. To
dry 1 item or a small
amount of laundry we
recommend short drying
times.
The laundry is too dry. Select time program or
higher dryness level
(e.g.
extra dry (Extra‐
trocken)
)
38/48
TROUBLESHOOTING
Page 39
Problem
1)
Possible cause Remedy
Drying cy‐
cle too
long
6)
The filter is clogged. Clean the filter.
The load is too large. Do not exceed the maxi‐
mum load size.
The laundry was not
spun sufficiently.
Spin the laundry well.
Too low or too high
room temperature - this
is not the appliance mal‐
function.
Ensure a room tempera‐
ture higher than +5°C
and lower than +35°C.
Optimal room tempera‐
ture to achieve best dry‐
ing results is between
19°-24°C.
1)
If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Select a
new program. Push the Start/Pause button. If the appliance does not operate contact the service cen‐
tre and provide the error code.
2)
Follow the program description — see PROGRAMS chapter
3)
See chapter CARE AND CLEANING
4)
Only dryers with Dryness (Trockengrad)
option
5)
See HINTS AND TIPS chapter
6)
Note: After a maximum of 5 hours the drying cycle ends automatically.
39/48
TROUBLESHOOTING
Page 40
12. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 600 mm (maximal
665 mm)
Max. depth with the appliance
door open
1100 mm
Max. width with the appliance
door open
950 mm
Adjustable height 850 mm (+ 15 mm - feet regu‐
lation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 230 V
Frequency 50 Hz
Total power 700 W
Energy efficiency class A+++
Energy consumption
1)
1,47 kWh
Annual energy consumption
2)
176 kWh
Left—on mode power absorp‐
tion
0,05 W
Off mode power absorption 0,05 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
40/48
Page 41
Level of protection against in‐
gress of solid particles and
moisture ensured by the pro‐
tective cover, except where the
low voltage equipment has no
protection against moisture
IPX4
This product contains fluorinated greenhouse gases, hermetically
sealed
Gas designation R134a
Weight 0,300 kg
Global-warming potential
(GWP)
1430
1)
With reference to EN 61121. 8kg of cotton centrifuged at 1000 rpm.
2)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton pro‐
gramme at full and partial load, and the consumption of the low-power modes. Actual energy con‐
sumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).
41/48
TECHNICAL DATA
Page 42
13. ACCESSORIES
13.1 Stacking kit
Accessory name: SKP11, STA9
Available from your authorised vendor.
Stacking kit can be used only between washing machines and
tumble dryers specified in the leaflet. See the leaflet attached.
Read carefully the instructions supplied with the accessory.
13.2 Draining kit
Accessory name: DK11.
Available from your authorised vendor (can be attached to some
types of tumble dryer)
For thorough draining of the condensed water into a basin, siphon,
gully, etc. After installation, the water container is drained
automatically. The water container must stay in the appliance.
42/48
Page 43
The installed hose must be minimum 50 cm to maximum 100 cm
from floor level. The hose cannot be in a loop. Decrease the length
of the hose if necessary.
Read carefully the instructions supplied with the accessory.
13.3 Pedestal with drawer
Accessory name: PDSTP10, E6WHPED2.
Available from your authorised vendor.
For increasing the height of the appliance in order to ease loading
and unloading of laundry.
The drawer can be used for laundry storage e.g. : towels, cleaning
products etc.
Read carefully the instructions supplied with the accessory.
43/48
ACCESSORIES
Page 44
14. CH GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préver‐
enges
Via Violino 11
6928 Manno
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
Schlossstrasse 1
4133 Pratteln
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10, 5506 Mägenwil, Tel. 0848
848 111
Specialist advice/Sale Badenerstrasse 587, 8048 Zürich, Tel. 044
405 81 11
Warranty For each product we provide a two-year guarantee from
the date of purchase or delivery to the consumer (with a guarantee
certificate, invoice or sales receipt serving as proof). The guarantee
covers the costs of materials, labour and travel. The guarantee will
lapse if the operating instructions and conditions of use are not
adhered to, if the product is incorrectly installed, or in the event of
damage caused by external influences, force majeure, intervention
by third parties or the use of non-genuine components.
44/48
Page 45
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the packaging in relevant
containers to recycle it. Help protect the environment and human
health by recycling waste of electrical and electronic appliances. Do
not dispose of appliances marked with the symbol
with the
household waste. Return the product to your local recycling facility
or contact your municipal office.
For Switzerland:
Where should you take your old equipment?
Anywhere that sells new equipment or hand it in to official SENS
collection points or official SENS recycling firms.
The list of official SENS collection points can be found at
www.erecycling.ch
45/48
*
Page 46
46/48
Page 47
47/48
Page 48
www.electrolux.com/shop
136952300-A-382017
Loading...
