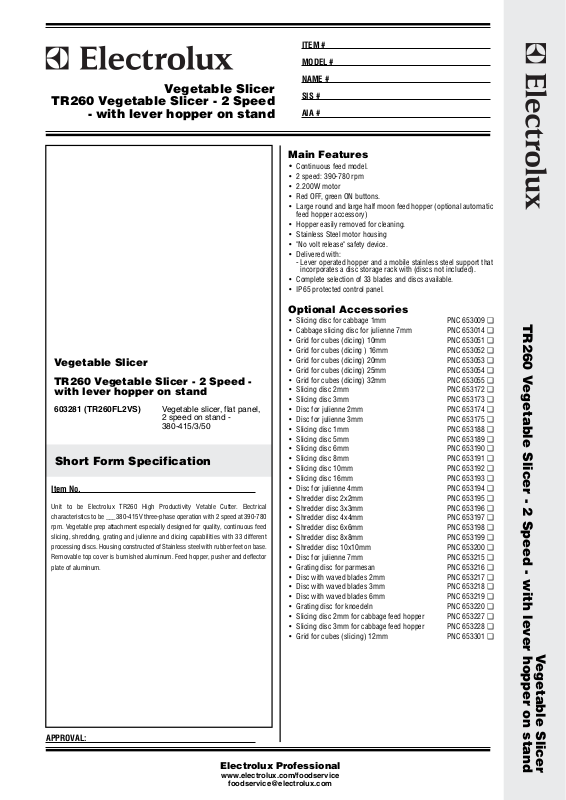

Electrolux TR260FL2VS User Manual
Vegetable Slicer
TR260 Vegetable Slicer - 2 Speed
- with lever hopper on stand
Vegetable Slicer
TR260 Vegetable Slicer - 2 Speed -
with lever hopper on stand
603281 (TR260FL2VS)Vegetable slicer, flat panel,
2 speed on stand 380-415/3/50
Short Form Specification
Item No.
Unit to be Electrolux TR260 High Productivity Vetable Cutter. Electrical
characteristics to be ___380-415V three-phase operation with 2 speed at 390-780
rpm. Vegetable prep attachment especially designed for quality, continuous feed
slicing, shredding, grating and julienne and dicing capabilities with 33 different
processing discs. Housing constructed of Stainless steel with rubber feet on base.
Removable top cover is burnished aluminum. Feed hopper, pusher and deflector
plate of aluminum.
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Continuous feed model.
•2 speed: 390-780 rpm
•2.200W motor
•Red OFF, green ON buttons.
•Large round and large half moon feed hopper (optional automatic
feed hopper accessory)
•Hopper easily removed for cleaning.
•Stainless Steel motor housing
•"No volt release" safety device.
•Delivered with:
-Lever operated hopper and a mobile stainless steel support that
incorporates a disc storage rack with (discs not included).
•Complete selection of 33 blades and discs available.
•IP65 protected control panel.
Optional Accessories
•Slicing disc for cabbage 1mmPNC 653009 ❑
•Cabbage slicing disc for julienne 7mmPNC 653014 ❑
•Grid for cubes (dicing) 10mmPNC 653051 ❑
•Grid for cubes (dicing ) 16mmPNC 653052 ❑
•Grid for cubes (dicing) 20mmPNC 653053 ❑
•Grid for cubes (dicing) 25mmPNC 653054 ❑
•Grid for cubes (dicing) 32mmPNC 653055 ❑
•Slicing disc 2mmPNC 653172 ❑
•Slicing disc 3mmPNC 653173 ❑
•Disc for julienne 2mmPNC 653174 ❑
•Disc for julienne 3mmPNC 653175 ❑
•Slicing disc 1mmPNC 653188 ❑
•Slicing disc 5mmPNC 653189 ❑
•Slicing disc 6mmPNC 653190 ❑
•Slicing disc 8mmPNC 653191 ❑
•Slicing disc 10mmPNC 653192 ❑
•Slicing disc 16mmPNC 653193 ❑
•Disc for julienne 4mmPNC 653194 ❑
•Shredder disc 2x2mmPNC 653195 ❑
•Shredder disc 3x3mmPNC 653196 ❑
•Shredder disc 4x4mmPNC 653197 ❑
•Shredder disc 6x6mmPNC 653198 ❑
•Shredder disc 8x8mmPNC 653199 ❑
•Shredder disc 10x10mmPNC 653200 ❑
•Disc for julienne 7mmPNC 653215 ❑
•Grating disc for parmesanPNC 653216 ❑
•Disc with waved blades 2mmPNC 653217 ❑
•Disc with waved blades 3mmPNC 653218 ❑
•Disc with waved blades 6mmPNC 653219 ❑
•Grating disc for knoedelnPNC 653220 ❑
•Slicing disc 2mm for cabbage feed hopperPNC 653227 ❑
•Slicing disc 3mm for cabbage feed hopperPNC 653228 ❑
•Grid for cubes (slicing) 12mmPNC 653301 ❑
TR260 Vegetable Slicer - 2 Speed - with lever hopper on stand
Vegetable Slicer
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
Vegetable Slicer
TR260 Vegetable Slicer - 2 Speed
- with lever hopper on stand
Front
Electric
Supply voltage:
603281(TR260-24)380...415 V/3 ph/50 Hz
Connected load:2 kW
Total Watts:2 kW
Key Information
External dimensions, Height1346 mm
External dimensions, Width486 mm
External dimensions, Depth750 mm
External dimensions, Weight78 kg
Shipping weight:120 kg
Carrot cutting capacity:350 kg
Potatoes slicing capacity:580 kg
Chip cutting capacity:700 kg
Dicing capacity:600 kg
•Long vegetable accessory for Lever-operated Hopper (PNC
653223) dimensions:
-Three Cylindrical hopper diameter:
-50 mm
-59,5 mm
Top
EI=Electrical connection
Side
-70 mm
•Automatic Hopper (PNC 653037):
cylindrical hopper diameter 280 mm.
Overall Dimensions And Weights of Optional Accessories:
•Dimensions of the machine with automatic hopper
-without mobile stand:
750 mm × 490 mm × 680 mm
-with mobile stand:
750 mm × 490 mm × 1345 mm
•Dimensions of the machine with standard hopper
-without mobile stand:
860 mm × 535 mm × 615 mm
-with mobile stand:
860 mm × 535 mm × 1280 mm
•Packaged dimensions L × W × H (mm):
-TR260 motor unit:
800 mm × 520 mm × 580 mm
-Net weight: 49 kg - Packaged weight: 58 kg
-Automatic hopper:
800 mm × 520 mm × 580 mm
-Net weight: 15 kg - packaged weight: 24 kg
-Standard hopper + container:
560 mm × 490 mm × 610 mm
-Net weight: 18 kg - Packaged weight: 22 lbs
-Cabbage hopper:
560 mm × 490 mm × 610 mm
-Net weight: 15 kg
•Mobile Stand packaged dimensions:
750 mm × 500 mm × 200 mm
TR260 Vegetable Slicer - 2 Speed - with lever hopper on stand
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Vegetable Slicer
2010.04.06
