Page 1

Electric RElectric R

Electric R

Electric RElectric R

angeange

ange

angeange

Drop-in / Slide-in

Welcome .................................. 2

Models

Important Safety Instructions .. 3-5

Features at a Glance ............. 6

Setting Surface Controls.... 7-13

Surface Cooking .................. 14

Before Setting

Oven Controls ................. 14-15

Setting Oven Controls ......... 15

Setting Warmer Drawer Control ... 16-17

Cooking Informations ..... 18-19

Care & Cleaning .............. 20-27

Adjusting Your

Oven Temperature ................ 27

Before You Call

Solutions to

........................................... 28-29

Common Problems

Warranty ................................ 30

318203811 (0609) Rev. C

Page 2

Questions?

1-800-944-9044

(United States)

Welcome & Congratulations

Congratulations on your purchase of a new appliance! At Electrolux Home Products, we are very proud of our product and are completely committed to

providing you with the best service possible. Your satisfaction is our number one priority.

We know you’ll enjoy your new appliance and Thank You for choosing our product. We hope you consider us for future purchases.

1-866-294-9911

(Canada)

Please attach sales receipt

here for future reference.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

Product Registration

The PRODUCT REGISTRATION CARD should be filled in completely, signed and returned to Electrolux Home Products.

Serial Plate Location

Page 3

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This guide contains important safety symbols and instructions. Please pay special attention to these symbols and follow all instructions given. Here is a brief explanation of these symbols.

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This symbol will help alert you to situations that may cause bodily injury or property damage.

SLIDE-IN MODELS ONLY

To reduce

• All ranges can tip.

• Injury to persons could result.

• Install anti-tip device packed with range.

• See Installation instructions.

• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play

with packaging material.

• Proper Installation—Be sure your appliance is properly installed and grounded by a qualified technician in accordance in the United States with National Electrical Code ANSI/NFPA No. 70—latest edition and local code requirements, and in Canada with CSA C22.1 PART 1—latest edition and local code requirements. Install only per installation instructions provided in

the literature package for this appliance.

Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the electrical power to the range at the circuit breaker or fuse box in case of an emergency.

• User Servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a

qualified technician to reduce the risk of personal injury and damage to the appliance.

• Never modify or alter the construction of a range by removing leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the product.

the risk of tipping of the range, the range must be secured by properly installed anti-tip bracket(s) provided with the range. To check if the bracket (s) is installed properly, remove the lower panel or storage drawer and verify that the anti-tip bracket (s) is engaged. Refer to the installation instructions for proper anti-tip bracket(s).

DROP-IN MODELS ONLY

To reduce

• All ranges can tip.

• Injury to persons could result.

• Install anti-tip device packed with range.

• See Installation Instructions.

Stepping, leaning or sitting on the door

or drawer of this appliance can result in serious injuries and may also cause damage to the appliance. Do not

allow children to climb or play around the appliance. The weight of a child on an open door may cause the appliance to tip, resulting in serious burns or other injury. An open drawer, when hot, may cause burns.

Do not use the oven or warmer drawer (if

equipped) for storage.

• Storage in or on Appliance—Flammable materials should not be stored in an oven, near surface units or in the drawer (if equipped). This includes paper, plastic

and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

Do not store items of interest to children

in the cabinets above the appliance. Children climbing on

the range to reach items could be seriously injured.

• Do not leave children alone. Children should not be left alone or unattended in the area where an appliance is in use. They should never be allowed to sit

or stand on any part of the appliance.

the risk of tipping of the range, the range must be secured by properly installed anti-tip screws provided with the range. To check if the screws are installed properly, raise the lift-up cooktop and verify that the anti-tip screws are engaged. Refer to the installation instructions for proper anti-tip screw installation.

Page 4

Important Safety Instructions

• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS, OVEN HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN OR WARMER DRAWER (if equipped). Both surface units and oven

heating elements may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cooktop, surfaces facing the cooktop, the oven vent openings and surfaces near these openings, oven door and window.

• Wear Proper Apparel—Loose-fitting or hanging garments should never be worn while using the appliance. Do not let clothing or other flammable materials

contact hot surfaces.

Never use your appliance for warming or

heating the room.

• Do Not Use Water or Flour on Grease Fires—Smother the fire with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

• Use Only Dry Potholders—Moist or damp potholders on hot surfaces may result in burns from steam. Do

not let the potholders touch hot heating surface units or interior oven elements. Do not use a towel or other bulky cloth instead of a potholder.

• Do Not Heat Unopened Food Containers—Build up of pressure may cause the container to burst and result in injury.

• Remove the oven door from any unused appliance if it is to be stored or discarded.

• IMPORTANT—Do not attempt to operate the oven during a power failure. If the power fails, always turn the oven off. If the oven is not turned off and the power

resumes, the oven may begin to operate again. Food left unattended could catch fire or spoil.

Electronic controllers can be damaged by

cold temperatures. When you use your appliance for the first time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit.

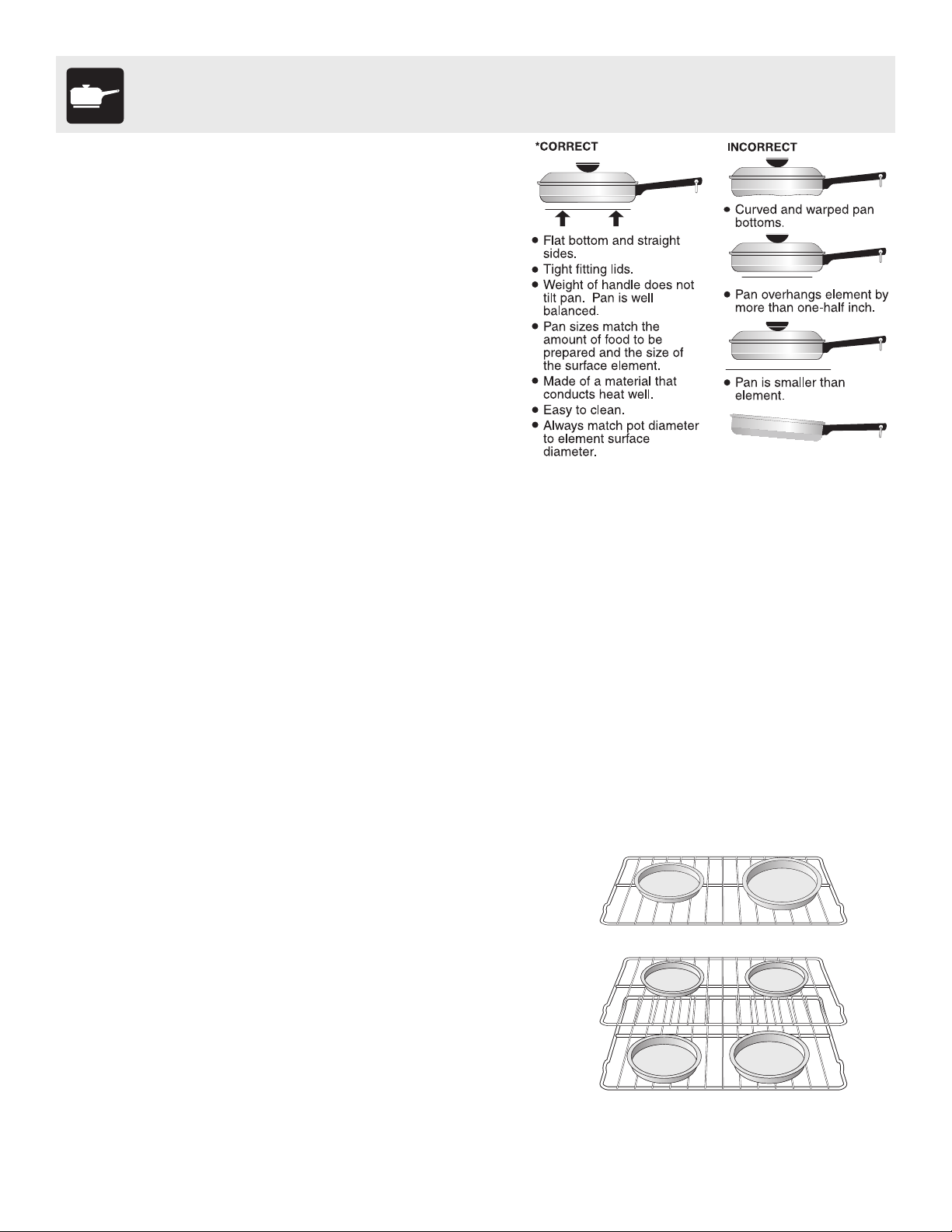

• Use Proper Pan Size—This appliance is equipped with

one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit. The use of undersized utensils will expose a portion of the surface heating unit to direct contact and may result in ignition of clothing. Proper relationship of utensil to the surface unit will also improve efficiency.

• Utensil Handles Should Be Turned Inward and Should Not Extend Over Adjacent Surface Units—To reduce

the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil. The handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface unit.

• Never Leave Surface Units Unattended—Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Protective liners— Do not use aluminum foil to line oven bottom or any other part of the appliance. Only use aluminum foil as recommended for baking if used as a cover placed on the food. Any other used of protective liners or aluminum foil may result in a risk of electric shock or fire or a short circuit.

• Glazed Cooking Utensils—Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for rangetop service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for rangetop use.

• Do Not Use Decorative Surface Element Covers. If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop.

FOR GLASS COOKTOPS ONLY

• Do Not Clean or Operate a Broken Cooktop —If

cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.

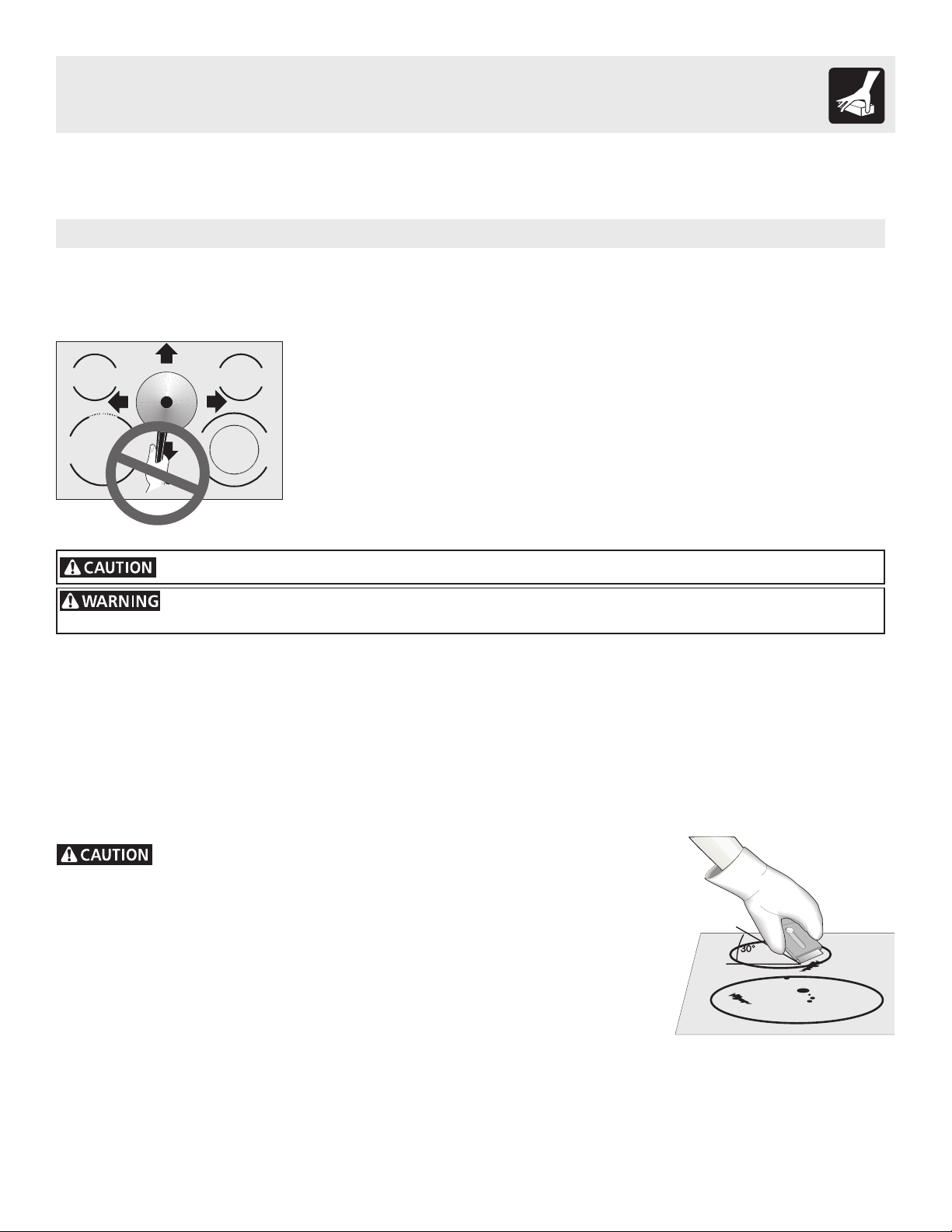

• Clean Cooktop Glass with Caution—If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes if applied to a hot surface.

Page 5

Important Safety Instructions

• Avoid scratching the cooktop glass with sharp objects.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use Care When Opening Door or Warmer Drawer (if equipped)—Stand to the side of the appliance when

opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven/ warmer drawer.

• Keep Oven Vent Ducts Unobstructed. The oven is vented at the front above the oven door. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heatsensitive items on or near the oven vent. These items could melt or ignite.

• Placement of Oven/Warmer Drawer (if equipped) Racks. Always place oven racks in desired location while

oven/drawer (if equipped) is cool. Remove all utensils from the rack before removing rack. If rack must be moved while oven is hot, use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot oven element or interior of the oven/warmer drawer (if equipped).

SELF-CLEANING OVENS:

• Clean in the self-cleaning cycle only the parts of the oven listed in this owner's guide. Before self-cleaning

the oven, remove the broiler pan and any utensils stored in the oven.

• Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

• Oven racks. Oven racks color will change if left in the oven during a self-cleaning cycle.

• Do not use oven cleaners. No oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Remove oven racks. Oven racks color will change if left in the oven during a self-cleaning cycle.

The health of some birds is extremely

sensitive to the fumes given off during the self-clean cycle of any range. Move birds to another well ventilated room.

SAVE THESE INSTRUCTIONS

• Do not use the broiler pan without its insert. The broiler

pan and grid allow dripping fat to drain and be kept away from the high heat of the broiler.

• Do not cover the broiler or warmer drawer (if equipped) grid with aluminum foil. Exposed fat and

grease could ignite.

• Do not touch a hot light bulb with a damp cloth. Doing so could cause the bulb to break. Disconnect the appliance or turn off the power to the appliance before removing and replacing light bulb.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation

hoods and grease filters should be kept clean. Do not allow grease to accumulate. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's instructions for cleaning.

• Cleaners/aerosols—Always follow the manufacturer's recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and/or injury.

Page 6

Page 7

Setting Surface Controls

Models with Coil Surface Elements

NOTE: All knobs shown in this owner's Guide are typical only

1. Place the pan on the surface element.

2. Push in and turn the surface element control knob to desired setting.

3. The surface signal light will glow when one or more elements are turned on. Always turn the element off before removing the pan.

Note:

The size and type of utensil used, and the amount and type of food being

cooked will influence the setting needed for best cooking results.

Setting Type of Cooking

HI (MAX) Start most foods, bring water to a boil, pan broiling. 5 (MED) Maintain a slow boil, thicken sauces and gravies, steam

vegetables. 2-4 (MED-LOW) Keep food cooking, poach, stew. LO (MIN) Keep warm, melt, simmer.

*The suggested settings found in the chart above are based on cooking in medium thickness aluminum pans with lids. Settings may vary when using other types of pans.

Do not place items such as salt and pepper shakers, spoon holders or

plastic wrappings on top of the cooktop when it is in use. These items could melt or

ignite. Potholders, towels or wood could catch fire if placed too close to the element.

Page 8

Setting Surface Controls

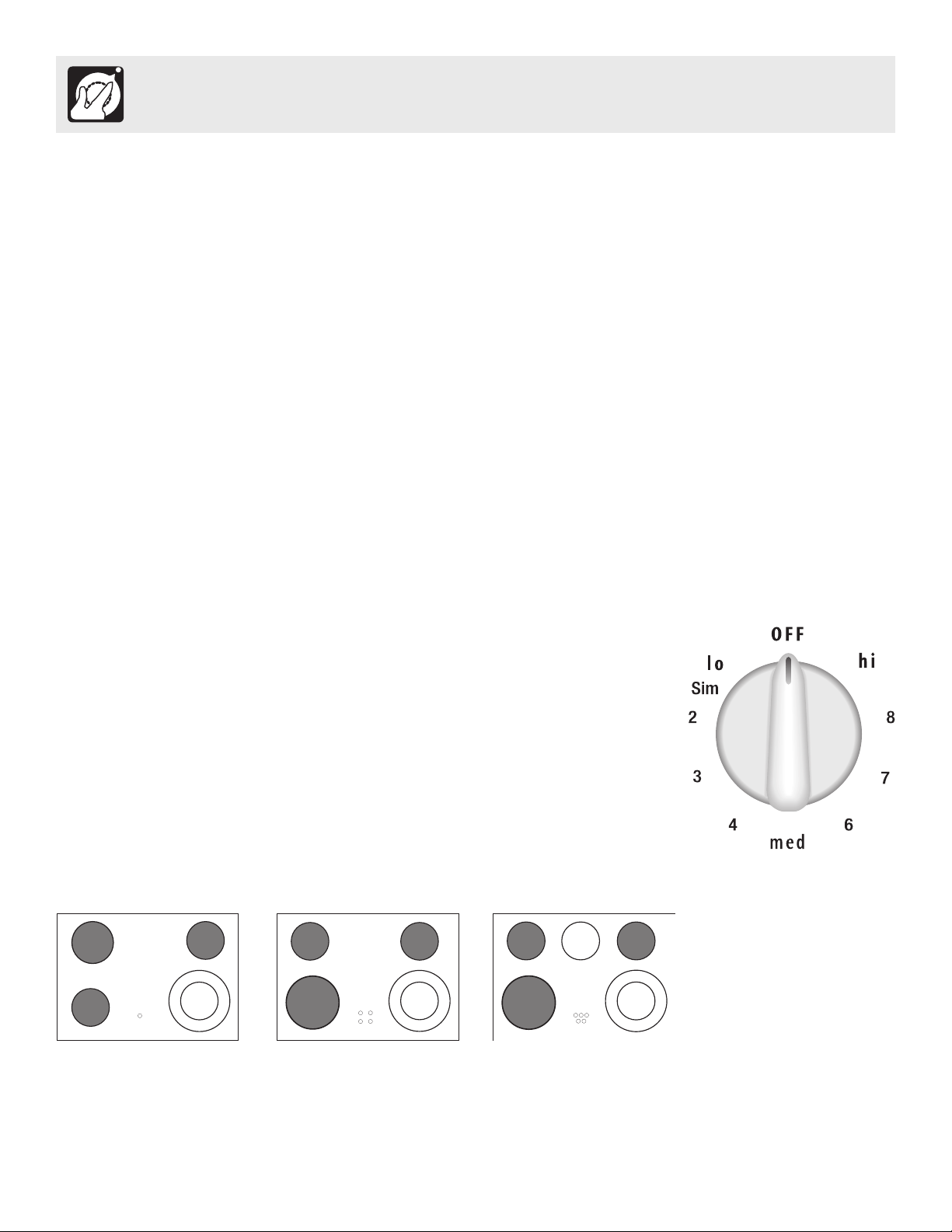

Models with Ceramic Glass Cooktop

Model A Model B Model C

Cooktop radiant areas that heat. Your appliance may

have one of these configurations - Fig. 1

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of the element outline on the cooktop (See Fig. 1). Heat is transferred up through the surface of the cooktop to the cookware. Only flat-bottom cookware should be used. The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to

cause burns.

Model D shown Only - Fig. 2

NOTE: Please read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning section and Before You Call checklist section of this Use and Care Guide.

NOTE: Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the cookware bottom is not flat (Refer to page 12 under Selecting Surface Cooking Utensils).

NOTE: Due to the high intensity of heat generated by the surface elements, the glass surface will turn green when the element will be turned off. This phenomenon is normal and the glass will come back to its original white color after it has completely cooled down (White glass cooktops only).

Page 9

Setting Surface Controls

Models with Ceramic Glass Cooktop (continued)

Surface Cooking Settings (Models with Ceramic Glass Cooktop)

Use the chart (Fig. 1) to determine the correct setting for the kind of food you are preparing. The Simmer settings are used to simmer and keep larger quantities of foods warm such as stews and soups. The lower Simmer settings are ideal for delicate foods and melting chocolate or butter.

Note: The size and type of cookware used will influence the setting needed for best cooking results.

Recommended Settings for Single, Bridge and

Dual Surface Elements

Setting Type of Cooking

HIGH (Hi) Start most foods, bring water to a boil, pan broiling

MEDIUM HIGH (5-8) Continue a rapid boil, fry, deep fat fry

MEDIUM (5) Maintain a slow boil, thicken sauces and gravies, steam vegetables

MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew

LOW (Lo - 2) Keep warm, melt, simmer

Fig. 1

Radiant surface elements may appear to have cooled after they have been turned off. A hot surface indicator light will come on and will continue to glow until the glass cooktop has cooled down to a moderate level. The

glass surface may still be hot and burns may occur if

the glass surface is touched before the indicator light has turned off.

Page 10

Setting Surface Controls

Models with Ceramic Glass Cooktop (continued)

Operating Single Radiant Surface Elements (Models with Ceramic Glass Cooktop Only)

The cooktop has single radiant surface elements at location as shown on Figs. 4 to 7.

To Operate the Single Surface Elements:

1. Place correctly sized cookware on the radiant surface element.

2. Push in and turn the surface control knob in either direction to the desired setting (Fig.

3). Turn the knob to adjust the setting if desired. Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

3. When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The Surface Indicator light will come on when the control knob will be turn on and will continue to glow until the glass cooktop has cooled down to a moderate level. The light may remain on even though the controls are turned OFF.

Note: See page 9, Fig. 1 for recommended control settings.

Fig. 3

Fig. 4- Model B

Left & Right Rear Ele-

ments and Left front

element

Fig. 5 -Model C

Left & Right Rear Ele-

ments and Left front

element

Fig. 6 -Model D

Page 11

Setting Surface Controls

Models with Ceramic Glass Cooktop (continued)

Operating the Dual Surface Radiant Element (Models with Ceramic Glass Cooktop Only)

Model A is equipped with Dual radiant surface elements at all positions (See Figs. 5 & 6). Models B, C, D & E are equipped with a dual radiant surface element located at the right front (See Figs. 7 to 14) position. Symbols on the control panel are used to indicate which coil of the dual radiant element will heat. The symbol indicates that only

the inner coil will heat (Figs. 1, 3, 5, 7, 9, 11 & 13). The

symbol indicates that both inner and outer coils will heat (Figs. 2, 4, 6, 8, 10, 12 & 14). You may switch from either coil setting at any time during cooking.

To Operate the Dual Surface Element:

1. Place correctly sized cookware on the dual surface element.

2. Push in and turn the control knob counterclockwise (See Fig. 3) for smaller cookware or clockwise (See Fig. 4) for larger cookware.

3. Turn the knob to adjust the setting if needed. Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

4. When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The Surface Indicator light will come on when the control knob will be turn on and will continue to glow until the glass cooktop has cooled down to a moderate level. The light may remain on even though the controls are turned OFF.

Note: See page 9, Fig. 1 for recommended control settings.

Page 12

Page 13

On/Off

War mi n g

Zone

Zone Réchaud

med

Page 14

141516

Page 15

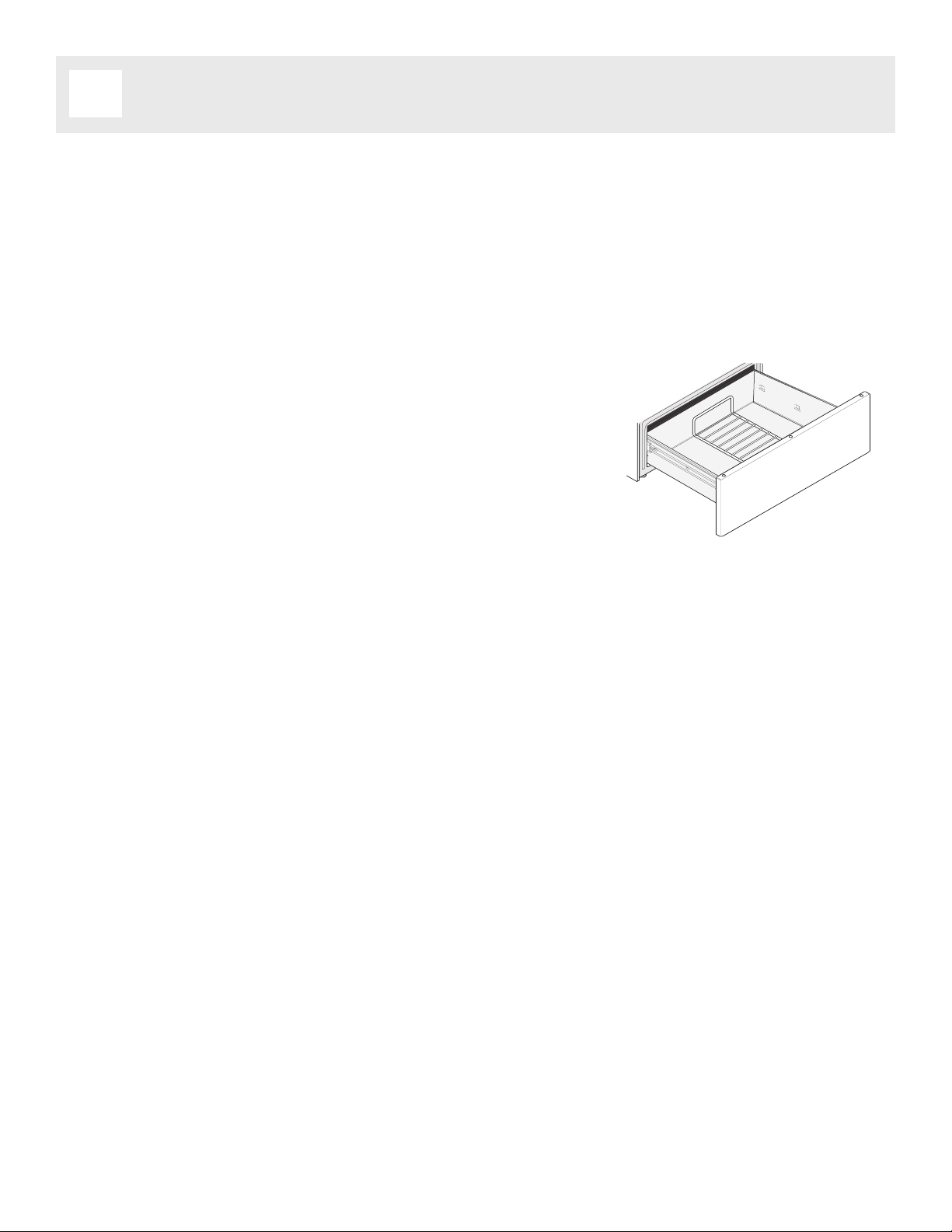

Page 16

Page 17

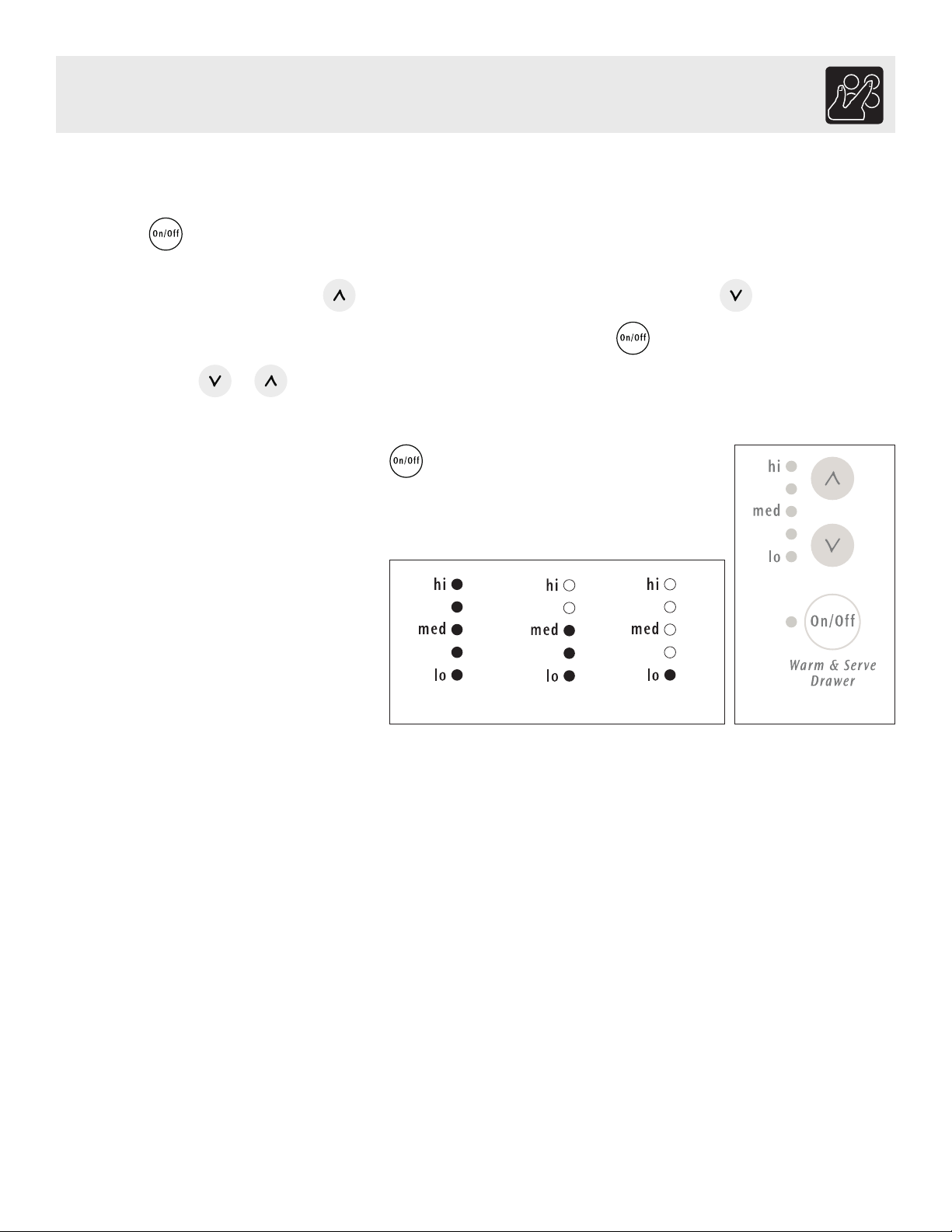

Setting Warmer Drawer Control (If Equipped)

To Set the Warmer Drawer Controls:

The control and indicator lights for the Warmer Drawer features are located on the control panel. The temperatures are approximate, and are designated by HI (high), MED (medium) and LO (low).

1. Touch the (see Fig. 4) pad at the Warmer Drawer control position. The Warmer Drawer indicator light will flash. Note:

If no further pads are touched within 25 seconds the request to power the Warmer Drawer ON will clear.

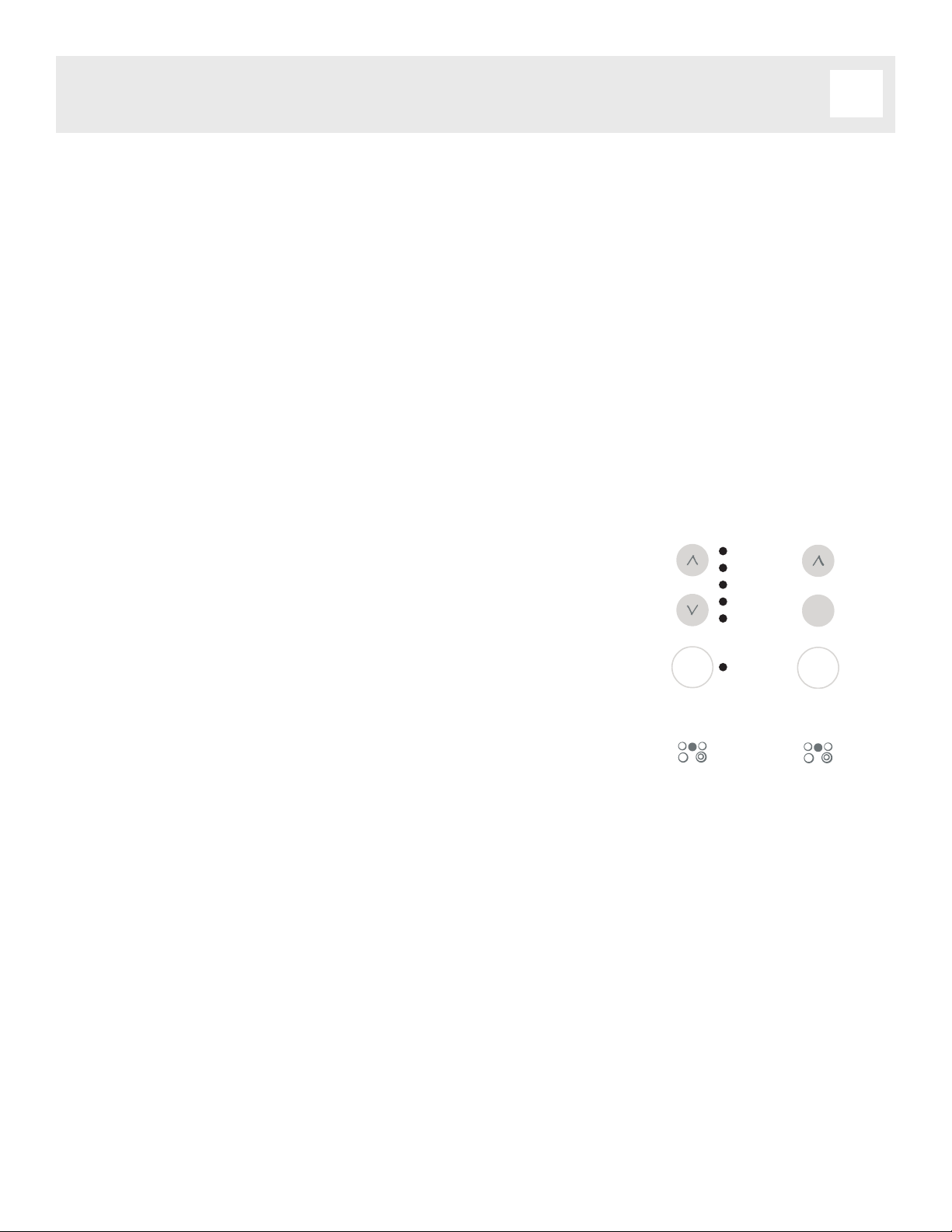

2. Set the desired power level. Touch

level for LO (see Fig. 3). The Warmer Drawer indicator light located beside the pad will turn ON steady.

3. Each touch of the or pads will decrease or increase through 5 power levels from HI (see Fig. 1) to MED (see Fig.

2) to LO (see Fig. 3). Note: For best results, preheat the Warmer Drawer before adding the food . An empty drawer will preheat in approximately 15 minutes.

4. When the food is ready for removal, touch the pad once to turn the Warmer Drawer OFF.

The Warmer Drawer indicator light will turn OFF.

Note: The Warmer Drawer is inoperable during the self-clean cycle.

Note: The warmer drawer is equipped with

a latch which may require extra force when opening and closing the drawer.

once to turn ON the power level for HI (see Fig. 1) or to turn ON the power

Fig.1 Fig. 2 Fig. 3

Fig. 4

Page 18

Cooking Informations

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc... There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Chart

Baking Problems

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom.

Cakes not done in the center.

Causes

• Cookies and biscuits put into the oven before the preheating time is completed.

• Oven rack overcrowded.

• Dark pan absorbs heat too fast.

• Cakes put into the oven before preheating time is completed.

• Rack position too high or low.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

Corrections

• Allow oven to preheat to the selected temperature before placing food in oven.

• Choose pan sizes that will permit 5.1 cm to 10.2 cm (2” to 4”) of air space on all sides when placed in the oven.

• Use a medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/12°C lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm to 10.2 cm (2” to 4”) of space on all sides of pan.

Cakes not level.

Foods not done when cooking time is up.

• Range not level.

• Pan too close to oven wall or rack overcrowded.

• Pan warped.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too frequently.

• Place a marked glass measuring cup filled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the range.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Set oven temperature 25°F/12°C higher than suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to be used for baking.

• Open oven door only after shortest recommended baking time.

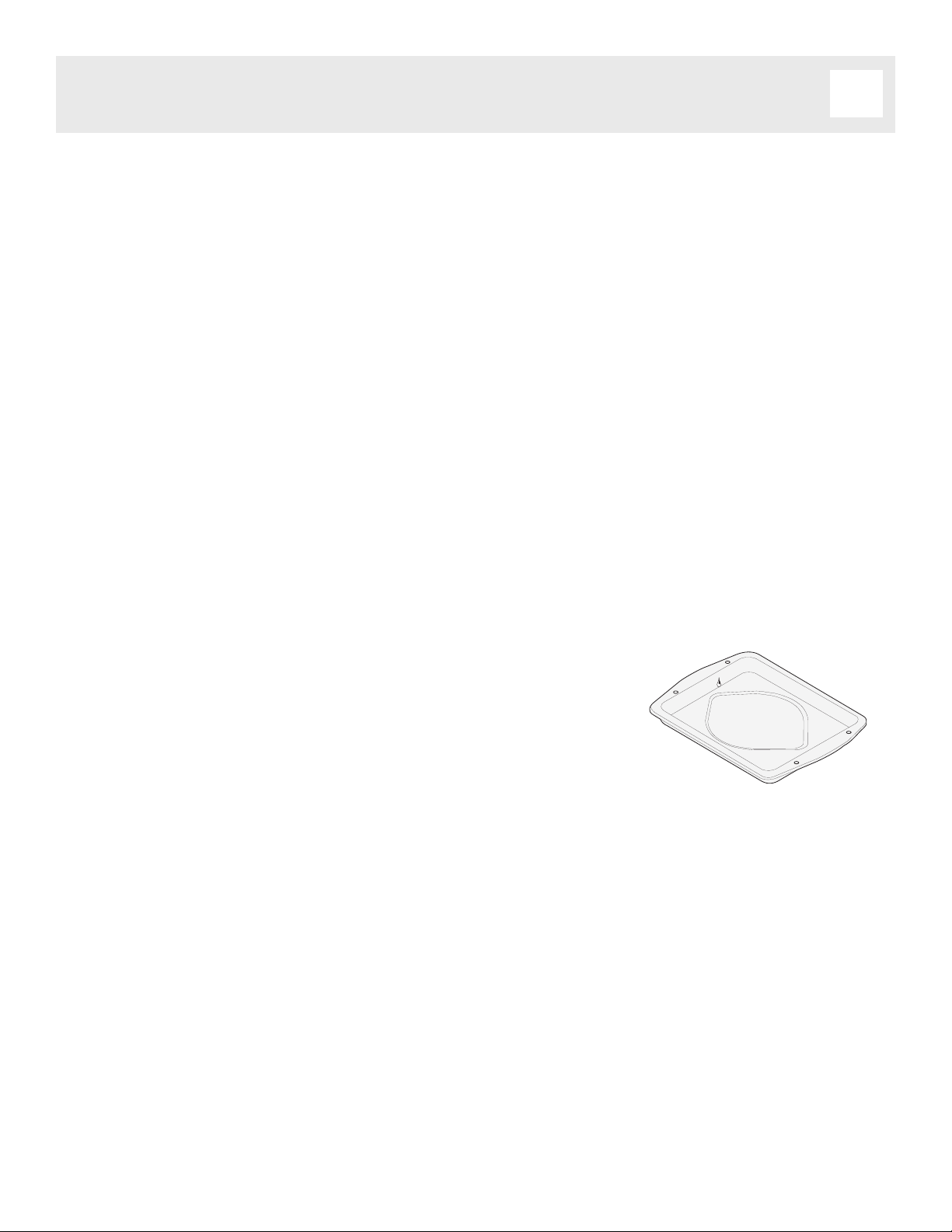

Page 19

Page 20

Care & Cleaning

(Cleaning Chart)

Cleaning Various Parts of Your Range

Before cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.

Surfaces

Aluminum & Vinyl

Painted and Plastic Control Knobs, Body Parts, and Decorative Trim

Stainless Steel (some models) Oven Door & Drawer

Front Panel and Decorative Tr im

Surface Elements and Drip Bowls (some models)

How to Clean

Use hot, soapy water and a cloth. Dry with a clean cloth.

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray liquids directly on the control pad and display area. Do not use large amounts of water on the control panel

- excess water on the control area may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the finish. To remove control knobs, turn to the OFF position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

Surface elements can be unplugged and removed to make cleaning the drip bowls easier. The surface elements clean themselves when they are turned on. Food spilled on a hot element will burn off. Food spilled on a cold element can be cleaned with a damp cloth any remaining soil will burn off the next time element is used. NEVER IMMERSE A SURFACE ELEMENT IN WATER. To remove surface element and drip bowls, follow the instructions under General Cleaning.

Porcelain Enamel

Broiler Pan and Insert, Door Liner, Body Parts and Warmer Drawer and Drawer Cavity

To clean drip bowls, wash in hot, soapy water or in the dishwasher. Rinse and dry while still warm. Hard-to-remove, burned-on soils can be removed by soaking the drip bowls for about 20 minute in a slightly diluted liquid cleanser or solution made of equal parts ammonia and water. A nylon scrubber may be used after soaking. DO NOT use abrasive cleanser or steel wool, as they will scratch the surface. Always rinse with clean water and polish, and dry with a soft cloth. To replace drip bowls and surface elements, follow the instructions under General Cleaning.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

If necessary

, cover difficult spots with an ammonia-

Page 21

212223

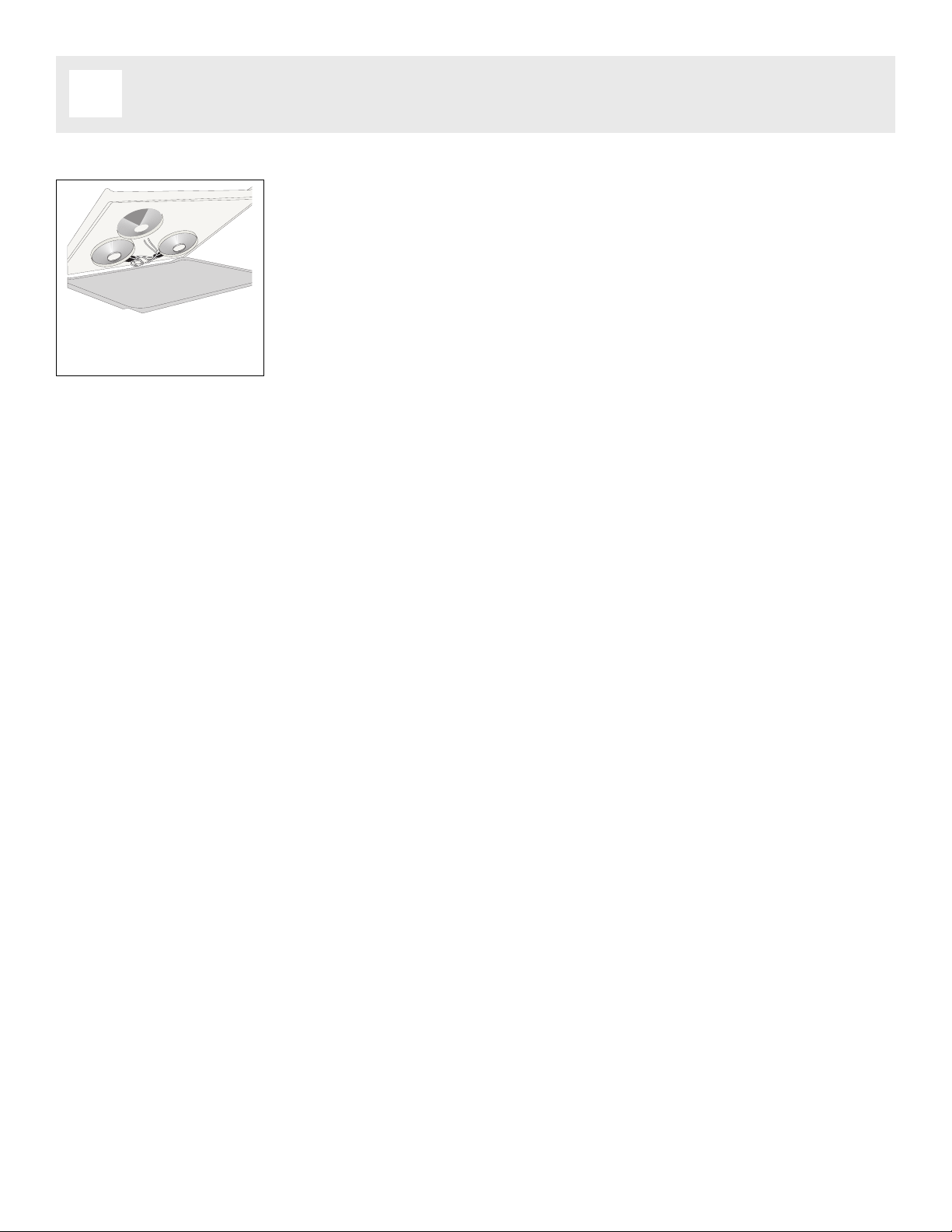

Page 22

Page 23

Care & Cleaning

Models with Ceramic Glass Cooktop

Ceramic Glass Cooktop Cleaning & Maintenance

Consistent and proper cleaning is essential to maintaining your Ceramic glass cooktop

Prior to using your cooktop for the first time, apply the recommended CERAMA BRYTE® Cleaning Creme to the ceramic surface. Clean and buff with a non abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen. Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop, or they may crack it.

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the ceramic glass surface.

Cleaning Recommendations for the Ceramic Glass Cooktop

For light to moderate soil:

Apply a few drops of CERAMA BRYTE® Cleaning Creme directly to the cooktop. Use a paper towel or a Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue. Do not use the sponge you use to clean the cooktop for any other purpose.

For heavy, burned on soil:

First, clean the surface as described above. Then, if soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream and buff surface clean.

Damage to the ceramic glass cooktop may occur if you use any scrub pad

other than a Multi-Purpose No Scratch Scrub Sponge.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

Page 24

Care & Cleaning

Oven Cleaning

Cleaning the Regular Oven (non self-clean oven, some models)

Make sure the oven is cool and that all control knobs are et OFF position. Cleaning the oven is a lot easier when the door is removed.

1. Remove the oven door; see under To Remove and Replace the Oven Door in this Owner's Guide.

2. Empty the oven including the racks.

3. You can wash the broiler pan, grid and racks in the kitchen sink.

4. Clean oven lining thoroughly with soap and a wet cloth and wipe with a dry cloth.

To remove burned-on fat on oven walls, moisten soiled parts with household ammonia, using a wet cloth. Follow suggested manufacturer's cleaning method. (Do not remove the oven door when using ammonia.)

Complete cleaning with a damp cloth and use a fine steel wool scouring agent if necessary.

The lower element can be moved up for cleaning purposes.

5. Replace racks in the oven. Reinstall oven door.

Page 25

Care & Cleaning

Oven Cleaning (Continued)

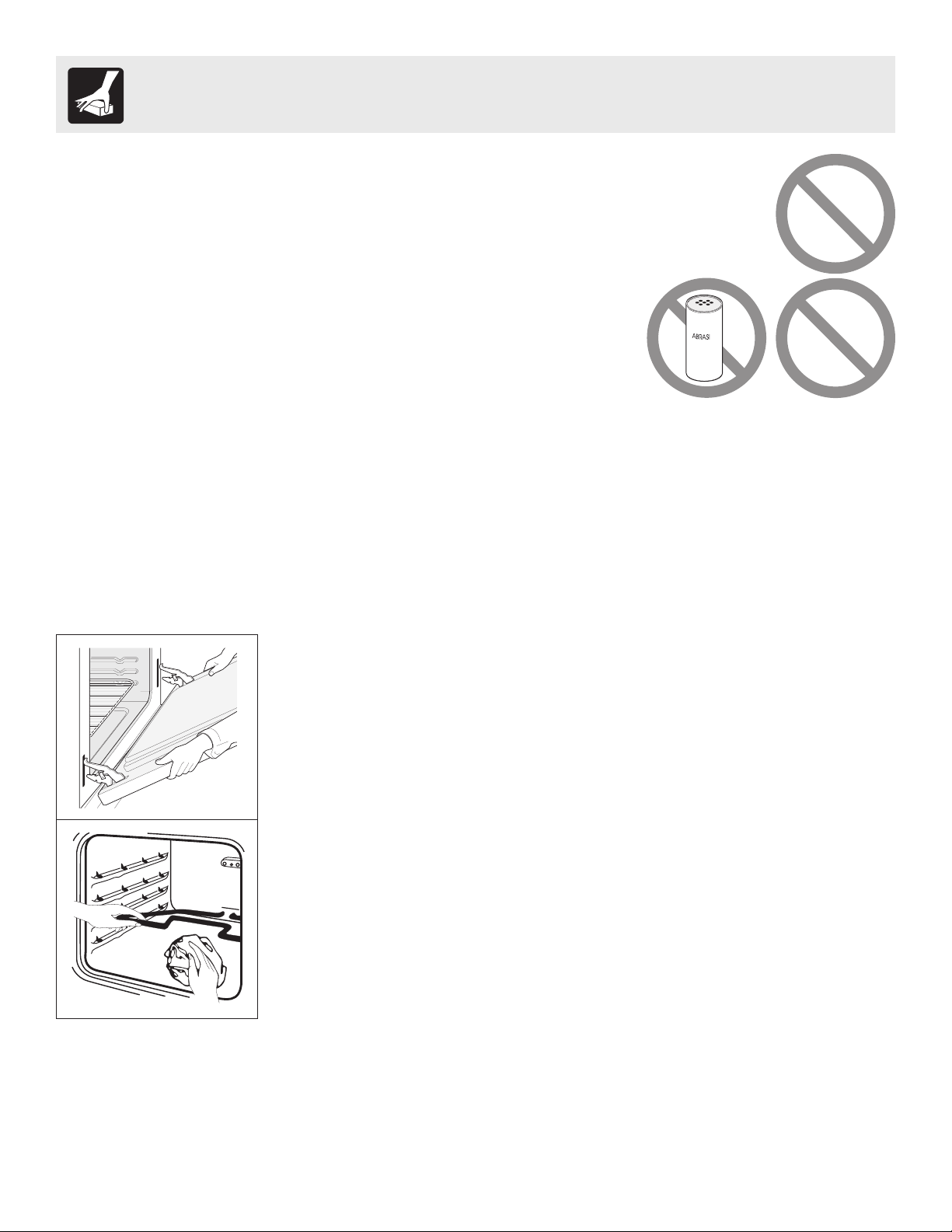

Cleaning the Self-Clean Oven (some models)

Adhere to the following cleaning precautions:

- Allow the oven to cool before cleaning.

- Wear rubber gloves when cleaning any exterior parts of the oven manually.

During the self-clean cycle, the outside of the wall oven can become very hot to the touch. DO NOT leave

small children unattended near the appliance.

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any

range. Move birds to another well ventilated room.

Before cleaning any part of the oven, be sure the electronic oven control is turned off or else push CANCEL

pad. Wait until the oven is cool.

DO NOT use commercial oven cleaners or oven protective coatings in or around any art of the self-cleaning oven. DO NOT clean the oven door gasket. The gasket on the oven door is essential for a good seal. Care should be taken not to rub, damage or move the gasket. DO NOT cooking or foil could melt and damage the oven surface.

A self-cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soil completely or reduce it to a fin powdered ash you can which away with damp cloth.

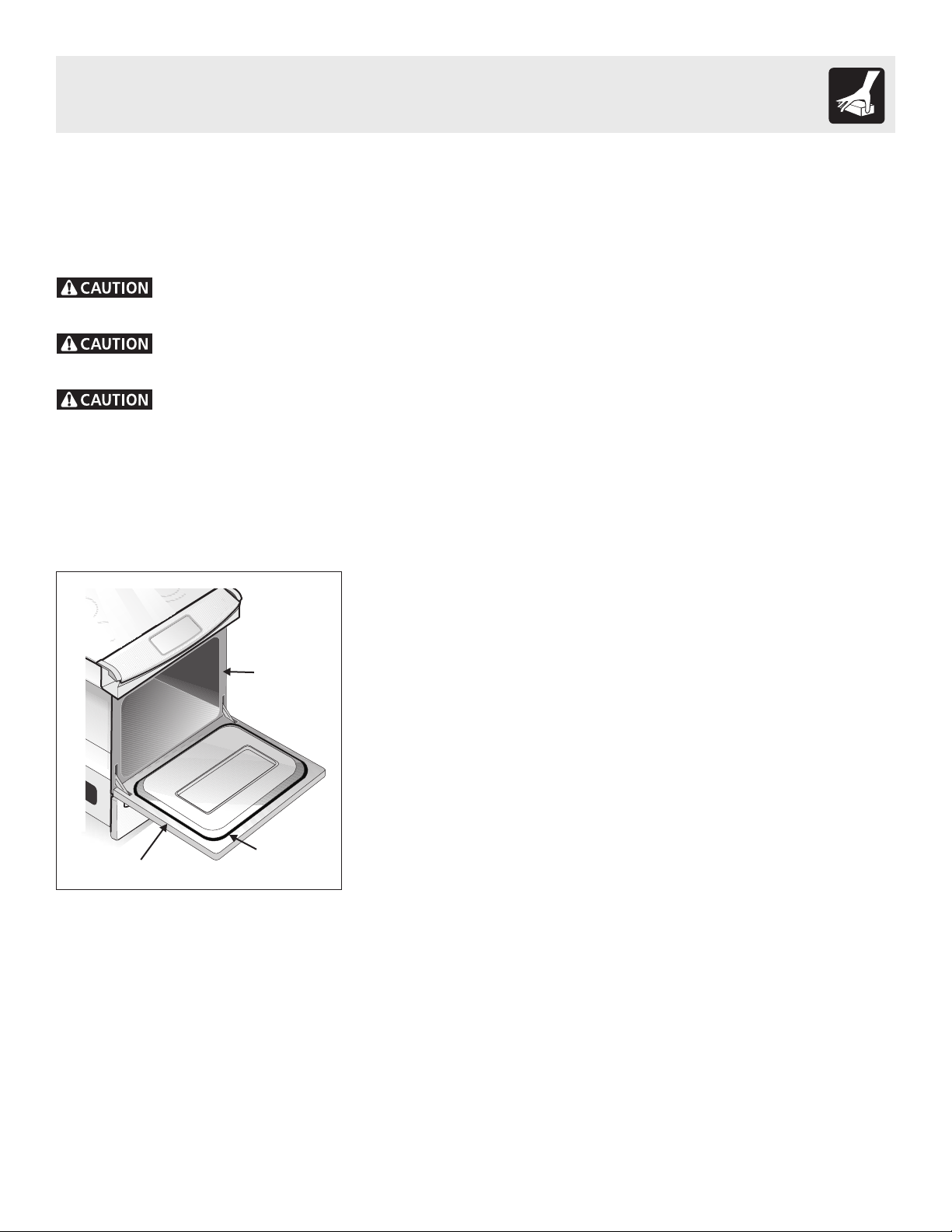

Preparing the Oven for Self-Cleaning

1. Remove all excess spillovers in the oven cavity before starting the selfcleaning cycle. To clean, use hot soapy water and a cloth. Large spillovers can cause heavy smoke or fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or acid content (such as tomatoes, sauerkraut,

Do Hand

Clean

Frame

Do Hand Clean Door

What to Expect During Cleaning

While the oven is in operation, the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal expansion and contraction are normal. Odor is also normal as the food soil is being removed. Smoke may appear through the oven vent, located on the top of the control panel.

If heavy spillovers are not wiped up before cleaning, they may flame and cause more smoke and odor than usual. This is normal and safe and should not cause alarm. If available, use an exhaust fan during the self-cleaning cycle.

Do Not Hand

Clean Seal

fruit juices or pie filling) to remain on the surface as they may cause a dull spot even after cleaning.

2. Clean any soil from the oven frame and the door liner (see illustration). These areas heat sufficiently during self-cleaning cycle to burn soil on. Clean with soap and water.

3. Remove the broiler pan and insert, all utensils and any foil. These items do not withstand high cleaning temperatures

4. Oven racks may be left in the oven or may be removed. If they go through the clean cycle, their color will turn slightly dull. After the cycle is completed and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil. This will make the racks glide easier.

NOTE: A smoke eliminator in the oven vent converts most of the soil into a colorless vapor.

Setting the Controls for Self-Clean Cycle

For the setting of the clean cycle, refer to Timer or Electronic Oven Control Guide.

Page 26

Care & Cleaning

Hinge support

Lock engaged for door removal

removed from the oven

Lock in normal position

Hinge lever hook

Fig. 1

HINGE SLOT - Door

Fig. 2

Hinge lever

Fig. 3

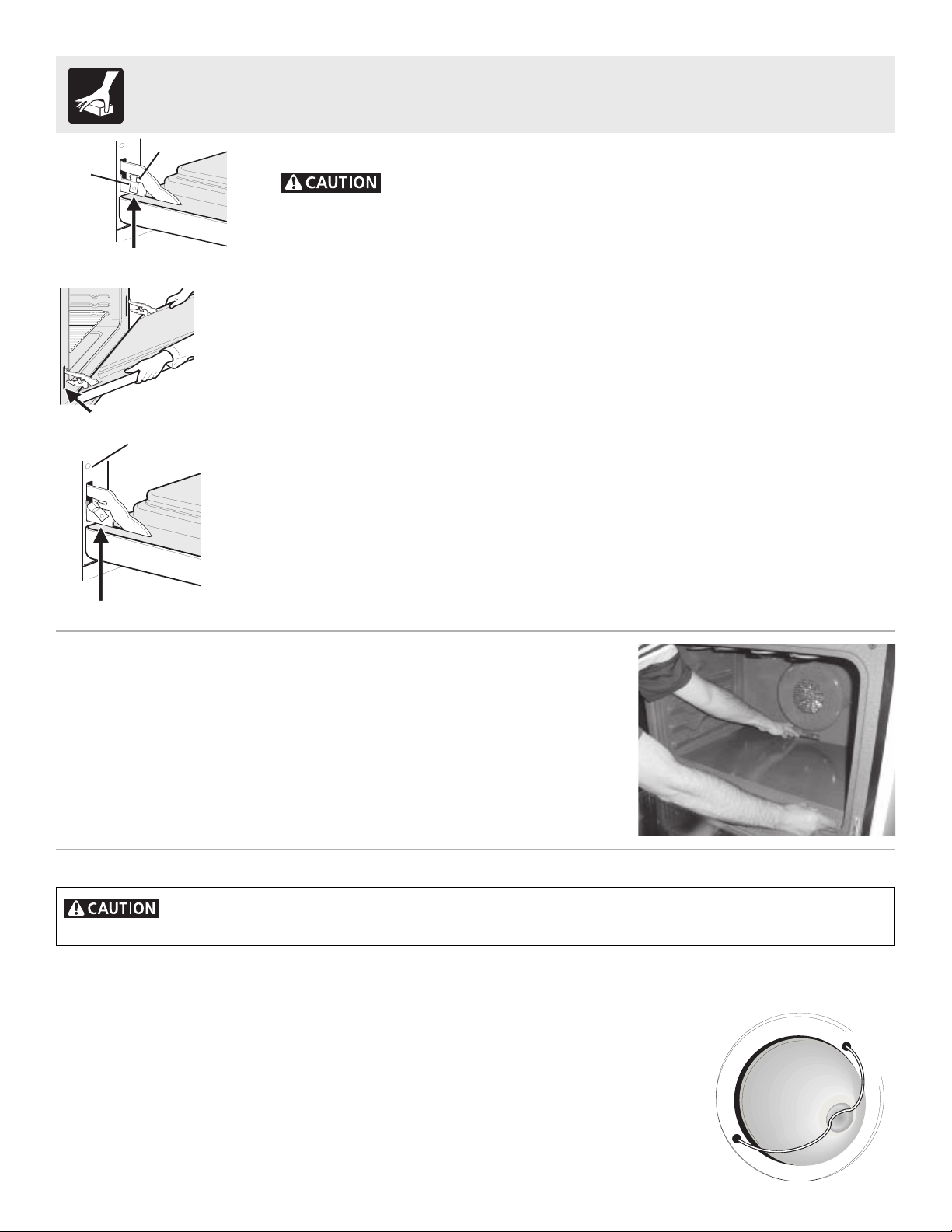

Removing and Replacing the Oven Door

The door is heavy. For safe, temporary storage, lay the door flat with the inside

of the door facing down.

To Remove Oven Door:

1. Open the door to the fully opened position.

2. Pull up the lock located on both hinge supports and engage it in the hinge lever hooks (Fig. 1). You may have to apply a little downward pressure on the door to pull the locks fully over the hinge lever hooks.

3. Grab the door by the sides and pull the bottom of the door up and toward you to disengage the hinge supports. Keep pulling the bottom of the door toward you while rotating the top of the door toward the range to completely disengage the hinge levers (Fig. 2).

4. To clean oven door, follow the instructions provided in the General Care & Cleaning table.

To Replace Oven Door:

1. Grab the door by the sides; place the hinge supports in the hinge slots. Open the door to the fully opened position.

2. Disengage the lock from the hinge lever hooks on both sides (Fig. 3). Note: Make sure the hinge supports are fully engaged before unlocking the hinge levers.

3. Close the oven door.

Special Door Care Instructions - Most oven doors contain glass that can break.

Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an

increased risk of breakage at a later time.

To Remove the “Hidden Bake” Cover (some models)

1. In order to remove the “hidden bake” cover, pull the back edge with one hand about 1/2" inch and lift up the “hidden bake” cover with both hands. (See picture)

2. When re-installing the “hidden bake” cover, be sure to put it all the way to the back of the oven and lay it down on the 2 shoulder screws. Then push the front edge of the cover in its place below the front bracket.

To have easier access to the "hidden bake" cover, you can remove the oven door by following the instructions on previous page.

IMPORTANT:

Always replace the “hidden bake” cover before the next use.

Changing Oven Light

Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the

oven light on during the self-cleaning cycle. High temperature will reduce lamp life.

On some models an interior oven light will turn on automatically when the oven door is opened.

The oven light may be turned on when the door is closed by using the oven light switch located on the control panel.

On a self clean oven the lamp is covered with a glass shield held in place by a wire holder.

THIS GLASS SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

To replace the light bulb: CAUTION: BE SURE OVEN IS COOL

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. Replace bulb with a 40 watt appliance bulb only.

4. For self-cleaning oven, press wire holder to one side to release glass shield,

change bulb and be sure to replace glass shield.

Page 27

Care & Cleaning

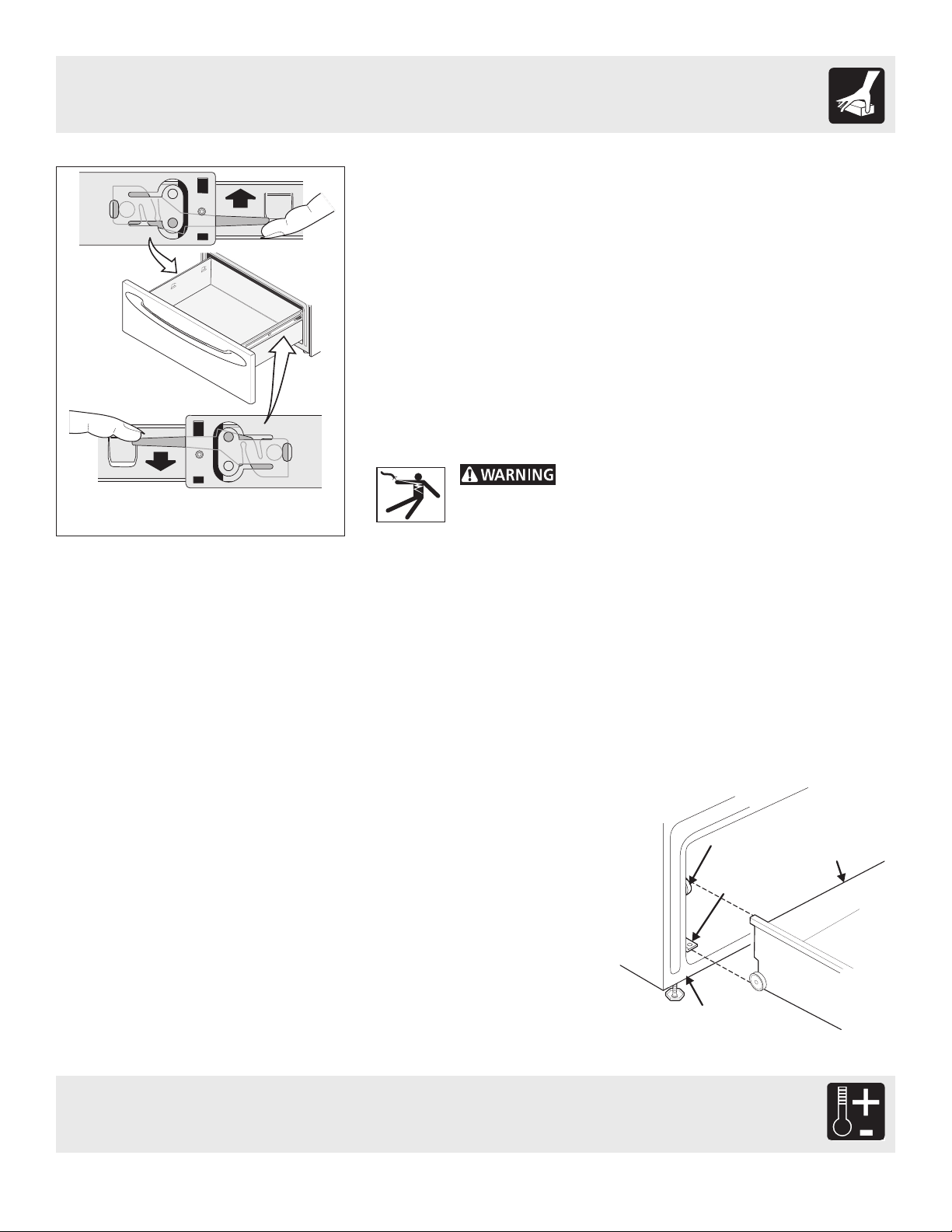

To Remove and Replace Warmer Drawer (some models)

To remove Warmer Drawer:

1. Turn power off before removing the warmer drawer.

2. Open the drawer to the fully opened position.

3. Locate the latches on both sides of the warmer drawer.

4. Pull up on the left glide latch and push down on the right glide latch.

5. Pull the drawer away from the range.

6. To clean warmer drawer, gently scour with a soapy scouring pad, this will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

To Replace Warmer Drawer:

1. Align the glide latches on both sides of the drawer with the slots on the drawer.

2. Push the drawer back into the range.

Left Glide

Latch

Pull up latch

with finger

Latch

Pull down latch with finger

Fig. 1

Right Glide

in serious injury or death. Disconnect appliance from electric power before cleaning and servicing the warmer drawer.

Electrical Shock Hazard can occur and result

Storage Drawer with extendible glides (some models)

To remove Warmer Drawer:

1. Open the drawer to the fully opened position.

2. Locate the latches on both sides of the warmer drawer. (See Fig. 1)

3. Pull up on the left glide latch and push down on the right glide latch. (See Fig. 1)

4. Pull the drawer away from the range.

5. To clean warmer drawer, gently scour with a soapy scouring pad, this will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

To Replace Warmer Drawer:

1. Align the glide latches on both sides of the drawer with the slots on the drawer.

2. Push the drawer back into the range.

Storage Drawer (some models)

Use the storage drawer for storing cooking utensils. The drawer can de removed to facilitate cleaning under the range. Use care when handling the drawer.

Removing and Replacing Storage Drawer

To remove the drawer:

1. Pull empty drawer out to the roller guide stop.

2. Tilt the drawer up and pull it out over the rollers.

To replace the drawer:

1. Insert the rear end of the drawer into the opening.

2. Fit the drawer end rollers onto the guide rails.

3. Push the drawer in until it stops, then lift to allow the rollers to clear the roller guide

stop, and push in.

Roller

Roller Guide

Front Frame

Storage Drawer

Fig. 2

Adjusting Your Oven Temperature

For instructions on how to adjust the oven temperature refer to the electronic oven control guide.

Page 28

Before you call

Solutions to Common Problems

Before you call for service,

are not the result of defective workmanship or materials in this appliance. You will be charged for a service call while the appliance is in warranty if the problem is not caused by defective product workmanship or materials. Your new appliance is a carefully engineered product. Many times, what appears to be a reason to call for service requires nothing more than a simple adjustment you can easily make in your own home or is normal operating characteristic of appliance under certain conditions. This list is applicable to a variety of models; some of the items will not necessarily apply to your appliance.

OCCURRENCE

Range is not level.

Cannot move appliance easily. Appliance must be accessible for service.

Entire range or oven does not operate.

Oven control beeps and displays an F error code.

Oven light does not work.

Surface unit does not heat.

Surface units too hot or not hot enough.

Drip bowls are pitting or rusting.

Drip bowls turning color or distorted out of shape.

Scratches or abrasions on cooktop surface.

review this list. It may save you time and expense. The list includes common occurrences that

POSSIBLE CAUSE/SOLUTION

(1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack.

Adjust leveling legs at base of range until the rack is level. When range is level, cooktop may appear out of alignment if countertop is not level. (2) Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a carpenter to correct sagging or sloping floor. (3) Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are square and have sufficient room for range clearance.

(1) Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem. (2) Contact builder or installer to make appliance accessible. (3) Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.

(1) Make sure cord/plug is tightly into outlet. (2) Service wiring is not complete. (3) Power outage. Check house lights to be sure. Call your local electric company for service.

(1) This oven is equipped with a state of the art electronic oven controller. Among the many features is a full time oven circuit diagnostics system. The controller constantly monitors the internal circuitry as well as several crucial oven circuits to insure they are all operating correctly. If at any time one of these systems fails, the controller will immediately stop the current operation and beep continuously (flashing an F error code in the controller display window). (2) Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display and stop the beeping. Reprogram oven. If fault remains, record fault number. Press STOP/CLEAR and contact authorized servicer.

(1) Replace or tighten bulb. See Changing Oven Light in this owner’s Guide for instructions.

(1) No power to the appliance. Check steps under “Entire Range or Oven Does Not Oper-

ate” in this Before you Call checklist. (2) Incorrect control setting. Make sure the correct control is on for the surface unit to be used.

(1) Incorrect control setting. Make sure the correct control is on for the surface unit to be used. (2) Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight cookware. Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy-and medium- weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.

(1) Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion. Remove and wash drip bowls as soon as possible after spillover. (2) Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as much as possible from direct exposure to salt air.

(1) Bottom surface of cookware extends beyond surface elements and touches cooktop surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT use cookware of this type. Pan sizes should be matched to the size of the element. Replacement drip bowls may be purchased from your dealer.

(1) Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. (2) Cleaning materials not recommended for ceramic-glass cooktop have been used. See “Cooktop Cleaning - Ceramic Glass Cooktop Models” section under General Cleaning. (3) Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

Page 29

Before you call

Solutions to Common Problems

OCCURRENCE

Metalmarks.

Brown streaks or specks.

Areas of discoloration with metallic sheen.

Poor baking results.

Fan noise during cooking operation.

Flames inside oven or smoking from vent.

Oven smokes excessively during broiling.

Self-cleaning cycle does not work.

Soil not completely removed after self-cleaning cycle.

POSSIBLE CAUSE/SOLUTION

(1) Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. “Cooktop Cleaning - Ceramic Glass Cooktop Models” section under General Cleaning.

(1) Boilovers are cooked onto surface. Use razor blade scraper to remove soil. “Cooktop Cleaning - Ceramic Glass Cooktop Models” section under General Cleaning.

(1) Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning cream. Use cookware with clean, dry bottoms.

(1) Many factors affect baking results. Make sure the proper rack position is used. Center food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool, see “Adjusting Oven Tem-

perature” in the Electronic Oven Control guide.

(1) A cooling fan may automatically turn on and off to cool internal parts. It is normal, and the

fan may continue to run even after oven is turned off.

(1) Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time. (2) Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle. If flames or excessive smoke are present, stop the self-clean cycle and follow the steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control guide.

(1) Make sure oven is opened to Broil Stop Position. (2) Meat too close to the element. Reposition the rack to provide proper clearance between the meat and the element. Preheat broil element. Preheat broil element for searing. (3) Grid on broiler pan wrong side up and grease not draining. Always place grid on the broiler pan with ribs up and slots down to allow grease to drip into pan. (4) Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently. Old grease or food spatters cause excessive smoking.

(1) Self-cleaning cycle was interrupted. Follow steps under “Stopping or Interrupting the SelfCleaning Cycle” in the Electronic Oven Control Guide. (2) Control(s) not set properly. Follow instructions under “Oven Cleaning” in the Electronic Oven Control Guide.

(1) Failure to clean bottom, front, top or oven, frame or door area outside oven seal. These areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these areas before the self-cleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon brush and water or nylon scrubber. Be careful not to damage the oven seal.

Avoid Transportation Damage to your Range

If you have to move your range into/out of your residence or when moving to a new home, it is suggested that you take the following precautions:

1. Screw in the levelling legs under the range.

2. Remove the racks and other utensils from the oven, and from the lower drawer.

3. Use adhesive tape to firmly secure the door and the drawer to the side panels. Also attach the electric power cord in the same manner.

4. Use a two-wheeled trolley with strap and fasten the range to it. Cover the appliance with a heavy blanket to prevent scratches and dents.

5. Avoid pulling or pushing the control panel when moving the appliance.

Page 30

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances North America P.O. Box 212378 Augusta, GA 30907

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

Canada

L5V 3E4
