Electrolux SC29110 User Manual
user manual
notice d'utilisation
benutzerinformation
istruzioni per l’uso
Refrigerator
Refrigerator
Kühlschrank
Frigorifero
SC29110
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Control panel 4
First use 4
Daily use 5
Helpful hints and tips 6
Care and Cleaning 6
What to do if… 7
Technical data 9
Installation 9
Environmental concerns 11
Subject to change without notice
SAFETY INFORMATION
In the interest of your safety and to ensure
the correct use, before installing and first using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance having a spring lock (latch) on the door or lid,
be sure to make that spring lock unusable before you discard the old appliance.
This will prevent it from becoming a
death trap for a child.
General safety
Caution! Keep ventilation openings
clear of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
2 electrolux
damage to the cord may cause a shortcircuit, fire and/or electric shock.
Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or damaged power plug may overheat and
cause a fire.
3. Make sure that you can come to the
mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6. You must not operate the appliance
without the lamp cover
1)
of interior
lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
•
Bulb lamps
2)
used in this appliance are
special purpose lamps selected for household appliances use only. They are not
suitable for household room illumination.
Daily use
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may explode.
• Appliance's manufacturers storage recommendations should be strictly adhered
to. Refer to relevant instructions.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from
the mains socket.
• Do not clean the appliance with metal objects.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary,
clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
Important! For electrical connection
carefully follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the appliance if it is damaged. Report possible
damages immediately to the place you
bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the back of the product should be against a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
•
Connect to potable water supply only.
3)
Service
• Any electrical work required to do the servicing of the appliance should be carried
out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
1) If the lamp cover is foreseen
2) If the lamp is foreseen
3) If a water connection is foreseen
electrolux 3
Environment Protection
This appliance does not contain gasses
which could damage the ozone layer,
in either its refrigerant circuit or insulation materials. The appliance shall not
be discarded together with the urban refuse and rubbish. The insulation foam
contains flammable gases: the appli-
ance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid damaging the cooling unit, especially at the
rear near the heat exchanger. The materials used on this appliance marked
by the symbol
are recyclable.
CONTROL PANEL
4
3
52
1
0
6
1 2
1. Pilot light
2. Temperature regulator
Switching on
Insert the plug into the wall socket.
Turn the Temperature setting regulator
clockwise to a medium setting.
The Pilot light will light up.
Switching off
To turn off the appliance, turn the thermostat knob to the "O" position.
Temperature regulation
The temperature is automatically regulated.
To operate the appliance, proceed as follows:
• turn the knob clockwise to obtain the maximum coldness
• turn the knob counter- clockwise to obtain the minimum coldness.
The intermediate position is usually the
most suitable.
However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
Important! If the ambient temperature is
high or the appliance is fully loaded, and the
appliance is set to the lowest temperatures,
it may run continuously causing frost to
form on the rear wall. In this case the dial
must be set to a higher temperature to
allow automatic defrosting and therefore
reduced energy consumption.
FIRST USE
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accessories with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
4 electrolux
DAILY USE
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as follows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition
as required.
Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
Important! If the shelf is positioned
horizontally, place only closed bottles.
This bottle holder shelf can be tilted in order
to store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next
higher level.
electrolux 5
HELPFUL HINTS AND TIPS
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator.
If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it
has a strong flavour
• position food so that air can circulate freely around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
CARE AND CLEANING
Caution! Unplug the appliance before
carrying out any maintenance operation.
This appliance contains hydrocarbons
in its cooling unit; maintenance and recharging must therefore only be carried
out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush or a vacuum cleaner. This op-
eration will improve the performance of the
appliance and save electricity consumption.
Important! Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, during normal use. The defrost water drains
out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.
It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent
6 electrolux
the water overflowing and dripping onto the
food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
• disconnect the appliance from elec-
tricity supply
• remove all food
•
defrost
4)
and clean the appliance and all
accessories
• leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.
WHAT TO DO IF…
Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.
Important! There are some sounds during
normal use (compressor, refrigerant
circulation).
Problem Possible cause Solution
The appliance does not
operate. The lamp does
not operate.
The appliance is switched off. Switch on the appliance.
The mains plug is not connected
to the mains socket correctly.
Connect the mains plug to the
mains socket correctly.
The appliance has no power.
There is no voltage in the mains
socket.
Connect a different electrical appliance to the mains socket.
Contact a qualified electrician.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates continually.
The temperature is not set correctly.
Set a higher temperature.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
frequently.
Do not keep the door open longer
than necessary.
4) If foreseen.
electrolux 7
Problem Possible cause Solution
The product temperature is too
high.
Let the product temperature de-
crease to room temperature be-
fore storage.
The room temperature is too
high.
Decrease the room temperature.
Water flows on the rear
plate of the refrigerator.
During the automatic defrosting
process, frost defrosts on the
rear plate.
This is correct.
Water flows into the refrigerator.
The water outlet is clogged. Clean the water outlet.
Products prevent that water
flows into the water collector.
Make sure that products do not
touch the rear plate.
Water flows on the
ground.
The melting water outlet does
not flow in the evaporative tray
above the compressor.
Attach the melting water outlet to
the evaporative tray.
The temperature in the
appliance is too low.
The temperature regulator is not
set correctly.
Set a higher temperature.
The temperature in the
appliance is too high.
The temperature regulator is not
set correctly.
Set a lower temperature.
The door is not closed correctly. Refer to "Closing the door".
The product temperature is too
high.
Let the product temperature de-
crease to room temperature be-
fore storage.
Many products are stored at the
same time.
Store less products at the same
time.
There is no cold air circulation in
the appliance.
Make sure that there is cold air cir-
culation in the appliance.
Replacing the bulb
If you want to replace the bulb, do these
steps:
1. Break the circuit of the appliance.
2. Press on the rear hook and at the same
time slide the cover in the direction of
the arrow.
3. Replace the bulb with one of the same
power and specifically designed for
household appliances. the maximum
power is shown on the light bulb cover)
4. Replace the light cover by sliding it into
its original position.
5. Reconnect the appliance.
6. Open the door and check if the light
comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door
gaskets. Contact the Service Center.
8 electrolux
TECHNICAL DATA
Dimension of the recess
Height 1600 mm
Width 600 mm
Depth 630 mm
The technical information are situated in the
rating plate on the internal left side of the appliance and in the energy label.
INSTALLATION
Read the "Safety Information" carefully
for your safety and correct operation of
the appliance before installing the
appliance.
Positioning
Install this appliance at a location where the
ambient temperature corresponds to the climate class indicated on the rating plate of
the appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Location
The appliance should be installed well away
from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can
circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging
wall unit, the minimum distance between
the top of the cabinet and the wall unit
must be at least 100 mm . Ideally, however,
the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable
feet at the base of the cabinet.
If the cabinet is placed in a corner and the
side with the hinges facing the wall, the distance between the wall and the cabinet
must be at least 10 mm to allow the door to
open enough so that the shelves can be removed.
Warning! It must be possible to
disconnect the appliance from the
mains power supply; the plug must
therefore be easily accessible after
installation.
10mm
10mm 100mm
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.
electrolux 9
Rear spacers
Inside the appliance you find two
spacers which must be fitted as shown
in the figure.
Slacken the screws and insert the spacer
under the screw head, then retighten the
screws.

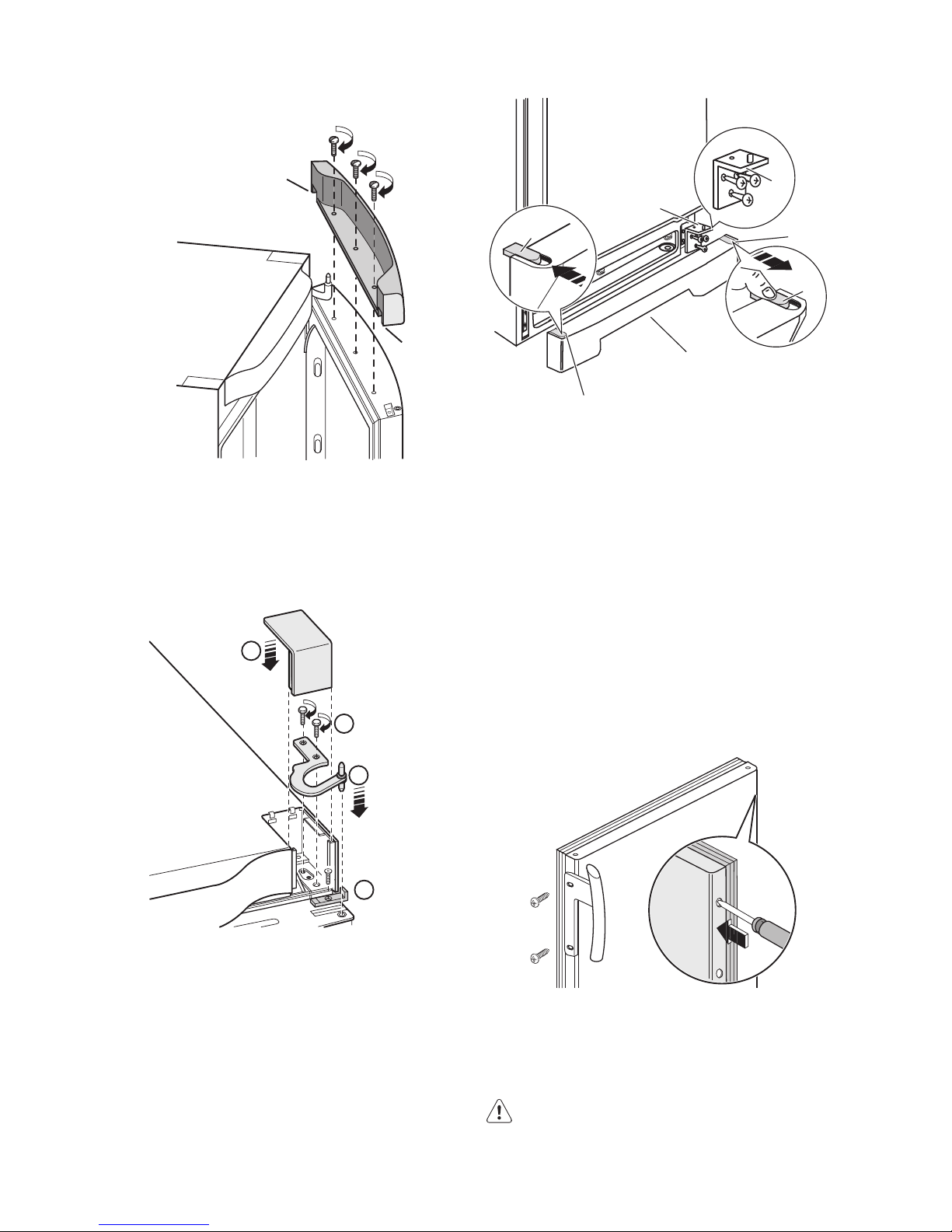

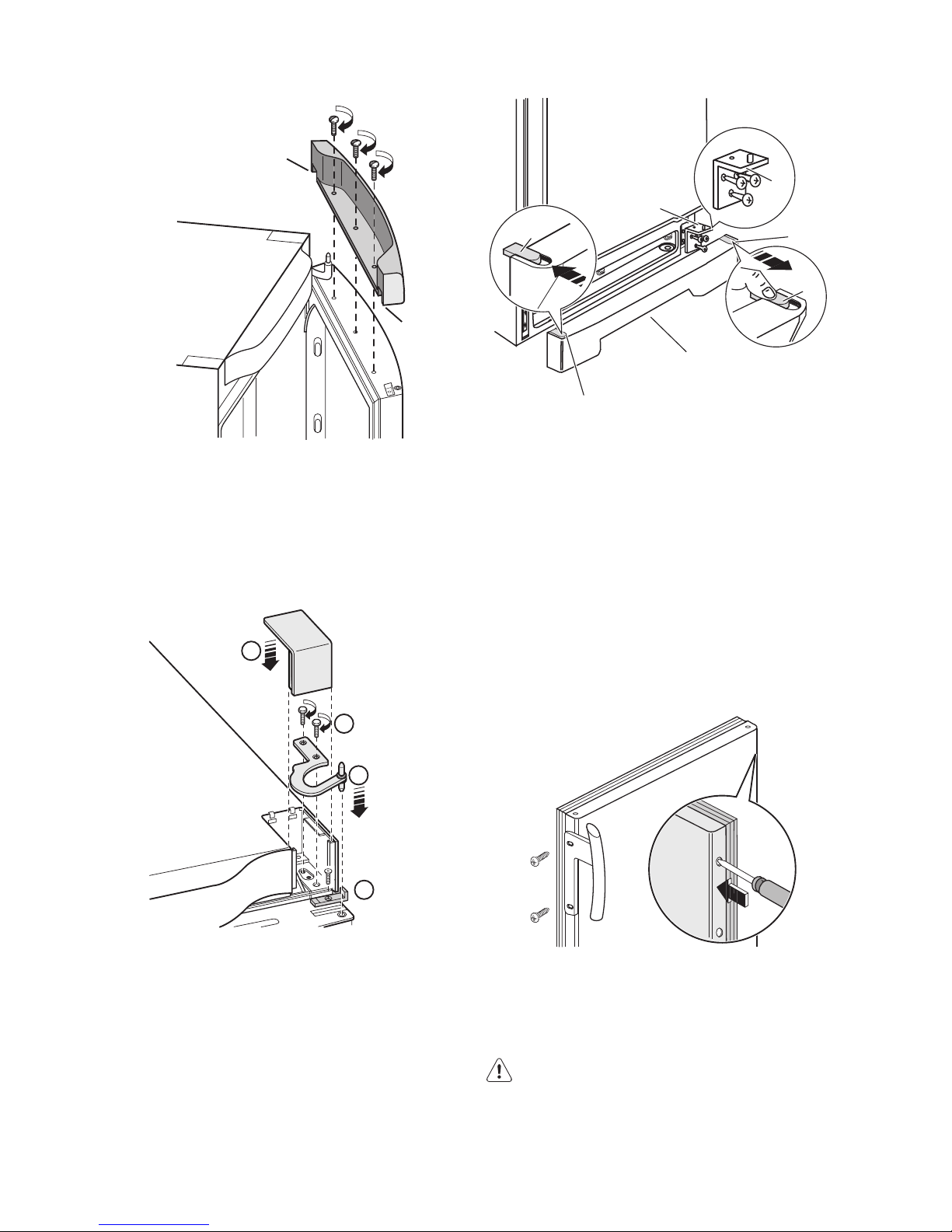

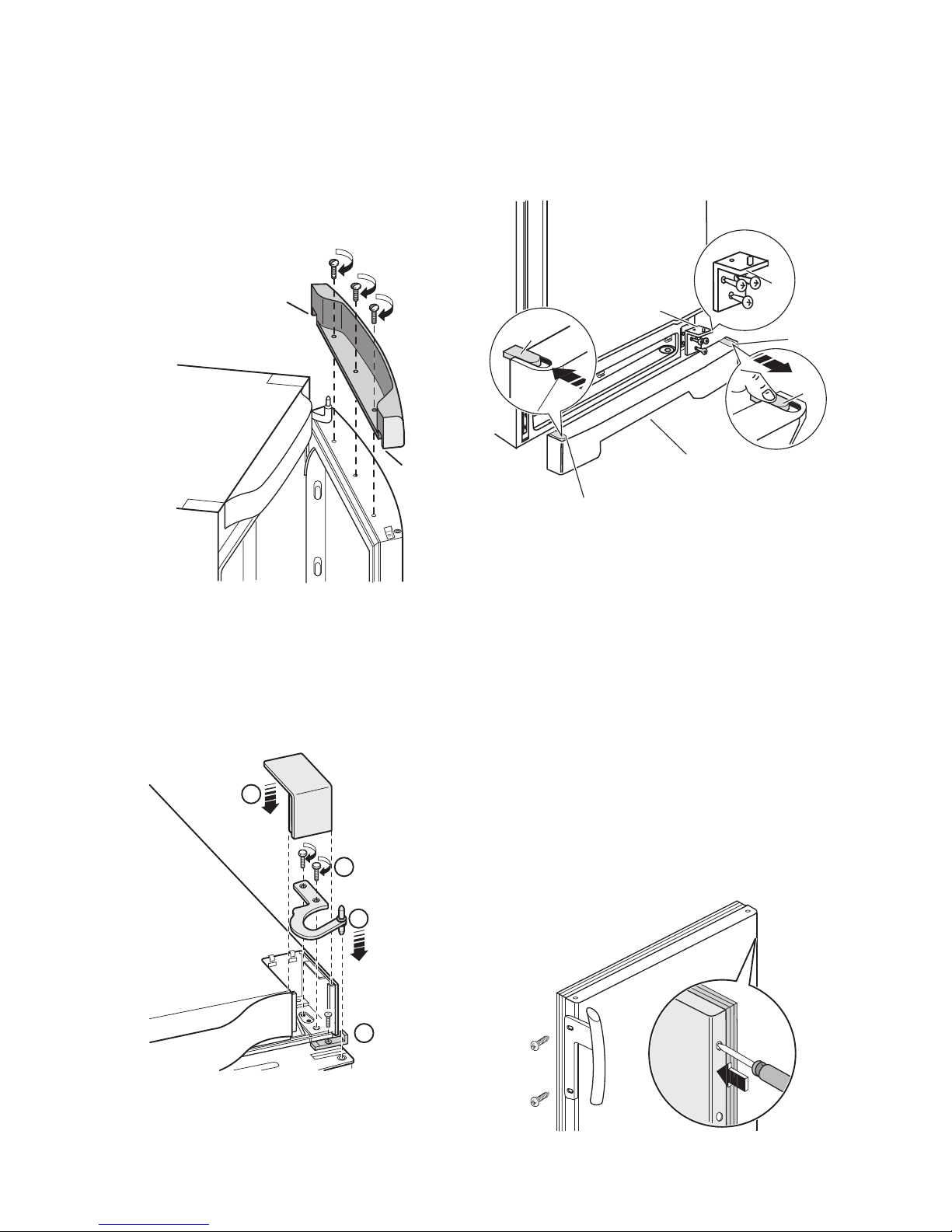

Door reversibility
Before carrying out any operations, remove
the plug from the power socket. To change
the opening direction of the door, proceed
as follows:
• To carry out the following operations, we
suggest that this be made with another
person that will keep a firm hold on the
doors of the appliance during the operations.
• Open the door with the appliance in the
upright position. Unscrew the screws and
remove the upper door plastic trim.
• Remove the little plastic cover from the
door plastic trim and refit on the opposite
side (d).
• Lay down the appliance back side down.
d
d
• Remove both covers of the hinge (3) .
• Unscrew the upper hinge and remove it
(1-2).
• Unscrew the screw and remove the door
stopper (4).
3
2
1
4
• Remove the door.
• Remove using a tool the cover (F), unscrew the screw and remove the lower
hinge (E).
• Re-insert the cover (F) on the opposite
side.
10 electrolux
E
E
D
F
F
F
F
E
• Re-insert the door .
• Pay attention that the front board of the
doors are parallel to the front board of
the top.
• Fix the door stopper (4) on the opposite
side.
• Position and fix the upper hinge (1-2) on
the opposite side .
• Re-insert both hinge covers (3).
• Lift up the appliance to vertical position.
• Open the door and reposition the upper
door plastic trim with screws.
• Fix the handle on the opposite side, insert the plastic plugs into the holes left
open that can be found in the instruction
for use bag.
Warning! Reposition, level the
appliance, wait for at least four hours
and then connect it to the power socket.
In case you do not want to carry out the
above mentioned operations, contact the
nearest After Sales Service Force. The After
Sales Service specialist will carry out the reversibility of the doors at your cost.
Warning! After having reversed the
opening direction of the doors check
that all the screws are properly
tightened and that the magnetic seal
adheres to the cabinet.
If the ambient temperature is cold (i.e.
in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait
for the natural fitting of the gasket. Lay
down the appliance back side down.
ENVIRONMENTAL CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
electrolux 11
waste disposal service or the shop where
you purchased the product.
12 electrolux
Electrolux. Thinking of you.
Partagez notre imagination sur www.electrolux.com
SOMMAIRE
Consignes de sécurité 13
Bandeau de commande 15
Première utilisation 16
Utilisation quotidienne 16
Conseils utiles 17
Entretien et nettoyage 17
En cas d'anomalie de fonctionnement
18
Caractéristiques techniques 20
Installation 20
En matière de sauvegarde de
l'environnement 23
Sous réserve de modifications
CONSIGNES DE SÉCURITÉ
Pour votre sécurité et garantir une utilisation
correcte de l'appareil, lisez attentivement
cette notice, y compris les conseils et avertissements, avant d'installer et d'utiliser l'appareil pour la première fois. Pour éviter toute erreur ou accident, veillez à ce que toute
personne qui utilise l'appareil connaisse
bien son fonctionnement et ses fonctions
de sécurité. Conservez cette notice avec
l'appareil. Si l'appareil doit être vendu ou cédé à une autre personne, veillez à remettre
cette notice au nouveau propriétaire, afin
qu'il puisse se familiariser avec son fonctionnement et sa sécurité.
Pour la sécurité des personnes et des
biens, conservez et respectez les consignes de sécurité figurant dans cette notice.
Le fabricant décline toute responsabilité en
cas de dommages dus au non-respect de
ces instructions.
Sécurité des enfants et des personnes
vulnérables
• Cet appareil n'est pas destiné à être utilisé par des enfants ou des personnes
dont les capacités physiques, sensorielles ou mentales, ou le manque d'expérience et de connaissance les empêchent
d'utiliser l'appareil sans risque lorsqu'ils
sont sans surveillance ou en l'absence
d'instruction d'une personne responsable
qui puisse leur assurer une utilisation de
l'appareil sans danger.
Empêchez les enfants de jouer avec l'appareil.
• Ne laissez pas les différents emballages à
portée des enfants. Ils pourraient s'asphyxier.
• Si l'appareil doit être mis au rebut, veillez
à couper le câble d'alimentation électrique au ras de l'appareil pour éviter les risques d'électrocution. Démontez la porte
pour éviter que des enfants ne restent enfermés à l'intérieur.
• Cet appareil est muni de fermetures magnétiques. S'il remplace un appareil équipé d'une fermeture à ressort, nous vous
conseillons de rendre celle-ci inutilisable
avant de vous en débarrasser. Ceci afin
d'éviter aux enfants de s'enfermer dans
l'appareil et de mettre ainsi leur vie en danger.
Mesures générales de sécurité
Attention Veillez à ce que les orifices
de ventilation ne soient pas obstrués.
• Cet appareil est destiné uniquement à la
conservation d’aliments et/ou de boissons dans le cadre d’un usage domestique normal, tel que celui décrit dans la
présente notice.
• N'utilisez pas d'appareils électriques,
d'agents chimiques ou tout autre système artificiel pour accélérer le processus
de dégivrage.
• N’utilisez pas d'autres appareils électriques (par exemple, sorbetières) à l'intérieur d’appareils réfrigérants sauf s’ils
sont homologués pour cet usage par leur
fabricant.
• Faites très attention lorsque vous déplacez l'appareil afin de ne pas endomma-
electrolux 13
ger des parties du circuit de refroidissement et ainsi d'éviter des risques de fuite.
• Le circuit de refroidissement de l’appareil
contient de l’isobutane (R600a), un gaz
naturel offrant un haut niveau de compatibilité avec l’environnement mais qui est
néanmoins inflammable.
Pendant le transport et l'installation de
l’appareil, assurez-vous qu'aucune pièce
du circuit de refroidissement n'est endommagée.
Si tel est le cas :
– Évitez les flammes vives (briquet) et
tout autre allumage (étincelles).
– Aérez soigneusement la pièce où se
trouve l'appareil.
• Ne modifiez pas les spécifications de l'appareil. Un cordon d'alimentation endommagé peut être la cause de courts-circuits, d'incendies et/ou de décharges
électriques.
Avertissement Les composants électriques (cordon d'alimentation, prise,
compresseur) doivent être remplacés
par un technicien d’entretien agréé ou
par un électricien spécialisé.
1. L'appareil ne doit pas être raccordé à
l'aide d'un prolongateur, d'une prise
multiple ou d'un raccordement multiple (risque d'incendie).
2. Assurez-vous que la prise n'est pas
écrasée ou endommagée par l'arrière
de l'appareil. Une prise de courant endommagée peut surchauffer et provoquer un incendie.
3. Vérifiez que la prise murale reste ac-
cessible une fois que l'installation est
terminée.
4. Ne débranchez pas l'appareil en tirant
sur le câble, particulièrement lorsque
l'appareil est tiré de son logement.
5. Si la fiche du cordon d'alimentation
est desserrée, ne la branchez pas
dans la prise murale. Risque d'électrocution ou d'incendie !
6. N'utilisez pas l'appareil si le diffuseur
de l'ampoule d'éclairage n'est pas présent.
5)
pour l'éclairage intérieur.
• Cet appareil est lourd. Faites attention en
le déplaçant.
• Ne touchez pas avec les mains humides
les surfaces givrées et les produits congelés (risque de brûlure et d'arrachement
de la peau).
• Évitez une exposition prolongée de l'appareil aux rayons solaires.
•
Ampoules
6)
utilisées dans cet appareil
sont des ampoules spéciales dédiées uniquement à un usage avec des appareils
ménagers. Elles ne conviennent pas à
l'éclairage des pièces d'une habitation.
Utilisation quotidienne
• Ne posez pas d'éléments chauds sur les
parties en plastique de l'appareil
• Ne stockez pas de gaz et de liquides inflammables dans l'appareil (risque d'explosion).
• Respectez scrupuleusement les conseils
de conservation donnés par le fabricant
de l’appareil Consultez les instructions
respectives
Entretien et nettoyage
• Avant toute opération de nettoyage, mettez l'appareil à l'arrêt et débranchez-le
électriquement.
• N'utilisez pas d'objets métalliques pour
nettoyer l'appareil.
• Contrôlez régulièrement l'orifice d'évacuation de l'eau de dégivrage dans le compartiment réfrigérateur Nettoyez-le, si besoin. Si l'orifice est bouché, l'eau s'écoulera en bas de l’appareil
Installation
Important Avant de procéder au
branchement électrique, respectez
scrupuleusement les instructions fournies
dans cette notice.
• Déballez l'appareil et vérifiez qu'il n'est
pas endommagé. Ne branchez pas l'appareil s'il est endommagé. Signalez immédiatement au revendeur de l'appareil les
dommages constatés. Dans ce cas, gardez l'emballage.
• Il est conseillé d'attendre au moins quatre
heures avant de brancher l'appareil pour
que le circuit frigorifique soit stabilisé.
• Veillez à ce que l'air circule librement autour de l'appareil pour éviter qu'il ne surchauffe. Pour assurer une ventilation suffi-
5) Si le diffuseur est prévu
6) Si l'ampoule est équipée d'un diffuseur d'éclairage.
14 electrolux
sante, respectez les instructions de la notice (chapitre Installation).
• Placez l'appareil dos au mur pour éviter
tout contact avec le compresseur et le
condenseur (risque de brûlure).
• Placez de préférence votre appareil loin
d'une source de chaleur (chauffage, cuisson ou rayons solaires trop intenses).
• Assurez-vous que la prise murale reste accessible après l'installation de l'appareil.
• Branchez à l'alimentation en eau potable
uniquement.
7)
Maintenance
• Les branchements électriques nécessaires à l'entretien de l'appareil doivent être
réalisés par un électricien qualifié ou une
personne compétente.
• Cet appareil ne doit être entretenu et réparé que par un Service après-vente au-
torisé, exclusivement avec des pièces
d'origine.
Protection de l'environnement
Le système frigorifique et l'isolation de
votre appareil ne contiennent pas de
C.F.C. contribuant ainsi à préserver l'environnement. L'appareil ne doit pas
être mis au rebut avec les ordures ménagères et les déchets urbains. La
mousse d'isolation contient des gaz inflammables : l'appareil sera mis au rebut conformément aux règlements applicables disponibles auprès des autorités locales. Veillez à ne pas détériorer
les circuits frigorifiques, notamment au
niveau du condenseur. Les matériaux
utilisés dans cet appareil identifiés par
le symbole
sont recyclables.
BANDEAU DE COMMANDE
4
3
52
1
0
6
1 2
1. Voyant
2. Dispositif de réglage de température
Mise en fonctionnement
Branchez l'appareil à une prise murale.
Tournez le thermostat dans le sens des aiguilles d'une montre sur une position moyenne.
Le voyant s'allume.
Mise à l'arrêt
Pour mettre à l'arrêt l'appareil, tournez le
thermostat sur la position « 0 ».
Réglage de la température
La température est réglée automatiquement.
Pour faire fonctionner l'appareil, procédez
comme suit :
• tournez le thermostat sur la position maximum (dans le sens des aiguilles d'une
montre) pour obtenir plus de froid.
• tournez le thermostat sur la position minimum (dans le sens inverse des aiguilles
d'une montre) pour obtenir moins de froid.
Une position intermédiaire est généralement
la plus indiquée.
Toutefois, le réglage doit être choisi en tenant compte du fait que la température à l'intérieur de l'appareil dépend de plusieurs facteurs :
• la température ambiante
• la fréquence d'ouverture de la porte
• la quantité de denrées stockées
• l'emplacement de l'appareil.
7) Si un branchement sur le réseau d'eau est prévu
electrolux 15
Loading...
