Page 1
Electrolux Benefit Cabinets
Digital freezers - 1300 lt
The range consists of 4 fan assisted models of 1300 litres refrigeration cabinets that offer
excellent standards in terms of performance and efficiency. These models come in freezer
version with a choice of materials (304 AISI, 430 AISI or white painted steel) and are
available with full doors.
727129
• Internal and external structure in
304 AISI, 430 AISI or white painted
steel, top and back in galvanized
steel. 150 mm high -adjustable
feet.
• Digital control panel allowing the
easy and precise setting and
control of the internal temperature.
• Completely automatic defrosting
and automatic evaporation of
defrost water (304 AISI models),
manual emptying of defrost water
(430 AISI models).
• High standards of hygiene and
ease of cleaning are guaranteed
by the rounded internal corners of
the cabinet and easily removable
runners and grids (without the use
of tools).
• The refrigeration unit can
operate in tropical climates (+43°C
ambient temperature).
• Excellent forced air cooling
system that ensures the utmost
uniformity of temperature in the
cabinet and guarantees a perfect
storage quality of the goods.
• High-density expanded
polyurethane insulating foam, 60
mm in thickness, with
cyclopenthane injection,
guarantees exceptional, long-term
insulation and notable energy
savings.
• The rational use of the internal
space of the refrigerator
guarantees a large storage area
suitable to contain 2/1 GN grids.
• Supplied with wheels and UK
plug
Page 2
Electrolux Benefit Cabinets
Digital freezers - 1300 lt
Internet: http://www.electrolux.it/foodservice
HAEB0202009-01-13
Supply voltage 230 V, 1, 50 230 V, 1, 50 230 V, 1N, 50
Net weight - kg. 247 247 247
installed-electric 1.008 1.008 1.008
Power - kW
Refrigeration power - W 962 962 962
Refrigerant quantity - g. 450 450 450
Refrigerant type R404a R404a R404a
N° defrost in 24 hrs. 4/30' 4/30' 4/25'
N° and type of grids (included) 6, GN 2/1 6, GN 2/1 6, GN 2/1
Door hinges 1 Left+1 Right 1 Left+1 Right 1 Left+1 Right
N° and type of door 2 2 2
height 2000 2005 2005
depth/with open doors 788, 1440 788, 1440 788, 1440
width 1440 1440 1440
External dimensions - mm
Gross capacity (D.I.N. 8952) - l. 1300 1300 1300
internal Stainless Steel
AISI 430 - Din
1.4016
Stainless Steel
AISI 304 - Din
1.4301
Stainless Steel
AISI 430 - Din
1.4016
external Stainless Steel
AISI 430 - Din
1.4016
Stainless Steel
AISI 304 - Din
1.4301
Stainless Steel
AISI 430 - Din
1.4016
Type of stainless steel
Operating mode Ventilated Ventilated Ventilated
Operating temperature - min/max °C -22/-15 -22/-15 -22/-15
TECHNICAL DATA
RS13FX42F
726464
RS13FX2FG
726968
RS13F42FG
727129
• Reversible self-closing door, in
positions less than 90°, with a
stop at 95° and a maximum
opening at 180°, equipped with a
magnetic door seal to guarantee
perfect closure.
• The pressed stainless steel
recessed door handle without
joints makes opening the cabinet
extremely easy. All the doors are
fitted as standard with locks and
keys and a microswitch to switch
off the fan when the door is
opened.
• Stainless steel feet (plastic
interior).
• A wide range of optional
accessories are available.
• CFC and HCFC free.
• All models comply with the
standards required by the main
international approval bodies and
are H marked.
Page 3
Electrolux Benefit Cabinets
Digital freezers - 1300 lt
Internet: http://www.electrolux.it/foodservice
HAEB0202009-01-13
SET OF 2 S/S RUNNERS FOR 650/1400-L.REF. 881456 881456 881456
PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457
MEAT RAIL FOR 650-1400 L REFRIGERATORS 881451 881451 881451
KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205
ENERGY FREE ALARM DEVICE 881089 881089 881089
3 RILSAN CENTR.GRIDS-2 DOOR REF/FREEZERS 880211 880211 880211
2/1 GN GREY "RILSAN" GRID 880720 880720 880720
2/1 GN AISI 304 S/S GRID 881067 881067 881067
2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539 880539 880539
*NOT TRANSLATED* 922166 922166 922166
*NOT TRANSLATED* 881031 881031 881031
ACCESSORIES
SET OF 2 S/S RUNNERS FOR 650/1400-L.REF. 6 6 6
2/1 GN GREY "RILSAN" GRID 6 6 6
INCLUDED ACCESSORIES
RS13FX42F
726464
RS13FX2FG
726968
RS13F42FG
727129
Page 4
Electrolux Benefit Cabinets
Digital freezers - 1300 lt
Internet: http://www.electrolux.it/foodservice
HAEB0202009-01-13

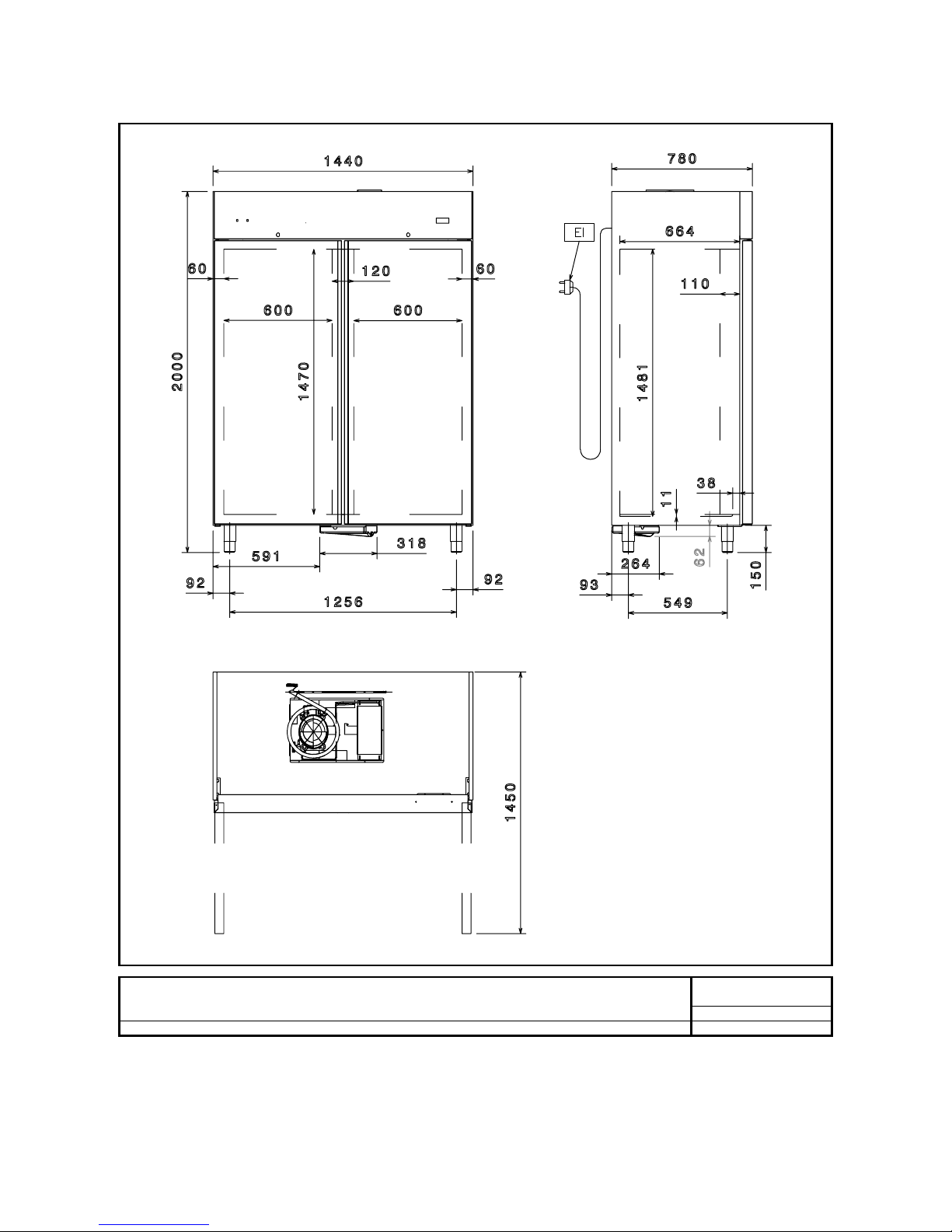

EI - Electrical connection 230 V, 1, 50
LEGEND
RS13FX42F
726464
726464
Page 5
Electrolux Benefit Cabinets
Digital freezers - 1300 lt
Internet: http://www.electrolux.it/foodservice
HAEB0202009-01-13

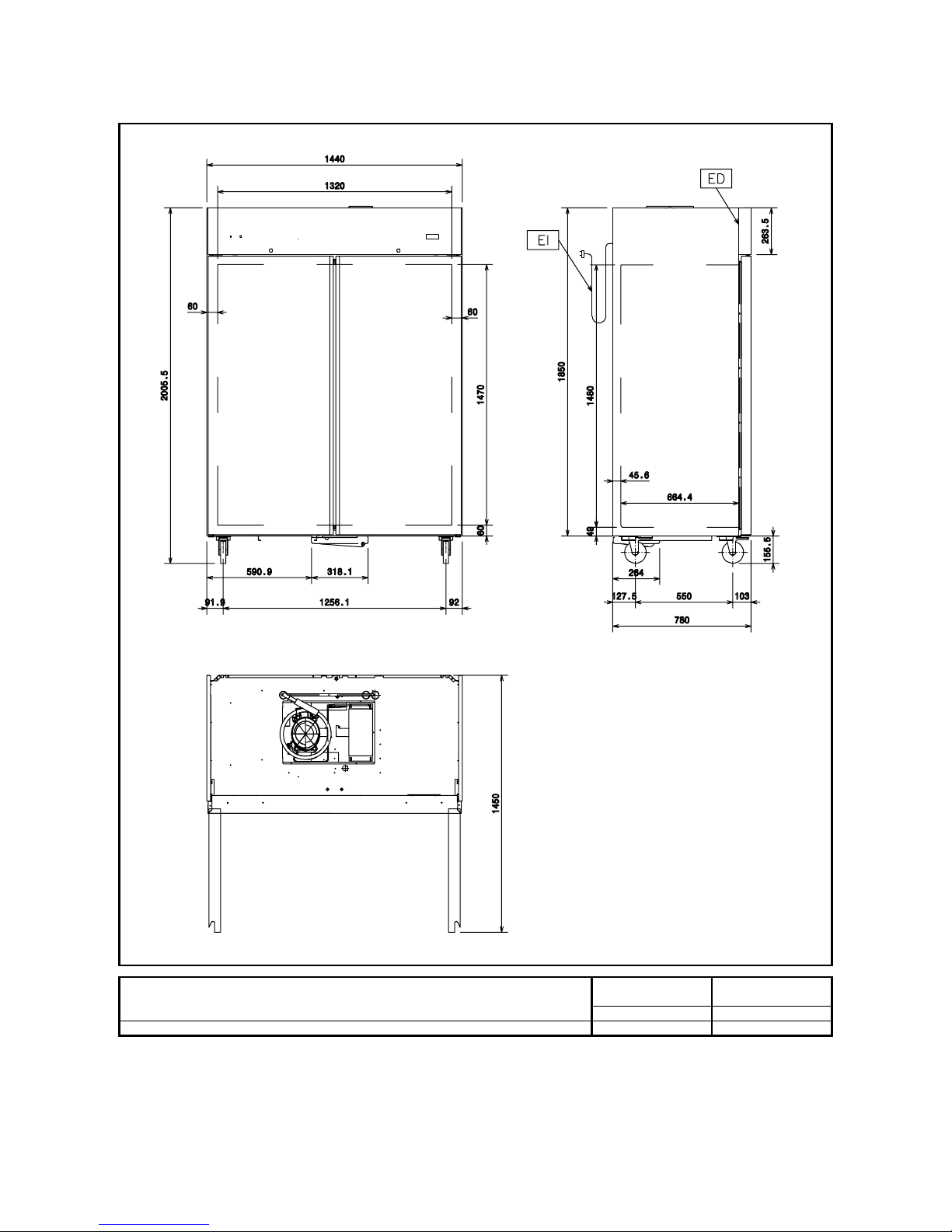

EI - Electrical connection 230 V, 1, 50 230 V, 1N, 50
LEGEND
RS13FX2FG
726968
RS13F42FG
727129
726968, 727129
