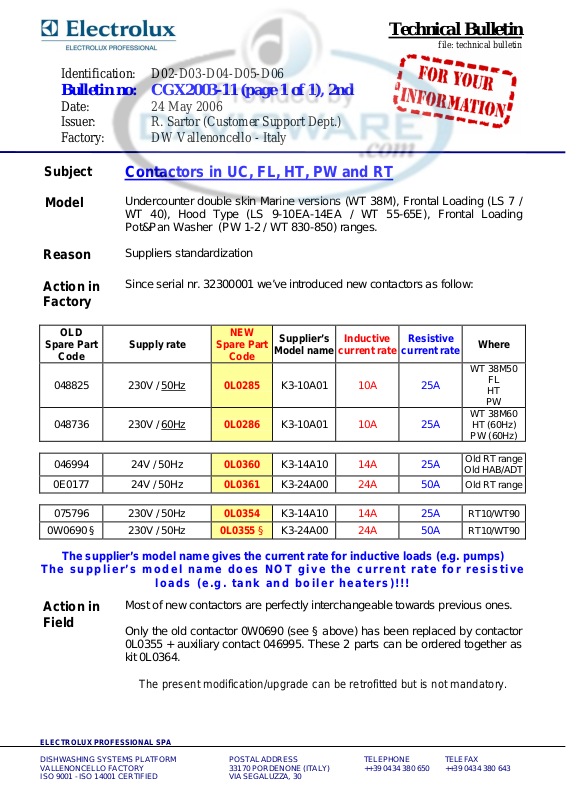

Electrolux RH06RD1FL User Manual

file: technical bulletin

Identification:

D02-D03-D04-D05-D06

Technical Bulletin

Bulletin no:

Date:
Issuer:
Factory:

Subject

Model

CGX2003-11 (page 1 of 1), 2nd

24 May 2006
R. Sartor (Customer Support Dept.)
DW Vallenoncello - Italy

Contactors in UC, FL, HT, PW and RT

Undercounter double skin Marine versions (WT 38M), Frontal Loading (LS 7 /
WT 40), Hood Type (LS 9-10EA-14EA / WT 55-65E), Frontal Loading
Pot&Pan Washer (PW 1-2 / WT 830-850) ranges.

Reason

Action in
Factory

Suppliers standardization

Since serial nr. 32300001 we’ve introduced new contactors as follow:

OLD

Spare Part

Code

048825 230V / 50Hz

048736 230V / 60Hz

046994 24V / 50Hz
0E0177 24V / 50Hz

075796 230V / 50Hz

Supply rate

NEW

Spare Part

Code

0L0285

0L0286

0L0360
0L0361

0L0354

Supplier’s

Model name

K3-10A01 10A 25A

K3-10A01 10A 25A

K3-14A10 14A 25A
K3-24A00 24A 50A

K3-14A10 14A 25A

Inductive

current rate

Resistive

current rate

Where

WT 38M50

FL

HT

PW

WT 38M60

HT (60Hz)

PW (60Hz)

Old RT range

Old HAB/ADT

Old RT range

RT10/WT90

0W0690 § 230V / 50Hz

0L0355 §

K3-24A00 24A 50A

RT10/WT90

The supplier’s model name gives the current rate for inductive loads (e.g. pumps)

The supplier’s model name does NOT give the current rate for resistive

loads (e.g. tank and boiler heaters)!!!

Action in
Field

Most of new contactors are perfectly interchangeable towards previous ones.
Only the old contactor 0W0690 (see § above) has been replaced by contactor

0L0355 + auxiliary contact 046995. These 2 parts can be ordered together as
kit 0L0364.

The present modification/upgrade can be retrofitted but is not mandatory.
