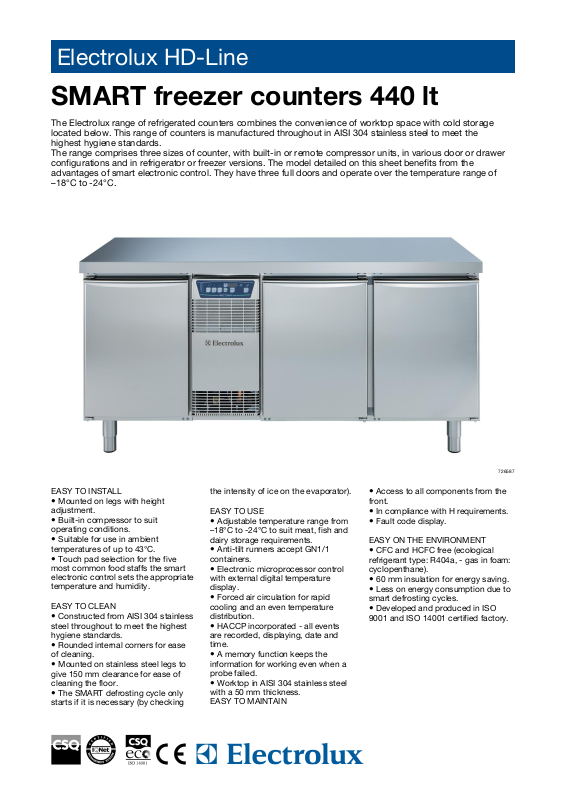

Electrolux HD-Line
SMART freezer counters 440 lt
The Electrolux range of refrigerated counters combines the convenience of worktop space with cold storage
located below. This range of counters is manufactured throughout in AISI 304 stainless steel to meet the
highest hygiene standards.
The range comprises three sizes of counter, with built-in or remote compressor units, in various door or drawer
configurations and in refrigerator or freezer versions. The model detailed on this sheet benefits from the
advantages of smart electronic control. They have three full doors and operate over the temperature range of
–18°C to -24°C.
EASY TO INSTALL
• Mounted on legs with height
adjustment.
• Built-in compressor to suit
operating conditions.
• Suitable for use in ambient
temperatures of up to 43°C.
• Touch pad selection for the five
most common food staffs the smart
electronic control sets the appropriate
temperature and humidity.
EASY TO CLEAN
• Constructed from AISI 304 stainless
steel throughout to meet the highest
hygiene standards.
• Rounded internal corners for ease
of cleaning.
• Mounted on stainless steel legs to
give 150 mm clearance for ease of
cleaning the floor.
• The SMART defrosting cycle only
starts if it is necessary (by checking
the intensity of ice on the evaporator).
EASY TO USE
• Adjustable temperature range from
–18°C to -24°C to suit meat, fish and
dairy storage requirements.
• Anti-tilt runners accept GN1/1
containers.
• Electronic microprocessor control
with external digital temperature
display.
• Forced air circulation for rapid
cooling and an even temperature
distribution.
• HACCP incorporated - all events
are recorded, displaying, date and
time.
• A memory function keeps the
information for working even when a
probe failed.
• Worktop in AISI 304 stainless steel
with a 50 mm thickness.
EASY TO MAINTAIN
726587
• Access to all components from the
front.
• In compliance with H requirements.
• Fault code display.
EASY ON THE ENVIRONMENT
• CFC and HCFC free (ecological
refrigerant type: R404a, - gas in foam:
cyclopenthane).
• 60 mm insulation for energy saving.
• Less on energy consumption due to
smart defrosting cycles.
• Developed and produced in ISO
9001 and ISO 14001 certified factory.
726587
Electrolux HD-LineSMART freezer counters 440 lt
RCEF3M3
726587
LEGEND
D - Water drain 16mm
EI - Electrical connection 230 V, 1N, 50
TECHNICAL DATA
Operating temperature - min/max °C -22/-15
Operating mode Ventilated
Gross capacity (D.I.N. 8952) - l. 440
Cooling unit Built-In
External dimensions - mm
width 1759
depth/with open doors 700, 1110
height 850
N° and type of door 3
Door hinges 1 Left+2 Right
N° and type of grids (included) 3, GN 1/1
Compressor power - HP 3/4
N° defrost in 24 hrs. 4/16'
Refrigerant type R404a
Refrigerant quantity - g. 280
Refrigeration power - W 925
Refrigerant power
at evaporation temperature - °C -31
Power - kW
installed-electric 0.8
Net weight - kg. 152
INCLUDED ACCESSORIES
1/1 GN GREY "RILSAN" GRID 3
ACCESSORIES
1/1 GN GREY "RILSAN" GRID 881435
2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539
KIT 1 DOOR FOR REFRIGER.COUNTER 881517
LOCK FOR REFRIGERATED COUNTERS 881499
PLASTIC CONTAINER GN 1/1 H=100 MM 811451
PLASTIC CONTAINER GN 1/1 H=150 MM 881040
PLASTIC CONTAINER GN 1/1 H=65 MM 881038
PRINTER FOR HACCP BASIC VERSION 881532
HBBA0202009-10-06Subject to change without notice
