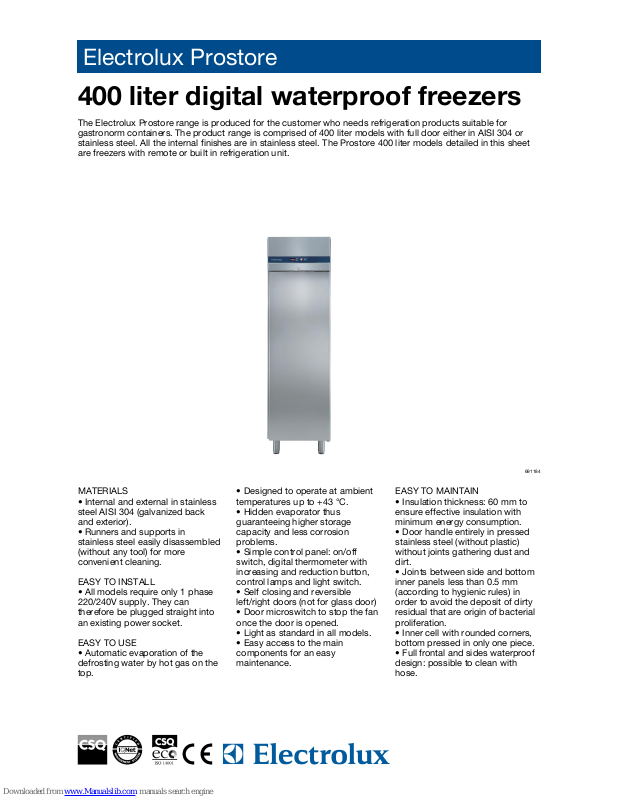

Page 1
Electrolux Prostore
400 liter digital waterproof freezers
The Electrolux Prostore range is produced for the customer who needs refrigeration products suitable for
gastronorm containers. The product range is comprised of 400 liter models with full door either in AISI 304 or
stainless steel. All the internal finishes are in stainless steel. The Prostore 400 liter models detailed in this sheet
are freezers with remote or built in refrigeration unit.
691184
MATERIALS
• Internal and external in stainless
steel AISI 304 (galvanized back
and exterior).
• Runners and supports in
stainless steel easily disassembled
(without any tool) for more
convenient cleaning.
EASY TO INSTALL
• All models require only 1 phase
220/240V supply. They can
therefore be plugged straight into
an existing power socket.
EASY TO USE
• Automatic evaporation of the
defrosting water by hot gas on the
top.
• Designed to operate at ambient
temperatures up to +43 °C.
• Hidden evaporator thus
guaranteeing higher storage
capacity and less corrosion
problems.
• Simple control panel: on/off
switch, digital thermometer with
increasing and reduction button,
control lamps and light switch.
• Self closing and reversible
left/right doors (not for glass door)
• Door microswitch to stop the fan
once the door is opened.
• Light as standard in all models.
• Easy access to the main
components for an easy
maintenance.
EASY TO MAINTAIN
• Insulation thickness: 60 mm to
ensure effective insulation with
minimum energy consumption.
• Door handle entirely in pressed
stainless steel (without plastic)
without joints gathering dust and
dirt.
• Joints between side and bottom
inner panels less than 0.5 mm
(according to hygienic rules) in
order to avoid the deposit of dirty
residual that are origin of bacterial
proliferation.
• Inner cell with rounded corners,
bottom pressed in only one piece.
• Full frontal and sides waterproof
design: possible to clean with
hose.
Page 2
Electrolux Prostore
400 liter digital waterproof freezers
Internet: http://www.electrolux.com/foodservice
HAHB0202011-07-13Subject to change without notice
STAINLESS STEEL GRID 530x400 880162 880162
PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457
PLASTIC-COATED GRID 530x400 880307 880307
PEDAL OPENING FOR REFRIGERATORS/FREEZERS 880172 880172
PAIR OF RUNNERS FOR PROSTORE REFR. 880558 880558
KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205
KIT HACCP EKIS 922166
BASE FRAME TO SUPPORT TRAY RACK 880078
1/1 GN RILSAN STEEL WIRE BASKET H=150 MM 881043 881043
ACCESSORIES
PLASTIC-COATED GRID 530x400 5 5
PEDAL OPENING FOR REFRIGERATORS/FREEZERS 1 1
INCLUDED ACCESSORIES
Net weight - kg. 115 105
installed-electric 0.69 0.17
Power - kW
at evaporation temperature - °C -26 -23.3
Refrigerant power
Refrigeration power - W 640 806
Refrigerant quantity - g. 220
Refrigerant type R404a R404a
N° defrost in 24 hrs. 4/30' max 4/30'
Compressor power - HP 1/2
N° and type of grids (included) 5, 530x400 5, 530x400
Door hinges Right Side Right Side
N° and type of door 1 1
height adjustment 12, 30
height 2112 2112
depth/with open doors 665, 1200 665, 1200
width 600 600
External dimensions - mm
Control type Digital Digital
Cooling unit Built-In Remote
Gross capacity (D.I.N. 8952) - l. 440 440
panels 304 AISI 304 AISI
External material
Operating mode Ventilated Ventilated
Operating temperature - min/max °C -22/-15 -22/-15
TECHNICAL DATA
PS04F1F
691184
PS04F1FR
691185
EASY ON THE ENVIRONMENT
• CFC and HCFC free
environmentally friendly: R404a
gas in refrigeration circuit. Gas in
foam: Cyclopentane.
• Low noise level - less than 57 dB
(A).
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
• All models comply with the
standards required by the main
international approval bodies and
are H marked.
Page 3
Electrolux Prostore
400 liter digital waterproof freezers
Internet: http://www.electrolux.com/foodservice
HAHB0202011-07-13Subject to change without notice

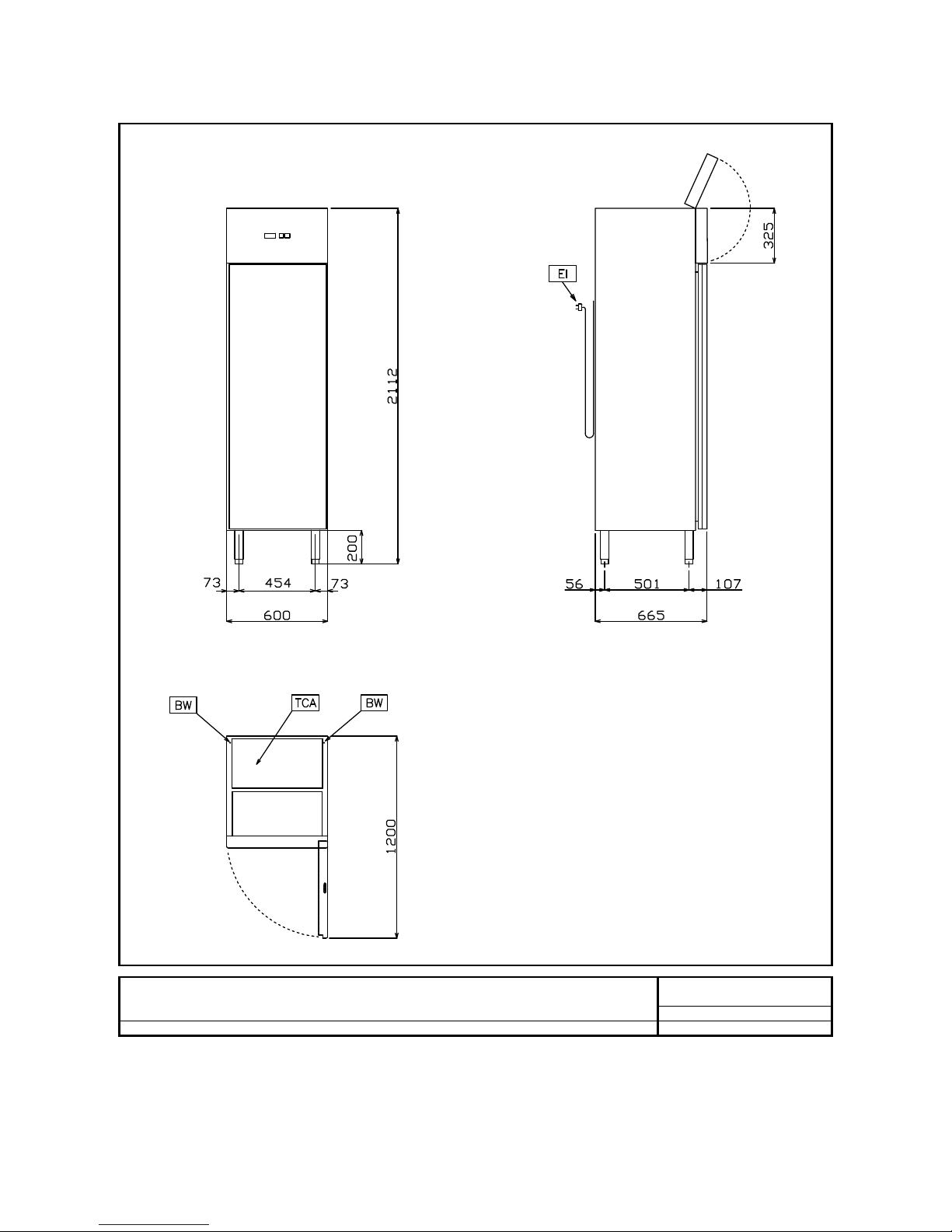

EI - Electrical connection 230 V, 1N, 50
LEGEND
PS04F1F
691184
691184
Page 4
Electrolux Prostore
400 liter digital waterproof freezers
Internet: http://www.electrolux.com/foodservice
HAHB0202011-07-13Subject to change without notice
RI - Remote refrigeration connection ●
EI - Electrical connection 230 V, 1N, 50
ED - Remote electrical connection ●
LEGEND
PS04F1FR
691185
691185
