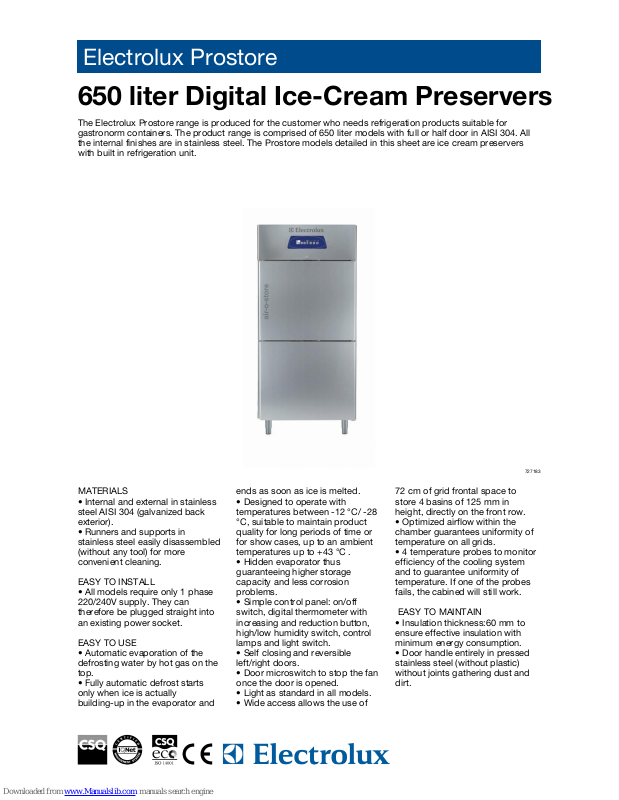

Electrolux Prostore 727183, Prostore ICF61F 727184, Prostore 727184, Prostore ICF6212F 727183, Prostore ICF6212FL 727181 Specifications

Electrolux Prostore

650 liter Digital Ice-Cream Preservers

The Electrolux Prostore range is produced for the customer who needs refrigeration products suitable for
gastronorm containers. The product range is comprised of 650 liter models with full or half door in AISI 304. All
the internal finishes are in stainless steel. The Prostore models detailed in this sheet are ice cream preservers
with built in refrigeration unit.

727183

MATERIALS

• Internal and external in stainless
steel AISI 304 (galvanized back
exterior).

• Runners and supports in
stainless steel easily disassembled
(without any tool) for more
convenient cleaning.

EASY TO INSTALL

• All models require only 1 phase
220/240V supply. They can
therefore be plugged straight into
an existing power socket.

EASY TO USE

• Automatic evaporation of the
defrosting water by hot gas on the
top.

• Fully automatic defrost starts
only when ice is actually
building-up in the evaporator and

ends as soon as ice is melted.

• Designed to operate with
temperatures between -12 °C/ -28
°C, suitable to maintain product
quality for long periods of time or
for show cases, up to an ambient
temperatures up to +43 °C .

• Hidden evaporator thus
guaranteeing higher storage
capacity and less corrosion
problems.

• Simple control panel: on/off
switch, digital thermometer with
increasing and reduction button,
high/low humidity switch, control
lamps and light switch.

• Self closing and reversible
left/right doors.

• Door microswitch to stop the fan
once the door is opened.

• Light as standard in all models.

• Wide access allows the use of

72 cm of grid frontal space to
store 4 basins of 125 mm in
height, directly on the front row.

• Optimized airflow within the
chamber guarantees uniformity of
temperature on all grids.

• 4 temperature probes to monitor
efficiency of the cooling system
and to guarantee uniformity of
temperature. If one of the probes
fails, the cabined will still work.

EASY TO MAINTAIN

• Insulation thickness:60 mm to
ensure effective insulation with
minimum energy consumption.

• Door handle entirely in pressed
stainless steel (without plastic)
without joints gathering dust and
dirt.

Electrolux Prostore

650 liter Digital Ice-Cream Preservers

Internet: http://www.electrolux.com/foodservice

HAHC0302011-05-16Subject to change without notice

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457

PEDAL OPENING FOR REFRIGERATORS/FREEZERS 880172 880172 880172

PAIR OF RUNNERS FOR PROSTORE REFR. 880558 880558 880558

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205

KIT HACCP EKIS 922166 922166 922166

2 SHELVES+RUNNERS-ICE CREAM PRESERVER 880295 880295 880295

ACCESSORIES

Net weight - kg. 130 130 130

installed-electric 0.807 0.807 0.807

Power - kW

at evaporation temperature - °C -35 -35 -35

Refrigerant power

Refrigeration power - W 962 962 962

Refrigerant quantity - g. 295 295 295

Refrigerant type R404a R404a R404a

N° defrost in 24 hrs. 1/30' 1/30' 1/30'

Compressor power - HP 1/2 1/2 1/2

N° and type of basins 54, 360x165x125h 54, 360x165x125h 60, 360x165x125h

N° and type of grids (included) 9, 720x540 9, 720x540 10, 720x540

Door hinges Left 2 Right Right Side

N° and type of door 2x1/2 2x1/2 1

height 2112 2112 2112

depth/with open doors 665, 1500 665, 1500 665, 1500

width 900 900 900

External dimensions - mm

Control type Electronic Electronic Electronic

Cooling unit Built-In Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 650 650 650

panels 304 AISI 304 AISI 304 AISI

External material

Operating mode Ventilated Ventilated Ventilated

Operating temperature - min/max °C -28/-12 -28/-12 -28/-12

TECHNICAL DATA

ICF6212FL

727181

ICF6212F

727183

ICF61F
727184

• Joints between side and bottom
inner panels less than 0.5 mm
(according to hygienic rules) in
order to avoid the deposit of dirty
residual that are origin of bacterial
proliferation.

• Inner cell with rounded corners,
bottom pressed in only one piece.

• Easy access to the main
components for an easy
maintenance.

EASY ON THE ENVIRONMENT

• CFC and HCFC free
environmentally friendly: R404a
gas in refrigeration circuit. Gas in
foam: Cyclopentane.

• Developed and produced in ISO
9001 and ISO 14001 certified
factory.

• All models comply with the
standards required by the main
international approval bodies and
are H marked.

Electrolux Prostore

650 liter Digital Ice-Cream Preservers

Internet: http://www.electrolux.com/foodservice

HAHC0302011-05-16Subject to change without notice

EI - Electrical connection 230 V, 1N, 50

ED - Remote electrical connection ●

LEGEND

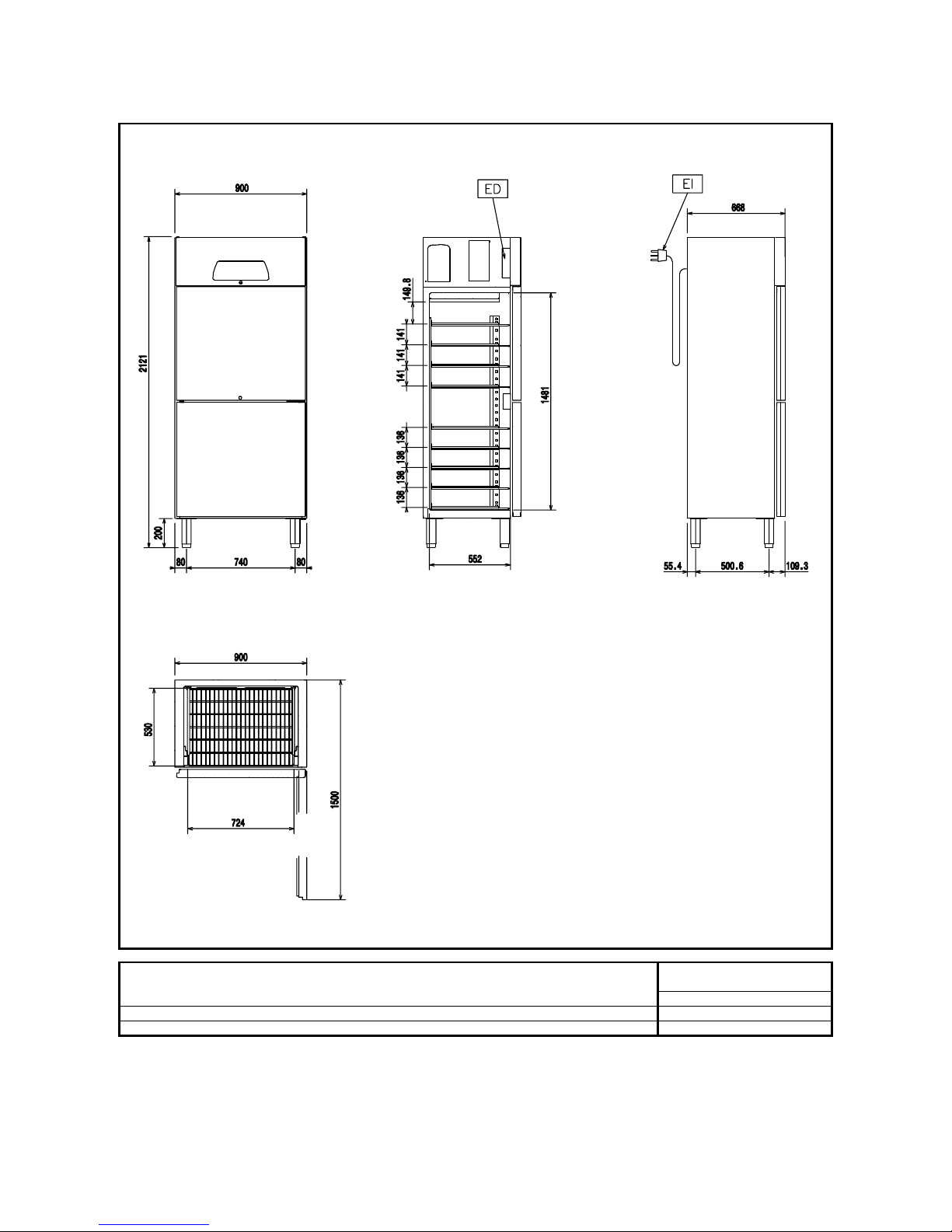

ICF6212F

727183

727183

Electrolux Prostore

650 liter Digital Ice-Cream Preservers

Internet: http://www.electrolux.com/foodservice

HAHC0302011-05-16Subject to change without notice

EI - Electrical connection 230 V, 1N, 50

ED - Remote electrical connection ●

LEGEND

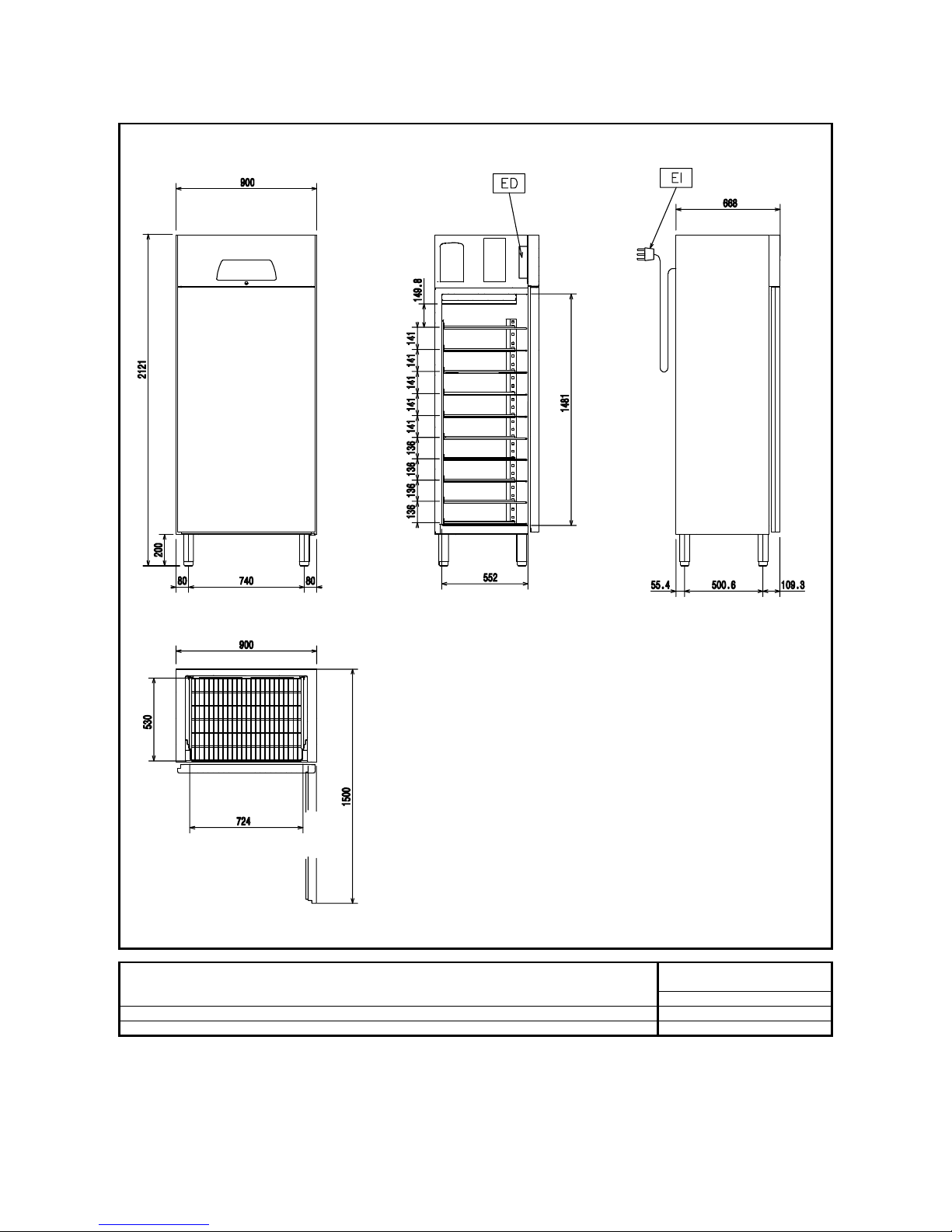

ICF61F
727184

727184
