Electrolux Prostore 691232, Prostore PR04RE1F, Prostore PR06RE1F, Prostore PS04RE1F 691159, Prostore PS06RE1F 691170 Specifications

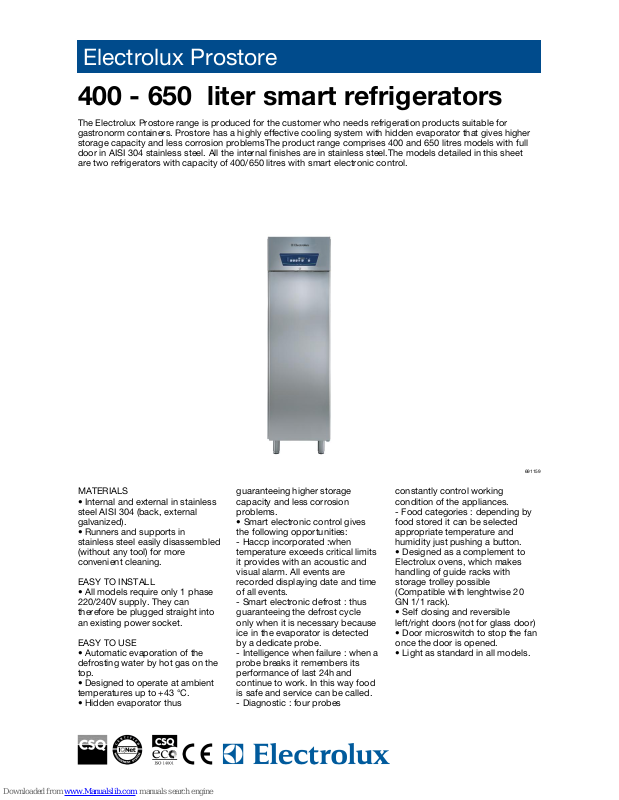

Electrolux Prostore

400 - 650 liter smart refrigerators

The Electrolux Prostore range is produced for the customer who needs refrigeration products suitable for
gastronorm containers. Prostore has a highly effective cooling system with hidden evaporator that gives higher
storage capacity and less corrosion problemsThe product range comprises 400 and 650 litres models with full
door in AISI 304 stainless steel. All the internal finishes are in stainless steel.The models detailed in this sheet
are two refrigerators with capacity of 400/650 litres with smart electronic control.

691159

MATERIALS

• Internal and external in stainless
steel AISI 304 (back, external
galvanized).

• Runners and supports in
stainless steel easily disassembled
(without any tool) for more
convenient cleaning.

EASY TO INSTALL

• All models require only 1 phase
220/240V supply. They can
therefore be plugged straight into
an existing power socket.

EASY TO USE

• Automatic evaporation of the
defrosting water by hot gas on the
top.

• Designed to operate at ambient
temperatures up to +43 °C.

• Hidden evaporator thus

guaranteeing higher storage
capacity and less corrosion
problems.

• Smart electronic control gives
the following opportunities:

- Haccp incorporated :when
temperature exceeds critical limits
it provides with an acoustic and
visual alarm. All events are
recorded displaying date and time
of all events.

- Smart electronic defrost : thus
guaranteeing the defrost cycle
only when it is necessary because
ice in the evaporator is detected
by a dedicate probe.

- Intelligence when failure : when a
probe breaks it remembers its
performance of last 24h and
continue to work. In this way food
is safe and service can be called.

- Diagnostic : four probes

constantly control working
condition of the appliances.

- Food categories : depending by
food stored it can be selected
appropriate temperature and
humidity just pushing a button.

• Designed as a complement to
Electrolux ovens, which makes
handling of guide racks with
storage trolley possible
(Compatible with lenghtwise 20
GN 1/1 rack).

• Self closing and reversible
left/right doors (not for glass door)

• Door microswitch to stop the fan
once the door is opened.

• Light as standard in all models.

Electrolux Prostore

400 - 650 liter smart refrigerators

Internet: http://www.electrolux.com/foodservice

HAHA0102011-07-13Subject to change without notice

STAINLESS STEEL GRID 530x400 880162

S/S GRID GN 2/1 FOR PROSTORE 880160

PLASTIC-COATED GRID GN 2/1 880306

PLASTIC-COATED GRID 530x400 880307

PEDAL OPENING FOR REFRIGERATORS/FREEZERS 880172 880172

PAIR OF RUNNERS FOR PROSTORE REFR. 880558 880558

KIT HACCP EKIS 922166 922166

KIT HACCP ADV.CONNECTION-REF.ELECTRONIC 880090 880090

GRID FOR WINE BOTTLES PROSTORE 650/1400 880167

BASE FRAME TO SUPPORT TRAY RACK 880078

ACCESSORIES

PLASTIC-COATED GRID GN 2/1 5

PLASTIC-COATED GRID 530x400 5

PEDAL OPENING FOR REFRIGERATORS/FREEZERS 1 1

INCLUDED ACCESSORIES

Net weight - kg. 110 125

installed-electric 0.29 0.37

Power - kW

at evaporation temperature - °C -10 -10

Refrigerant power

Refrigeration power - W 244 378

Refrigerant quantity - g. 260 240

Refrigerant type R134a R134a

Compressor power - HP 1/5 1/4

N° and type of grids (included) 5, 530x400 5, GN 2/1

Door hinges Right Side Right Side

N° and type of door 1 1

Min/Max internal humidity - % 75/82 66/78

height 2112 2112

depth/with open doors 665, 1200 665, 1500

width 600 900

External dimensions - mm

Control type Electronic Electronic

Cooling unit Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 440 700

panels 304 AISI 304 AISI

External material

Operating mode Ventilated Ventilated

Operating temperature - min/max °C 0/10 0/10

TECHNICAL DATA

PS04RE1F

691159

PS06RE1F

691170

• Full frontal and sides waterproof
design: possible to clean with
hose.

• Easy access to the main
components for an easy
maintenance.

EASY TO MAINTAIN

• Insulation thickness: 60 mm to
ensure effective insulation with
minimum energy consumption.

• Door handle entirely in pressed
stainless steel (without plastic)
without joints gathering dust and
dirt.

• Inner cell with rounded corners,
bottom pressed in only one piece.

• Standard equipped with outlet
drain 1/2" (only on refrigerators).

• Joints between side and bottom
inner panels less than 0.5 mm
(according to hygienic rules) in
order to avoid the deposit of dirty
residual that are origin of bacterial
proliferation.

EASY ON THE ENVIRONMENT

• CFC and HCFC free
environmentally friendly: R134a
gas in refrigeration circuit. Gas in
foam: Cyclopentane.

• Low noise level - less than 57 dB
(A).

• Developed and produced in ISO
9001 and ISO 14001 certified
factory.

Electrolux Prostore

400 - 650 liter smart refrigerators

Internet: http://www.electrolux.com/foodservice

HAHA0102011-07-13Subject to change without notice

EI - Electrical connection 230 V, 1N, 50

LEGEND

PS04RE1F

691159

691159

Electrolux Prostore

400 - 650 liter smart refrigerators

Internet: http://www.electrolux.com/foodservice

HAHA0102011-07-13Subject to change without notice

EI - Electrical connection 230 V, 1N, 50

LEGEND

PS06RE1F

691170

691170
