Page 1

()(

FREESTANDING ELECTRIC COOKER

Operating and Installation Instructions

Page 2

Page 3

CONTENTS

Instructions for the User

Instructions for the Installer

Important Safety Information

Description of the Appliance

Operation

Electric Hotplates

Hints & Tips

Using the Electric Oven

Using the Electric Grill

Hints & Tips

Maintenance and Cleaning

Something Not Working

Comet After Sales Service

6 6 7 8 9

Technical Features

Important Safety Requirements

Location

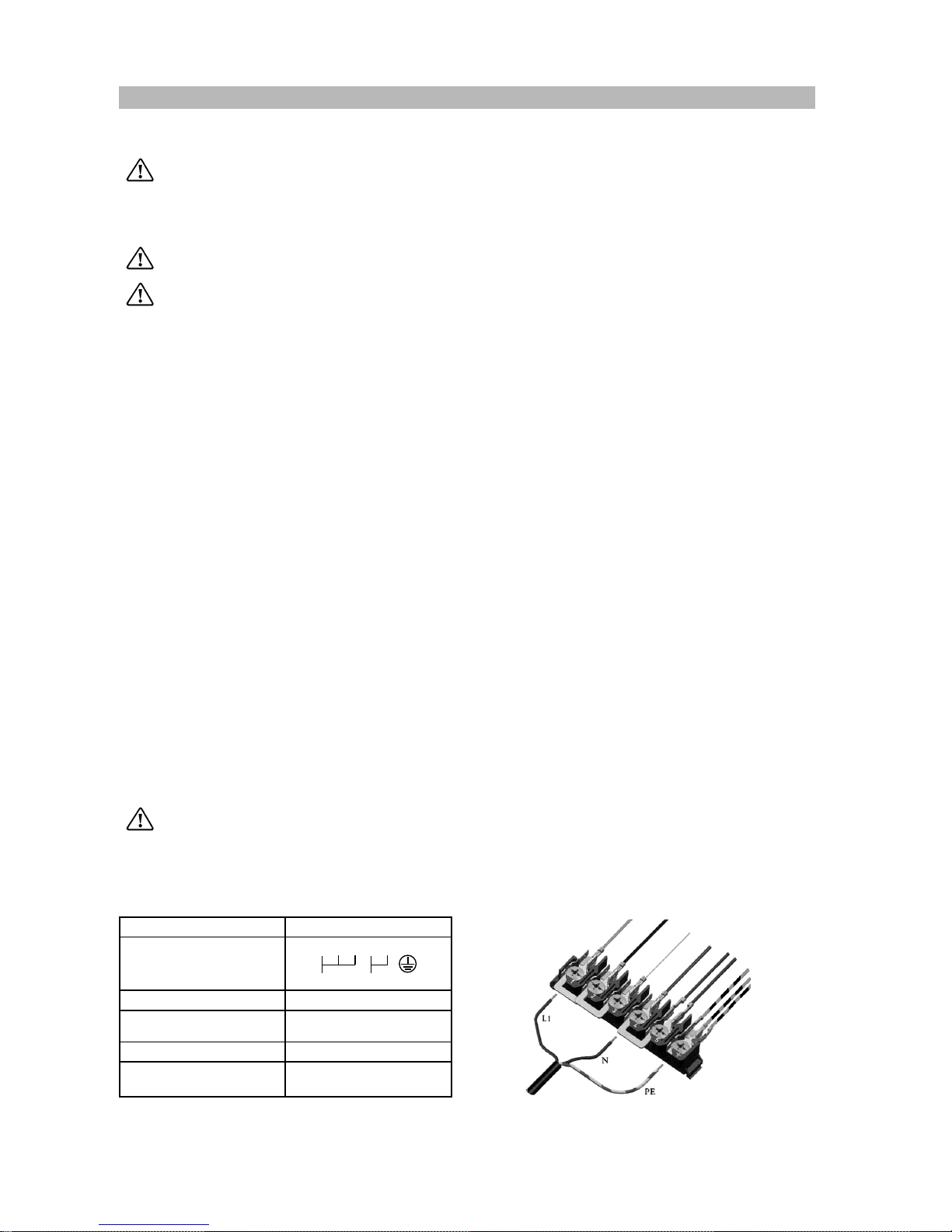

Electrical Connections

How to read the instruction book

The symbols below will guide you when reading the

instruction book

Safety instructions

Step by Step Operation

Advice and recommendations

Environmental Information

Page 4

IMPORTANT SAFETY INFORMATION

You MUST read these warnings carefully before installing or using the appliance.

Installation

This cooker must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards.

This cooker is heavy. Take care when moving it.

Remove all packaging before using the cooker.

· Ensure that the electrical supply complies with the type stated on the rating plate.

· Do not attempt to modify the cooker in any way.

Child Safety

This cooker is designed to be operated by adults. Do not allow children to play near or with the cooker.

· The cooker gets hot when it is in use. Children should be kept away until it has cooled.

Children can also injure themselves by

pulling pans or pots off the cooker.

During Use

· This cooker is intended for domestic cooking only. It is not designed for commercial or industrial purposes.

Do not use this cooker if it is in contact with water. Do not operate the cooker with wet hands.

· Ensure the control knobs are in the ‘OFF’ position when not in use.

When using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooker.

· Unstable or misshapen pans should not be used on the hob burners as unstable pans can cause an accident by tipping or spillage.

Never leave the cooker unattended when

cooking with oil and fats.

This cooker should be kept clean at all times. A build-up of fats or foodstuffs could result in a fire.

· Never use plastic dishes in the oven or on the hob hotplates. Never line any part of the oven with aluminium foil.

Always ensure that the oven vent, which is located at the centre back of the hob, is left unobstructed to ensure ventilation of the oven cavity.

· Perishable food, plastic items and aerosols may be affected by heat and should not be stored above the cooker.

Service

This cooker should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.

Environmental Information

After installation, please dispose of the packaging with due regard to safety and the environment.

· When disposing of an old appliance, make it unusable, by cutting off the cable.

Keep this instruction book for future reference and ensure it is passed

on to

any new owner.

Page 5

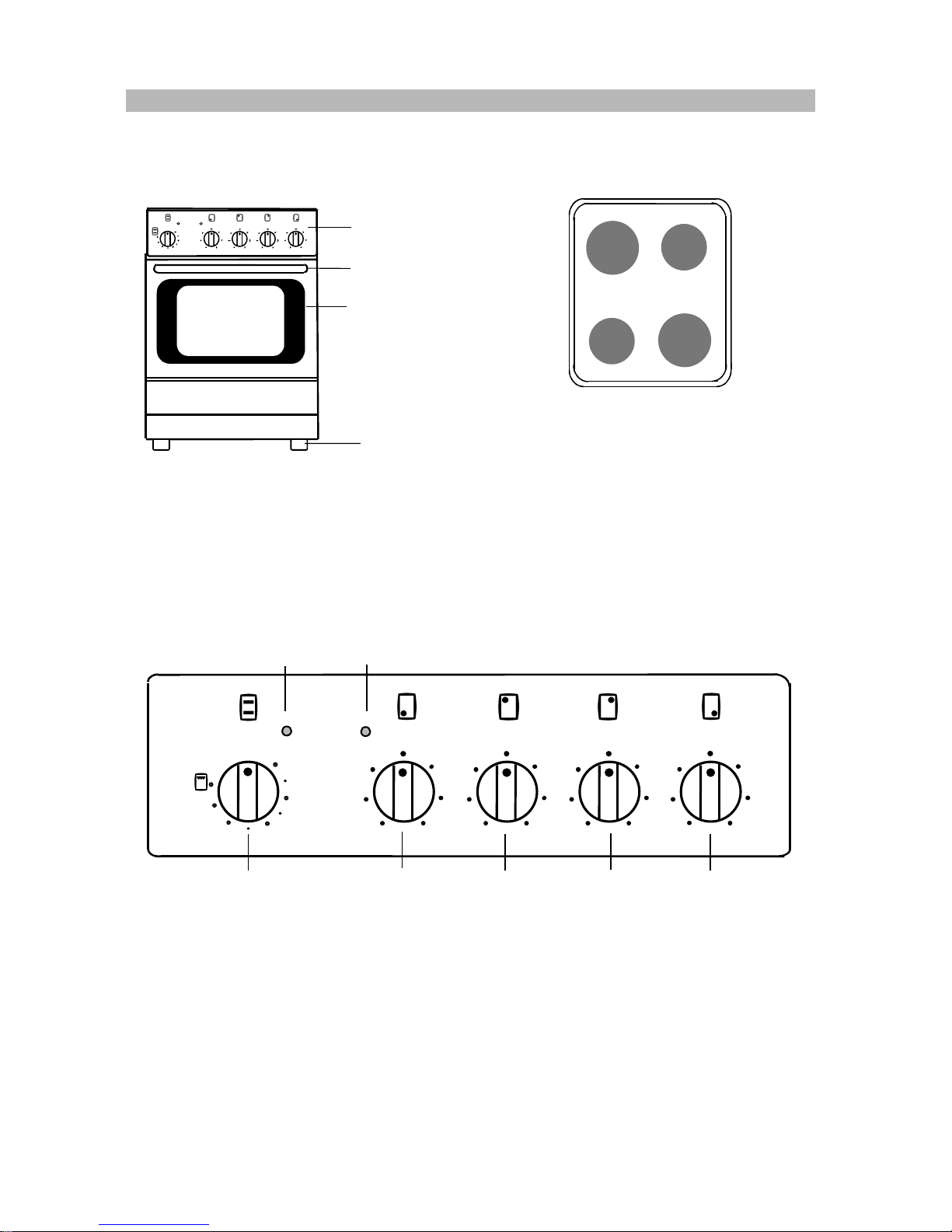

DESCRIPTION OF THE APPLIANCE

Control panel

Oven door with

glass

Door handle

djustable

small feet

PRO

line

250

200 150

100

THERMOSTAT MAIN

Hob

1500W

1000W

1500W

1. Hot plate Æ 145 – 1000W

2. Hot plate Æ 180 – 1500W

3. Hot plate Æ 145

– 1000W

Hot plate Æ 180

– 1500W

Control Panel

Model : EFE 503

PROline

250

200

150

100

THERMOSTAT

MAIN

1. Oven function control knob

2. Oven thermostat pilot light

3. Main pilot light

4. Front left hotplate control knob

5. Back left hotplate control knob

6. Back right hotplate control knob

7. Front right hotplate control knob

Page 6

OPERATION

Electric Hotplates

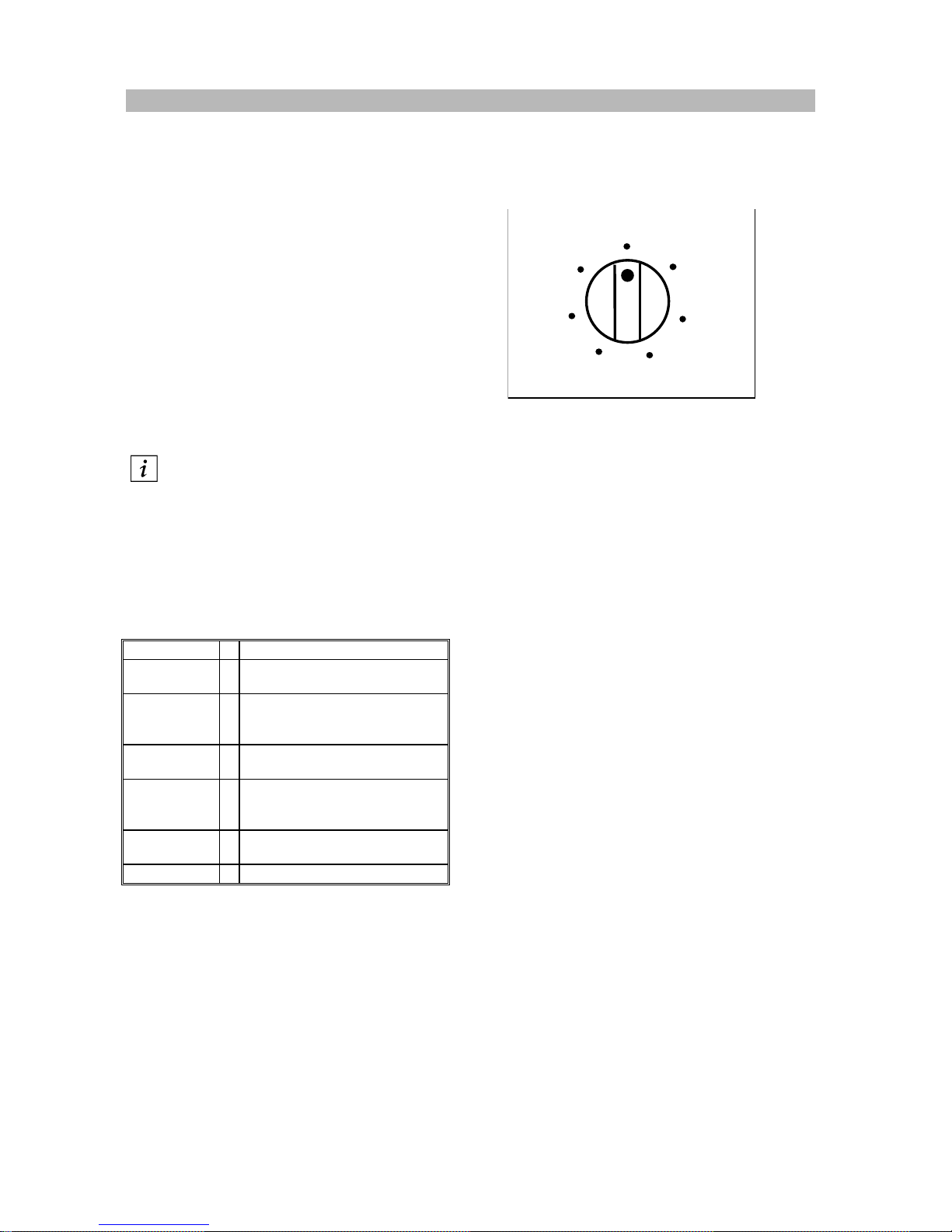

To switch on a hotplate, turn the relevant control knob to the required heat setting.

The control knob is numbered 0 – 6

0 – OFF

1 – Minimum

6 – Maximum.

The hob has one type of hotplate:

Normal Hotplates

We recommend the plates are switched to maximum (6) for a short while to boost the plate, and then adjusted to the required setting.

It is important to note that the hotplate may smoke and produce a slightly unpleasant odour when used for the first time. This is quite normal and will disappear after some time.

Suggestions for the correct setting of the plates are given in the following table:

OFF

Very Gentle

To keep food warm To melt butter and chocolate

Gentle

To prepare cream-sauces, stews and milk puddings or to fry eggs

Slow

Dried vegetables, frozen food, fruit, boiling water or milk

Medium

Boiled potatoes, fresh vegetables, pâtés, soups, broths, pancakes or fish

High

Larger stews, meat roll, fish, omelettes, steaks

Fast

Steaks, escalopes and frying

Page 7

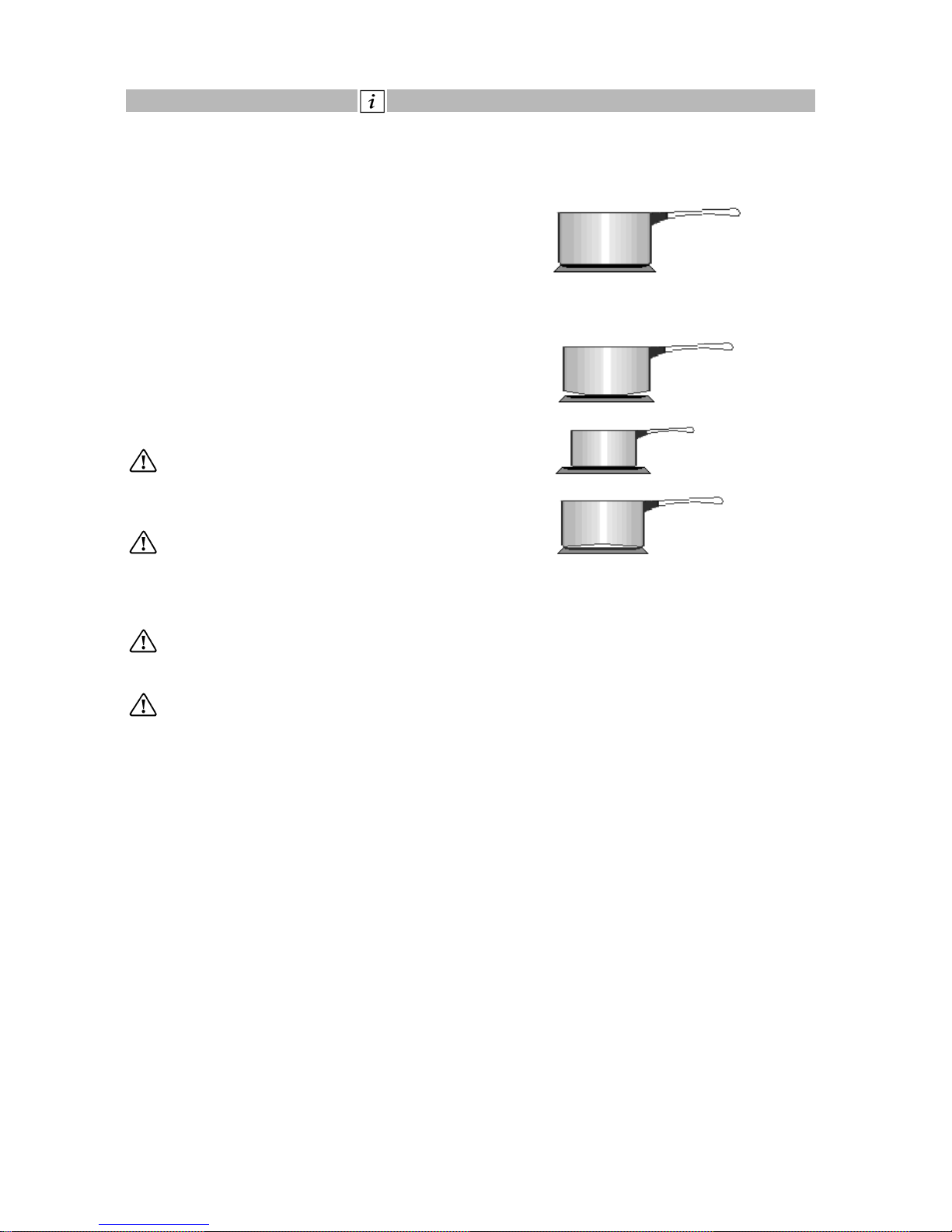

Hints and Tips

Saucepans for use on solid plates should have several characteristics:

- They should be fairly heavy duty

- They should fit the heat area exactly, or be

slightly larger for efficient use,

NEVER

smaller.

- They should have a flat base to ensure good contact with the plate. This is particularly important when using pans for high temperature frying or pressure cooking.

As soon as liquid starts boiling, turn down the plate control knob so that it will barely keep the liquid simmering. You can switch off the plate a short while before you finish cooking, and the final stage will be completed on the accumulated heat. Similarly, stews etc. cooked in well covered saucepans cook at lower temperature which is more economical.

Ensure pans are large enough to avoid liquids being split into the plates. Never leave the plates on without a pan on them or with an empty pan on them.

Take care never to lean or reach over a hot electric plate. Always point pan handles inward or over the work surface next to the hob to avoid accidentally knocking over a pan as you pass by.

Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.

If the control knobs become difficult to turn, please contact your local Comet Service Centre.

Good use

Bad use

(Power waste)

Page 8

Using the Electric Oven

Before the first use ensure that the room is well ventilated: V.M.C. (Mechanic ventilation) or opened window.

Before the First Use of the Cooker

Remove all packaging both inside and outside of the cooker, before using it.

Before first use, the oven should be heated without food. During this time, an unpleasant odour may be emitted. This is quite normal.

1. Remove the oven accessories.

2. Remove any adhesive labels or protective films, if there are any.

3. Turn the thermostat control knob to 250°C and heat the oven for about 45 min.

This procedure should be repeated with the grill

function for approximately 5-10 minutes.

Clean the accessories with a soft detergent. Rinse and dry carefully.

During cooking, the oven door is hot. Take care that children do not play near it.

The electric oven is equipped with 3 heating elements:

- 2 heating elements (top and bottom) for using the oven.

1 heating grill element, placed in the middle of top for grilling with door half opened.

Use

The oven can be used in traditional cooking or for grilling, but not simultaneously.

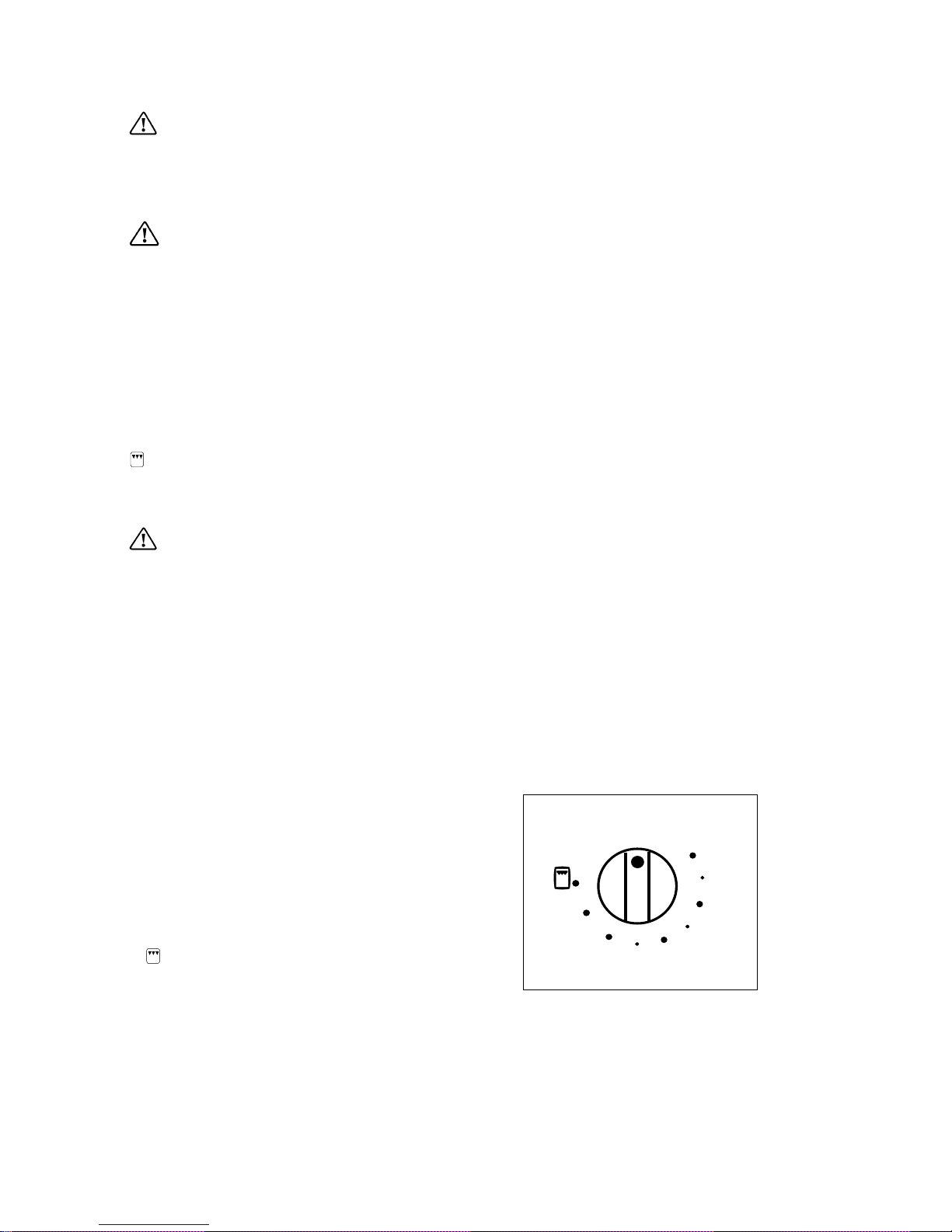

Control knob

The control knob is used to select the desired temperature and to select either the grill or oven function.

Explanations of symbols:

0 Off positions

50-250 Temperature selection (bottom and top

heat)

Grill

To select the temperature turn the knob clockwise until the pointer indicating the desired temperature between 50°– 250°C. The temperature will be kept constant by the thermostat.

250

200

150

100

Page 9

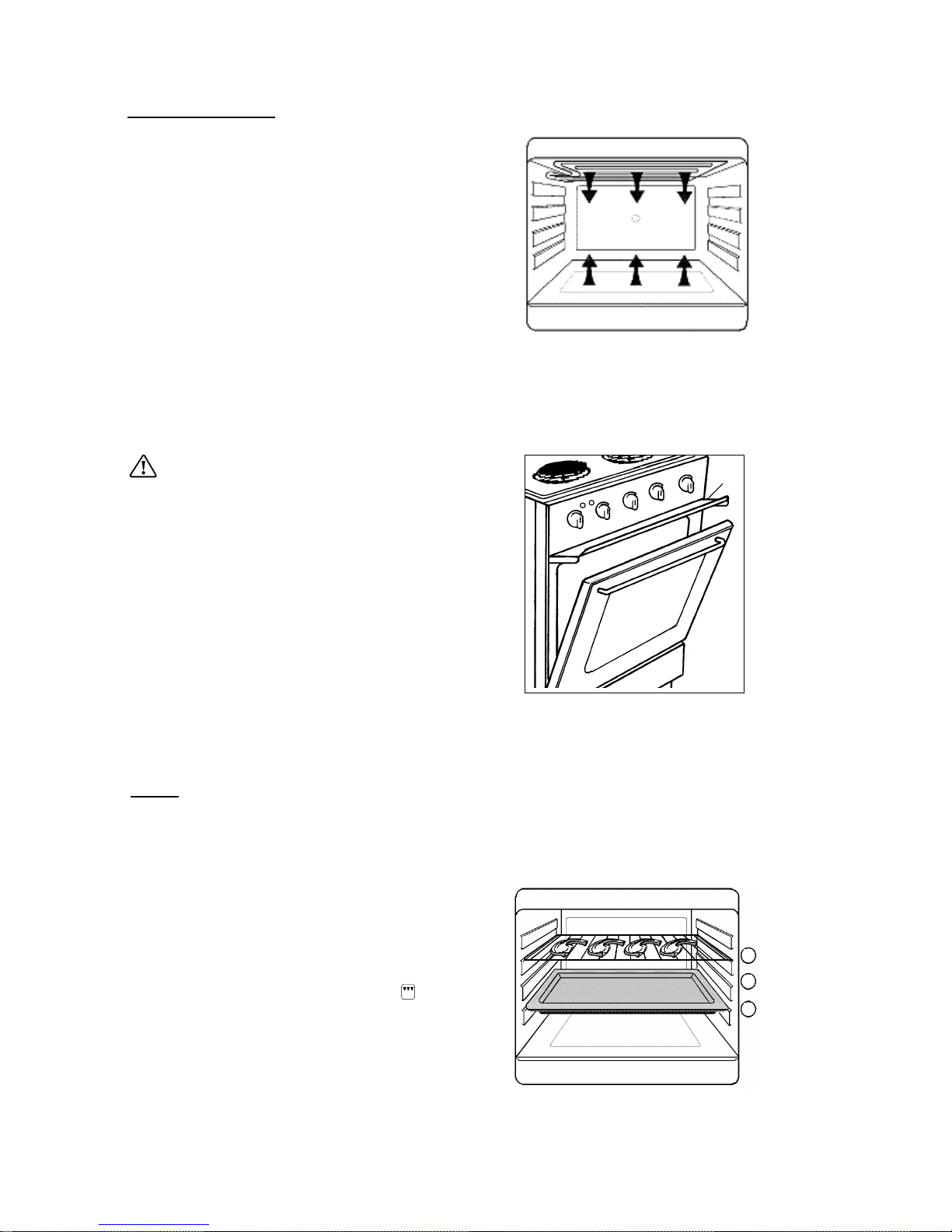

Cooking in the oven

Traditional cooking

Traditional cooking is made by natural convection of heated air.

It is necessary to pre-heat the oven.

How to proceed ?

For small cakes, pastry, Victoria sandwich.

1. Preheat the oven the thermostat on position chosen for cooking:

- about 8 min. for position 50°C to 150°C;

- about 15 min for position 175°C to 250°C;

2. Insert the meal

Using the Electric Grill

Electric grill

When grilling, the accessible parts of the appliance are hot and the appliance should not be left unsupervised. Take care that children do not play near it. While the grill is operating leave the oven door half open and put the grill deflector “A” into place. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven, or the grill deflector.

The grill is used for grilling all kind of meat which remain tender, toast or browning dishes already cooked. Slide the dripping pan under the grid on the lowest shelf to collect the juice and fat.

For turning off the heating elements.

Turn the knob clockwise to position

OFF “0”

Grilling

Heat comes from the top of the oven. It is suitable for grilling meat (beef bacon, pork bacon …) that remains tender, for toast or to brown already cooked.

Grilling

· Prepare the meat to be grilled, lightly brush it

with oil on both sides.

· Place it on the trivet.

Put the grill deflector in place.

· Turn the oven knob to the grill position .

· Put the dripping pan in level 1.

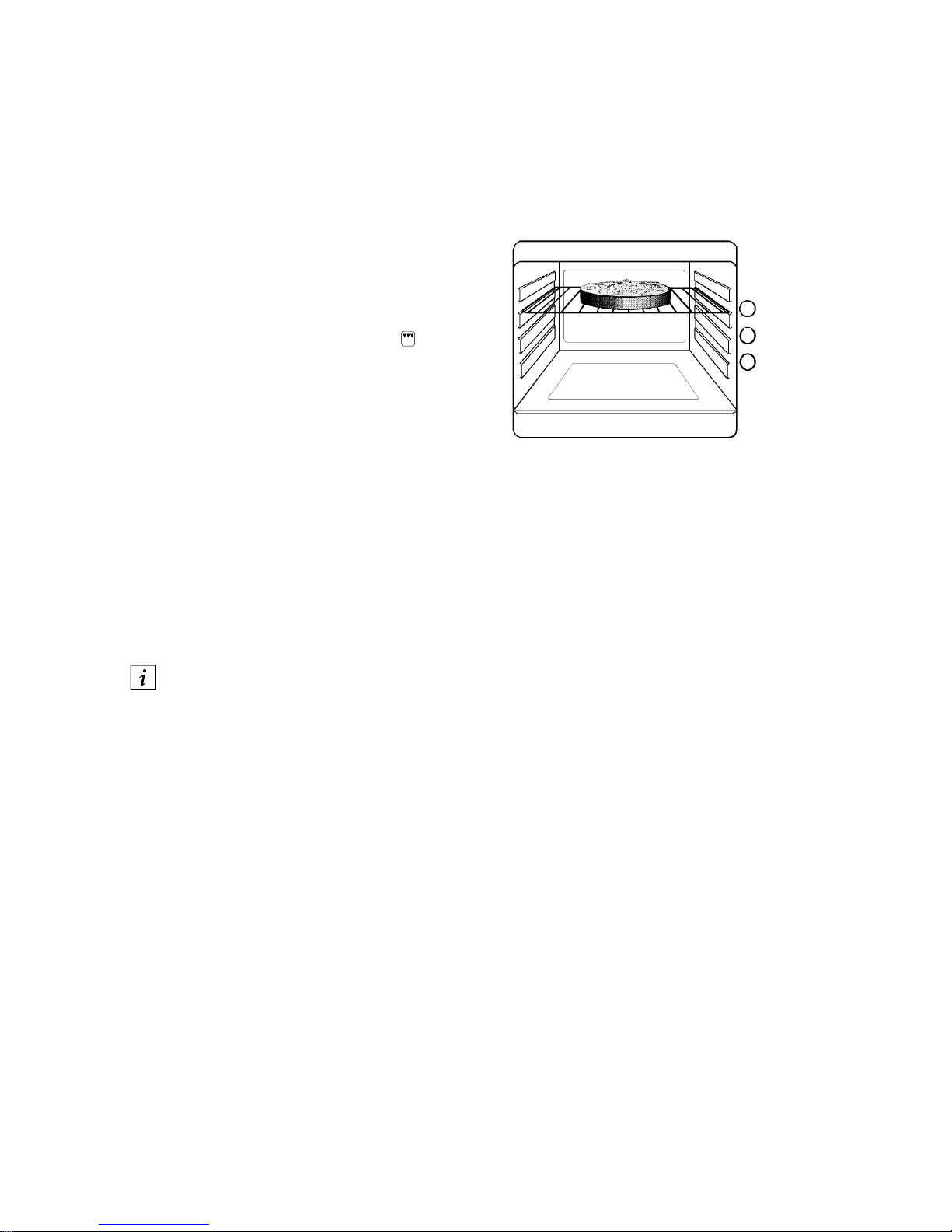

· Slide the shelf into level 2 or 3 depending on

the thickness of the meat to be grilled.

Use level 3 for the thin pieces to be grilled (toast, pork bacon, sausage, small fish…)

Page 10

· Use level 2 for thick pieces of meat to be

grilled (beef bacon, large fish, poultry).

· When the first side is brown, turn the meat

without pricking it in order that the juices are not lost.

Grill the second side.

· Salt when ending the cooking.

Cooking time has to determined by the thickness of the piece to be grilled not by its weight.

Browning

Fit the grill deflector.

Turn the oven knob to the grill position

· Place the dish on the grid and slide it in level 2 or

Leave the dish under the grill for a few minutes.

Cooker operation pilot light (Main)

This light will illuminate when any of the hotplate knobs are turned on and remains lit while the hotplates are in use.

Oven thermostat pilot light (Thermostat)

This light will illuminate when a temperature is selected and remain lit until the selected temperature has been reached. It then cycles on and off to indicate that the temperature is being maintained.

Hints and Tips

Condensation and steam

When food is heated it produces steam in the same way as a boiling kettle. The oven vents allow some of this steam to escape. However,

always stand back from the oven when opening the oven door

to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the oven, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not a fault with the oven. To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

Cookware

Use any ovenproof cookware, which will withstand temperatures of 250

Oven dishes, etc. must not be placed directly on the oven base.

Page 11

Oven Cooking

· Turn off the oven 5 minutes before the end of

cooking time, and use residual heat to complete the cooking.

The thickness, the material and the colour of the pan will influence the cooking results.

· When cooking, certain dishes increase in

volume, ensure the pan is large enough.

· To prevent fat dripping when roasting use tall

rim pans proportional to the item being roasted.

Prick the skin of poultry and sausages with a fork before cooking to avoid spitting.

Use heatproof glass dishes for soufflés.

The effects of dishes on cooking results

Dishes and tins vary in their thickness, conductivity, colour, etc. which affects the way they transmit heat to the food inside them.

A Aluminium, earthenware, oven glassware and

bright shiny utensils reduce cooking and base browning.

B Enamelled cast iron, anodised aluminium,

aluminium with non-stick interior and coloured exterior and dark, heavy utensils increase cooking and base browning.

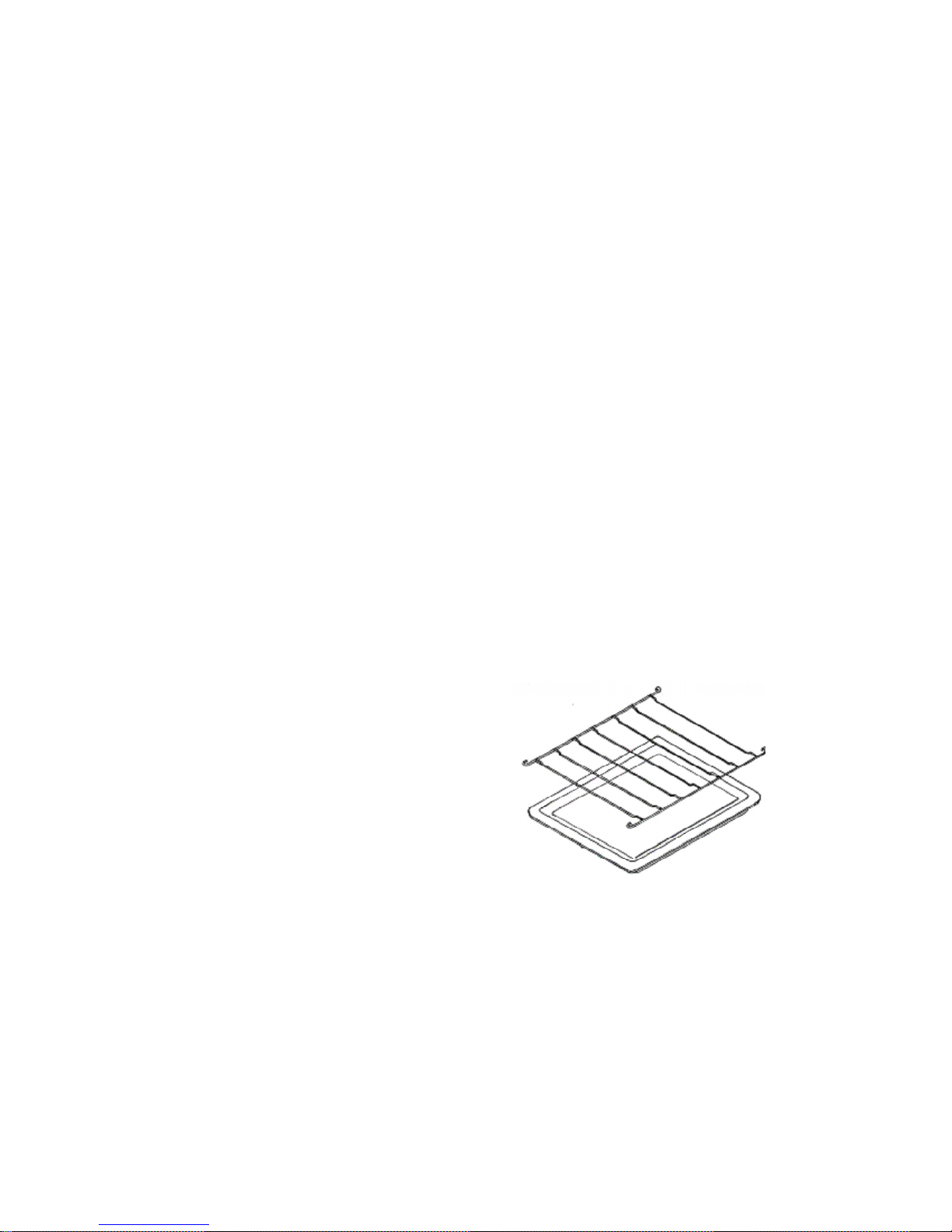

Accessories delivered with the appliance

The following accessories are supplied with your appliance.

· 1 trivet.

· 1 dripping pan / grill pan - enamelled steel.

The dish has to be put in the middle of the shelf to balance the weight.

It is used to collect juice when cooking in it, place it on the shelf 2.

In addition to the accessories supplied we recommend you only use heatproof dishes/pans (according to the manufacturer’s instructions).

Page 12

MAINTENANCE AND CLEANING

Before any maintenance or cleaning can be carried out, you must DISCONNECT the cooker from the electricity supply.

Cleaning materials

Before using any cleaning materials on your oven, check that they are suitable and that their use is recommended by the manufacturer.

Cleaners that contain bleach should NOT

be used as they may dull the surface finishes. Harsh abrasives should also be avoided.

External cleaning

Regularly wipe over the control panel, oven door and door seal using a soft cloth well wrung out in warm water to which a little washing up liquid has been added.

To prevent damaging or weakening the

door glass panels avoid the use of the following:

• Household detergent and bleaches

• Impregnated pads unsuitable for non stick saucepans

• Brillo/Ajax pads or steel wool pads

• Chemical oven pads or aerosols

• Rust removers

• Bath/Sink stain removers

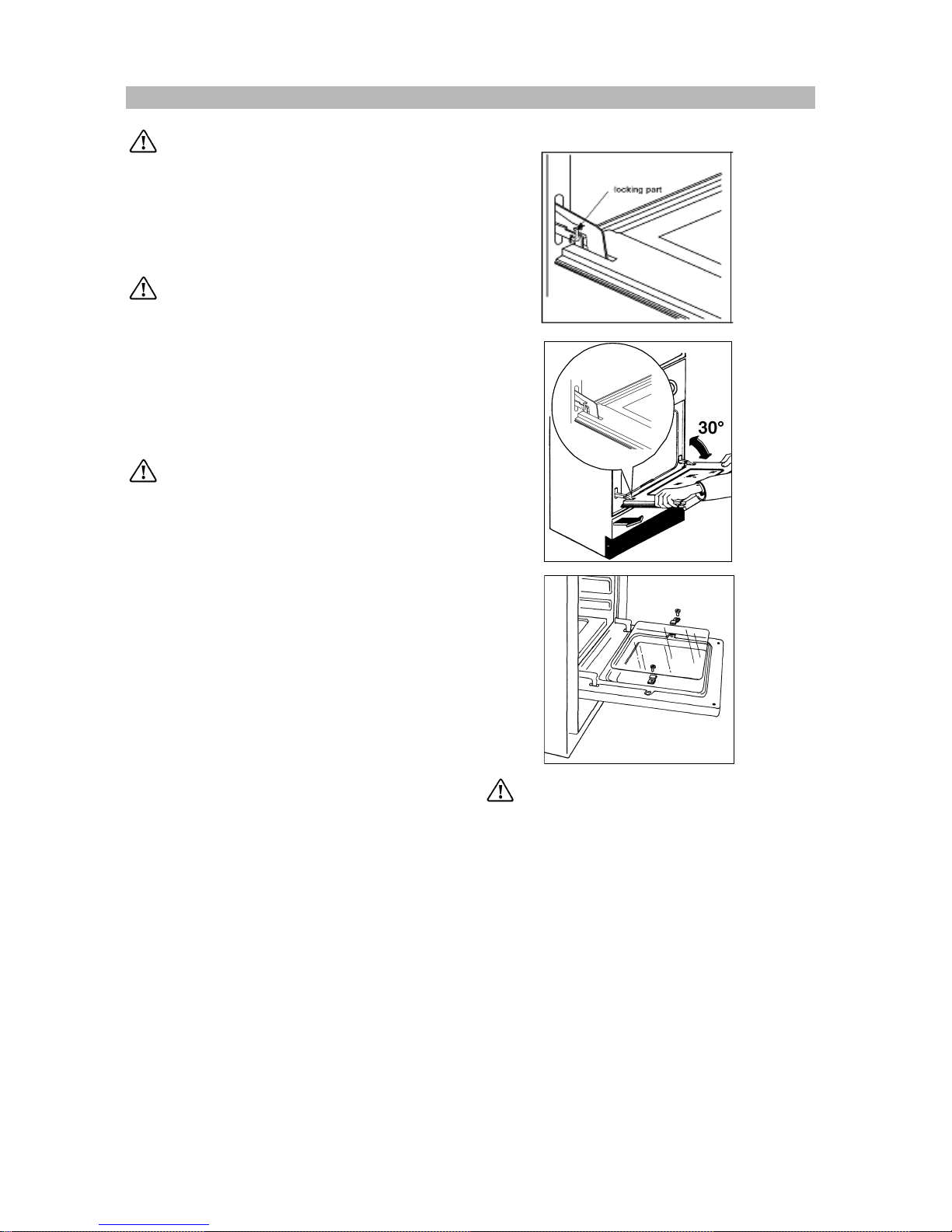

Oven Door

- The door can be dismantled for cleaning as follows:

- Open the door completely

- Turn the two locking parts on the hinge arms by 60

- Partially close the door, to a 30

angle

Lift the door and pull out

The internal oven door glass can be removed for cleaning. For this

purpose remove

the 2 fixing screws.

Clean the outer and inner

door glass using warm soapy

water. Should the

inner door glass

become heavily soiled it is

recommended that a cleaning

product such as

Hob Brite, or Bar

Keepers Friend be used.

Always support the door while removing the glass panel as the door may spring closed due to its lighter weight.

DO NOT clean the oven door while the

glass panels are warm. If this precaution is not observed the glass panel may shatter. If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Contact your local Comet Service Centre who will be pleased to advise further.

IMPORTANT:

The inner door glass must be in

place when using the oven.

Page 13

Oven Cavity

The enamelled oven cavity is best cleaned whilst the oven is still warm. Wipe the oven over with a soft cloth soaked in warm soapy water after each use. From time to time it will be necessary to do a more thorough cleaning, using a proprietary oven cleaner.

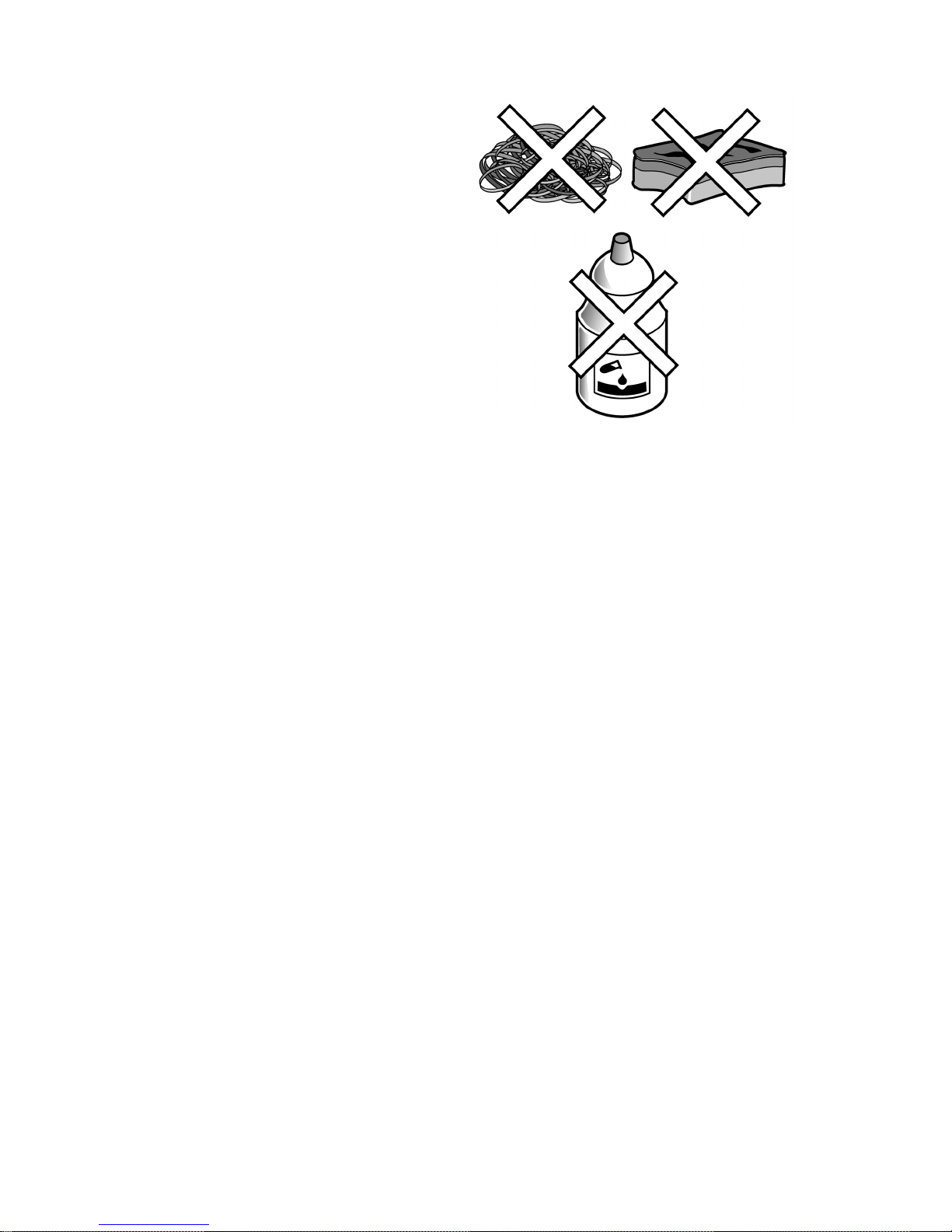

The Hob Top

The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool. Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a little washing up liquid has been added. Avoid the use of the following:

household detergent and bleaches;

· impregnated pads unsuitable for non-stick

saucepans;

steel wool pads;

· bath/sink stain removers.

Should the hob top become heavily soiled, it is recommended that a cleaning product such as Hob Brite or Bar Keepers Friend is used.

The Hotplates

Spills onto the actual plate should be removed using warm water and a soft brush, nylon or plastic scourer. To keep the plates looking as new, hotplate conditioner can be purchased from most hardware stores, e.g. “4 Hob” by HomeCare Products (follow the manufacturer’s instruction for use).

Alternatively, wipe the plates with a drop of olive oil on a kitchen towel to avoid rust. It is important to note that the plate will smoke a little and produce a slightly unpleasant odour when next used.

Drying

Important: After cleaning, dry the hotplates thoroughly by switching on to a low-medium setting for a few minutes.

Restoring

To maintain the appearance of your sealed hotplates apply a little salt-free vegetable oil or restorative agent (i.e. :”Collo Electrol”, or Minky Hotplate Cleaning Cloths) periodically.

To apply vegetable oil: first heat the hotplate on a medium setting for 30 seconds then turn off. Pour a very small amount of salt-free oil onto a dry cloth or kitchen paper. Apply a thin coat of oil to the hotplate surface and wipe off any excess. Heat the hotplate on a medium setting for 1 minute.

To apply restorative agent: first heat the hotplate on a medium setting for 30 seconds then turn off. Apply a very thin coating of Collo Electrol (using the applicator). Heat a hotplate on a high setting for 2-3 minutes to cure. Some smoke will occur, this is normal and nontoxic. (NB: this product is a restorative agent not a cleanser. It is available from hardware stores).

Stainless steel parts: the stainless steel spill rings may become straw coloured with use. Use a proprietary stainless steel cleaner to remove this straw discolouration. This also applies to the area around the hotplates on stainless steel hobs.

Page 14

SOMETHING NOT WORKING

If the appliance is not working correctly, please carry out the following checks, before contacting your local Comet Service Centre.

IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

Symptoms

Solutions

The hob hotplate does not heat up

Check:

- that the unit is connected and the electrical supply is switched on

- the mains fuse has not blown

- the correct control knob has been turned.

The hotplate is not giving satisfactory results Check:

- the hotplate is clean and dry

- the pan is the correct size for the hotplate

- the pan has a flat bottom

- the setting is correct for the type of cooking.

The oven does not come on

Check:

- check if a cooking function/temperature has been selected correctly

- the switch from the mains supply to the cooker is

ON.

It takes too long to finish the dishes, or they are cooked too fast

Check:

- the temperature may need adjusting

Steam and condensation settle on the food and the oven cavity

- refer to the contents of this booklet, especially to the chapter “Using the Oven”.

- Leave dishes inside the oven no longer than 15-

20 minutes after the cooking is completed.

If after these checks, the appliance still does not operate correctly, contact your local Comet Service Centre. When you contact the Service Centre, they will need the following information:

1 Your name, address and postcode. 2 Your telephone number 3 Clear and concise details of the fault 4 The model and serial number (see rating plate) 5 Date of purchase

COMET AFTER SALES SERVICE

We are sure that this product will provide many years of trouble free service to you, however, should you experience any faults with this appliance please contact your local Comet Service Centre for advice.

Our number can be found in your local telephone directory.

Page 15

INSTRUCTIONS FOR THE INSTALLER

TECHNICAL FEATURES

Free standing

Class X

Hob Front right

Back right Front left Back left

Hot plate Æ 145mm (normal) Hot plate Æ 180mm (normal) Hot plate Æ 145mm (normal) Hot plate

180mm (normal)

1000W 1500W 1000W 1500W

Total rating 5000W

Oven

Oven Oven power Grill Grill power

Electric 1700W Electric 1800W

Total rating 1800W

Accessories

Trivet Dripping / Grill Pan

Chromed Enamelled

Supply

Rated voltage Rated frequency

240/415V

50 Hz

Total cooker rating

6800W

Dimensions Height to the hob

Width Depth

880 - 890 mm 500 mm

600 mm

This appliance complies with the following EEC Directives :

73/23 - 90/683

; (Low Voltage Directive) and

subsequent modifications,

89/336 (Electromagnetical Compatibility Directive) 93/68 (General Directives) and subsequent

modifications.

Page 16

IMPORTANT SAFETY REQUIREMENTS

Important

This cooker must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current Editions.

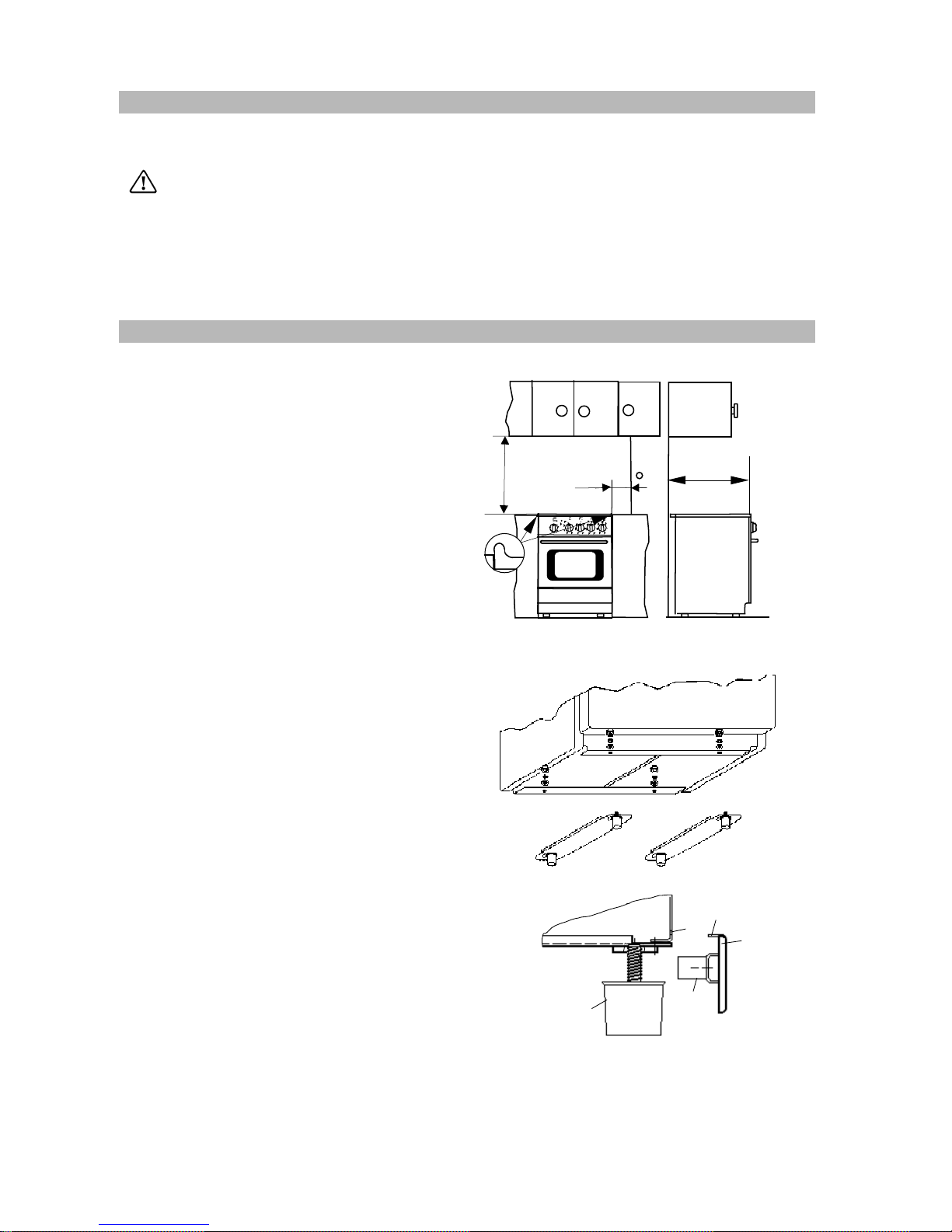

LOCATION

The cooker has been registered as a “Class X” appliance according to Fire Risk Regulations. Any adjacent cabinets or walls must not exceed the cooker’s height. The cooker may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom, shower room or garage.

The minimum distance combustible material can be fitted above the cooker in line with the edges of the cooker is 660mm (see fig.)

Levelling

Fix the support with two legs with the washer and nuts, delivered with the cooker, see the figure.

· Unscrew the legs as far as possible (approx.

16mm from fully screwed in).

· Place the plinth (pos.3) so that the springs

(pos.2) reach the threaded area of the legs and the clamp of the plinth (pos.4) is in front of the holes (pos.5) on the under side of the structure.

· Push the plinth towards the appliance with

both hands until the springs fasten on the legs and the clamps go into the corresponding holes.

· Adjust the legs as necessary.

610 mm

150 mm

660 mm

250

PRO

line

Page 17

ELECTRICAL CONNECTIONS

Important

Any electrical work required to install this cooker should be carried out by a qualified electrician or competent person, in accordance with the current regulations.

THIS COOKER MUST BE EARTHED

The manufacturer declines any liability should these safety measures not be observed.

This cooker is designed to be connected to a 240V, 50Hz electrical supply.

To connect to the electricity supply, use cable type H05 RR-F.

Before connection, make sure the electricity supply voltage is the same as that indicated on the rating plate.

The cooker is supplied without a supply cable. A 3 core supply cable must be fitted, in accordance with the specification given in table no. 1.

The electrical connection should be made using a double pole isolating switch (cooker control switch) with at least 3mm contact separation in all poles. The cable must have conductors of sufficiently high cross-sectional area to prevent overheating or deterioration.

The switch should be sited within 2m of the cooker and be easily accessible at all times.

The yellow-green earth wire must not be interrupted by the switch.

Ensure that the cooker supply cable does not come into contact with surfaces with temperatures higher than 50 °C.

Table no.1

NOTE:

The earth wire should be about 2 cm

longer than the live and neutral wires.

Before connecting check that:

The fuse and household electrical installation can carry the absorbed current of the appliance (see rating plate);

· The cooker connection outlet or the cooker control switch is easily accessible when the appliance is installed.

How to proceed?

· Unscrew and remove the protective cover at the back of the appliance;

· Connect the power cable to the terminal block of the cooker according to the table no.1;

Secure by means of the cable clamp;

Make sure that the connection to the terminal block is matching the supply system, see table no.1;

· Refit and screw the protective cover on the back of the appliance.

Connection type

Single phase (UK)

Cable connection to the

terminal block

1 2 3 4 5

N PE

Mains Voltage

240 V

Voltage of heating

elements

240 V

Fuse capacity

32 A

Cable section

3x6 mm

Page 18

352line

342 737 617
