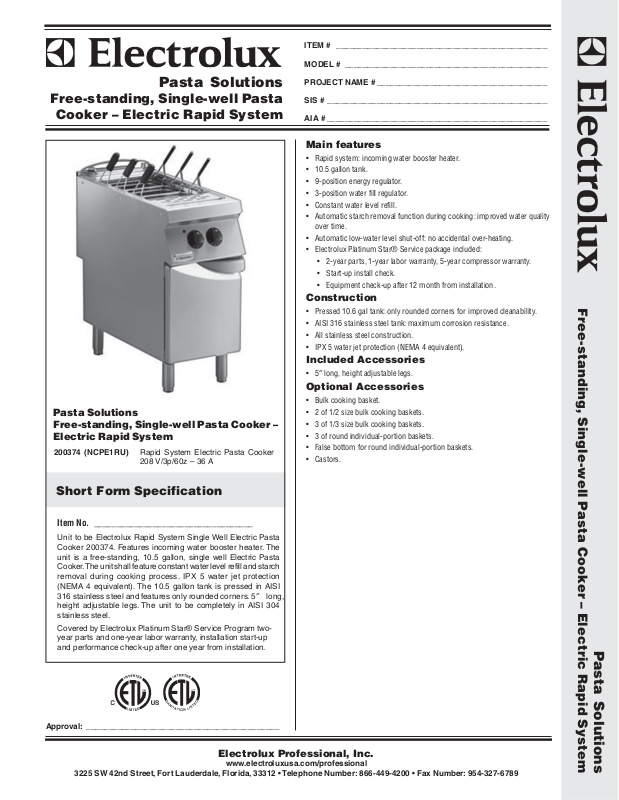

Electrolux NCPE1RU User Manual
ITEM # _______________________________________________
MODEL # _____________________________________________
Pasta Solutions
Free-standing, Single-well Pasta
Cooker – Electric Rapid System
Pasta Solutions
Free-standing, Single-well Pasta Cooker –
Electric Rapid System
200374 (NCPE1RU) Rapid System Electric Pasta Cooker
208 V/3p/60z – 36 A
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
• Rapid system: incoming water booster heater.
• 10.5 gallon tank.
• 9-position energy regulator.
• 3-position water fill regulator.
• Constant water level refill.
• Automatic starch removal function during cooking: improved water quality
over time.
• Automatic low-water level shut-off: no accidental over-heating.
• Electrolux Platinum Star® Service package included:
• 2-year parts, 1-year labor warranty, 5-year compressor warranty.
• Start-up install check.
• Equipment check-up after 12 month from installation.
Construction
• Pressed 10.6 gal tank: only rounded corners for improved cleanability.
• AISI 316 stainless steel tank: maximum corrosion resistance.
• All stainless steel construction.
• IPX 5 water jet protection (NEMA 4 equivalent).
Included Accessories
•5″ long, height adjustable legs.
Optional Accessories
• Bulk cooking basket.
• 2 of 1/2 size bulk cooking baskets.
• 3 of 1/3 size bulk cooking baskets.
• 3 of round individual-portion baskets.
• False bottom for round individual-portion baskets.
• Castors.
Free-standing, Single-well Pasta Cooker – Electric Rapid System
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux Rapid System Single Well Electric Pasta
Cooker 200374. Features incoming water booster heater. The
unit is a free-standing, 10.5 gallon, single well Electric Pasta
Cooker. The unit shall feature constant water level refill and starch
removal during cooking process. IPX 5 water jet protection
(NEMA 4 equivalent). The 10.5 gallon tank is pressed in AISI
316 stainless steel and features only rounded corners. 5″ long,
height adjustable legs. The unit to be completely in AISI 304
stainless steel.
Covered by Electrolux Platinum Star® Service Program twoyear parts and one-year labor warranty, installation start-up
and performance check-up after one year from installation.
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Pasta Solutions
Pasta Solutions
Free-standing, Single-well Pasta
Cooker – Electric Rapid System
Front View
Top View
Electric
Supply voltage:
200374 (NCPE1RU) 208 V/3p/60z - 36 A
Connected load: 13 kW
Water
Water inlet “CW” – 1/2
Total hardness: 5-50 ppm
Drain “D” 1″ connection
Electrolux recommends the use of treated water, based on
testing of specific water conditions.
Please refer to user manual for detailed water quality
information.
″″
″ connection:
″″
Installation
Clearance: 4″ (10 cm) from back.
Capacity
Max.: 10.5 gal
Min.: 8.5 gal
Side View
Key Information
Net weight: 161 lbs. (73 kg)
Height, inch/mm: 33-7/16″ (849 mm)
Width, inch/mm: 15-3/4″ (400 mm)
Depth, inch/mm: 35-7/16″ (900 mm)
Shipping weight: 201 lbs. (91 kg)
Shipping width: 19″ (480 mm)
Shipping height: 44.1″ (1120 mm)
Shipping depth: 41″ (1040 mm)
Shipping volume: 19.8 cu. ft. (0.56 m³)
Free-standing, Single-well Pasta Cooker – Electric Rapid System
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Pasta Solutions
6-26-09
