Electrolux N 7 18 40-4i User Manual
SANTO N 7 18 40-4i
Integrated Fridge Freezer
Operating and Installation Instructions
2
Dear customer,
Before switching on your new refrigerator/freezer on please read these operating instructions carefully. They contain important information for safe
use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Important!, Attention!). Please observe the following instructions
carefully.
Additional information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the “Something Not Working”
section.
For futher assistance contact your local AEG Service Force Centre, see the
chapter “Service and Spare Parts”.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
3
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . . .7
Control Panel of Freezer Compartment . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting Up and Temperature Regulation of Freezer Compartment .8
Quick-freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Variable Storage Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Fresh Food Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Freezing and Storing Frozen Food . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Storage Goods Symbols/ Freezing Calendar . . . . . . . . . . . . . . . . . . . .13
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Something Not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Changing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Your Appliance Needs Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Reversing the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Housing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Instructions for Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
4
Safety
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety, ensure you understand them fully before using the appliance.
Intended Use
• The appliance is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the
appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage
that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to Initial Start–up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact your retailer.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable and remove any locks or catches, to prevent
young children being trapped inside.
• Do not allow children to tamper with the controls or play with the product.
25

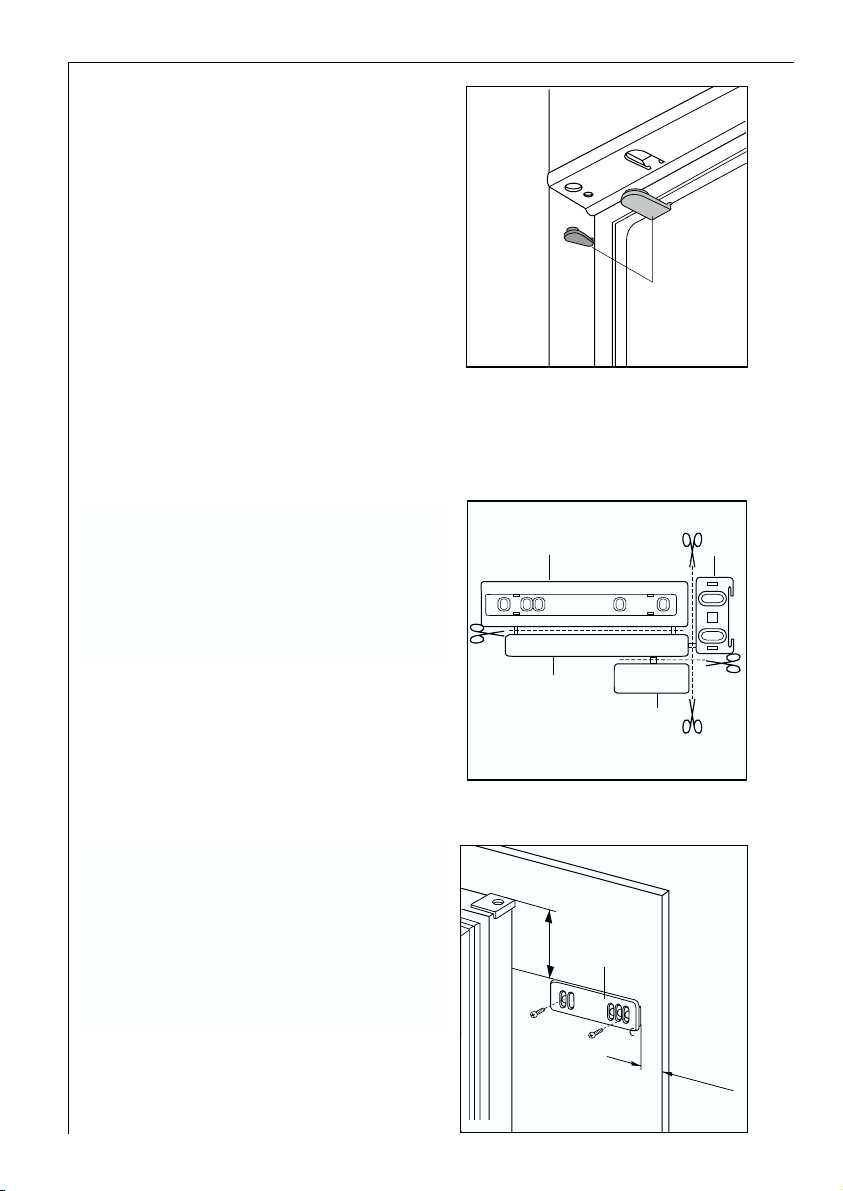

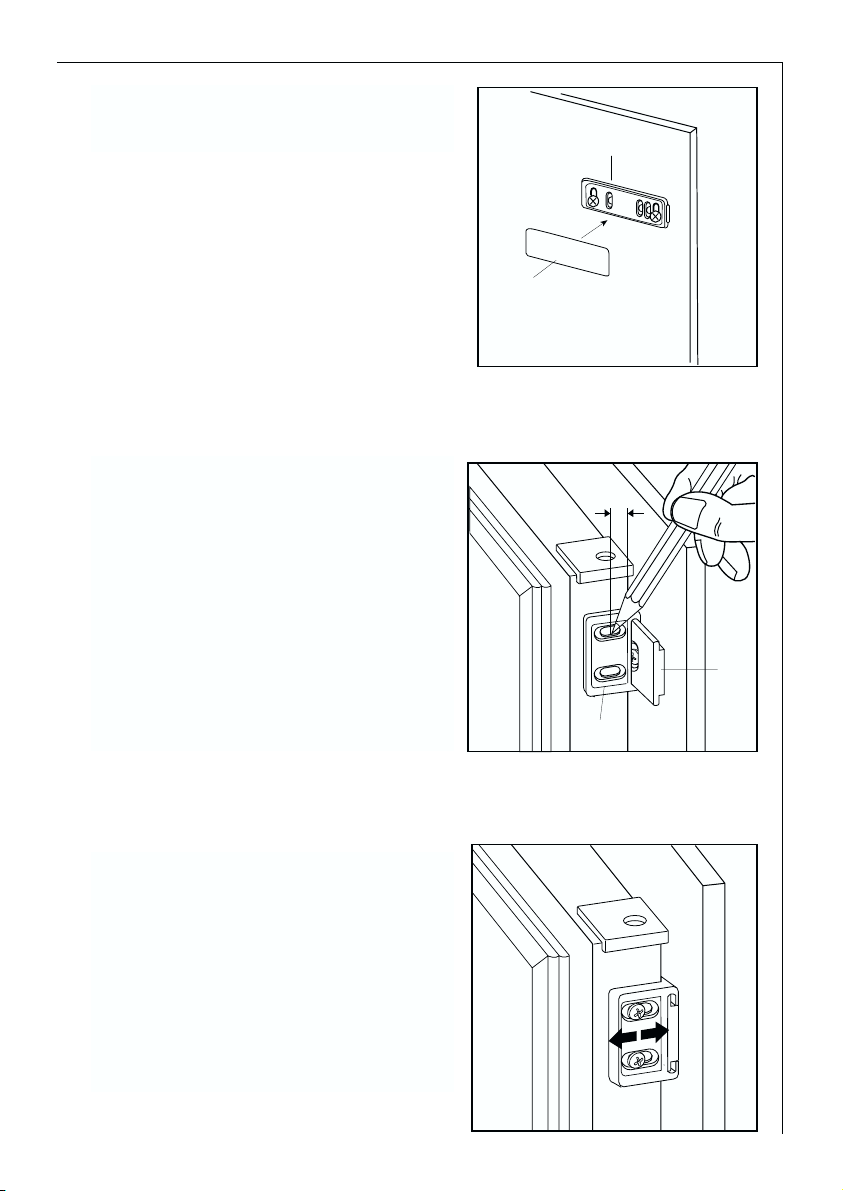

Open the appliance door and the fur-
niture door at 90°. Insert the small
square (B) into guide (A). Put togeth-
er the appliance door and the furni-
ture door and mark the holes as indi-
cated in the figure. Remove the
squares and drill holes with ø 2 mm
at 8 mm from the outer edge of the
door. Place the small square on the
guide again and fix it with the screws
supplied.
8mm
PR167
A
B
PR168

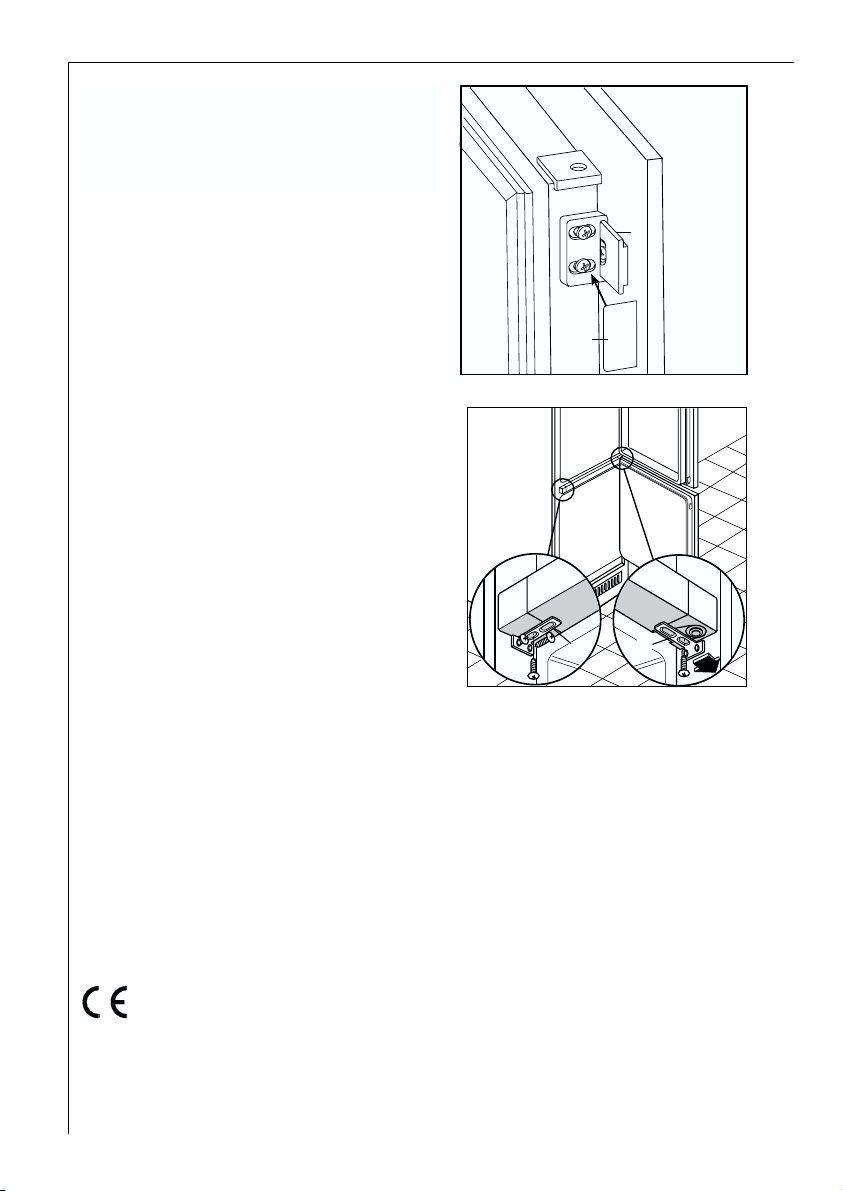

At the end of installation/adjusting, it
is necessary to check if the door of
the furniture closes properly.
Should adjustment of the furniture
door be necessary, use the clearance
of slots.
PR33
C
A
Fix cover (C) on guide (A) until it clips
into place.
5
Daily Operation
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Service
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.
Disposal
Appliance Packaging Information
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluo-
rocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
Disposal of Old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - to your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures, to prevent small children being trapped inside.
• Use an authorised disposal site.
Contact your Local Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
6
Remove transport packaging
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
B
A

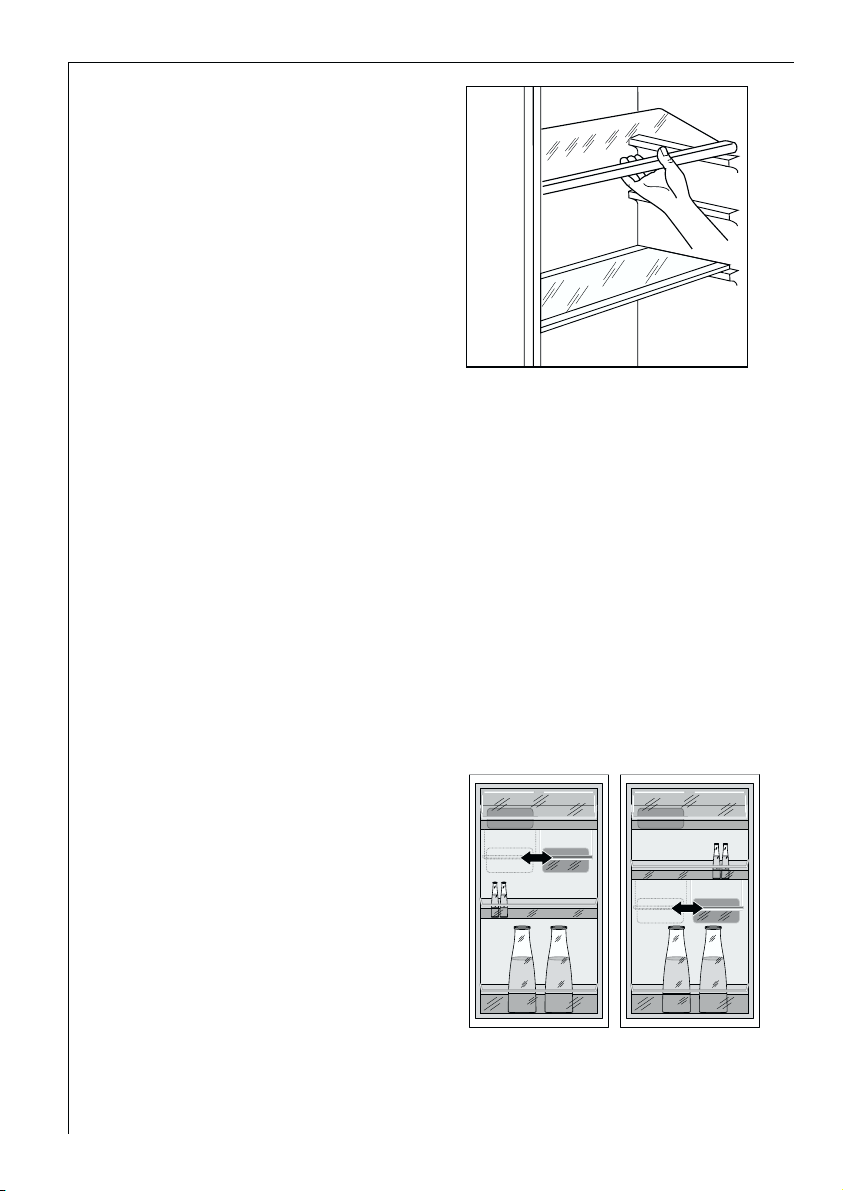

Shelf holders
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation.
To remove them proceed as follows:
Raise the shelf from the back, push it
in the direction of the arrow until it
is freed and remove the retainers.
Description of the appliance
A - Dairy compartment
B - Hanging storage box
C - Can storage shelves
D - Bottle storage shelf
E - Light lamp
F - Glass shelves
G - Glass shelf
H - Salad drawers
I - Control panel
J - Compartment for
freezing fresh food
L - Compartments for
storing frozen food
A
B
C
D
E
F
H
G
I
J
L
23

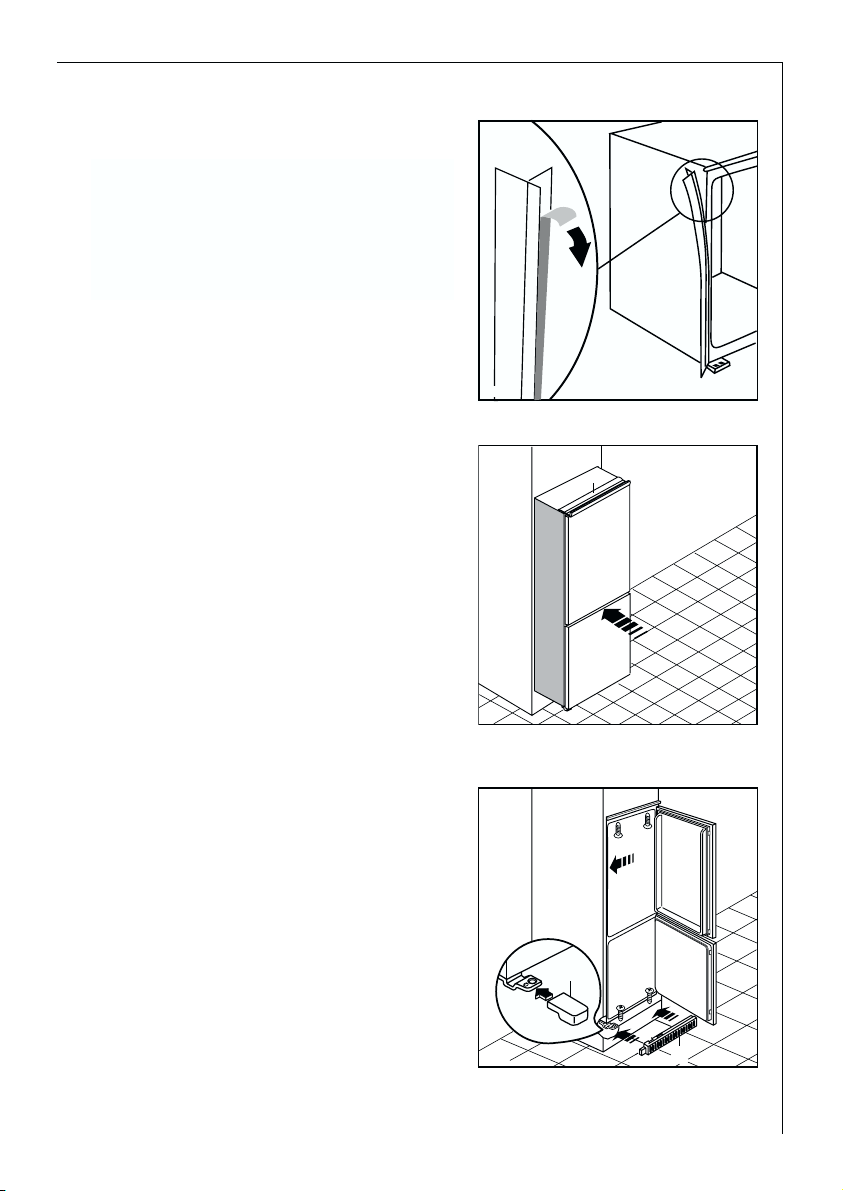

A
D023
Push appliance into the housing
until stop strip (A) touches the
kitchen unit.
D
C
D723
Open the door and push the appliance
against the side of the kitchen unit op-
posite to that of appliance hinges.
Fasten the appliance with 4 screws
provided in the kit included with the
appliance. Snap the ventilation grille
(C) and hinge cover (D) into position.
Instructions for building-in
D765
Apply the joint sealing strip as shown
in figure.
7

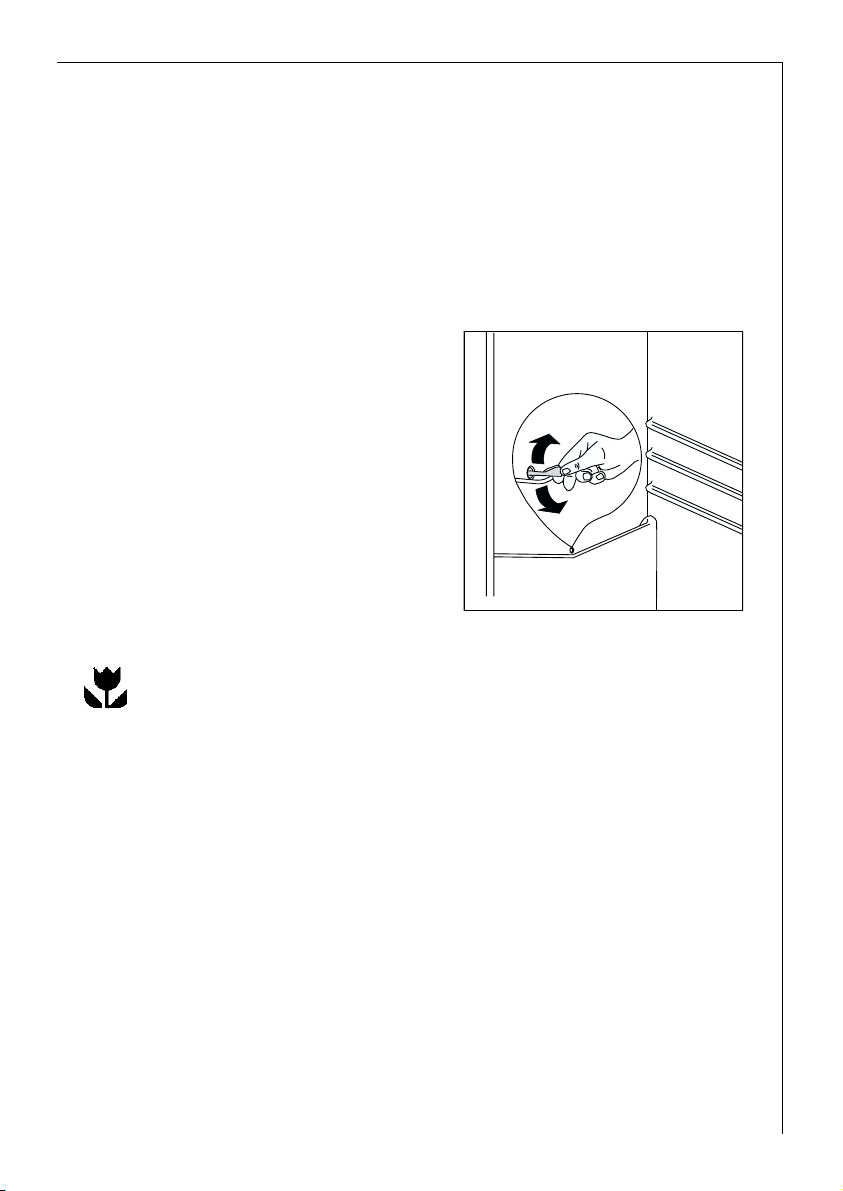

Starting up and temperature regulation
Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
• When the refrigerator compartment door is opened, the internal lighting
is switched on. The temperature control knob is located on the right hand
side of the refrigerator compartment.
Setting “0”: Off.
Setting “1”: Highest temperature, (warmest setting).
Setting “6” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature
inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated.
If you want to freeze fresh food rapidly, select setting “6”, ensuring that the
temperature in the refrigerator compartment does not drop below 0°C. You
should reset the temperature control knob to setting “3” or “4”, if this does
occur.
As soon as the fresh food placed in the freezer has frozen, return the temperature control knob to “3” or “4”.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on
the temperature regulator (position"5" to "6") can cause the compressor to
run continuously.
If this happens, turn the temperature regulator back to a warmer setting
(position "3" to "4"). At this setting the compressor will be switched on and
off as usual and automatic defrosting recommenced.
8
Control Panel of Freezer Compartment
A. Pilot light (green)
B. Thermostat knob
C. Super control light (yellow)
D. Normal/Super push button
The control panel elements are: the thermostat (B) is also the on/off switch for the freezer compartment.
The green pilot light (A), which comes on when the mains voltage is availble. Switch the temperature regulator knob to a number position, the refrigerating unit automatically operates by system control. The yellow pilot
light (C) comes on when the normal/super push botton is pushed.
Important note: if you operate the fast-freeze switch or adjust the tempe-
rature regulator, it may happen that your appliance’s refrigeration motor
does not start immediately but only after some time. This does not mean
that your appliance has a fault.
Starting Up and Temperature Regulation of
Freezer Compartment
• Turn the temperature regulator (B) in the direction of “1”. The green
pilot light(A) comes on. The freezer motor starts up.
• Push the
Normal/Super push button (D), the yellow light (B) comes on;
Setting “0”: Off.
Setting “1”: Highest temperature, (warmest setting).
Setting “4” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature
inside the appliance depends on:
- the quantity of food stored
- how often the door is opened
- ambient temperature
21

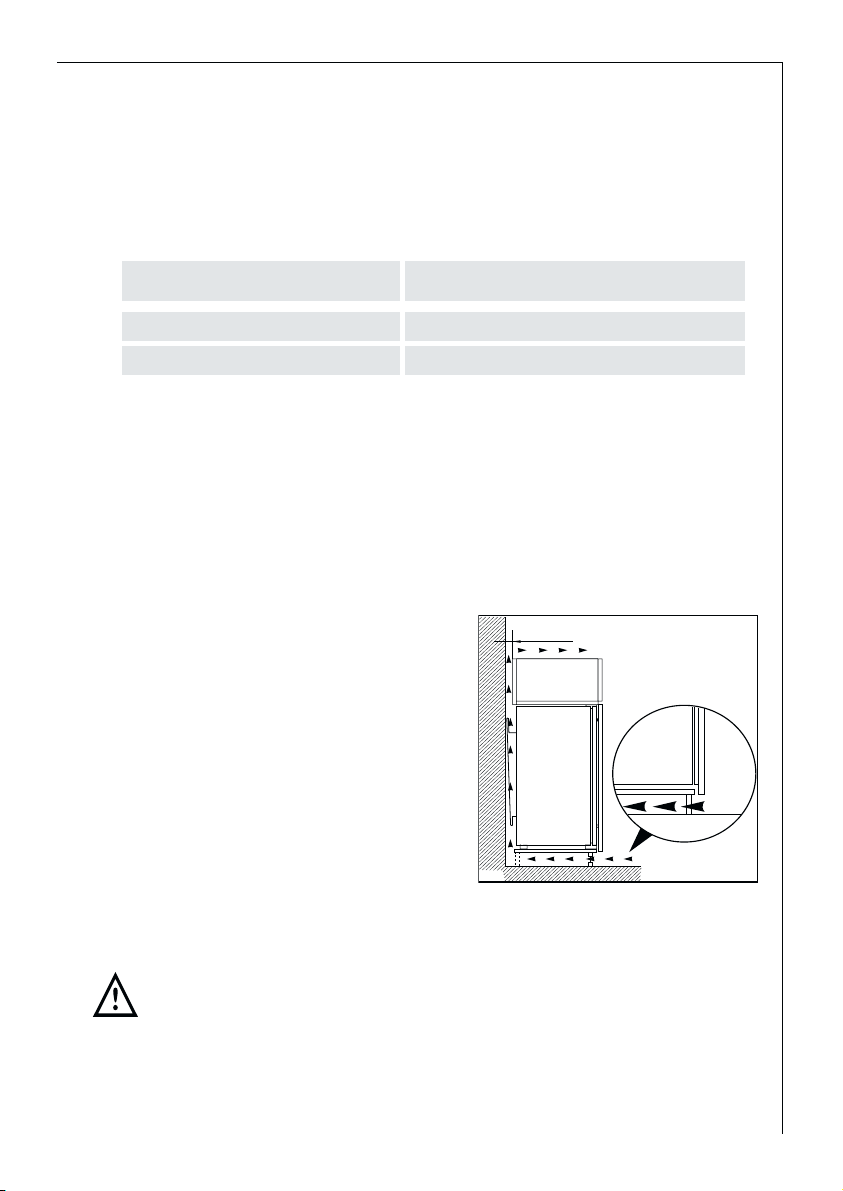

Positioning
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rat-
ing plate, which is located on the inside left of the appliance.
The following table shows which ambient temperature is correct for each
climate classification.
Climate classification for an ambient temperature of
SN +10 to +32 °C
N +16 to +32 °C
Your appliance needs air
For safety reasons, minimum ventila-
tion must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
50 mm
min.
200 cm
2
200 cm
2
min.
D567
Reversing the door
The side the door opens can be changed from the right side (factory adjust-
ment) to the left side, if the installation site requires.
Warning! When changing the side the door opens, the appliance must not
be connected to the mains. Remove plug from the mains beforehand.
The appliance should be located in a dry atmosphere, out of direct sunlight
and away from continuous heat and extreme temperature, e.g. not next to
a boiler or radiator, or in a very cold room e.g. an outhouse. If these tem-
peratures are exceeded i.e. warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please refer to the relevant
instructions on the following pages.
1
2
6
3
5
4
A CB D
9
Quick-freezing
For quick-freezing, push the Normal/Super button (D). The super
control light (C) will then light up.
The Quick-freezing function accelerates the freezing of fresh food
and, at the same time, protects foodstuffs already stored from
undesirable warming.
If this function is not ended manually, the appliance switches off
the Quick-freezing function after 52 hours. The yellow light goes
out.
This function can be ended manually at any time by pressing the
Normal/Super button again. The yellow light goes out.
Loading...
