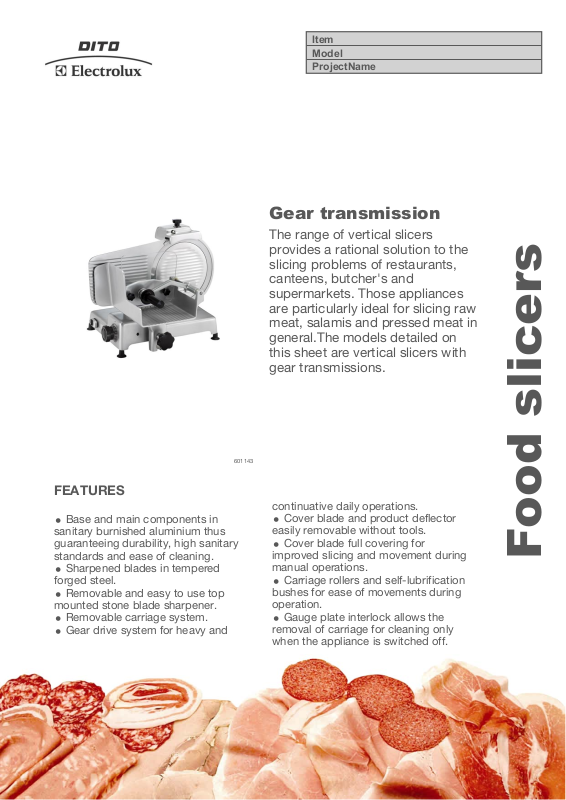

Page 1
Item
Model
ProjectName
Gear transmission
The range of vertical slicers
provides a rational solution to the
slicing problems of restaurants,
canteens, butcher's and
supermarkets. Those appliances
are particularly ideal for slicing raw
meat, salamis and pressed meat in
general.The models detailed on
this sheet are vertical slicers with
gear transmissions.
FEATURES
V Base and main components in
sanitary burnished aluminium thus
guaranteeing durability, high sanitary
standards and ease of cleaning.
V Sharpened blades in tempered
forged steel.
V Removable and easy to use top
mounted stone blade sharpener.
V Removable carriage system.
V Gear drive system for heavy and
601143
continuative daily operations.
V Cover blade and product deflector
easily removable without tools.
V Cover blade full covering for
improved slicing and movement during
manual operations.
V Carriage rollers and self-lubrification
bushes for ease of movements during
operation.
V Gauge plate interlock allows the
removal of carriage for cleaning only
when the appliance is switched off.
Food slicers
Page 2
V Permanently mounted blade guard ring
aids protection from cutting blades while
operating and cleaning.
V Feeding carriage with tightening arm for
V Gauge knob provides precise control of
slicing.
V CE approved.
V IP42 water protection.
slicing of large products like ham (available
as special execution).
V Feeding carriage for slicing of soft
products like raw meat and roast beef
V Blade drive motor ventilated.
Specifications
MSV30G
MODEL
External dimensions - mm
width 680 770
depth 580 750
height 480 510
Electrical power - kW 0.375 0.375
Net weight - kg. 40 53
601142
MSV35G
601143
Page 3
Installation drawings
XXX
601142, 601143
320 *340
300 *415
480 *510
570 *670
680 *770
MODEL
I - Electrical connection 230 V, 1N, 50 400 V, 3, 50
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
www.dito-electrolux.com
440 *490
MSV30G
601142
580 *750
MSV35G
601143
Food slicers
