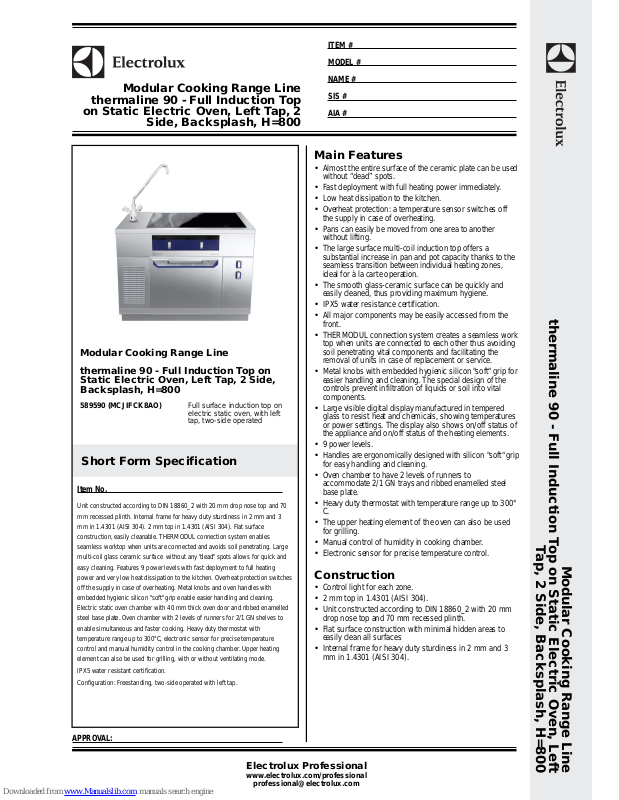

Page 1
Modular Cooking Range Line
thermaline 90 - Full Induction Top
on Static Electric Oven, Left Tap, 2
Side, Backsplash, H=800
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
Modular Cooking Range Line
thermaline 90 - Full Induction Top on Static Electric Oven, Left
Tap, 2 Side, Backsplash, H=800
Modular Cooking Range Line
thermaline 90 - Full Induction Top on
Static Electric Oven, Left Tap, 2 Side,
Backsplash, H=800
589590 (MCJIFCK8AO)Full surface induction top on
electric static oven, with left
tap, two-side operated
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70
mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3
mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface
construction, easily cleanable. THERMODUL connection system enables
seamless worktop when units are connected and avoids soil penetrating. Large
multi-coil glass ceramic surface without any "dead" spots allows for quick and
easy cleaning. Features 9 power levels with fast deployment to full heating
power and very low heat dissipation to the kitchen. Overheat protection switches
off the supply in case of overheating. Metal knobs and oven handles with
embedded hygienic silicon "soft" grip enable easier handling and cleaning.
Electric static oven chamber with 40 mm thick oven door and ribbed enamelled
steel base plate. Oven chamber with 2 levels of runners for 2/1 GN shelves to
enable simultaneous and faster cooking. Heavy duty thermostat with
temperature range up to 300°C, electronic sensor for precise temperature
control and manual humidity control in the cooking chamber. Upper heating
element can also be used for grilling, with or without ventilating mode.
IPX5 water resistant certification.
Configuration: Freestanding, two-side operated with left tap.
Main Features
•Almost the entire surface of the ceramic plate can be used
without “dead” spots.
•Fast deployment with full heating power immediately.
•Low heat dissipation to the kitchen.
•Overheat protection: a temperature sensor switches off
the supply in case of overheating.
•Pans can easily be moved from one area to another
without lifting.
•The large surface multi-coil induction top offers a
substantial increase in pan and pot capacity thanks to the
seamless transition between individual heating zones,
ideal for à la carte operation.
•The smooth glass-ceramic surface can be quickly and
easily cleaned, thus providing maximum hygiene.
•IPX5 water resistance certification.
•All major components may be easily accessed from the
front.
•THERMODUL connection system creates a seamless work
top when units are connected to each other thus avoiding
soil penetrating vital components and facilitating the
removal of units in case of replacement or service.
•Metal knobs with embedded hygienic silicon "soft" grip for
easier handling and cleaning. The special design of the
controls prevent infiltration of liquids or soil into vital
components.
•Large visible digital display manufactured in tempered
glass to resist heat and chemicals, showing temperatures
or power settings. The display also shows on/off status of
the appliance and on/off status of the heating elements.
•9 power levels.
•Handles are ergonomically designed with silicon "soft" grip
for easy handling and cleaning.
•Oven chamber to have 2 levels of runners to
accommodate 2/1 GN trays and ribbed enamelled steel
base plate.
•Heavy duty thermostat with temperature range up to 300°
C.
•The upper heating element of the oven can also be used
for grilling.
•Manual control of humidity in cooking chamber.
•Electronic sensor for precise temperature control.
Construction
•Control light for each zone.
•2 mm top in 1.4301 (AISI 304).
•Unit constructed according to DIN 18860_2 with 20 mm
drop nose top and 70 mm recessed plinth.
•Flat surface construction with minimal hidden areas to
easily clean all surfaces
•Internal frame for heavy duty sturdiness in 2 mm and 3
mm in 1.4301 (AISI 304).
Page 2
Modular Cooking Range Line
thermaline 90 - Full Induction Top on
Static Electric Oven, Left Tap, 2 Side,
Backsplash, H=800
Modular Cooking Range Line
thermaline 90 - Full Induction Top on Static Electric Oven, Left Tap, 2
Side, Backsplash, H=800
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2014.04.03
Optional Accessories
•Baking sheet 2/1 GN for ovensPNC 910651 ❑
•Grid, chromium plated, for ovens 2/1 GNPNC 910652 ❑
•Bottom steel plate 2/1 GN for fire clay plate
800&900 with baking oven
PNC 910655 ❑
•Fire clay plate 2/1 GN for ovensPNC 910656 ❑
•Connecting rail kit, 900mmPNC 912502 ❑
•Stainless steel side panel (12mm),
900x800mm, freestanding
PNC 912511 ❑
•Portioning shelf, 1200mm widthPNC 912530 ❑
•Portioning shelf, 1200mm widthPNC 912560 ❑
•Folding shelf, 300x900mmPNC 912581 ❑
•Folding shelf, 400x900mmPNC 912582 ❑
•Fixed side shelf, 200x900mmPNC 912589 ❑
•Fixed side shelf, 300x900mmPNC 912590 ❑
•Fixed side shelf, 400x900mmPNC 912591 ❑
•Stainless steel front kicking strip, 1200mm
width
PNC 912602 ❑
•Stainless steel side kicking strips left and
right, freestanding, 900mm width
PNC 912621 ❑
•Stainless steel side kicking strips left and
right, wall mounted, 900mm width
PNC 912624 ❑
•Stainless steel side kicking strips left and
right, back-to-back, 1800mm width
PNC 912627 ❑
•Stainless steel plinth, against wall,
1200mm width
PNC 912905 ❑
•Stainless steel plinth, freestanding,
1200mm width
PNC 912924 ❑
•Connecting rail kit, right PNC 912975 ❑
•Connecting rail kit, left PNC 912976 ❑
•Stainless steel side panel, 900x800mm,
flush-fitting, freestanding
PNC 913088 ❑
•Stainless steel panel (12mm) 900x800mm,
against wall, left side
PNC 913102 ❑
•Stainless steel panel 900x800mm, flushfitting, against wall, left side
PNC 913104 ❑
•Stainless steel panel (12mm) 900x800mm,
against wall, right side
PNC 913106 ❑
•Stainless steel panel 900x800mm, flushfitting, against wall, right side
PNC 913108 ❑
•Endrail kit, flush-fitting, left PNC 913111 ❑
•Endrail kit, flush-fitting, right PNC 913112 ❑
•Endrail kit (12mm) for thermaline 90 units
with backsplash, right
PNC 913209 ❑
•Stainless steel side panel, left, H=800, flushPNC 913220 ❑
•Stainless steel side panel, left, H=800, flushPNC 913221 ❑
•Stainless steel side panel, left, H=800, flushPNC 913224 ❑
•Stainless steel side panel, left, H=800, flushPNC 913225 ❑
•T-connection rail for back-to-back
installations without backsplash
PNC 913227 ❑
Page 3
Modular Cooking Range Line
thermaline 90 - Full Induction Top on
Static Electric Oven, Left Tap, 2 Side,
Backsplash, H=800
Modular Cooking Range Line
thermaline 90 - Full Induction Top on Static Electric Oven, Left Tap, 2
Side, Backsplash, H=800
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2014.04.03
Front
Top
CWI
=Cold Water inlet
EI=Electrical connection
HWI
=Hot water inlet
Side
Electric
Supply voltage:
589590 (MCJIFCK8AO)400 V/3N ph/50/60 Hz
Total Watts:33 kW
Key Information:
Configuration:Both-Sides Operated;On Oven
Front Plates Power:7 - 7 kW
Back Plates Power:7 - 7 kW
Front Plates dimensions:420x370 420x370
Back Plates dimensions:420x370 420x370
Oven working Temperature:60 °C MIN; 300 °C MAX
Oven Cavity Dimensions (width):575 mm
Oven Cavity Dimensions (height):300 mm
Oven Cavity Dimensions (depth):700 mm
External dimensions, Height:800 mm
External dimensions, Width:1200 mm
External dimensions, Depth:900 mm
Net weight:221 kg
Oven GN:GN 2/1
