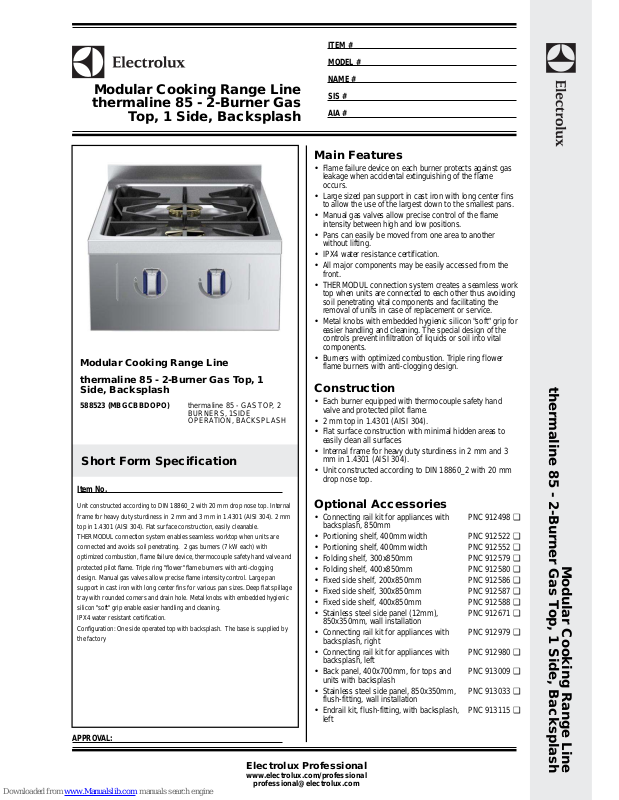

Page 1
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas
Top, 1 Side, Backsplash
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas Top, 1 Side, Backsplash
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas Top, 1
Side, Backsplash
588523 (MBGCBBDOPO)thermaline 85 - GAS TOP, 2
BURNERS, 1SIDE
OPERATION, BACKSPLASH
Unit constructed according to DIN 18860_2 with 20 mm drop nose top. Internal
frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm
top in 1.4301 (AISI 304). Flat surface construction, easily cleanable.
THERMODUL connection system enables seamless worktop when units are
connected and avoids soil penetrating. 2 gas burners (7 kW each) with
optimized combustion, flame failure device, thermocouple safety hand valve and
protected pilot flame. Triple ring "flower" flame burners with anti-clogging
design. Manual gas valves allow precise flame intensity control. Large pan
support in cast iron with long center fins for various pan sizes. Deep flat spillage
tray with rounded corners and drain hole. Metal knobs with embedded hygienic
silicon "soft" grip enable easier handling and cleaning.
IPX4 water resistant certification.
Configuration: One side operated top with backsplash. The base is supplied by
the factory
Main Features
•Flame failure device on each burner protects against gas
leakage when accidental extinguishing of the flame
occurs.
•Large sized pan support in cast iron with long center fins
to allow the use of the largest down to the smallest pans.
•Manual gas valves allow precise control of the flame
intensity between high and low positions.
•Pans can easily be moved from one area to another
without lifting.
•IPX4 water resistance certification.
•All major components may be easily accessed from the
front.
•THERMODUL connection system creates a seamless work
top when units are connected to each other thus avoiding
soil penetrating vital components and facilitating the
removal of units in case of replacement or service.
•Metal knobs with embedded hygienic silicon "soft" grip for
easier handling and cleaning. The special design of the
controls prevent infiltration of liquids or soil into vital
components.
•Burners with optimized combustion. Triple ring flower
flame burners with anti-clogging design.
Construction
•Each burner equipped with thermocouple safety hand
valve and protected pilot flame.
•2 mm top in 1.4301 (AISI 304).
•Flat surface construction with minimal hidden areas to
easily clean all surfaces
•Internal frame for heavy duty sturdiness in 2 mm and 3
mm in 1.4301 (AISI 304).
•Unit constructed according to DIN 18860_2 with 20 mm
drop nose top.
Optional Accessories
•Connecting rail kit for appliances with
backsplash, 850mm
PNC 912498 ❑
•Portioning shelf, 400mm widthPNC 912522 ❑
•Portioning shelf, 400mm widthPNC 912552 ❑
•Folding shelf, 300x850mmPNC 912579 ❑
•Folding shelf, 400x850mmPNC 912580 ❑
•Fixed side shelf, 200x850mmPNC 912586 ❑
•Fixed side shelf, 300x850mmPNC 912587 ❑
•Fixed side shelf, 400x850mmPNC 912588 ❑
•Stainless steel side panel (12mm),
850x350mm, wall installation
PNC 912671 ❑
•Connecting rail kit for appliances with
backsplash, right
PNC 912979 ❑
•Connecting rail kit for appliances with
backsplash, left
PNC 912980 ❑
•Back panel, 400x700mm, for tops and
units with backsplash
PNC 913009 ❑
•Stainless steel side panel, 850x350mm,
flush-fitting, wall installation
PNC 913033 ❑
•Endrail kit, flush-fitting, with backsplash,
left
PNC 913115 ❑
Page 2
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas
Top, 1 Side, Backsplash
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas Top, 1 Side, Backsplash
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2014.02.14
•Endrail kit, flush-fitting, with backsplash, right PNC 913116 ❑
•Endrail kit (12mm) for thermaline 85 units with
backsplash, left
PNC 913206 ❑
•Endrail kit (12mm) for thermaline 85 units with
backsplash, right
PNC 913207 ❑
•U-clamping rail for back-to-back installations
with backsplash
PNC 913226 ❑
Page 3
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas
Top, 1 Side, Backsplash
Modular Cooking Range Line
thermaline 85 - 2-Burner Gas Top, 1 Side, Backsplash
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2014.02.14
Front
Top
G=Gas connection
Side
Gas
Gas Power:
588523 (MBGCBBDOPO)47726 Btu/hr (14 kW)
Gas Type Option:
Gas Inlet:1/2"
Key Information:
Configuration:One-Side Operated;Top
Front Burners Power:7 - kW
Back Burners Power:7 - 0 kW
Back Burners Dimension - mmØ 70
Front Burners Dimension - mmØ 70
External dimensions, Height:250 mm
External dimensions, Width:400 mm
External dimensions, Depth:850 mm
Net weight:38 kg
