Electrolux LI259390 User Manual

Electrolux 900 thermaline h = 800 mm

Large induction top on oven/cupb.

The Electrolux 900-Thermaline of cooking equipment is designed for the very heavy duty requirements of
hotels, institutions, hospitals, central kitchens, in-flight kitchens and cruise ships. The series consist of a wide
choice of modular elements that can be installed as individual, free-standing units or assembled into a
complete cooking suite made virtually seamless by means of cleverly-designed connecting rails. The models
detailed on this sheet combine a large surface induction boiling top mounted on either an oven or a base unit.
Models are available for operation from one side only or from both sides to suit a central cooking island.
Installation options are floor mounted on 100 or 200 mm high feet or a plinth which can be either steel or
masonry construction.

EASY TO USE

• Glass ceramic cooking surface
with four independently controlled
heating zones.

• The large surface induction top
offers a substantial increase in
capacity with a seamless
transition between individual
heating zones, ideal for à la carte
operation.

• Each cooking zone has two coils.

• Almost the entire surface of the
ceramic plate can be used without
'dead' spots.

• A magnetic field induces an
eddy current in a cooking pan of
ferromagnetic material, heating it
up directly.

• Fast deployment with full heating
power immediately.

• Low heat dissipation to the
kitchen.

• Power can be set steplessly with
progressive output i.e. fine
regulation at the lower and larger
progress at the upper levels.

• Pans can be moved from one
appliance to another without lifting.

• It can be supplied on a base or
an electric roasting and baking
oven for two GN2/1 shelves or
containers.

• Oven with individual
thermostatic control to upper and
lower heating elements.

• Oven temperature up to 350°C.

• Thick steel base plate for the
even temperature distribution and
storage.

• Optional base plate with a fire
clay element provides a very
uniform distribution and long term
storage of the oven heat; it is
beneficial for sensitive patisserie.

590751- with accessories

• Convenient operation with highly
visible control panels and knobs.

• All appliances conform to ruling
European safety and hygiene
standards and are H marked.

EASY TO MAINTAIN

• The smooth, glass ceramic plate
is not directly heated, so there is
no burning on the cooking surface.

• Body, cupboard and support are
made of AISI 304 stainless steel.

• No gaps or dirt traps between
adjoining appliances when
connecting rails are fitted.

• All major components may be
easily accessed from the front.

• The appliances are IP X5
certified against water jets.

• Hygienic design of the open
base compartment with large
round edges.

• If an error occours in the
appliance, it will be displayed by
pulsation of the green operation
lamp. The series of pulsation
shows the kind of error.

EASY ON THE ENVIRONMENT

• Pot recognition system which
detects if a cooking pot is on the
plate and switches the power on
and off automatically to reduce
wasted energy

• 98% recyclable by weight.

• Packing free of toxic substances.

Electrolux 900 thermaline h = 800 mm

Large induction top on oven/cupb.

LI259390

TECHNICAL DATA

Power supply Electric Electric
Installation FS on concrete base, FS on

One-Side Operated ●
Both-Sides Operated ●

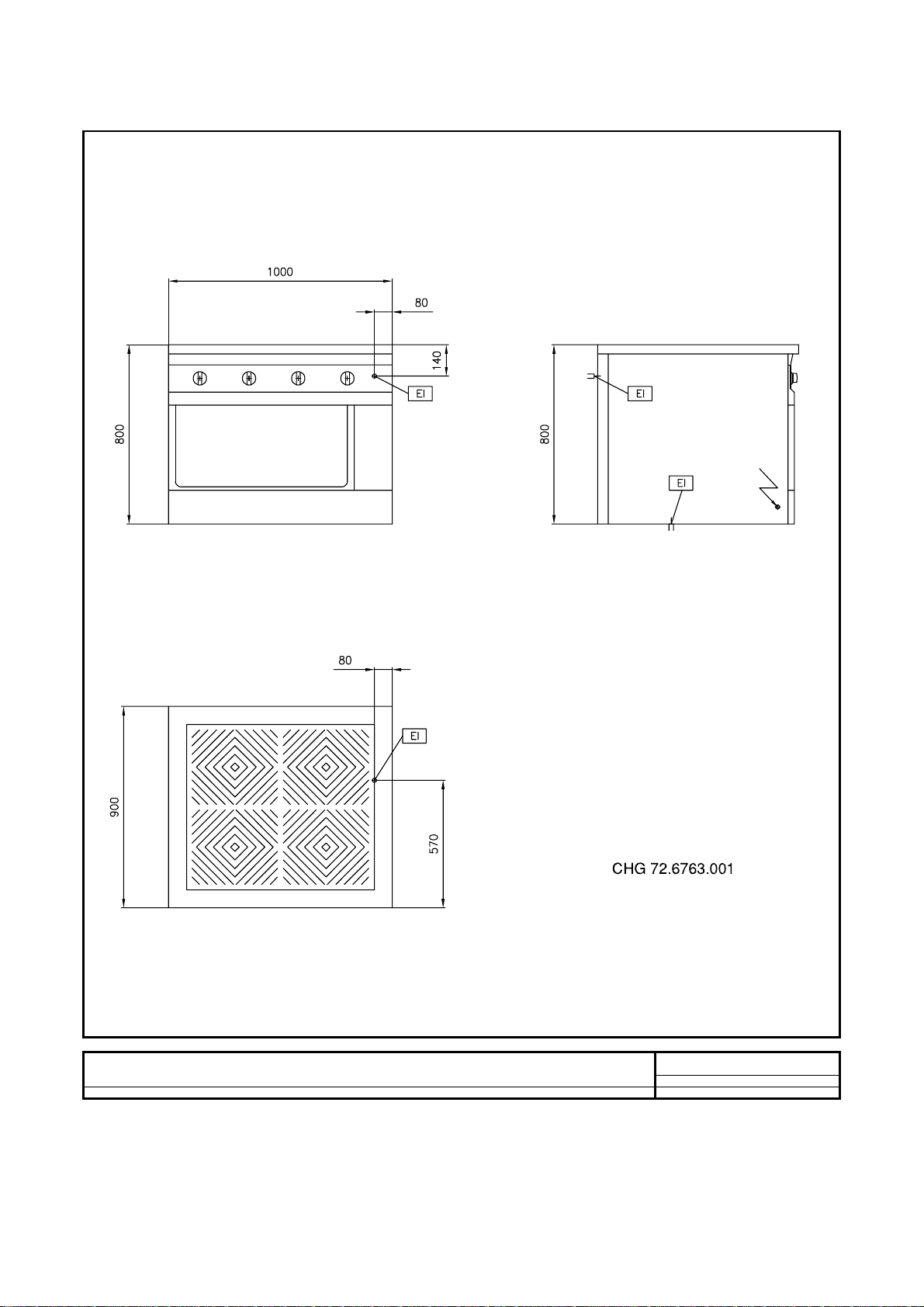

External dimensions - mm
width 1000 1000
depth 900 900
height 800 800
Storage cupboard - mm
width 770 770
depth 740 860
height 365 365
Back plates power - kW 7, 7 7, 7
Front plates power - kW 7, 7 7, 7
Power - kW
installed-electric 28 28
Net weight - kg. 230 230
Supply voltage 400 V, 3N, 50/60 400 V, 3N, 50/60

INCLUDED ACCESSORIES

SCRAPER FOR COOK TOPS 1 1

ACCESSORIES

BOTTOM PL+4 FEET 100MM-800&900MM-SPECIAL 911927 911927
C-BOARD WELDED 1000 MM 911743
FOLDING SHELF 300X900 MM 910803 910803
FOLDING SHELF 400X900 MM 910804 910804
ROLLING RACKS COMPL. F.COOKERS,1000-MAR. 910825 910825
S/S PLINTH 1000X900X100MM - AGAINST WALL 911175
S/S PLINTH 1000X900X100MM - FREESTANDING 911154 911154
SHELF FIXATION F.OPEN&HOT BASE 900,2-S 910773
SHELF FIXATION FOR OPEN&HOT BASE,1-S 910771
SHELF FOR OPEN & HOT BASE 900,W=1000,2-S 910782
SHELF FOR OPEN & HOT BASE,W=1000,1-S 910783

590751

feet, FS on floor

LI259391

590752

FS on concrete base, FS on

feet, FS on floor

CEDB0202011-07-20Subject to change without notice
