Electrolux LAVATHERM 57700 User Manual
LAVATHERM 57700
Condenser Dryer
Operating Instructions
Dear customer,
Pri
Please read these operating instructions through carefully, before using
the appliance.
Please ensure you fully understand the safety instructions on the first
pages of these operating instructions! Retain this instruction book for
future reference, and pass on to any future owners.
The warning triangle and/or the key words (
1.
Important!
or the correct functioning of the appliance. It is essential that this
information is observed.
This symbol guides you step by step when operating the appliance.
This symbol gives additional information and practical tips on using the
3.
appliance.
Tips and information about the economical and environmentally
2.
friendly use of the machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact
our Customer Care Department by letter or telephone:
), emphasize information which is important for your safety
Customer Care Department
AEG Domestic Appliances Limited
P.O. Box 47
Newbury
Berkshire RG14 5XL
Tel: 01635 572700
Fax: 01635 42970
Warning!, Caution!
,
nted on environmentally friendly paper ...
Whoever thinks ecologically also acts ecologically.
2
Content
Important Safety Information
General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Child Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Information
Disposal
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tumble Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Environmental protection tips
Description of the appliance
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

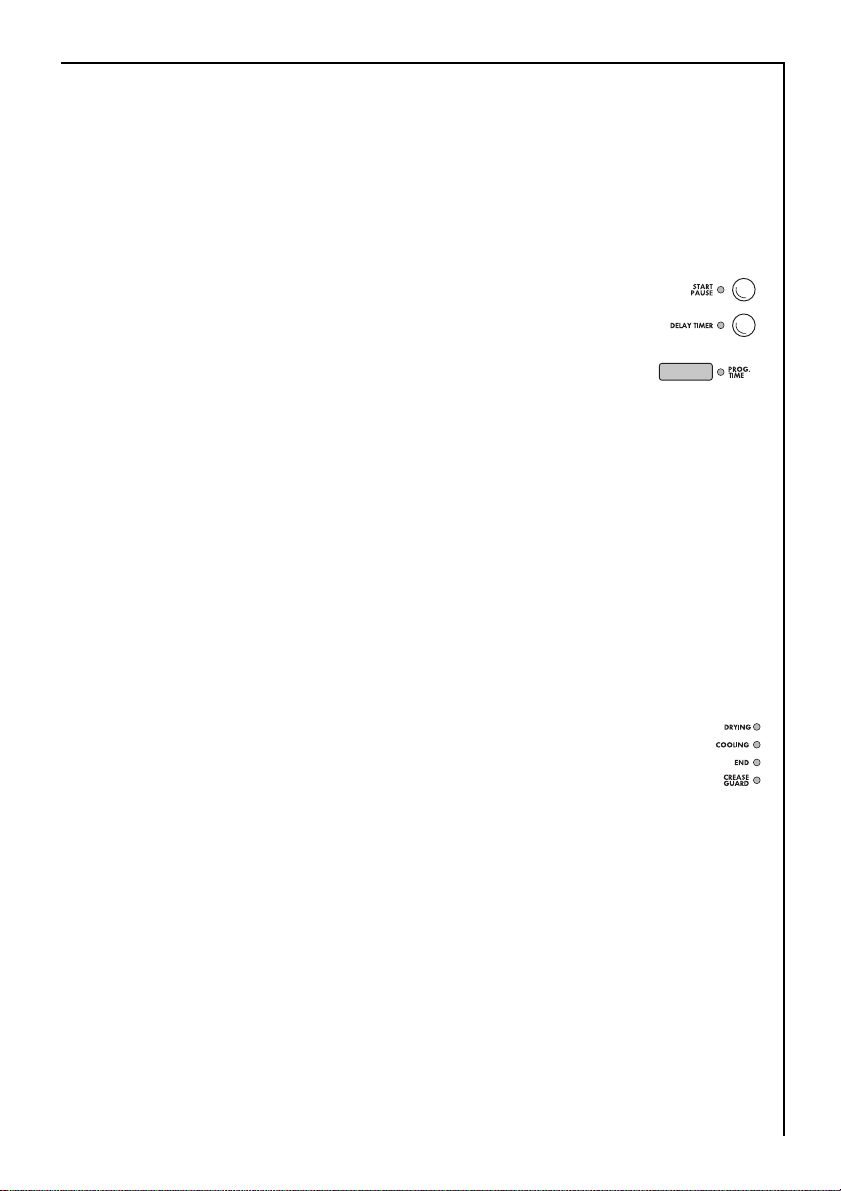

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

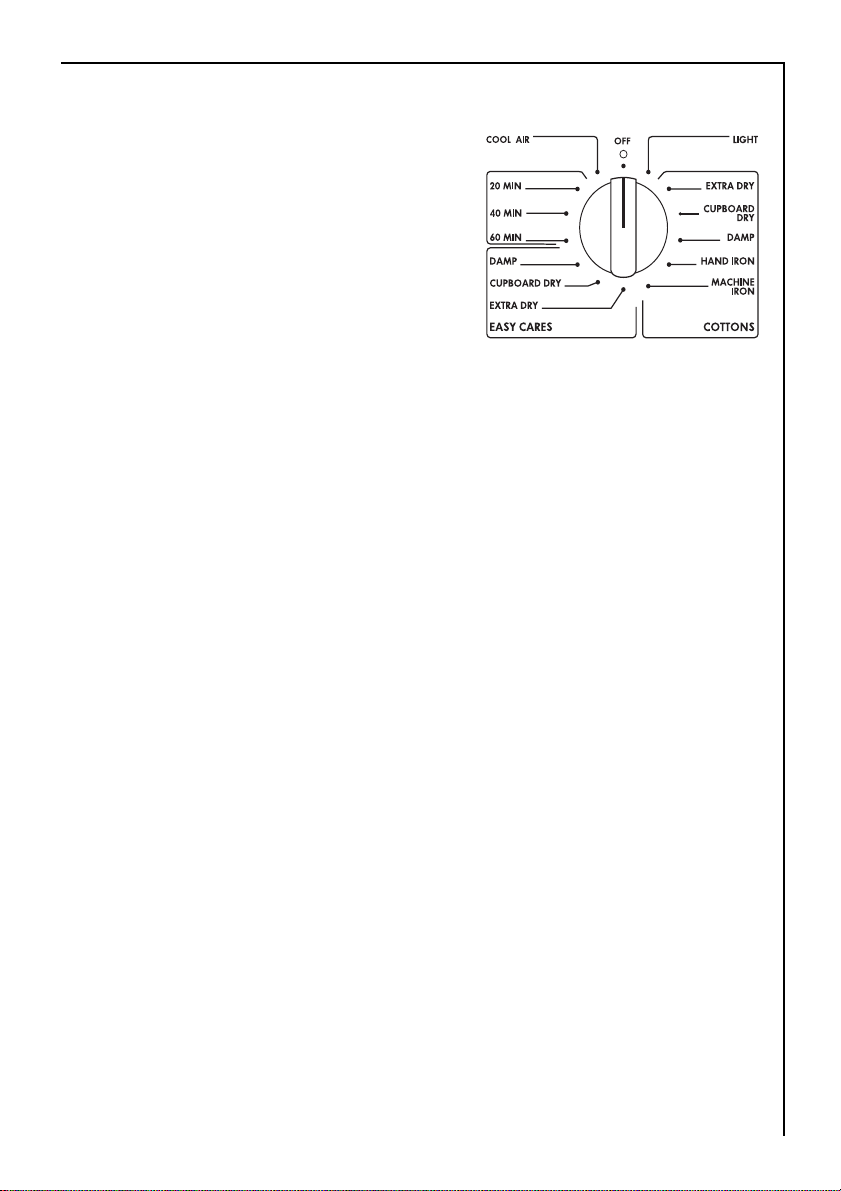

The program selector positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before using the appliance for the first time
Brief operating instructions
Drying
Prepare the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

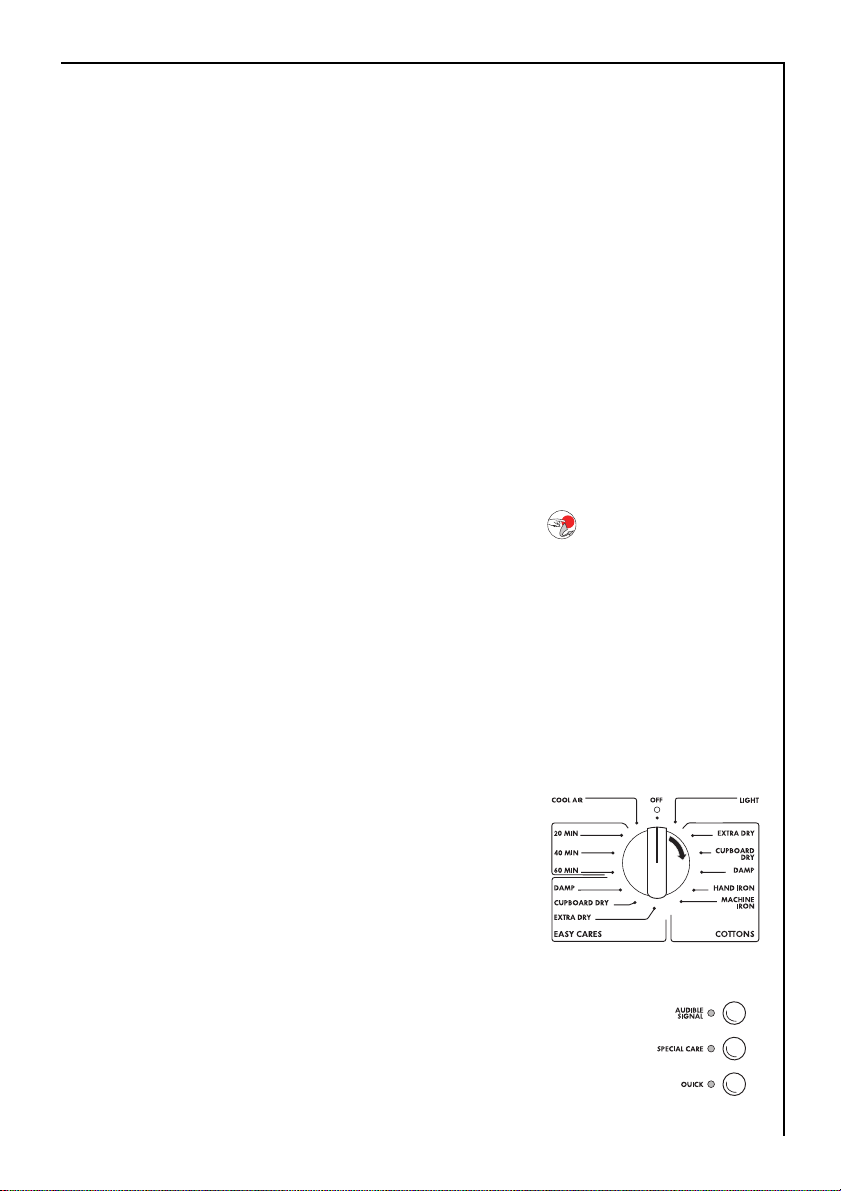

Select the drying program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start DELAY TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Start the drying program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Removing laundry or loading laundry when necessary . . . . . . . . . . . . . . . . . 18
End of the drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Removing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

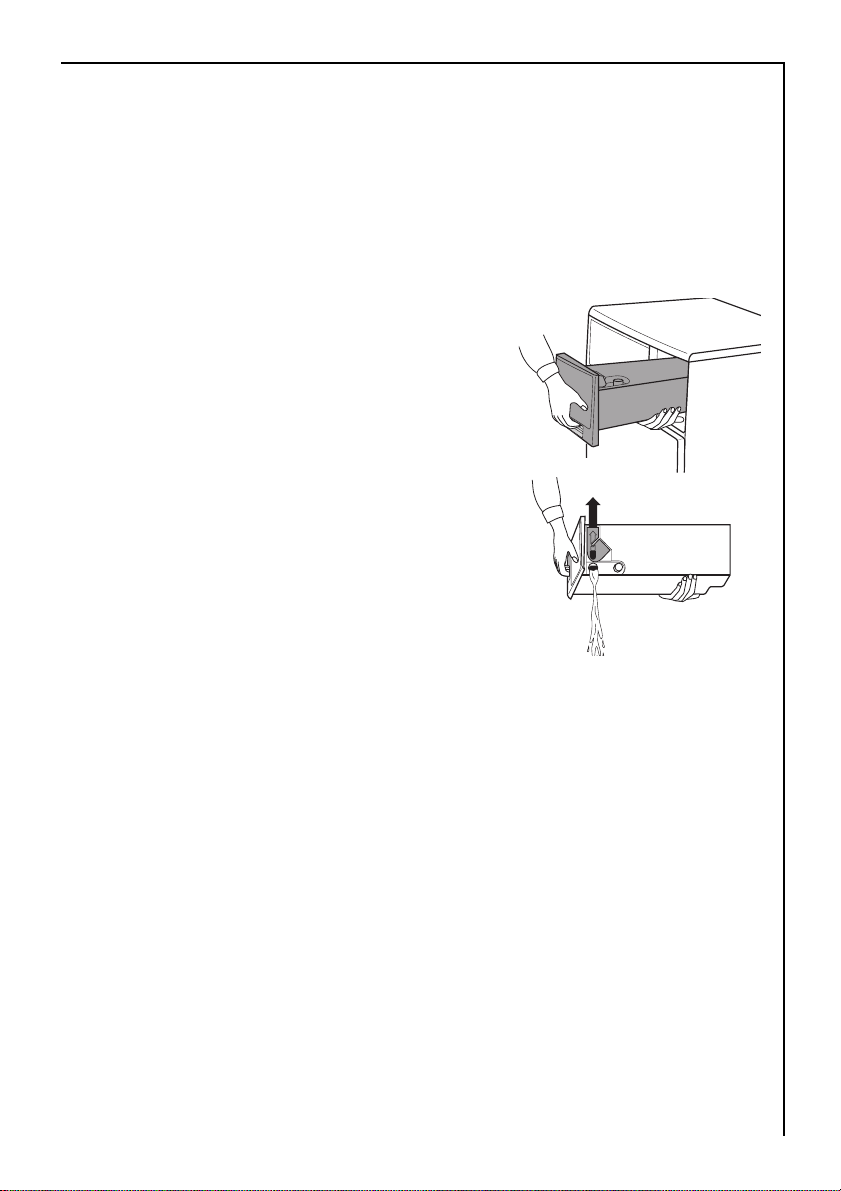

Empty the water reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

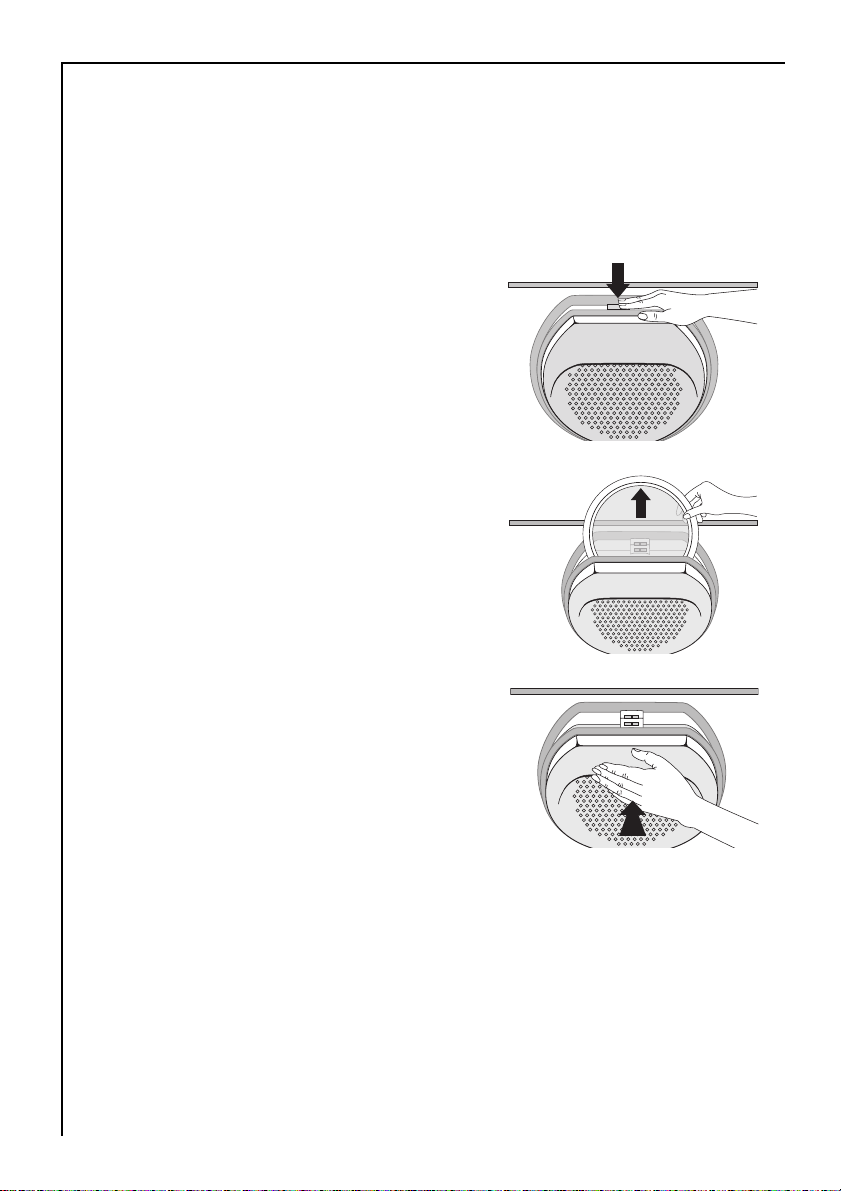

Clean the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Switch-off the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Program tables
A small glossary of textile information
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3
Content
Cleaning and maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the filter area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the panel and operating parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

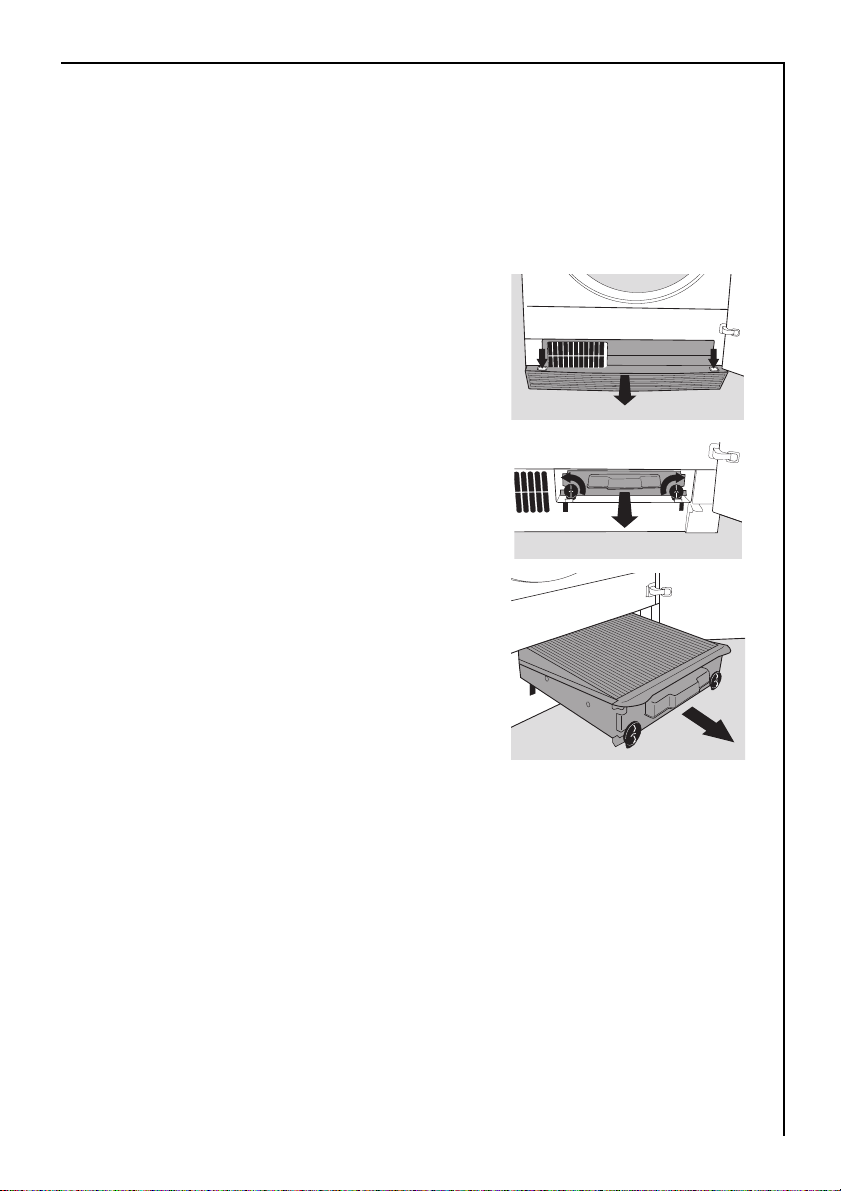

Cleaning the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Something not working?
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replace the interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Service & Spare Parts
Guarantee Conditions
For the installer - Safety information
Technical data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electrical Connection

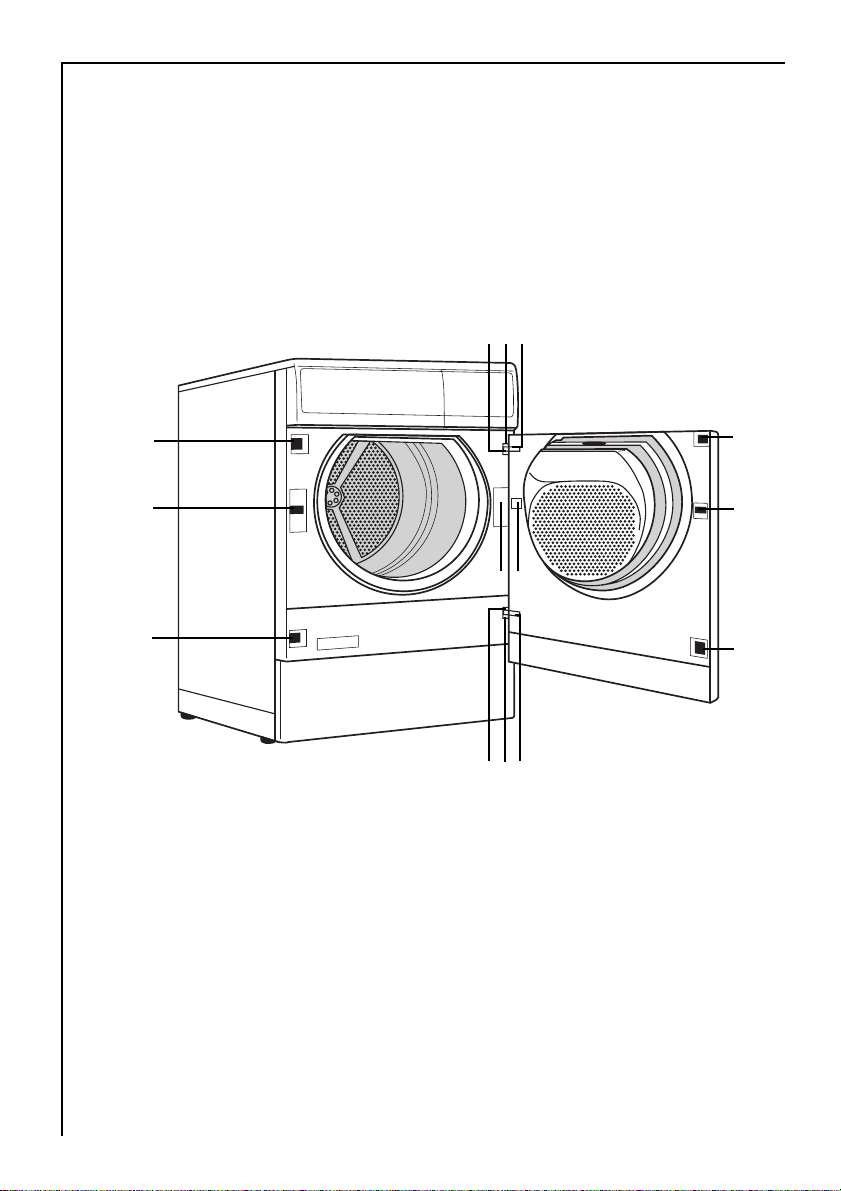

Door Reversal Instructions
Special accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Drainage kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Stacking kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
Important Safety Information
Your safety is of paramount importance, please ensure you read these
warnings before installing or using the appliance. If you are unsure
about any of the meanings of these warnings, contact the Customer
Care Department.
General Safety
• Any electrical work required to install this appliance should carried
out by a qualified electrician or competent person.
• Please follow the safety information in the installation section of this
instruction book.
• This appliance is designed to dry normal domestic laundry. If the
appliance is used for any other purpose or is incorrectly used, the
manufacturer accepts no liability for any damages which may result.
• Switch off the appliance and isolate from the mains supply before
carrying out any maintenance or cleaning work.
• Never operate the appliance if the mains cable is damaged or if the
control panel, work top or base area are damaged allowing internal
components to be accessible.
• Do not spray the tumble dryer with water.
• Do not dry textiles which have been treated with flammable cleaning
agents and solvents.
• Clothes or articles of laundry which are dripping wet should not be
placed in the dryer. Only load well-spun laundry.
• Laundry items containing sponge rubber or rubber-like materials
must be not be dried in the tumble dryer.
• If the drying cycle is interrupted, the laundry or drum may be hot.
• Do not use the tumble dryer without the bulb cover in position.
• Do not operate the appliance with a damaged filter or with no filter
at all.
• Do not overload the appliance.
• It is dangerous to alter the specifications or attempt to modify this
product in any way.
• Adaptors and extension cables must not be used. There is risk of overheating!
5
Important Safety Information
• Do not use the mains cable to pull the plug out of the socket.
• Repairs to the appliance should only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury
or serious malfunction. Contact your local AEG Service Force Centre
for repair.
• Washing that is in poor condition (heavily worn) and items with loose
fillings (cushions) that could break open must not be dried. There is a
risk of fire!
• Washing with rigid components (foot mats) will cover the air slots;
the slots will also be covered if the drum is overfilled. Observe the
maximum load of 5 kg. There is a risk of overheating which could
cause a fire!
• Only dry washing that does not contain any explosive objects (fire
lighters, spray cans). There is a risk of fire or an explosion!
Child Safety
• The appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the appliance.
• Pets and children have been known to climb into tumble dryers.
Please check the drum before use.
• Keep all packaging away from children.
• When disposing of the appliance, cut off the mains cable and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
Installation
• Check the appliance for transportation damage before installation.
• Any electrical work required to install this appliance should be car-
• Do not install the appliance on deep pile carpet.
• Ensure the appliance is level.
• If the tumble dryer is installed next to a fuel burning stove, a heat
6
ried out by a qualified electrician or competent person.
insulation non-flammable pad must be inserted between the fuel
burning stove and the tumble dryer; (dimensions 85 x 57.5 cm).
General Information
• To prevent creasing do not exceed the maximum load stated in the
program table.
• When using fabric conditioning sheets, we recommend the
conditioning sheet is pinned (using a safety pin) to an article of
laundry and placed in the tumble dryer.
• When using fabric conditioning sheets or drying starched washing in
the tumble dryer, it is important to clean the drum to prevent a build
up of any residues/deposits on the sensors. See maintenance and
cleaning section.
• Please ensure the appliance is easily accessible to an engineer after
installation.
7
Disposal
Packaging
• Dispose of the packaging material correctly. All packaging materials
are environmentally friendly and can be disposed of without any
danger to the environment.
• The external plastic covering and bags inside are made of Polyethylen
(marking >PE<).
• The padding is made of CFC free expanded polystyrene
(marking >PS<).
Tumble Dryer
When disposing of the tumble dryer.
• Cut off the mains cable and destroy the plug.
• Disable the door catch to prevent young children becoming trapped
inside.
• Use an authorised disposal site.
8
Environmental protection tips
• Your laundry will become light and soft in the laundry drier even without a soft rinsing agent.
• Loosen your laundry before loading it into the dryer. This helps to prevent lengthy running times and creasing. Ensure your laundry is well
spun.
In the following table we give an overview of specific electric consumption data depending on the spinning speed. This information is
valid for 5kg laundry dried with the program COTTONS CUPBOARD
DRY:
Pre-drying: Drying process:
Revolutions per
minute
800 3.5 70 130 3.5
1000 3.0 59 110 3.0
1200 2.7 53 105 2.7
1400 2.5 50 100 2.6
1600 2.4 47 95 2.5
Residual moisture
in Litres in %
Required time in
minutes
Power
consumption in
kWh
9
Environmental protection tips
• Observe the maximum load instructions. Whenever possible, dry full
loads.
• Choose the right drying program for the type and quantity of laundry.
The drier will then operate as economically as possible. Some typical
consumption values:
Drying program
COTTONS CUPBOARD DRY
COTTONS HAND IRON
EASY CARES CUPBOARD DRY
1)spun at 800 revolutions per minute
2)spun at 1000 revolutions per minute
1
1
2
Fill weight
in kg
5 130 3.5
5 100 2.8
2.5 55 1.3
Duration in
Minutes
consumption
If the amount of laundry is not enough for a particular degree of drying (e.g. HAND IRON), you should dry it in stages for best economy: Fill
the drier and select the program HAND IRON; after the end of this program take out your laundry for ironing. Finally dry the remaining laundry with the program CUPBOARD DRY.
• Only use the SPECIAL CARE button for loads up to 2.5kg!
• Clean the fluff filter after every drying program!
• Empty the water reservoir after every drying program!
Caution!
with foodstuffs.
The condensed water is not suitable for drinking or for use
You can use the collected condensed water as distilled water in the
household, but first pour it through a paper filter bag.
• Clean the condenser regularly. The drier will operate more economi-
cally if you clean the condenser regularly.
Power
in kWh
10
Description of the appliance
Front view
Interior Light

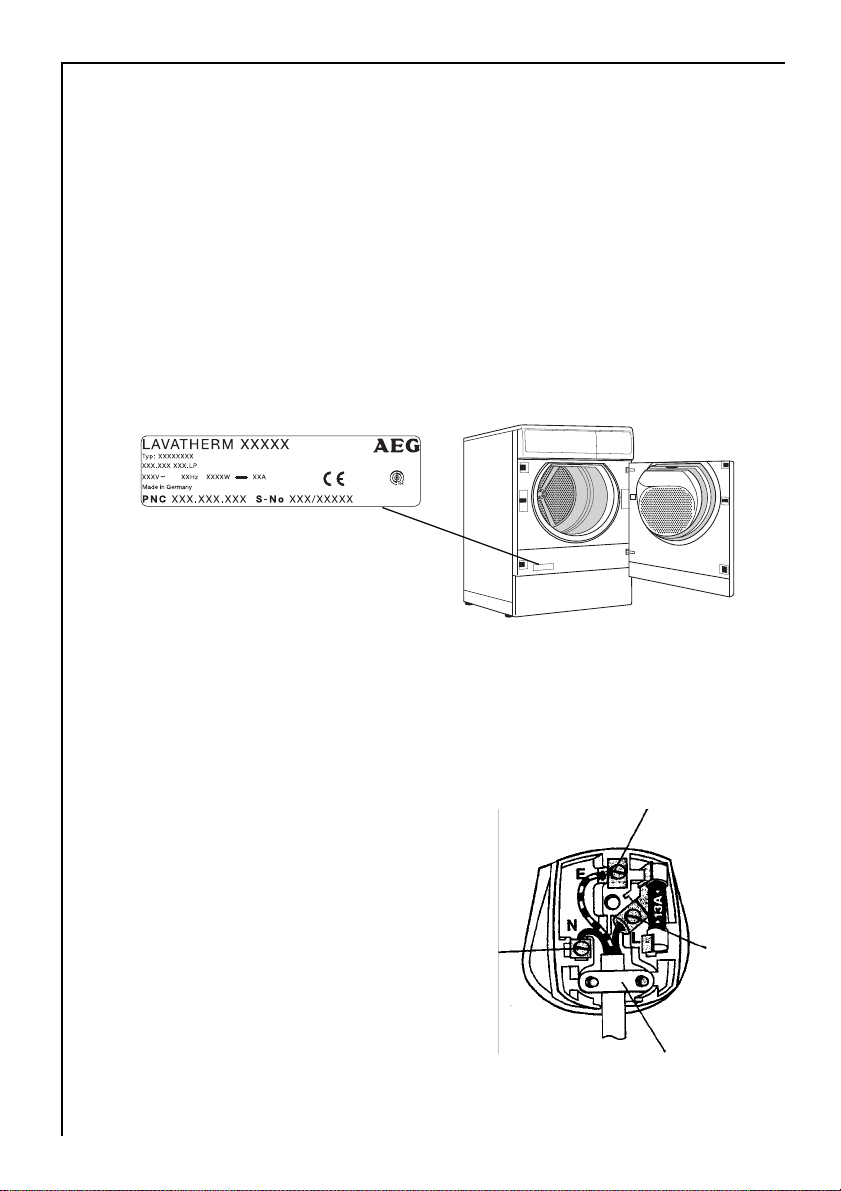

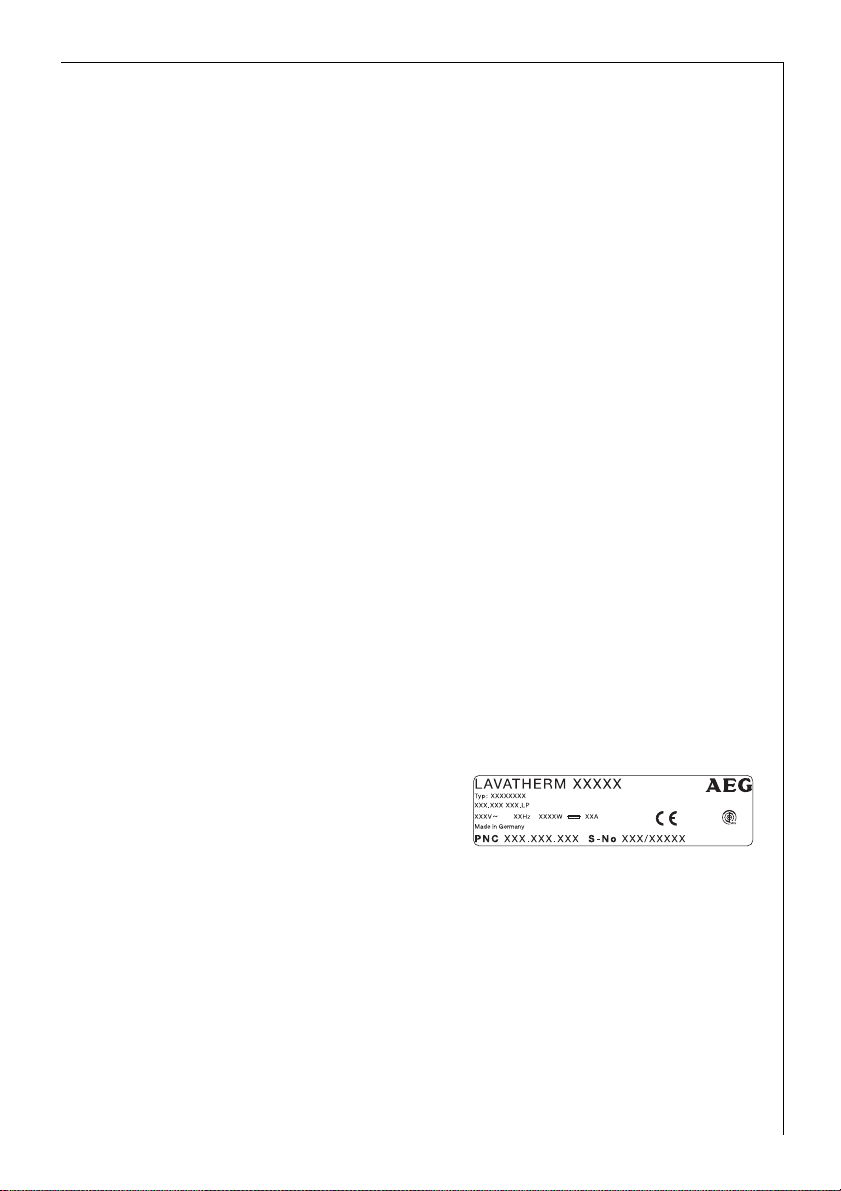

Rating plate
Vent
Control panel
Water Reservoir
with handle flap

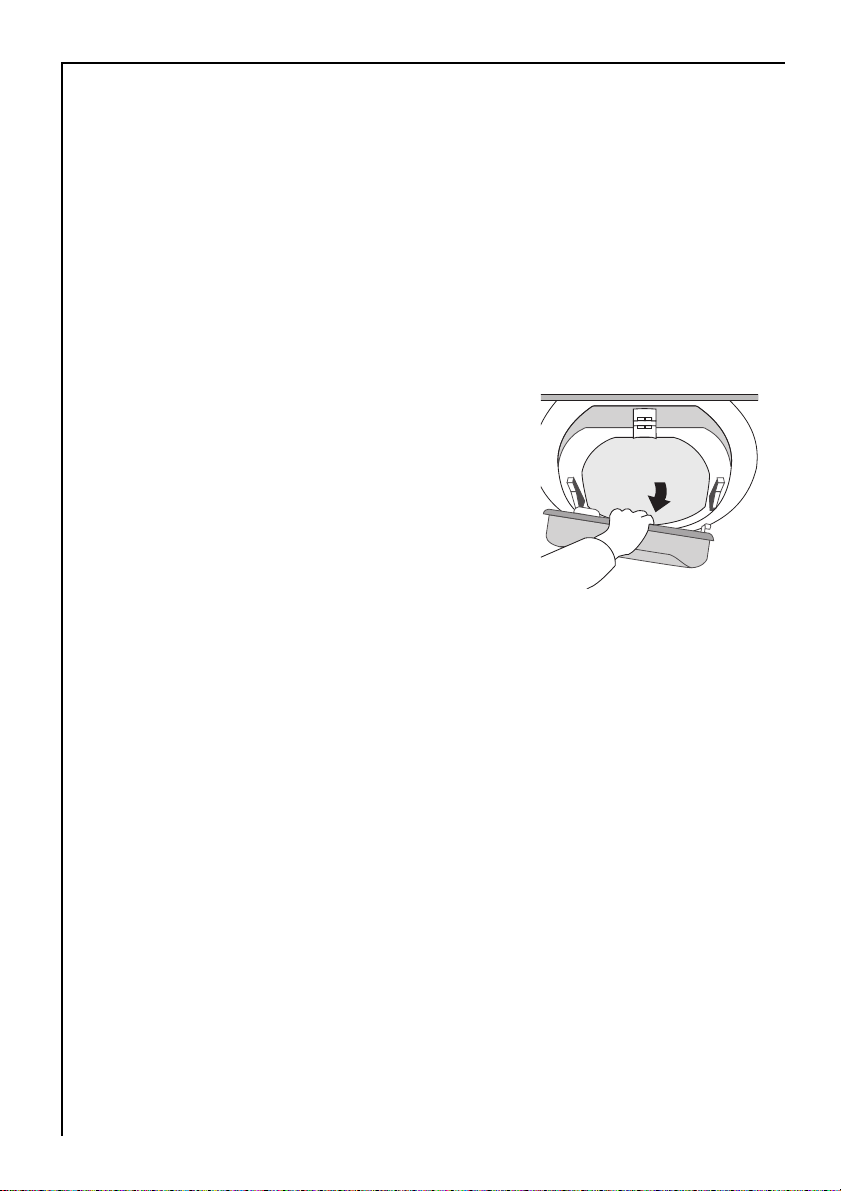

Fluff filter
Feet
(all height-adjustable)
Condenser Unit
behind
Removable Plinth
Reversible door
11
Description of the appliance
Control panel
A
B
A Program selector: To select the drying program
B Drying degree indicator: Shows the achieved extent of drying; this
enables you to take-out individual pieces of laundry at the right time
during the drying process.
C Buttons and display block
– AUDIBLE SIGNAL button: When switched-on, an audible signal is
sounded at the end of the drying program; then take-out the laundry
– SPECIAL CARE button: For sensitive fabrics
– QUICK button: For faster drying
– DOOR button: For opening the fill-in door when the appliance is
switched-on.
– START/PAUSE button: To start or interrupt the program.
– DELAY TIMER button: For pre-setting the start time in the range from
1 to 19 hours; indication in the PROG. TIME display field
– Multi-display/PROG. TIME display: Indicates the probable program
duration or the time left of the currently set drying program; with
postponed start time (DELAY TIMER button) indication of the number
of hours left until the drying program starts; an error code is
displayed in the case of a disturbance (C and a number).
D Program run display: In each case the display for the current phase of
the drying process is lit.
E Instructions for the user:
– CONDENSER: Clean the condenser!
– EMPTY WATER: Empty the condensate container!
– CLEAN FILTER display: Clean the fluff filter!
C
D
E
12
Loading...
