Electrolux LAVALOGIC 1620 User Manual

LAVAMAT

LAVALOGIC 1620

Washing Machine

User information

Dear Customer,

Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appli­ance.

The following symbols are used in the text:

1 Safety instructions

Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.

3 Useful tips and hints

2 Environmental information

2

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Switching on the appliance for the first time – setting the language 7

Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control panel with display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Main control features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Programme overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Carrying out a wash programme prior to first use. . . . . . . . . . . . . . . . . . . . . 14

Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Running a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switching on the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Selecting options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TIME SAVING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DELAY START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SENSITIVE/STAIN/PRE WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Opening the door/Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CURRENT LOAD/DETERGENT display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Starting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Interrupting a programme/Adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Washing cycle complete/Removing the washing . . . . . . . . . . . . . . . . . . . . . . 21

Setting extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Saving a programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Clearing a stored programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

RINSE+, GENTLE SPIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3

Programme protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Remedying small malfunctions yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

If the wash result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Installation and connection instructions. . . . . . . . . . . . . . . . . 36

Safety information concerning installation . . . . . . . . . . . . . . . . . . . . . . . . 36

Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Transporting the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Removing the transit packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Connecting the appliance to the water supply . . . . . . . . . . . . . . . . . . . . . 41

Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Customer Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4

Operating Instructions

1 Safety

Prior to using the appliance for the first time

• Follow the “Installation and connection instructions”.

• If the appliance is delivered in the winter months when there are mi-

nus temperatures: store the washing machine at room temperature
for 24 hours before using for the first time.

Correct use

• The washing machine is only designed for the washing of normal do­mestic laundry at home.

• Additions or modifications to the washing machine are not permit­ted.

• Only use detergents/conditioners that are suitable for use in domestic
washing machines.

• The washing must not contain any flammable solvent. The risk of ex­plosion exists.

• Do not use the washing machine for dry cleaning.

• Dyes/colour removers may only be used in the washing machine, if

the manufacturer of these products expressly permits this. We cannot
accept liability for any damage arising.

Child safety

• Keep packaging away from children. There is a risk of suffocation.

• Children often do not recognise the hazards associated with electrical

appliances. Don’t allow children to use the washing machine unsu­pervised.

• Make sure that children and pets don’t climb into the drum of the
washing machine. The risk of death exists.

5

General safety

• Repairs to the washing machine may only be carried out by qualified/
authorised service engineers.

• Never use the appliance when the electrical cable is damaged or the
control panel, worktop or plinth area are damaged to such an extent
that the inside of the appliance is openly accessible.

• Switch off the washing machine prior to cleaning it and carrying out
maintenance. In addition, remove the power plug from the power
point or – if the appliance has been hard-wired – switch off the cut­out in the fuse box or completely remove the fuse.

• If operation is stopped, disconnect the appliance from the mains sup­ply and turn off the tap.

• Never remove the power plug from the power point by pulling on the
cable. Always pull the plug.

• Multiway-plugs, connectors and extension cables must not be used.

Resulting overheating may constitute a fire hazard.

• Never wash the washing machine down with a water jet. Danger of
electric shock.

• When using wash programmes with high temperatures the glass in
the door will become hot. Do not touch it!

• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.

• Small animals can nibble on electrical cables and water hoses. This
can constitute a risk of electrocution and water damage. Keep small
animals away from the washing machine.

6

Switching on the appliance for the first time
– setting the language

When switching on the appliance for the first time you should be sure
to set the language in which you want the indicators in the display to
appear.

1. Press the control knob.
The appliance is now

switched on. The languages
that can be chosen will ap­pear in the display. In the
factory the language is pre­set to German.

Important: If the display is not showing any languages, the appliance
has been switched on before. If this happens, please see the section
“Setting extra options: Language”, if you want to change the language
setting.

2. Use the control knob to
highlight the desired lan­guage.

3. Press the SELECT key.
From now on all indicators in

the display will appear in this
language.

4. Press the control knob to
switch off the appliance.

EXTRAS

SPRACHE

ä

ANWÄHLEN

ZURÜCK

EXTRAS

LANGUAGE

SELECT

BACK

EXTRAS

LANGUAGE

SELECT

BACK

§

ENGLISH§

DEUTSCH)

ITALIANO§

FRANÇAIS§

ä

§§
ENGLISH!)
DEUTSCH§§

ITALIANO§§

FRANÇAIS§§

ä

§§

ENGLISH!)

DEUTSCH§§

ITALIANO§§

FRANÇAIS§§

7

Description of the appliance

Control panel with display

Drawer for
detergent and
conditioner

Three screw feet
(height adjusta­ble);
rear left:
Automatic foot

Control panel with display

Buttons

LINEN/EASY-C. 60°C

1600 RPM 10:17-12:16

START

60°

1600

OPTIONS WOOLLENS

î

LINEN/EASY-C.)
ENERGY SAVING

COTTONS

DELICATES

Rating plate
(behind door)

Door

Drain pump
cover

Control knob

Display

Indicators in the display

Information panel

shows programme,
temperature and
spin speed

Symbol row

shows options
selected and extras

8

1600 RPM 10:17-12:16

START

60°

1600

OPTIONS

LINEN/EASY-C. 60°C

LINEN/EASY-C.)
ENERGY SAVING

COTTONS

DELICATES

WOOLLENS

î

Current time –

end time of selected

programme

Navigation

display

Selection

Programme,

options,

extras

Main control features

Control knob

Switching the appliance on and off

Press the control knob to
switch the appliance on and
off.

Highlighting

You can highlight the entries
on the right of the display by
turning the control knob.

Cancelling settings

If you would like to cancel settings that have been made by mistake,
switch the appliance off and on again using the control knob. You are
now able to re-set the programme.

WOOLLENS 40°C

1200 RPM 10:17-10:54

START

40°

1200

OPTIONS WOOLLENS )

î

LINEN/EASY-C.

ENERGY SAVING

COTTONS

DELICATES

Keys

Using the keys you can:
– activate an entry on the

left-hand side of the dis­play, e.g. START

– change the temperature

and the spin speed

– select OPTIONS and EX-

TRAS.

LINEN/EASY-C. 60°C

1400 RPM 10:17-12:16

START

60°

1400

OPTIONS WOOLLENS

î

LINEN/EASY-C.)
ENERGY SAVING

COTTONS

DELICATES

3 You can set one or more options for each programme.

The basic rule: First set the programme, then set the option.

3 The programmes and functions are divided into different levels and

pages. In the navigation display you can see the level and the page you
are currently on (e.g. ì: level 3, page 1 of 2).

9

Programme overview

Programme

max. load

(dry washing)

1)

LINEN/EASY-CARES
60, 50, 40, 30, 20

7kg

or

3,5kg

TIME SAVING

QUICK

2)

•

•2)• • •

Options Spin speed

DELAY START

SENSITIVE

STAIN

PRE WASH

1600

1400

VERY QUICK

3)

• • • • • •

1200

1000/800/600/400

RINSE HOLD

ENERGY SAVING

4)

COTTONS 95 7kg1)•

DELICATES
40, 30, 20

WOOL (Handwash)
40, 30, COLD

1)

7kg

2)

• • • • • • • • •

•2)• • • • • • • • •

3,5kg • • •3)• • • •

2kg • • • •

SILK (Handwash) 30 1kg • • • •

LINGERIE 40 1kg • • • •

40 -60 MIX 7kg

EASY IRON
60, 50, 40, 30, 20

1)

• • • • • • • • •

1kg • • • •3)• • • •

REFRESH 30 3,5kg • • • •

FASHION 40 3,5kg • • • • • • •

1) In the case of excessively large volume washing of a fleecy nature, e.g. terry towelling, flannelette, it may be
that the drum is already full before the maximum load is reached.

2) Recommended load for short progammes is 3,5kg; full loading is possible however with somewhat reduced
cleaning results.

3) STAIN can only be selected with wash temperatures of 40°C and above, as stain treatment products are only
effective at higher temperatures.

4) Programme settings for tests in accordance with or support of EN 60 456 and IEC 60 456 are described in
the section “Consumption values”.

10

Use/Features

Care-

symbols

1)

General programme for coloured and easy-care items made of cotton/linen as
well as for easy-care mixed fibres and synthetics. The wash programme is adjust­ed according to the different fabric types and load sizes. If loading only with
easy-care washing, do not load more than 3,5 kg.

Energy-saving and water-saving programme which washes at 60 °C for lightly to
normally soiled whites/coloureds made of cotton/linen.

Programme for normally to heavily soiled whites made of cotton/linen.

Gentle programme for delicate fabrics such as bonded fabrics, microfibres, syn­thetics, net curtains (max. load for net curtains 20 to 25 m
also suitable for fabrics with climate membrane, e.g. outdoor clothing.

Particularly delicate programme for machine washable and hand washable wool
or wool mixtures.

Specially gentle programme for machine and hand-washable silk. Wash very del­icate items individually.

Gentle programme for fine, sensitive fabrics.
IMPORTANT: Place lingerie containing wires in a washing net or bag.

Programme for coloureds, which are labelled for different wash temperatures.
Items, which according to the care symbols are normally to be washed separately
at 40°C or at 60°C, can be washed together in this programme. Achieves the
washing results of a normal 60° programme.

Special programme for easy-care fabrics, which afterwards are to be ironed only
lightly or not at all.

Special programme, approx. 20 minutes long, for quickly washing through slight­ly dirty or new clothes.

Gentle special programme for fabrics such as viscose, modal, cupro, lyocell, with
a more gentle machine action than in the Delicates programme and a more in­tensive cleaning action than the Handwash programme.

1) The figures in the care symbols indicate the maximum temperatures.

2

). With RINSE HOLD

I K N
J

M

M O

O
I K

Q L H

Q L H

K L

J M

K N

J M O
I K N

K L

11

Options Spin speed

TIME SAVING

Programme

max. load

(dry washing)

QUICK

SHORT SPIN 3,5kg • • •

SPIN 7kg • • • • •

STARCH 7kg • • • • • •

DRAIN •

VERY QUICK

DELAY START

SENSITIVE

STAIN

PRE WASH

1600

1400

1200

1000/800/600/400

RINSE HOLD

12

Use/Features

Care-

symbols

1)

Drain and short spin after a rinse hold, or separate short spin of handwashed del­icates, woollens, silk.

Drain and spin, e.g. after a rinse hold, or separate spin for hand-washed cottons/
linens and easy-cares.

Separate starching, conditioning, stiffening, treating of damp washing.

Draining of the water after a rinse hold.

1) The figures in the care symbols indicate the maximum temperatures.

I K N
Q L

H

J M O

J M O
I K N

13

Before the first wash

Setting the time

So that the current time and the end of the programme are correctly
displayed, please check the display and set the current time, if neces­sary. (See “Setting extra options: Timer”.)

Carrying out a wash programme prior to first use

Before doing your first wash, run a washing cycle without any washing
in the machine (programme LINEN/EASY-C. 60°, option TIME SAVING/
VERY QUICK, use approx. 1/4 measuring cup of washing powder).
This will remove any residues from the drum and water container which
have been left as a result of the production process.

Preparing and sorting washing

Preparing washing

• Empty the pockets. Remove foreign bodies (e.g. coins, paper clips,
nails, etc.).

• Do up zips, button up covers to prevent damage to washing.

• Remove the runners from net curtains or cover them with a net or a

bag.

• Wash delicate and small items in a net/pillowcase, e. g. net curtains,
tights, small socks, handkerchiefs, bras.

Important: Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appli­ance.

14

Sorting washing

• By colour: Wash white and coloured washing separately. Washing can
run.

• By temperature, type of washing and care symbol.

Important: Do not wash fabrics with the G care symbol (= do not
wash!) in the washing machine.

Running a wash cycle

Switching on the appliance

Press the control knob.
The appliance is now
switched on.

3 Before switching the appli-

ance on, make sure that the
drum is empty. If you do not,
the washing will subse­quently not be registered properly by the load sensor.

Setting a programme

5. Highlight the desired pro-

gramme, e.g. DELICATES.

Changing the temperature

6. Press the temperature key

repeatedly, until the desired
temperature appears, e.g.
30°C. Please note: a temper­ature cannot be increased
for fabric type selected. Only
decreased.

DELICATES 40°C

1200 RPM 11:25-12:36

START

40°

1200

OPTIONS WOOLLENS

DELICATES 30°C

1200 RPM 11:25-12:36

START

30°

1200

OPTIONS WOOLLENS

LINEN/EASY-C.

ENERGY SAVING

COTTONS

DELICATES)

LINEN/EASY-C.

ENERGY SAVING

COTTONS

DELICATES)

î

î

Changing the spin speed

7. Press the key for the spin

speed repeatedly until the
desired spin speed appears
e.g. 1000 or the RINSE HOLD.
Please note: the spin speed
cannot be increased for a
fabric type selected. Only de­creased.

DELICATES 30°C

1000 RPM 11:25-12:36

START

30°

1000

OPTIONS WOOLLENS

î

LINEN/EASY-C.

ENERGY SAVING

COTTONS

DELICATES)

.

15

3 RINSE HOLD means: the washing is left to soak in the last rinse water

and is not spun.
If required, set options.

Selecting options

You can select different options on top of the programme that has
been selected. Only options that can be combined with the programme
that has already been selected will be offered.

TIME SAVING Shortened wash programme for more lightly soiled

washing.

DELAY START The start of a programme can be delayed in steps

of 30 minutes to a max. of 20 hours.

SENSITIVE Enhanced rinse action through an additional rinse

cycle together with improved fabric care (de­creased drum movement). This is ideal when fre­quent washes are necessary, for example in cases
of highly sensitive skin. An additional rinse cycle
can also be permanently set (see section “Setting
extra options: Rinse+”).

STAIN For heavily soiled or stained washing. In-wash

stain treatments are washed in at the optimum
time as the programme progresses.

PRE WASH A warm pre-wash cycle prior to the main wash cy-

cle, which follows automatically.

16

TIME SAVING

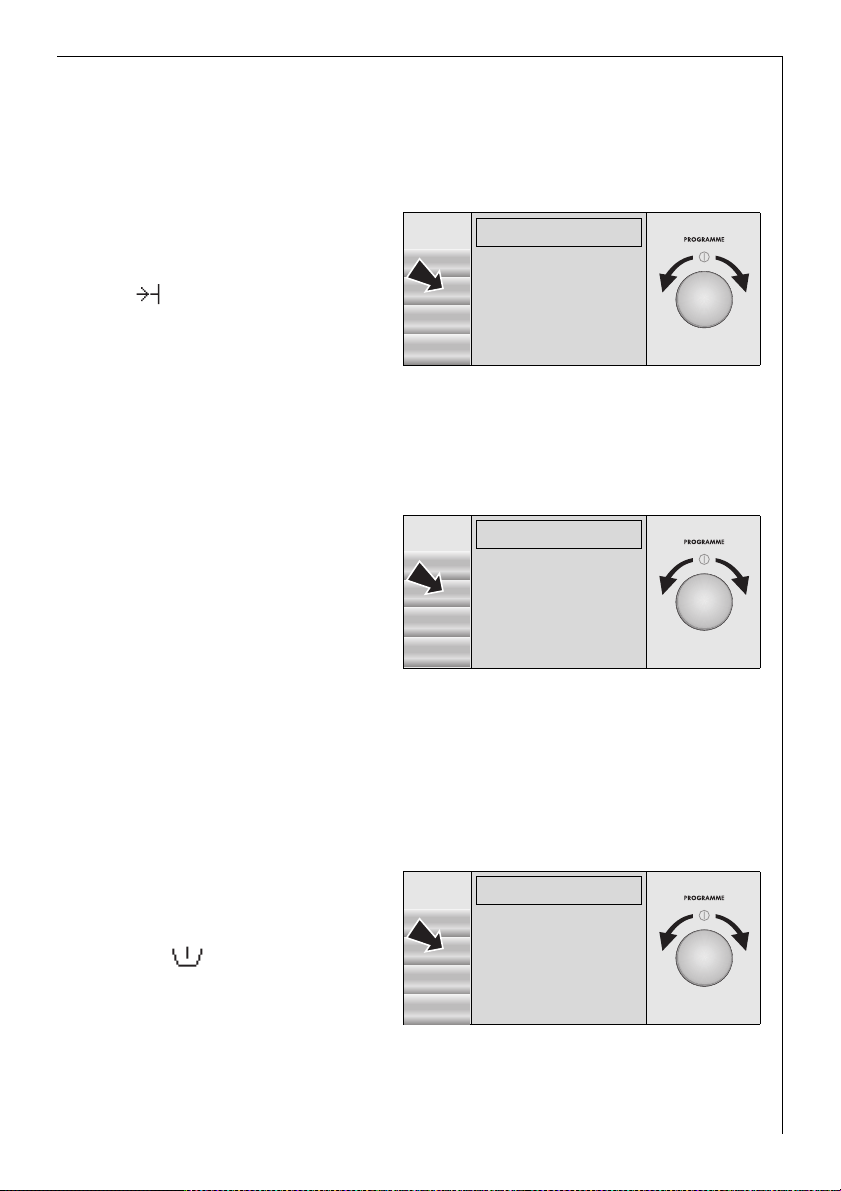

1. Press the OPTIONS key.

2. Use the control knob to highlight TIME SAVING.

3. Press the SELECT key.

4. Use the control knob to

highlight VERY QUICK.

5. Press the SELECT key. The
symbol appears in the

display.

DELAY START

1. Press the OPTIONS key.

2. Use the control knob to highlight DELAY START.

3. Press the SELECT key.

4. Use the control knob to

highlight the time at which
the programme is to end.

5. Press the SELECT key. The

programme end time will
change in the information
panel.

6. Press the START key.

DELICATES 30°C

1000 RPM 11:25-12:36

è

SELECT

BACK

DELICATES 30°C

1000 RPM 11:25-14:06

SELECT

BACK

TIME SAVING¶¶¶¶

NORMAL!¶

VERY QUICK¶¶)

è

END OF PROGRAMME

14:06 H:MIN (

Cancelling DELAY START: Press the START key again.
The wash programme will start immediately.

SENSITIVE/STAIN/PRE WASH

1. Press the OPTIONS key.

2. Use the control knob to

highlight PRE WASH.

3. Press the SELECT key.

The symbol appears in
the display.

DELICATES 40°C

1000 RPM 11:25-12:36

START

SELECT

BACK

EXTRAS

TIME SAVING

DELAY START

STAIN

PRE WASH(

ç

17

Opening the door/Loading the washing

1. To open the door: carefully pull the handle on the door.

2. Unfold the washing and load it

loosely into the machine. Mix large
and small items.
Important: Do not get any washing
caught between the door and the
rubber seal.

3. Push the door firmly shut.

CURRENT LOAD/DETERGENT display

3 If settings are not undertak-

en for several seconds during
the programme setting proc­ess or when loading with
laundry, the following indi­cators appear on the display
when the machine door is
open:

– the maximum permissible loading for the programme marked,
– the actual loading. This is also displayed by the bars (loads of less

than 0.5kg are not displayed),

– and washing agent measurement, with reference to the volume of

laundry, as recommended by the washing agent manufacturer.

If too much laundry has been loaded into the machine, the following
indicator appears in the display OVERLOADING. Please remove the rele­vant amount of laundry in such cases.

Press any button or turn any knob to undertake more programme
settings.

DELICATES 30°C

1000 RPM 11:25-12:36

##################======]
MAXIMUM LOAD 3,5 KG
CURR. LOAD¶¶¶¶¶ ¶¶2 KG
DETERGENT ¶¶¶¶¶¶¶¶¶ 80 %

§

3 If the laundry is removed again before the programme starts, the CURR.

LOAD display may not change back to 0. If this occurs, please turn the
machine off and switch it back on again after approx. 3 seconds. Reset
the programme and refill machine with laundry.

The CURR. LOAD display goes out if the machine is closed.

18

Adding detergent/conditioner

Important: Only use detergents/conditioners that are suitable for use

in domestic washing machines.
Add detergent/conditioner in accordance with the detergent/condi-

tioner manufacturer’s instructions. Observe instructions on the packag­ing.

The amount of detergent used depends on:

– the washing’s degree of soiling,
– the load size
– the hardness of the tap water.

Water softener should be used from water hardness range 2 (=medi­um). The amount of detergent used can then always be that as for
hardness range 1 (=soft). Your local water company will provide you
with information about water hardness in your area.

The suggested dosage in the display may therefore just be a guideline.

1. Pull out the detergent drawer as far as it will go.

2. Add the detergent/conditioner.

3. Push the detergent drawer in fully.

Washing powder/tablets
for the main wash cycle

Softener/
Wash-care products to
preserve the shape of
garments/
Starch

Stain removal agent/
stain removal tablets

Washing powder/
tablets for the pre-wash
cycle or water softener

Washing powder/tablets for the main wash cycle
If you are using water softener and require the right compartment for

detergent for the pre-wash cycle, add the water softener on top of the
detergent for the main wash cycle in the left compartment.

Softener, wash-care products to preserve the shape of garments,
starch

Fill the compartment to no more than the MAX indicator. Add water to
thick liquid concentrates in accordance with the manufacturer’s in­structions before using them. Dissolve powder starches.

If you are using liquid detergent:
Add liquid detergent using the dosage containers provided by the de­tergent manufacturer.

19

Starting a programme

1. Check that the water tap is

open.

2. Press the START key. The
wash cycle is started.

DELICATES 30°C

1000 RPM 11:25-12:36

START

30°

1000

OPTIONS WOOLLENS

LINEN/EASY-C.

ENERGY SAVING

COTTONS

DELICATES)

Programme progress

While the programme is
running, the display shows
among other things:
– each stage of the pro-

gramme as it progresses,
e.g. MAIN WASH,

– a bar showing the progress

of the programme,

– the expected residual moisture in the washing at the end of the pro-

gramme.

DELICATES 30°C

1000 RPM 11:25-12:36

PAUSE

###############=========]

1000

§

MAIN WASH

MOISTURE 50 %

Interrupting a programme/Adding washing

î

Interrupting a programme

• The wash programme can be temporarily interrupted at any time by

pressing the PAUSE key. It is then re-started by pressing the key
again.

• To cancel a programme before it has finished, switch off the appli-

ance (press the control knob).

Adding washing

The padlock symbol in the display indicates whether washing can still
be added after the programme has started:

It is not possible to add washing (Door is locked because of high
water level or high temperature).

It is possible to add washing.

1. Press the PAUSE key. The symbol appears in the display.

2. Open the door. Be cautious that any water in the drum may be hot and

there is a risk of scalding.

3. Add washing, close the door again.

4. Press the START key.

20

Washing cycle complete/Removing the washing

At the end of the programme PLEASE TAKE OUT THE CLOTHES appears
in the display. As soon as the

§ symbol appears, the door can be

opened.

1. Open the door using the handle.

2. Remove the washing.

3. Close the water tap.

4. Switch off the appliance.

If Rinse Hold has been selected:

1. Press the START key.

DELICATES 30°C

RINSE HOLD 11:28-11:28
START

######################

RINSE H.

§

RINSE HOLD

The display automatically
changes to the first pro­gramme page. Depending
upon the programme that
has been running either SPIN
or SHORT SPIN is highlight­ed.

If spinning or draining is required:
Use the control knob to
highlight either

– SPIN or
– DRAIN.

2. Reduce the spin speed, if
necessary. The spin speed

SHORT SPIN

1200 RPM 12:28-12:34

START

1200

OPTIONS SPIN

1200 RPM 11:28-11:39

START

1200

OPTIONS DRAIN

SPIN

ú

EASY IRON

REFRESH

FASHION

SHORT SPIN)

ú

FASHION

SHORT SPIN

SPIN)

STARCH

cannot be increased. This
protects the fabric.

3. Press the START key.
The washing is spun or the water is drained.

3 If OVERDOSING is shown in the display at the end of a wash cycle, too

much detergent was used in the completed wash programme. Please
take note of the dosage instructions provided by the detergent manu­facturer and the amount of washing loaded the next time you wash.

21

Setting extra options

Independent of any programme you can set different basic settings.
These basic settings will permanently remain active until they are dese­lected again.

MEMORY
1, 2, 3, 4

RINSE+ Additional rinse cycle, only effective with the pro-

GENTLE SPIN The washing does not cling to the side of the drum as

LANGUAGE To set the language in which the indicators are to ap-

TIMER To set the current time.
VOLUME You will hear an acoustic signal when you press the

Frequently used programme settings can be stored.
The stored programme setting can then be selected
like a normal programme. There are a total of four
memory positions available.

grammes COTTONS, LINEN/EASY-CARES, ENERGY
SAVING, DELICATES, 40°-60°MIX, EASY IRON and
FASHION.

much and can be taken out more easily. Only effective
with the programmes COTTONS, LINEN/EASY-CARES,
ENERGY SAVING, 40°-60°MIX, STARCH and SPIN.

pear in the display.

keys. The volume of this signal can be regulated and/
or the signal can be deselected. The volume of the
signal for error messages cannot be altered.

22

MEMORY

Saving a programme setting

First set a programme (e.g. LINEN/EASY-CARES, 40 °C, 1200 rpm,
with the SENSITIVE option), then save it.

1. Use the control knob to
highlight LINEN/EASY-C.

2. Set the temperature and the
spin speed.

3. Press the OPTIONS key.

4. Highlight the SENSITIVE op-

tion.

5. Press the SELECT key.
The symbol will appear in
the display.

6. Press the EXTRAS key.

MEMORY is highlighted:

7. Press the SELECT key.

If MEMORY 1 is highlighted:

8. Press the SAVE key.
The programme setting is
stored as M1: LINEN/EASY-C.

9. Then press the BACK key
3 times.

LINEN/EASY-C. 40°C

1200 RPM 10:17-12:16

START

40°

1200

OPTIONS WOOLLENS

LINEN/EASY-C. 40°C

1200 RPM 10:17-12:16

START

SELECT

BACK

EXTRAS PRE WASH

EXTRAS

SELECT

BACK

MEMORY

LINEN/EASY-C. 40°C 1200

SAVE

BACK

î

LINEN/EASY-C.)
ENERGY SAVING

COTTONS

DELICATES

ç

TIME SAVING

DELAY START

SENSITIVE)

STAIN

ì

MEMORY(

RINSE+

GENTLE SPIN.

LANGUAGE

é

MEMORY 1(

MEMORY 2
MEMORY 3
MEMORY 4

23

Clearing a stored programme setting

1. Press the OPTIONS key.

2. Press the EXTRAS key.

MEMORY is highlighted:

3. Press the SELECT key.

4. Use the control knob to

highlight MEMORY 1.

5. Press the CLEAR key.
The stored programme set­ting has now been cleared.

6. Then press the BACK key
3times.

RINSE+, GENTLE SPIN

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to

highlight the desired Extra,
e.g. RINSE+.

4. Press the SELECT key.
The symbol appears in the

display.

5. Press the BACK key twice.

EXTRAS

SELECT

BACK

MEMORY

LINEN/EASY-C. 40°C 1200

CLEAR

BACK

EXTRAS

SELECT

BACK

MEMORY(

RINSE+

GENTLE SPIN

LANGUAGE

MEMORY 1!(
MEMORY 2§§
MEMORY 3§§
MEMORY 4§§

MEMORY

RINSE +)

GENTLE SPIN

LANGUAGE

ì

é

ì

24

LANGUAGE

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to highlight LANGUAGE.

4. Press the SELECT key.

5. Use the control knob to

highlight the desired lan­guage, e.g. ENGLISH.

6. Use the SELECT key to store
the selected language.

7. Press the BACK key 3 times.

TIMER

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to highlight TIMER.

4. Press the SELECT key.

5. Use the control knob to set

the desired time.

6. Press the SELECT key.

7. Press the BACK key 3 times.

SELECT

BACK

SELECT

BACK

EXTRAS

LANGUAGE

EXTRAS

TIMER¶¶¶¶ ¶¶¶¶¶¶¶

15:11 H:MIN

ä

§

ENGLISH)

DEUTSCH§

ITALIANO§

FRANÇAIS§

é

)

VOLUME

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to highlight VOLUME.

4. Press the SELECT key.

5. Use the control knob to

highlight OFF, NORMAL or
LOUD.

6. Press the SELECT key.

7. Press the BACK key 3 times.

SELECT

BACK

EXTRAS

VOLUME

OFF

NORMAL

LOUD

é

§§§
!)

§§§

25

Programme protection

In order to protect the selected settings of a programme that is running
from unintentional alterations, the buttons can be locked.

Setting programme protection:

1. Start the programme.

2. Press second and fourth but-

ton at the same time for
about 3 seconds. In the dis­play the symbol appears.

DELICATES 30°C

1000 RPM 11:25-12:36

§

MAIN WASH

##======================]

The buttons are locked.

MOISTURE 50 %

Removing programme protection:

Press second and fourth button again for about 3 seconds.
The buttons are unlocked. The symbol

disappears.

3 The buttons also remain locked after the appliance has been switched

off. Before the next wash, remove programme protection again, so that
a new programme can be set.
If the appliance is unintentionally switched off while a programme is
running, programme protection must first be removed. Then set and
start the programme again.

26

Child safety device

If the child safety device has been activated, the door can no longer be
shut.

Activating the child safety device:

Use a coin to turn the knob (on the
inside of the door) in a clockwise di­rection as far as it will go.

1 Warning! The knob must not be de-

pressed after being set, otherwise
the child safety device is not acti­vated. The knob must stand proud
as shown in the illustration.

Deactivating the child safety device:

Turn the knob in an anti-clockwise direction as far as it will go.

27

Cleaning and care

Important: Do not use furniture cleaning products or aggressive clean-

ing agents to clean the appliance.
Wipe over the control panel and housing with a damp cloth.

Detergent drawer

The detergent drawer should be cleaned regularly.

1. Remove the detergent drawer by pulling firmly.

2. Remove the softener insert from the

middle compartment.

3. Clean all parts with water.

4. Place the softener insert in as far as

it will go, so that it is firmly in posi­tion.

5. Clean the entire drawer recess area
of the washing machine, in particu­lar the jets on the upper side of the
washing-in chamber, with a brush.

6. Place the detergent drawer in its
guide rails and push it in.

Washing drum

Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.

Important! Do not clean the drum with acidic descaling agents, scour­ing agents containing chlorine or iron or steel wool.

1. Remove any rust which has accumulated in the drum using a cleaning
agent for stainless steel.

2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: LINEN/EASY-CARES 60, with the TIME SAV­ING/VERY QUICK option, add about 1/4 of a measuring cup of washing
powder.

Door and rubber collar

Regularly check whether deposits or foreign substances are present in
the folds of the rubber collar or inside on the door glass.
Regularly clean the door glass and the rubber collar.

28

What to do if...

Remedying small malfunctions yourself

If one of the following fault messages is shown in the display during
operation:

– ATTENTION (E41)/ PLEASE CLOSE THE DOOR
– ATTENTION ERROR CODE (E11)/PLEASE OPEN THE TAP
– ATTENTION ERROR CODE (E21)/PLEASE CHECK THE WATER

DRAINAGE
please refer to the following table.
After you have rectified the error, press the START key.
If ATTENTION/PLEASE CALL YOUR LOCAL SERVICE FORCE together with
an error code (e.g. E..) appears in the display: Switch the appliance off
and then on again. Re-set the programme. Press the START key.
If the error code is displayed again, please contact the Service Force
and inform them of the error code and the PNC no. (see rating plate).

Problem Possible cause Remedy

Washing machine does
not work.

The door cannot be
closed.

The programme does
not begin after the
START key has been
pressed.
ATTENTION(E41)/

PLEASE CLOSE THE
DOOR appears in the
display.

The washing machine
vibrates when
operating or is not
stable.

Mains plug not plugged in or
fuse not working.

The door is not closed
properly.

The START key has not been
pressed.

The child safety device is
engaged.

The door is not closed
properly.

The transit packaging has not
been removed.

The screw feet not correctly
adjusted.

Connect the plug to a mains
socket. Check the fuse.

Close the door properly.
There should be an audible
click.

Press the START key.

Release the child safety
device.

Close the door properly;
there should be an audible
click. Press the START key.

Removing the transit
packaging.

Adjust the feet as described
in the installation and
connection instructions.

29

Problem Possible cause Remedy

Washing has not been
spun.

Water is leaking out
from under the
washing machine.

Softener was not
washed in. w
compartment for
conditioners is filled
with water.

Washing is heavily
creased.

The door cannot be
opened when the
appliance is switched
on. The
appears in the display.

The display goes out
while a wash cycle is
running.

The background
illumination of the
display has gone out
even though the
appliance is switched
on.

symbol

v

Only a few large items of
washing in the drum.

The screw connection on the
inlet hose is leaking.

The drainage hose is leaking. Replace drain hose.

The drain pump cover is not
closed properly.

Washing was caught in the
door.

Emergency drain hose is
leaking.

The conditioner insert is not
correctly set into the
additive compartment or is
blocked.

There may have been too
much washing in the
machine.

The door is locked for safety
reasons.

Power cut.
For safety reasons, the door
will remain locked for
approx. 4 minutes.

The washing machine is in
stand-by mode.

Always load the drum as full
as possible. Mix large and
small items.

Screw the inlet hose in
firmly.

Close the cover properly.

Load washing carefully for
the next wash.

Close off emergency drain
hose properly.

Clean the detergent
dispenser drawer, insert the
conditioner insert firmly.

Observe maximum loads.

Wait until the O symbol
appears.

The programme will continue
when the power cut is over.

To remove washing:
If water can be seen in the
appliance, before opening
the door, first perform an
emergency drain.

Press any key.

30

Problem Possible cause Remedy

Water is not entering
the appliance.
ATTENTION ERROR
CODE (E11) / PLEASE
OPEN THE WATER TAP
appears in the display.

The washing has not
been spun thoroughly
and water remains
visible in the drum.
ATTENTION ERROR
CODE (E21)/ PLEASE
CHECK THE WATER
DRAINAGE appears in
the display.

Tap turned off. Turn on the tap.

The filter in the threaded
inlet hose fitting is blocked.

Water tap is furred with lime
scale or is faulty.

Drain hose is kinked. Remove kink.

Maximum pumping height of
1m exceeded.

The drain pump is blocked.

For sink spigot connections:
The sink spigot is blocked.

Turn off the tap. Unscrew the
hose, take out the filter and
clean it.

Check the tap and have it
repaired, if necessary.

Please contact your Local
Service Force.

Clean the drain pump.
Remove foreign bodies from
the pump housing.

Clean the sink spigot.

If the wash result is not satisfactory

The washing is grey and there are limescale deposits in the drum

• Too little detergent was used.

• An incorrect detergent was used.

• Individual stains were not pre-treated.

• The programme or temperature was not set properly.

There are grey stains on the washing

• Items that were soiled with ointments, fats or oils were washed using
too little detergent.

• The wash temperature used was too low.

• A common cause is that conditioner – in particular the type in con-

centrated form - has come in contact with the washing. Wash out
such marks as soon as possible and exercise care when using the said
conditioner.

Foam can still be seen following the final rinse

• Modern detergents can cause foam to be created even during the fi­nal rinse. In spite of this, the washing has been sufficiently rinsed.

There are white residues on the washing

• What can be seen here are insoluble substances which modern deter­gents contain. They are not the result of insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out
before washing. Check your choice of detergent. Especially with dark
colours it is advisable to use liquid detergents.

31

Carrying out an emergency drain

1 Warning! Prior to carrying out an emergency drain, switch off the

washing machine and remove the power plug from the power point.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain!

1. Open the plinth flap and remove it.

2. Remove the emergency drain hose.

3. Place a shallow container under-

neath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and pull it out.

4. The water will run out. If it is neces­sary to empty the container more
than once, seal up the emergency
drain hose with the drain plug while
you are doing so.

When the water has all drained away:

5. Insert the plug firmly into the emergency drain hose and turn it in a

clockwise direction until it is firmly in place.

6. Replace the emergency drain hose into the retainer.

7. Insert the plinth flap into place and close it.

32

Drain pump

The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e.g. if the pump wheel is blocked.
Before loading the machine, please always ensure that there are no for­eign bodies present in the pockets or in between the items to be
washed. Paper clips, nails, etc. which may find their way into the wash­ing machine along with the washing will remain in the drain pump
housing (foreign body trap that protects the pump wheel).

1 Warning! Before opening the cover of the drain pump, switch off the

washing machine and remove the power plug from the power point.

1. First carry out an emergency drain.

2. Place a cloth on the floor in front of the cover of the drain pump.

Residual water runs out.

3. Unscrew the pump cover in an anti­clockwise direction and remove it.

4. Remove foreign bodies and fluff
from the pump housing and from
the pump wheel.

5. Check whether the pump wheel
right at the back of the pump hous­ing can turn. (If the wheel rotates
with a jerky motion, this is normal.)
If the pumping wheel cannot be
turned, please contact your local
Service Force Centre.

6. Insert the pump cover. Insert the
guides at the sides of the cover into
the guide slots and tighten the cov­er by turning in a clockwise direc­tion.

7. Close off the emergency drain hose
and place it in the retainer.

8. Close the plinth flap.

33

Disposal

Packaging material

2

The packaging materials are environmentally friendly and can be recy­cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at your local waste disposal facilities.

2 Old appliance

The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec­trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor­mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

W on the product or on its packaging indicates that this

1 Warning: When your appliance has finished its working life, remove

the plug from the mains socket. Cut off the cable and plug and dispose
of them.
Destroy the door lock. This prevents children from trapping themselves
inside and endangering their lives.

34

Technical data

Height x Width x Depth 850 x 598 x 640 mm

Depth when door is open 1017 mm

Height adjustment approx. +10/-5mm

Load (depending on programme) Max. 7kg

Area of use Domestic

Drum spin speed see Rating Plate

Water pressure 1-10bar (=10–100N/cm2=0.1–1.0MPa)

Consumption values

The consumption values for selected programmes provided in the fol­lowing table were determined under standard conditions. They may
vary when operating in domestic conditions.

Wash programme/
Temperature

ENERGY SAVING

COTTONS 95 Cotton 7 56 2,25

LINEN/EASY-CARES 40

2)

STAIN

LINEN/EASY-CARES 40 Synthetics 3,5 50 0,55

DELICATES 30 Synthetics 3,5 56 0,45

WOOLLENS 30 Wool 2 46 0,32

1) The load is determined in accordance with the EN 60456 standard load.

2) Note: Programme setting for tests in accordance with or supporting EN 60 456 and

IEC 60 456. Consumption values will vary from the values quoted depending on wa­ter pressure, water hardness, water temperature at filling, room temperature, type
and quantity of washing, detergent used, variations in mains voltage and any options
selected.

2)

Type of

material

Cotton 7 43 1,19

Cotton 7 52 0,77

Load

in kg

Water

1)

in litres

Energy

in kWh

35

Installation and connection instructions

1 Safety information concerning

installation

• This washing machine cannot be built-in.

• Before using for the first time, check the appliance for damage sus-

tained while it was being transported. Do not under any circumstanc­es connect an appliance that is damaged to the mains. In the event of
damage to the appliance contact your supplier.

• Be sure to remove all the components of the transit packaging before

using the appliance for the first time. Otherwise when spinning dam­age may be caused to the appliance or to neighbouring units or fur­niture.

• Before using the appliance for the first time, splash protection must

be completed. (See “Removing transit packaging”).

• Always plug the mains plug into a correctly installed shockproof

socket.

• If hard-wired: hard-wiring to the mains may only be carried out by

an a qualified electrician.

• Prior to using the appliance for the first time, ensure that the rated

voltage and current on the rating plate match the mains voltage and
current where the appliance is to be installed. The required fuse pro­tection is also to be found on the rating plate.

• If work on the plumbing is required for the proper connection of the

washing machine to the water supply, this must be undertaken by a
registered plumber.

• If work on the electricity supply system is required for the proper

connection of the washing machine to the electricity supply, this
must be undertaken by a registered electrician.

• The washing machine’s mains cable must only be replaced by a

Service Force Engineer

36

Installing the appliance

Transporting the appliance

1 Warning: The washing machine is very heavy. There is a risk of injury.

Exercise care when lifting the appliance.

• Do not lay the washing machine on its front nor on its right side

(as seen from the front). Electrical components may get wet.

• Never transport the appliance without using the transit packaging.

Only remove the transit packaging when the appliance is in its place
of installation. Transporting the appliance without the use of the
transit packaging can cause damage to the appliance.

• Never lift the appliance by the door when it is open nor by the plinth.

When using a sack trolley to transport the washing machine:

• Only use the sack trolley on the side of the appliance.

Removing the transit packaging

Important! Be sure to remove all

the components of the transit pack­aging prior to using the appliance
for the first time. Keep the transit
packaging in a safe place, in case it
is needed at a later date when the
appliance is to be moved
(e.g. moving house).

1. Open the two hose retainers located
at the rear of the appliance and re­move the hoses and electrical cable.

2. Remove the two hose retainers from
the appliance with a strong tug.

37

3. Remove both plastic caps sideways.

3 Special spanner A and sealing caps B

(2 units) and C (1 unit) come with
the appliance.

4. Use special spanner A to remove
screw D and the compression spring.

5. Turn sealing cap C upside down as
shown in the illustration.

6. Use sealing cap C to cap the hole.

7. Use special spanner A to remove the

two screws E.

8. Use special spanner A to remove the
four screws F.

9. Remove transit bar G.

10. Screw in the four screws F again.

11. Use sealing caps B to cap the two

large holes.
Important: Press all sealing caps B

(2 items) and C (1 item) in firmly so
that they snap into the rear wall.

Where to install

Important! The washing machine must not be operated in a room

where there is a danger of frost. There is a risk of frost damage or ad­verse effect on the perfomance of the machine. Frost damage is not
covered under the warranty.

• The surface on which the appliance is to be installed must be firm

and level. Do not install the appliance on carpeted floors or soft floor
coverings.

• The surface on which the appliance is to be installed must be clean

and dry and free from grease, so that the appliance does not slide.

38

• If the location in which the appliance is to be installed is fitted with

small-format tiles, put a rubber mat (available in the shops) under
the appliance.

If the appliance is to stand on a
base:

In order for the appliance to be se­cure on the base, fixing plates*)
must be mounted, into which the
appliance is inserted.

If the appliance is to stand on a floor which moves, e.g. a suspend­ed wooden floor:

Place the appliance in an area as close as possible to a corner of the
room.
Screw a water-resistant wooden board (at least 15 mm thick) onto at
least 2 of the floor joists.

Making the appliance level

3 Automatic foot: The rear foot on the left-hand side of your washing

machine is built as a shock absorbing foot, which is why the appliance
gives in the back left-hand corner if put under load. The automatic foot
guarantees that the appliance does not move even at high spin speeds.
Basically the automatic foot does not need to be set.

The four feet of the appliance are
pre-adjusted.
Large degrees of unevenness can be
compensated for by individually ad­justing the height adjustable screw
feet.
Use the special spanner supplied to
do this.

Important Do not use pieces of
wood, cardboard or such like to lev­el out unevenness in the floor, but
adjust the height adjustable screw
feet instead.

39

Electrical Connection

Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.

1 WARNING – THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.

The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA ap­proved (BS 1362) fuse must be used.

Should the plug need to be replaced
for any reason, proceed as described
below.

The wires in the mains lead are
coloured in accordance with the
following code:

Green and Yellow: Earth
Blue: Neutral
Brown: Live

• The wire coloured green and yellow

must be connected to the terminal
marked with the letter “E“ or by the
earth symbol E or coloured green and yellow.

• The wire coloured blue must be connected to the terminal “N“ or

coloured black.

• The wire coloured brown must be connected to the terminal marked

“L“ or coloured red.

• Upon completion there must be no cut, or stray strands of wire

present and the cord clamp must be secure over the outer sheath.

1 WARNING! A cut off plug inserted into a 13 amp socket is a serious

safety (shock) hazard. Ensure that the cut off plug is disposed of safely.

40

Permanent Connection

In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.

This appliance complies with the requirements laid out in the EEC Di­rective 76/899.

Voltage 240 V AC: Fuse rating 13amps
See rating plate for further information.
This appliance meets VDE requirements.
Particular regulations of local electricity authorities must be observed.

This appliance conforms to EEC Directive No. 82/499/EWG on radio in­terference.

1 WARNING! Repairs to electrical appliances must only be carried out by

trained personnel. Improper repairs may lead to serious risks for the us­er.

Connecting the appliance to the water
supply

Important:

• This appliance must not be connected to the hot water supply.

• When connecting the appliance, use only new hose kits.

• Only connect the appliance to the drinking water supply. Rain water

or water for industrial use may only be used if it fulfils the require­ments of DIN1986 and DIN1988.

• Do not kink or crush the water inlet hose or drain hose.

Permitted water pressure

The water pressure must be at least 1 bar (=10N/cm2=0.1MPa), and
may be a maximum of 10bar (=100N/cm

– If more than 10 bar: Connect a pressure reduction valve.
– If less than 1bar: Disconnect the appliance end of the inlet hose from

the solenoid inlet valve and remove the flow meter. (In addition re­move the filter using pointed pliers and take out the rubber gasket
behind it.) Replace the filter.

2

=1MPa).

41

Water inlet

A 1.35m long pressure hose is supplied with the appliance.
If a longer inlet hose is required, only hoses from the manufacturer are
to be used. Your local Service Force stocks hose kits of different lengths.

3 Sealing rings are either inserted in the plastic nuts of the threaded hose

fitting or are included as spare parts. Do not use any other sealing
rings.

Important! All threaded hose fit­tings must only be tightened by
hand.

1. Connect the hose with the right-an­gle connector to the machine.

Important! Do not position the inlet
hose vertically downwards. Position
it to the right or the left as shown in
the illustration.

2. Connect the hose with the straight
connector to a water tap with an R
¾ (inch) screw thread.

3. Slowly turn on the tap and check
that all connections are watertight.

42

Water Drainage

The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic “U-Piece“ supplied. The standpipe
should have an internal diameter of approximately 38 mm (see dia­gram) thus ensuring there is an air break between the drain hose and
standpipe.

Important! It is essential to lay the drainage hose without kinks.
When discharging into a stand-

pipe ensure that the top of the
curve in the hose end is no more
than 90 cm (35.4’’) and no less
than 60 cm (23.6’’) above floor
level.

The upright standpipe should
have a minimum, length of 30 cm
(12’’) from the bottom of the el­bow to the top of the pipe (see
diagram). Make sure that it is de­signed in such a way that the end
of the drain hose cannot be cov­ered with water.
Longer drain hoses are available
in lengths of 2.7 and 4 metres
from your Service Force Centre.

For drainage into an outlet
spigot: If the outlet spigot has not

been used before, remove any blank­ing plug that may be in place. Push
the drain hose onto the spigot and
secure with a clip if required. Ensure
the drain hose is looped upwards to
prevent waste water from the sink
entering the washing machine.

Important! The end of the drainage hose must not be submerged in the
pumped-out water. Otherwise, the water could be sucked back into the
appliance.

43

Pumping heights of over 1 metre

The washing machine’s drain pump is able to pump water to a height of
1metre, calculated from the surface on which the appliance is installed.

Important! If pumping height is over 1 metre malfunctions and dam­age to the appliance may arise.

For pumping heights over 1metre a conversion kit can be obtained.
Please contact Service Force Centre.

44

Warranty conditions

Great Britain

Standard guarantee conditions

We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we
will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage
on condition that:

• The appliance has been correctly installed and used only on the electricity or gas supply stated

on the rating plate.

• The appliance has been used for normal domestic purposes only, and in accordance with the

manufacturer's operating and maintenance instructions.

• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any

person not authorised by us.

• All service work under this guarantee must be undertaken by a Service Force Centre. Any appli-

ance or defective part replaced shall become the Company's property.

• This guarantee is in addition to your statutory and other legal rights.

• Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available

outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any

light bulbs or removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance which is improperly installed or calls to appli-

ances outside the United Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject

to rental agreements.

• Products of AEG manufacture which are not marketed by AEG.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to
your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.

• The guarantee is for the same period and to the same extent for labour and parts as exists in

the new country of use for this brand or range of products.

• This guarantee relates to you and cannot be transferred to another user.

• Your new home is within the European Community (EC) or European Free Trade Area.

• The product is installed and used in accordance with our instructions and is only used domesti-

cally, i.e. a normal household.

• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them de-

tails of your new home. They will then ensure that the local Service Organisation is aware of your
move and able to look after you and your appliances.

France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]

45

Weitere Kundendienststellen im Ausland

In diesen Ländern gelten die Garantiebedingungen der örtlichen Part­ner. Diese können dort eingesehen werden.

Further after-sales service agencies overseas

In these countries our AEG-Electrolux agents’ own guarantee conditi­ons are applicable. Please obtain further details direct.

Autres agences étrangères assurant le service après-vente

Dans ces pays, les conditions de garantie des concessionnaires de la ré­gion sont valables. Vous pouvez les consulter sur place.

Otros puntos de Postventa en el extranjero

En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.

Ulteriori uffici del servizio tecnico assistenza clienti all’estero

In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.

Serviços de assistência técnica no estrangeiro

Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.

További vevöszolgálati irodák külföldön

Ezekben az országokban a mi AEG-Electrolux vevöszolgálatainknál
saját jótállási feltételek alkalmazhatók. A további adatokat kérjük
közvetlenül szerezzék be.

46

Servisne službe

Na garancijskem listu boste našli seznam pooblašèenih servisnih
služb AEG-Electrolux.

Customer Service Centres

U.A.E. Abu Dhabi

Universal Trading Company
P.O. Box 43 99
Tel.: [phone]
Service Center 6733974

Egypt

Middle East Commercial
Center
4 Salah El Dein St. - 2nd floor
Heliopolis, Kairo
Egypt
Tel.: [phone]

Australia

The Andi-Co Group
1 Stamford Road
Oakleigh VIC 3166
Tel.: [phone]
Fax: [phone]
www.andico.com.au

Bahrain/Arabian Gulf

A.A. Zayani & Sons
P.O. Box 9 3 2
Bahrain
Tel . : [phone]

Bulgaria

Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: [phone]
Fax. [phone]

Cyprus

Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699

Estonia

Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: [phone]
Fax: [phone]

Jordan

Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50

Canada

EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: [phone]
Fax: [phone]

Korea (South)

Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku 135-010
Seoul
Telefon [phone]

Croatia

Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: [phone]
Fax: [phone]

Kuwait/Arabian Gulf

Ali Al-Ghanim Est.
P.O. Box 21540 - Safat
Tel.: [phone]
Fax: [phone]

Lebanon

Adib & Assaferi
P.O. Box 539
Tripoli

Latvia

Electrolux Latvija Ltd.
Kr.Barona iela 130/2
Riga, LV-1012
Tel.: [phone]
Fax: [phone]

Malta

ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644

Mauritius

Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355

Namibia

AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: [phone]
Fax: [phone]

New Zealand

Monaco Corporation Ltd.
10 Rothwell Avenue
Albany - Auckland
4399 Auckland 1
New Zealand
Tel.: [phone]
Fax: [phone]

Syria

WATTAR CO.
P.O. B ox 3 6109
Mazzeh - Damascus
Direct Phone: [phone]
Fax: [phone]

Iran

ARIAN International Develop­ment Co.
AEG Showroom
Shariati, Balatar as Safar
Teheran / Iran
Phone No. Showroom:
021 / 285 513 / 4
Phone No. Service:
021 / 312 27 67 / 8

Poland

Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: [phone]
fax: [phone]

47

Hong Kong

Dah Chong Hong Ltd.
20 Kai Cheung Road
Kowloon Bay
Kowloon - Hong Kong
Tel.: [phone]
Fax: [phone]

Israel

Evis Ltd.
Tadiran-Ampa Service
10 Gibonay Israel Street
New Industrial Zone
Netanya, 42504
Israel

Japan

Electrolux Japan Ltd.
Domestic Appliances
Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: [phone]
Fax: [phone]

Thailand

Olympia Thai Tower, 444
Rachadapiser Road
Samsennok- Huaykwang
10320 Bangkok
Thailand
Tel.: [phone]
Fax: [phone]

Hungary

Electrolux Lehel KFT
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: [phone]

Lithuania

Electrolux Lithuania
Verkui 29
2600 Vilnus
Tel.: [phone]
Fax: [phone]

Malaysia

Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: [phone]
Fax: [phone]

Singapore

Group Pte Ltd.
833 Bukit Timah Road
Unit no. 01-11 Royalville
279887 Singapore
Tel.: [phone]
Fax: [phone]

Slovakia Rep.

Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: [phone], 4355
Fax: [phone]

Russia

Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: [phone]
Fax: [phone]

Saudi Arabia

Awad Badi Nahas Est
Shara Siteen
Jeddah 21463
Phone: [phone]
Alia Trading Co
Mecca Road
Riyadh 11491
Phone [phone]

Slovenia

Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: [phone]
Fax: [phone]

South Africa

AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: [phone]

48

495051

Service and Spare Parts

If the event of your appliance requiring service, or if you wish to pur­chase spare parts, please contact Service Force by telephoning:

0870 5 929 929

Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further informa­tion about Service Force, please visit the website at

www. serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details
under the heading „What to do if...“

When you contact the Service Force Centre you will need to give the
following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating

plate)

5. The purchase date.
Please note that a valid purchase re-

ceipt or guarantee documentation is
required for in-guarantee service
calls.

Customer Care

For general enquiries concerning
your AEG-Electrolux appliance, or
for further information on AEG­Electrolux products please contact
our Customer Care Department by
letter or telephone at the address below or visit our website at

www.aeg.co.uk.

Customer Care Department
Major Appliances
AEG-Electrolux
Domestic Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)

For Customer Service in the Republic
of Ireland please contact us at the ad-

dress below:
AEG/ Electrolux Group (Ire) Ltd
Long Mile Road/ Dublin 12
Republic of Ireland
Tel: [phone]
Email: [e-mail]

(*) Calls may be recorded for training purposes

From the Electrolux Group. The world´s No.1 choice.

The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg

http://www.aeg-electrolux.de

© Copyright by AEG

105 176 751-01-140705-02

Subject to change without notice
