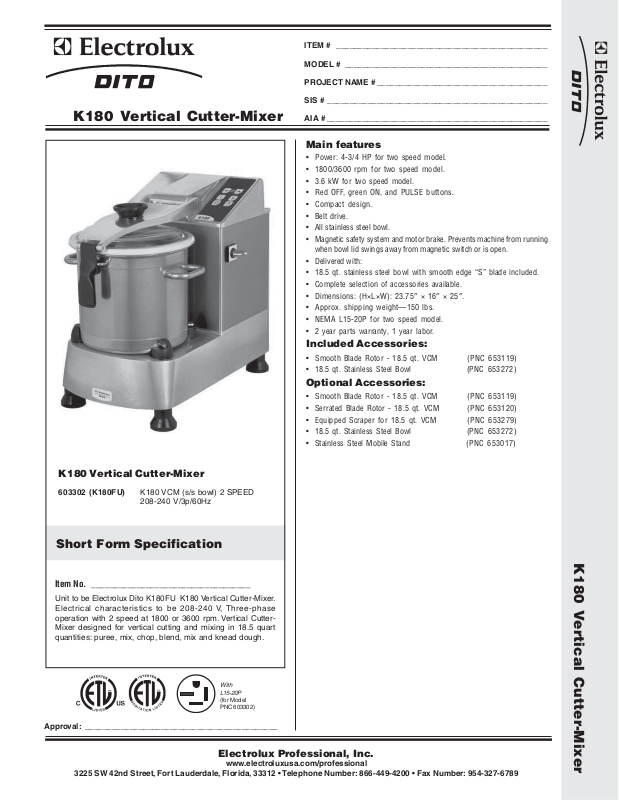

Electrolux K180FU User Manual
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
K180 Vertical Cutter-Mixer
AIA # _________________________________________________
Main features
• Power: 4-3/4 HP for two speed model.
• 1800/3600 rpm for two speed model.
• 3.6 kW for two speed model.
• Red OFF, green ON, and PULSE buttons.
• Compact design.
• Belt drive.
• All stainless steel bowl.
• Magnetic safety system and motor brake. Prevents machine from running
when bowl lid swings away from magnetic switch or is open.
• Delivered with:
• 18.5 qt. stainless steel bowl with smooth edge “S” blade included.
• Complete selection of accessories available.
• Dimensions: (H×L×W): 23.75″ × 16″ × 25″.
• Approx. shipping weight—150 lbs.
• NEMA L15-20P for two speed model.
• 2 year parts warranty, 1 year labor.
Included Accessories:
• Smooth Blade Rotor - 18.5 qt. VCM (PNC 653119)
• 18.5 qt. Stainless Steel Bowl (PNC 653272)
Optional Accessories:
• Smooth Blade Rotor - 18.5 qt. VCM (PNC 653119)
• Serrated Blade Rotor - 18.5 qt. VCM (PNC 653120)
• Equipped Scraper for 18.5 qt. VCM (PNC 653279)
• 18.5 qt. Stainless Steel Bowl (PNC 653272)
• Stainless Steel Mobile Stand (PNC 653017)
K180 Vertical Cutter-Mixer
603302 (K180FU) K180 VCM (s/s bowl) 2 SPEED
208-240 V/3p/60Hz
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux Dito K180FU K180 Vertical Cutter-Mixer.
Electrical characteristics to be 208-240 V, Three-phase
operation with 2 speed at 1800 or 3600 rpm. Vertical CutterMixer designed for vertical cutting and mixing in 18.5 quart
quantities: puree, mix, chop, blend, mix and knead dough.
With
L15-20P
(for Model
PNC 603302)
Approval: ___________________________________________
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
www.electroluxusa.com/professional
K180 Vertical Cutter-Mixer
K180 Vertical Cutter-Mixer
EC
EC
16.38
416 mm
26.77
680 mm
23.25
590 mm
Front View
Side View
16.93
430 mm
Top View
(Shown with
optional trolley.)
Electric
Supply voltage:
603302 (K180FU) 208-240 V/3p/60Hz – 13.9A
Key Information
Uses of Food Processor
MEAT
Rough mincing
Pates
Small sausages
Large sausages
Minced meat
Shellfish
Fine mincing
Stuffing
Mousses
PASTRY
Shortcrust
Cold water paste
Flan
POWDER
Almonds
Hazelnuts
FRUITS AND VEGETABLES
Purees
Mousses
Syrups
CHOPPING
Parsley
Onions
48.94
1243 mm
32.28
820 mm
28.58
726 mm
K180 Vertical Cutter-Mixer
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-11-09
