Electrolux EI32AF65JS, IQ-Touch EI32AR65J S, IQ-Touch EI32AF65J S Specifications

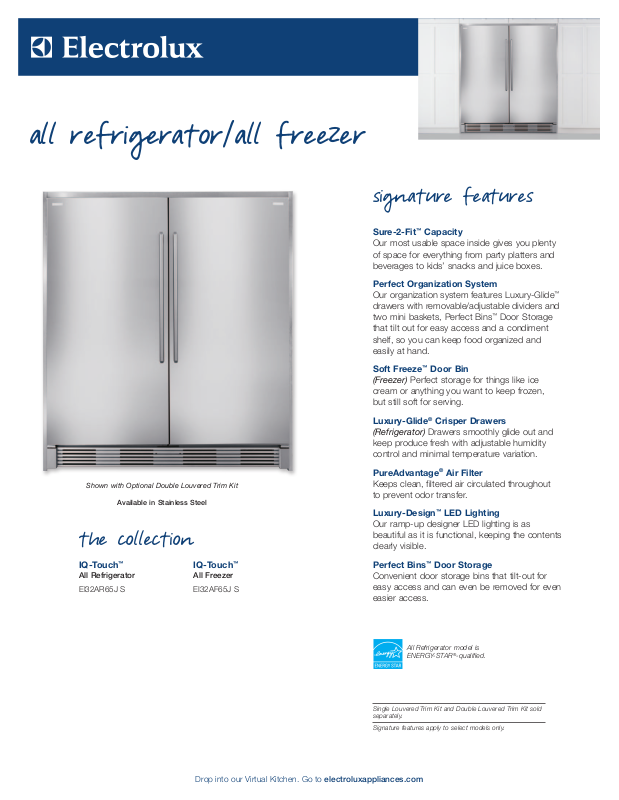

Page 1

all refrigerator/all freezer

signature features

Sure-2-Fit™ Capacity

Our most usable space inside gives you plenty of space for everything from party platters and beverages to kids’ snacks and juice boxes.

Shown with Optional Double Louvered Trim Kit

Available in Stainless Steel

the collection

IQ-Touch

All Refrigerator

EI32AR65J S

™

IQ-Touch

All Freezer

EI32AF65J S

Perfect Organization System

Our organization system features Luxury-Glide

™

drawers with removable/adjustable dividers and two mini baskets, Perfect Bins

™

Door Storage that tilt out for easy access and a condiment shelf, so you can keep food organized and easily at hand.

Soft Freeze

™

Door Bin

(Freezer) Perfect storage for things like ice cream or anything you want to keep frozen, but still soft for serving.

Luxury-Glide

Crisper Drawers

(Refrigerator) Drawers smoothly glide out and keep produce fresh with adjustable humidity control and minimal temperature variation.

PureAdvantage

Air Filter

Keeps clean, filtered air circulated throughout to prevent odor transfer.

Luxury-Design

™

LED Lighting

Our ramp-up designer LED lighting is as beautiful as it is functional, keeping the contents clearly visible.

™

Perfect Bins

™

Door Storage

Convenient door storage bins that tilt-out for easy access and can even be removed for even easier access.

All Refrigerator model is ENERGY-STAR

Single Louvered Trim Kit and Double Louvered Trim Kit sold separately.

Signature features apply to select models only.

Drop into our Virtual Kitchen. Go to electroluxappliances.com

-qualified.

Page 2

SpecificationS

all refrigerator/all freezer

Model Number

Controls

Available Colors

ENERGY STAR

Star-K® Certified (Sabbath Mode)

Total Capacity

Total Shelf Area

EI32AF65J S

™

IQ-Touch

Stainless Steel (S)

Yes

18.6 Cu. Ft.

19.7 Sq. Ft.

EI32AR65J S

™

IQ-Touch

Stainless Steel (S)

Yes

18.6 Cu. F t.

22.4 Sq. F t.

Signature Features

Luxury-Design

PureAdvantage

Luxury-Quiet

Luxury-Glide

SpillSafe® Glass Shelves

Soft Freeze

Perfect Bins

Ramp-Up Multilevel Lighting – LED

Air Filtration

™

Sound Package

Full-Width Baskets

Full-Extension Crispers / Fresh Zone

Full-Extension Deli Drawer / Cool Zone

™

Door Bin with Tall Bottle Retainer

™

Door Storage

Yes

™

Yes

Product Dimensions

Height (Cabinet) (Including Door)

Width

Depth (Including Door) (with 90° Door Open)

70-5/8" 71-3/8"

32"

26-1/2" 57-1/4"

70-5/8" 71-3/8"

32"

26-1/2" 57-1/4"

Cutout Dimensions (H x W x D)

Built-In Installation without Trim Kit Single Unit Double Unit (Side-by-Side)

Built-In Installation with Trim Kit & Leveling System Single Unit Double Unit (Side-by-Side)

NOTE: Always consult local and national electric & plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.

For 79" cutout opening height, installation requires use of top louvered grille. For 75" cutout opening height, installation requires use of top trim piece and shortening of both side trim pieces.

Minimum depth from face of cabinet side panels and requires recessed electrical outlet.

Specifications subject to change.

72" x 33" x 25-1/4" min. 72" x 66" x 25-1/4" min.

75" or 79" x 33" x 25-1/4" min. 75" or 79" x 66" x 25-1/4" min.

72" x 33" x 25-1/4" min. 72" x 66" x 25-1/4" min.

75" or 79" x 33" x 25-1/4" min. 75" or 79" x 66" x 25-1/4" min.

signature feature detail

Soft Freeze™ Door Bin

• Keeps food frozen, but still soft for serving.

• Perfect for ice cream.

Perfect Bins™ Door Storage

• Door storage bins that tilt out.

• Can be removed for easier access and cleaning.

Signature features apply to select models only.

New Easy Installation

• Four point unit leveling from the front.

• Rollers instead of feet to reduce the possibility of scratching floors during installation and ease the installation process.

• Adjustable doors for easy alignments.

• The ability to connect the freezer and refrigerator units to act as one unit and thus assure a consistent gap between the units/ doors and to prevent the units from moving apart.

• Trim kits that fasten to the units instead of to the kitchen cabinets, thus assuring easier installation and consistent visual spacing between the units and the trim.
