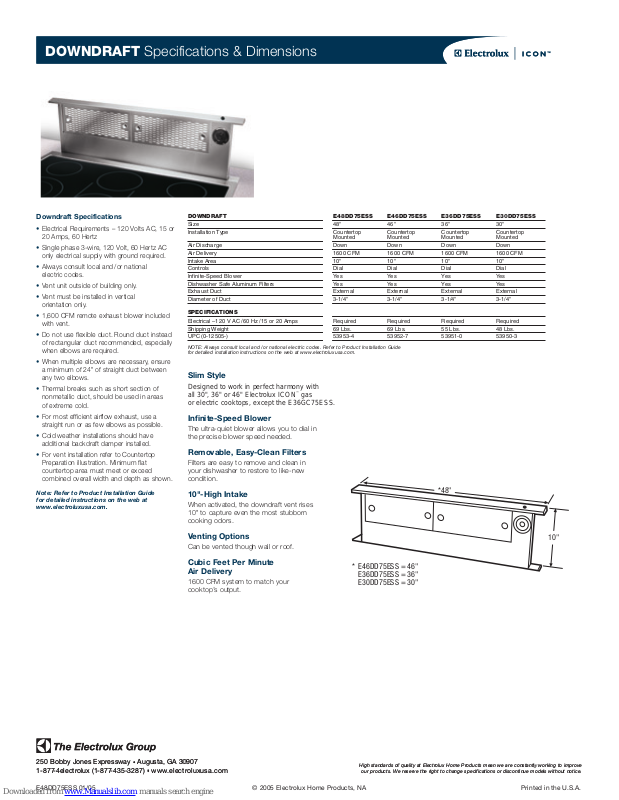

Electrolux Icon E30DD75ESS, Icon E36DD75ESS, Icon E46DD75ESS, Icon E48DD75ESS Specification Sheet
Page 1
Specifications & Dimensions
DOWNDRAFT Specifications & Dimensions
Downdraft Specifications
• Electrical Requirements – 120 Volts AC, 15 or
20 Amps, 60 Hertz
• Single phase 3-wire, 120 Volt, 60 Hertz AC
only electrical supply with ground required.
• Always consult local and /or national
electric codes.
• Vent unit outside of building only.
• Vent must be installed in vertical
orientation only.
• 1,600 CFM remote exhaust blower included
with vent.
• Do not use flexible duct. Round duct instead
of rectangular duct recommended, especially
when elbows are required.
• When multiple elbows are necessary, ensure
a minimum of 24" of straight duct between
any two elbows.
• Thermal breaks such as short section of
nonmetallic duct, should be used in areas
of extreme cold.
• For most efficient airflow exhaust, use a
straight run or as few elbows as possible.
• Cold weather installations should have
additional backdraft damper installed.
• For vent installation refer to Countertop
Preparation illustration. Minimum flat
countertop area must meet or exceed
combined overall width and depth as shown.
Note: Refer to Product Installation Guide
for detailed instructions on the web at
www.electroluxusa.com.
DOWNDRAFT E48DD75ESS E46DD75ESS E36DD75ESS E30DD75ESS
Size 48" 46" 36" 30"
Installation Type Countertop Countertop Countertop Countertop
Air Discharge Down Down Down Down
Air Delivery 1600 CFM 1600 CFM 1600 CFM 1600 CFM
Intake Area 10" 10" 10" 10"
Controls Dial Dial Dial Dial
Infinite-Speed Blower Yes Yes Yes Yes
Dishwasher Safe Aluminum Filters Yes Yes Yes Yes
Exhaust Duct External External External External
Diameter of Duct 3-1/4" 3-1/4" 3-1/4" 3-1/4"
SPECIFICATIONS
Electrical –120 V AC /60 Hz /15 or 20 Amps Required Required Required Required
Shipping Weight 69 Lbs. 69 Lbs. 55 Lbs. 48 Lbs.
UPC (0-12505-) 53953-4 53952-7 53951-0 53950-3
NOTE: Always consult local and /or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxusa.com.
Mounted Mounted Mounted Mounted
Slim Style
Designed to work in perfect harmony with
all 30", 36" or 46" Electrolux ICON
or electric cooktops, except the E36GC75ESS.
™
gas
Infinite-Speed Blower
The ultra-quiet blower allows you to dial in
the precise blower speed needed.
Removable, Easy-Clean Filters
Filters are easy to remove and clean in
your dishwasher to restore to like-new
condition.

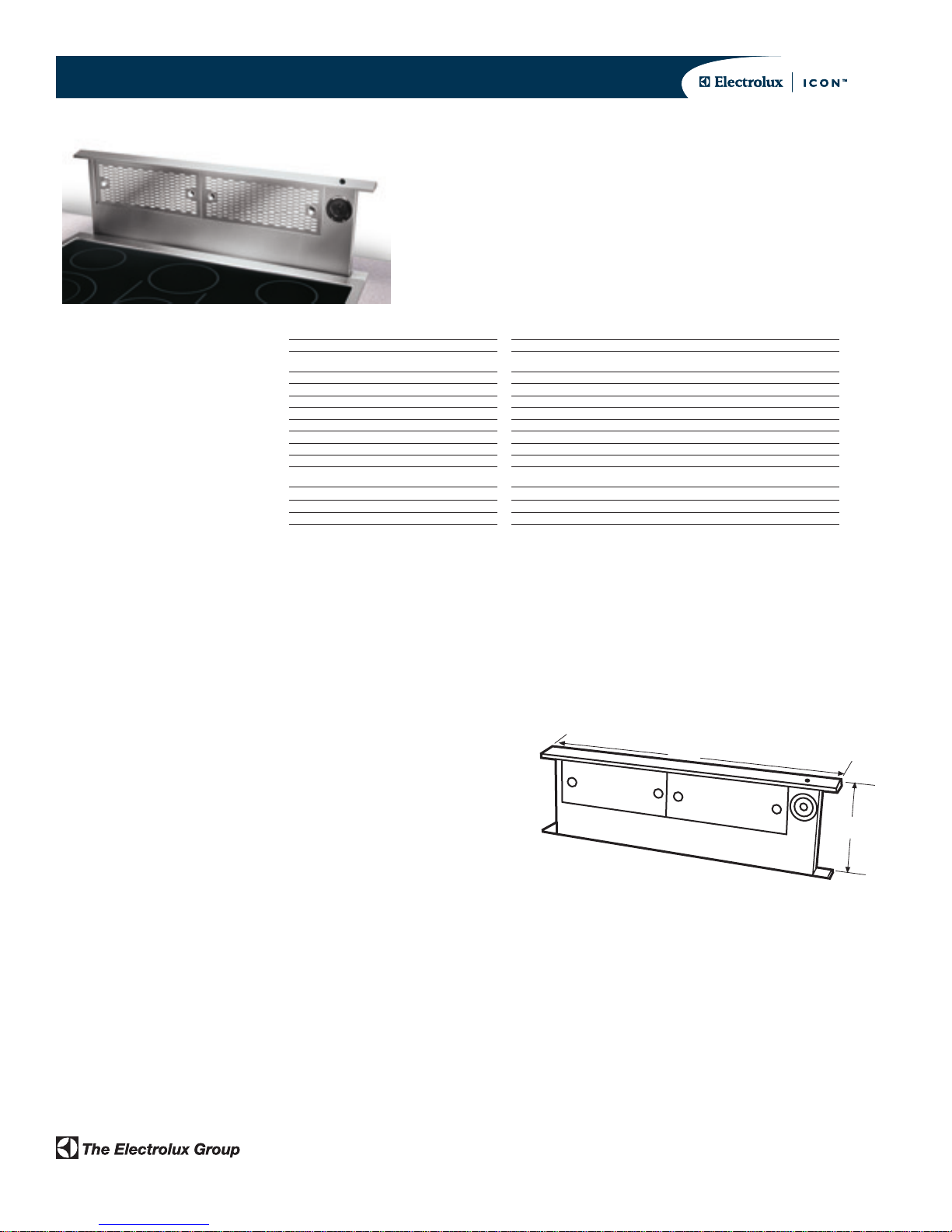

10"-High Intake
*48"
When activated, the downdraft vent rises
10" to capture even the most stubborn
cooking odors.
Venting Options
Can be vented though wall or roof.
Cubic Feet Per Minute
Air Delivery
1600 CFM system to match your
cooktop’s output.
* E46DD75ESS = 46"
E36DD75ESS = 36"
E30DD75ESS = 30"
10"
250 Bobby Jones Expressway •Augusta, GA 30907
250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287)
1-877-4electrolux (1-877-435-3287)
E48DD75ESS 01/05 © 2005 Electrolux Home Products, NA Printed in the U.S.A.
•
•
www.electroluxusa.com
www.electroluxusa.com
High standards of quality at Electrolux Home Products mean we are constantly working to improve
High standards of quality at Electrolux Home Products mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
our products. We reserve the right to change specifications or discontinue models without notice.
