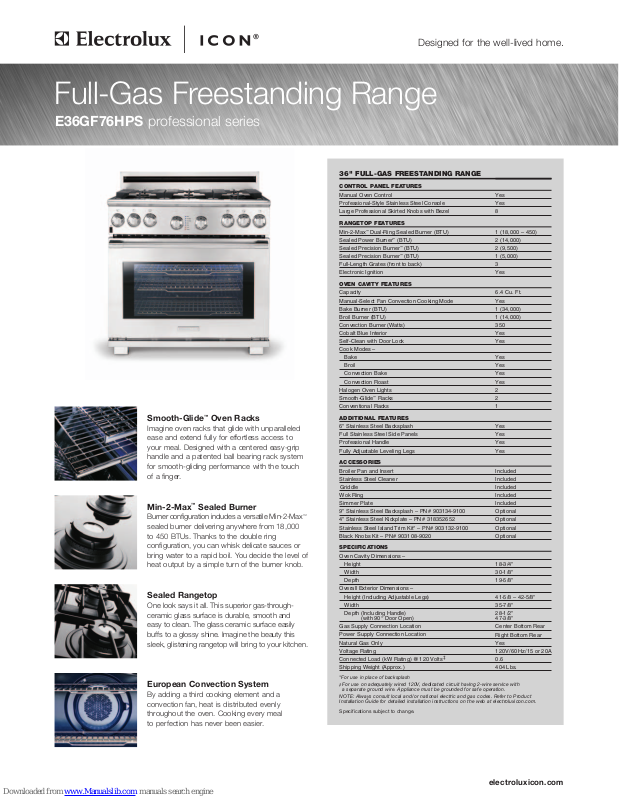

Page 1
36" FULL-GAS FREESTANDING RANGE
CONTROL PANEL FEATURES
Manual Oven Control
Professional-Style Stainless Steel Console
Large Professional Skirted Knobs with Bezel
RANGETOP FEATURES
Min-2-Max™Dual-Ring Sealed Burner (BTU)
Sealed Power Burner™(BTU)
Sealed Precision Burner™(BTU)
Sealed Precision Burner™(BTU)
Full-Length Grates (front to back)
Electronic Ignition
OVEN CAVITY FEATURES
Capacity
Manual-Select Fan Convection Cooking Mode
Bake Burner (BTU)
Broil Burner (BTU)
Convection Burner (Watts)
Cobalt Blue Interior
Self-Clean with Door Lock
Cook Modes –
Bake
Broil
Convection Bake
Convection Roast
Halogen Oven Lights
Smooth-Glide™Racks
Conventional Racks
ADDITIONAL FEATURES
6" Stainless Steel Backsplash
Full Stainless Steel Side Panels
Professional Handle
Fully Adjustable Leveling Legs
ACCESSORIES
Broiler Pan and Insert
Stainless Steel Cleaner
Griddle
Wok Ring
Simmer Plate
9" Stainless Steel Backsplash – PN# 903134-9100
4" Stainless Steel Kickplate – PN# 318352652
Stainless Steel Island Trim Kit* – PN# 903132-9100
Black Knobs Kit – PN# 903108-9020
SPECIFICATIONS
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height (Including Adjustable Legs)
Width
Depth (Including Handle)
(with 90° Door Open)
Gas Supply Connection Location
Power Supply Connection Location
Natural Gas Only
Voltage Rating
Connected Load (kW Rating) @120 Volts
‡
Shipping Weight (Approx.)
*For use in place of backsplash
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/ or national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
Yes
Yes
8
1 (18,000 – 450)
2 (14,000)
2 (9,500)
1 (5,000)
3
Yes
6.4 Cu. Ft.
Yes
1 (34,000)
1 (14,000)
350
Yes
Yes
Yes
Yes
Yes
Yes
2
2
1
Yes
Yes
Yes
Yes
Included
Included
Included
Included
Included
Optional
Optional
Optional
Optional
18-3/4"
30-1/8"
19-5/8"
41-5/8 – 42-5/8"
35-7/8"
28-1/2"
47-3/8"
Center Bottom Rear
Right Bottom Rear
Yes
120V/ 60Hz/15 or 20A
0.6
404 Lbs.
electroluxicon.com
Designed for the well-lived home.
Full-Gas Freestanding Range
E36GF76HPS professional series
Smooth-Glide™Oven Racks
Imagine oven racks that glide with unparalleled
ease and extend fully for effortless access to
your meal. Designed with a centered easy-grip
handle and a patented ball bearing rack system
for smooth-gliding performance with the touch
of a finger.
Min-2-Max™Sealed Burner
Burner configuration includes a versatile Min-2-Max
™
sealed burner delivering anywhere from 18,000
to 450 BTUs. Thanks to the double ring
configuration, you can whisk delicate sauces or
bring water to a rapid boil. You decide the level of
heat output by a simple turn of the burner knob.
Sealed Rangetop
One look says it all. This superior gas-throughceramic glass surface is durable, smooth and
easy to clean. The glass ceramic surface easily
buffs to a glossy shine. Imagine the beauty this
sleek, glistening rangetop will bring to your kitchen.
European Convection System
By adding a third cooking element and a
convection fan, heat is distributed evenly
throughout the oven. Cooking every meal
to perfection has never been easier.
Page 2
Full-Gas Freestanding Range
E36GF76HPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E36GF76HPS 02/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
36" Full-Gas Freestanding Range Specifications
•
Product Weight – 352 Lbs.
•
Voltage Rating –120V / 60Hz/15 or 20 Amp
•
Connected Load (kW Rating) @120 Volts = 0.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 7 Amps
•
Always consult local and/or national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
Natural gas only.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 34" minimum clearance between top of rangetop and bottom
of unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 7" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No.28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
9" Stainless Steel Backsplash – (PN# 903134-9100).
•
Stainless Steel Island Trim Kit (for use in place
of backsplash) – (PN# 903132-9100).
•
4" Stainless Steel Kick Plate – (PN# 318352652).
•
Black Knobs Kit – (PN# 903108-9020).
357/8"
Front
415/8"
min.
42
5
/8"
max.
Gas inlet
location
(center
bottom
rear)
19/16"
281/2"
281/16"
243/4"
Standard 6"
backsplash
Side
73/4"
21/4"
Power
supply
location
(right
bottom
rear)
353/4"min.
36
3
/4"max.
Depth including oven door in
90°open position – 473/8"
adjustable legs
Optional 9"
1
/2"
13 "
max.
25"
24"
min.
24
1
/2"
max.
7"min.
to nearest
combustible
wall (either
side of unit)
18"
min.
36
1
/16"
Vertical
noncombustible
surface
353/4"
min.
36"
stand.
34"
min.
357/8"
min.
Recommended
location for 120V/60Hz
grounded electrical
wall outlet
8"x 12"opening to route gas
supply can be located in cabinet
on either side of range
E36GF76HPS
