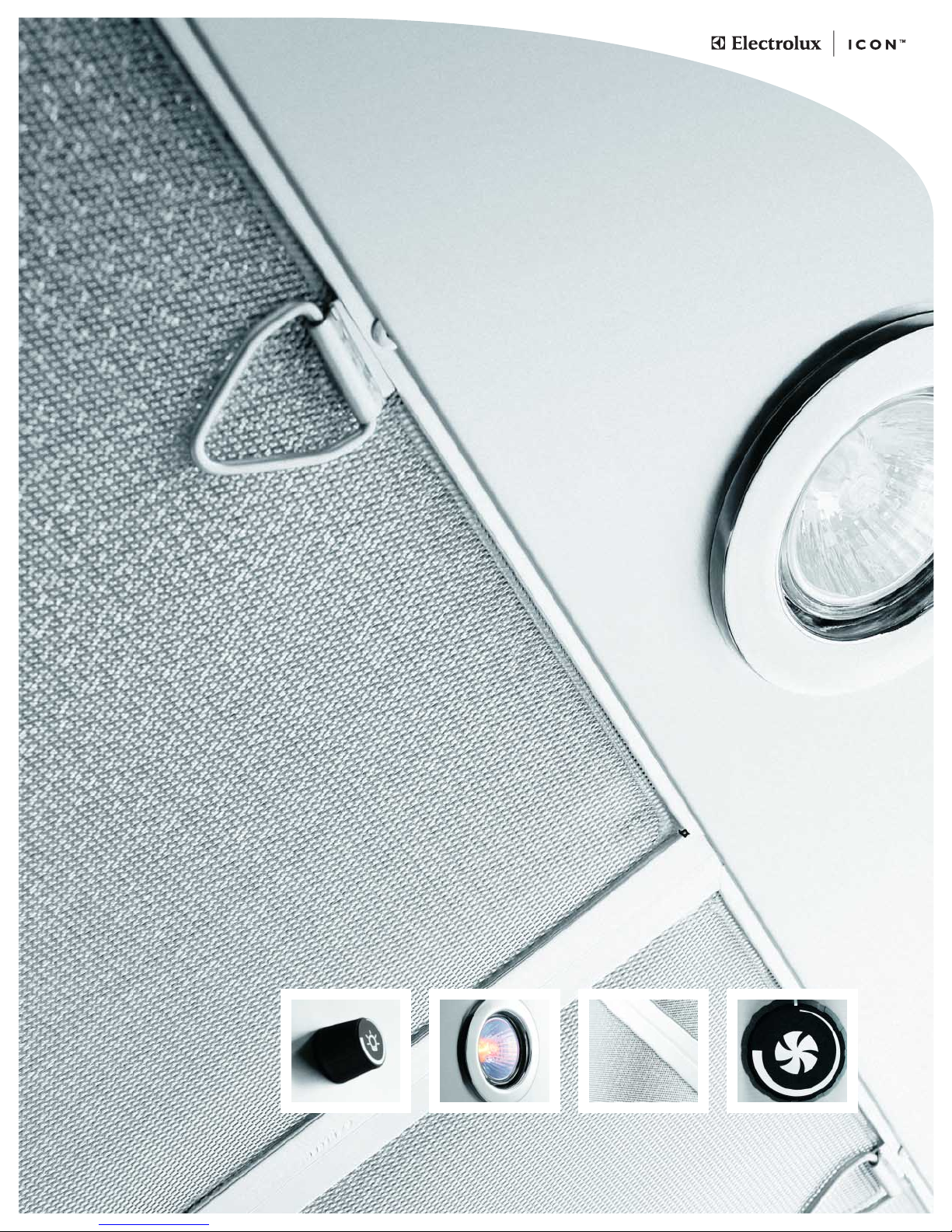

Page 1
18" CANOPY RANGE HOOD – 48", 36", 30"
E488WV120S, E368WV60ES, E308WV60ES
professional series
Page 2
18" CANOPY RANGE HOOD professional series
E488WV120S 04/05 © 2005 Electrolux Home Products, NA Printed in the U.S.A.
18" Canopy Range Hood Specifications
• Product Weights –
(48") 103 Lbs. / (36") 64 Lbs. / (30") 55 Lbs.
• Wall-Mount Installation – can be ducted vertically
or horizontally.
• Electrical Requirements – 120 Volts AC, 60 Hertz,
15 Amps Dedicated Circuit
• Total Connected Load – 1.4 kW (12 Amps)
• Always consult local and /or national electric codes.
• Vent unit outside of building only.
• Diameter of Transition –
(48") 10" Custom Required / (36") 8" / (30") 8"
• Diameter of Exhaust Duct(s) Required –
(48") Dual 8" / (36") 8" / (30") 8"
• Thermal breaks such as short section of
nonmetallic duct, should be used in areas of
extreme cold.
• For most efficient airflow exhaust, use a straight run
or as few elbows as possible.
• Use metallic flex ducting only to connect rigid duct
directly to transitions (if allowed by code).
• Cold weather installations should have additional
backdraft damper installed.
• For most efficient operation, position hood low to
cooktop. Recommended installation is 30" -36"
above countertop.
Note: Refer to Product Installation Guide for detailed
instructions on the web at www.electroluxusa.com.
Dual-Centrifugal Blower (48")
Effectively removes the most persistent
food and cooking odors.
Infinite-Speed Blower Control
The ultraquiet blower allows you to dial
in the precise airflow needed.
Dual Halogen Lighting with
Dimmer Control
Two overhead halogen bulbs evenly
illuminate the cooking surface and provide
abundant light to enhance the cooking
experience.
Dishwasher Safe Filters
Saturated filters can be rinsed and cycled
through the dishwasher. The aluminum
filter provides strength and durability not
found in foam filters.
Wall-Mount Installation
This wall-mount hood provides power,
illumination and 18 inches of height. It also
offers the flexibility of both vertical and
horizontal ducting.
High standards of quality at Electrolux Home Products mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287)
•
www.electroluxusa.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4
1-800-668-4606
•
www.electroluxca.com

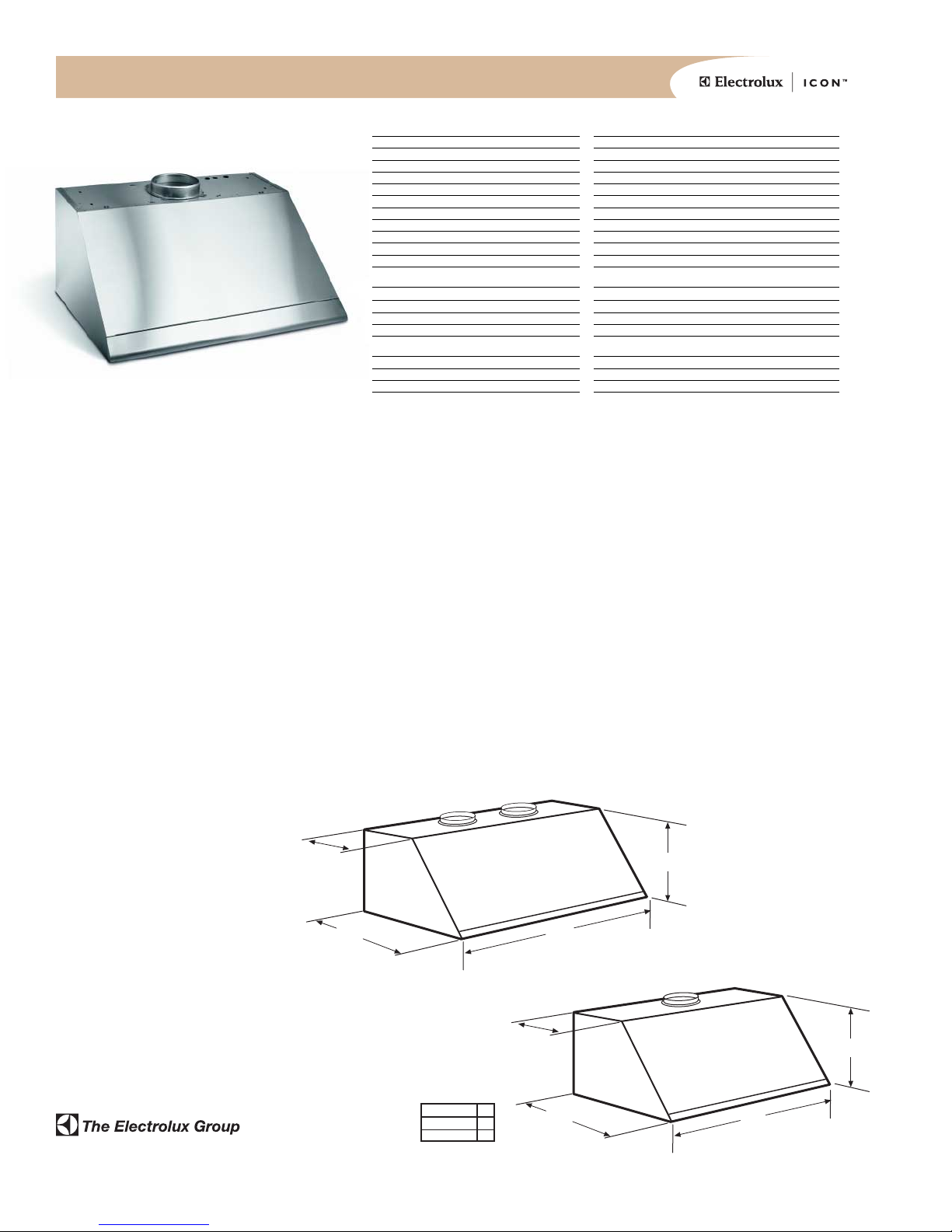

18" CANOPY RANGE HOOD E488WV120S E368WV60ES E308WV60ES
Size 48" 36" 30"
Installation Type Wall Mounted Wall Mounted Wall Mounted
Air Discharge Vertical or Horiz. Vertical or Horiz. Vertical or Horiz.
Air Delivery 1200 CFM 600 CFM 600 CFM
Blower Type Dual Centrifugal Centrifugal Centrifugal
Controls Dial Dial Dial
Infinite-Speed Blower Yes Yes Yes
Dual Halogen Lights Yes Yes Yes
Dishwasher Safe Aluminum Filters Yes Yes Yes
Exhaust Duct External External External
Diameter of Duct 10" 10" 10"
SPECIFICATIONS
Cutout Dimensions –
Height 18" 18" 18"
Width 48" 36" 30"
Depth 11-7/8" 11-7/8" 11-7/8"
Electrical –
120 V AC/ 60 Hz/ 15 or 20 Amps Required Required Required
Product Weight 103 Lbs. 64 Lbs. 55 Lbs.
Shipping Weight 108 Lbs. 67 Lbs. 58 Lbs.
UPC (0-12505-) 55611-1 55710-1 55711-1
NOTE: Always consult local and /or national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at www.electroluxusa.com.
36" model shown
E488WV120S
11
7
/8"
26
7
/8"
48"
7
11
/8"
18"
18"
Dimensions
Vent Model A
E368WV60ES 36"
E308WV60ES 30"
7
26
/8"
A
