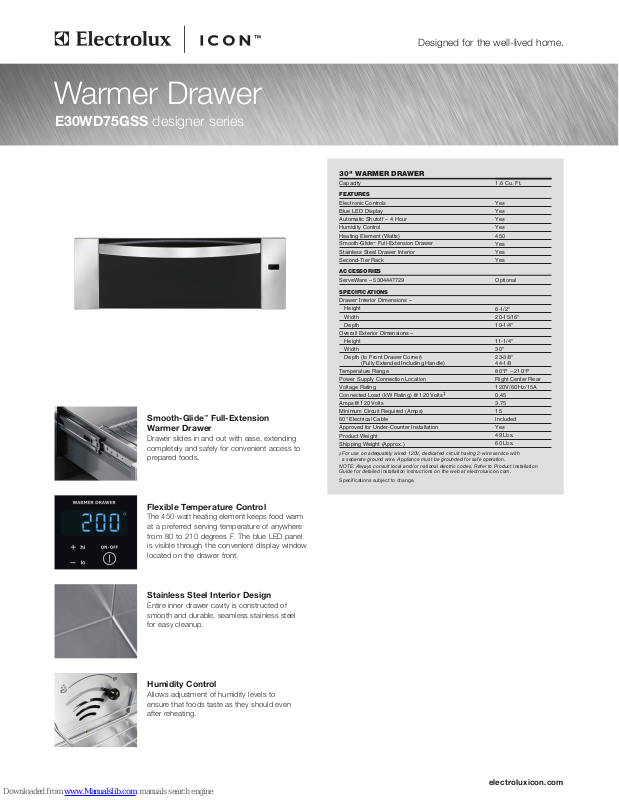

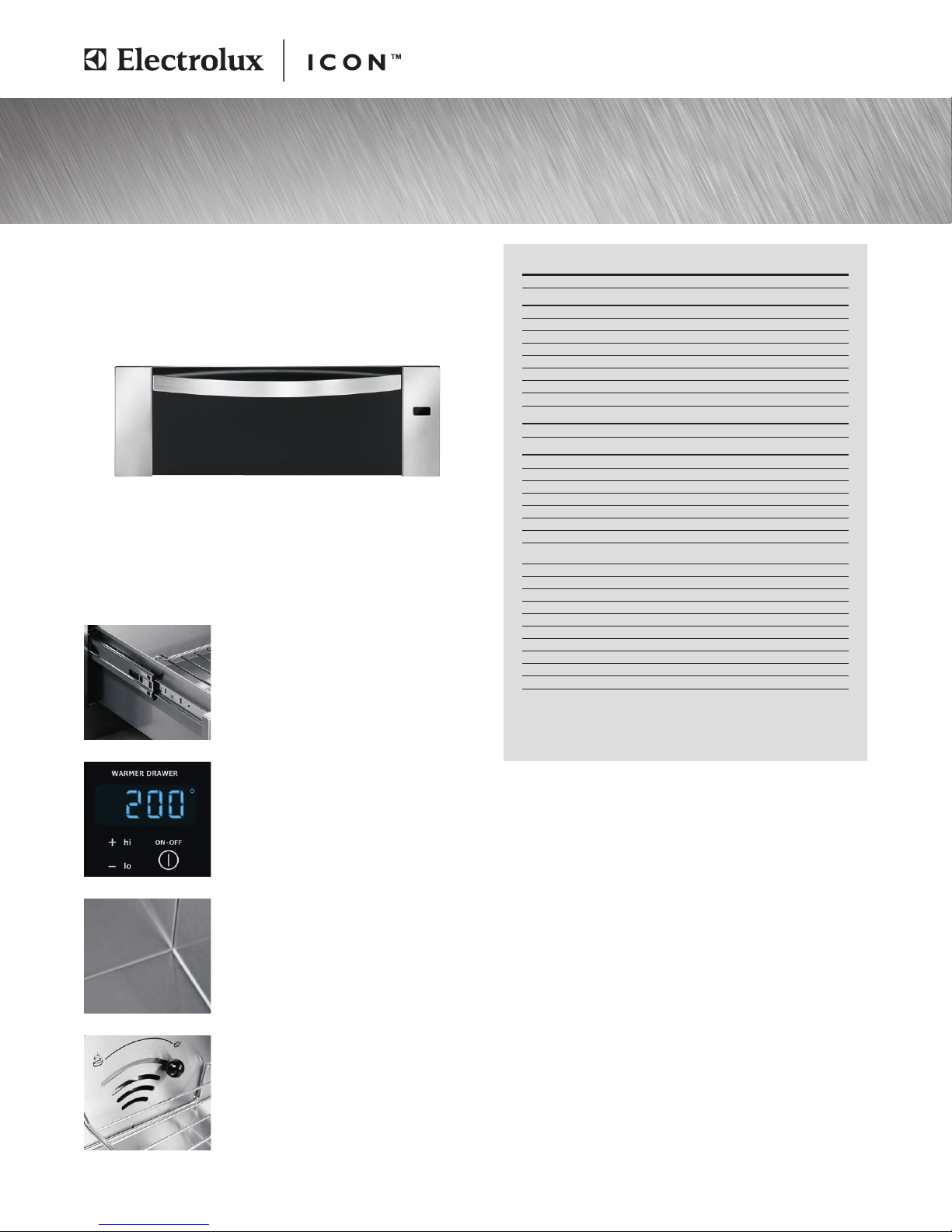

Warmer Drawer
E30WD75GSS designer series
Smooth-Glide™Full-Extension
Warmer Drawer
Drawer slides in and out with ease, extending
completely and safely for convenient access to
prepared foods.
Designed for the well-lived home.
30" WARMER DRAWER
Capacity
FEATURES
Electronic Controls
Blue LED Display
Automatic Shutoff – 4 Hour
Humidity Control
Heating Element (Watts)
Smooth-Glide™Full-Extension Drawer
Stainless Steel Drawer Interior
Second-Tier Rack
ACCESSORIES
ServeWare – 5304447729
SPECIFICATIONS
Drawer Interior Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (to Front Drawer Corner)
(Fully Extended Including Handle)
Temperature Range
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts
Amps@ 120 Volts
Minimum Circuit Required (Amps)
60" Electrical Cable
Approved for Under-Counter Installation
Product Weight
Shipping Weight (Approx.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
‡
1.6 Cu. Ft.
Yes
Yes
Yes
Yes
450
Yes
Yes
Yes
Optional
6-1/2"
20-15/16"
19-1/4"
11-1/4"
30"
23-3/8"
44-1/8
80°F – 210° F
Right Center Rear
120V/ 60Hz /15A
0.45
3.75
15
Included
Yes
49 Lbs.
60 Lbs.
Flexible Temperature Control
The 450-watt heating element keeps food warm
at a preferred serving temperature of anywhere
from 80 to 210 degrees F. The blue LED panel
is visible through the convenient display window
located on the drawer front.
Stainless Steel Interior Design
Entire inner drawer cavity is constructed of
smooth and durable, seamless stainless steel
for easy cleanup.
Humidity Control
Allows adjustment of humidity levels to
ensure that foods taste as they should even
after reheating.
electroluxicon.com
Page 2

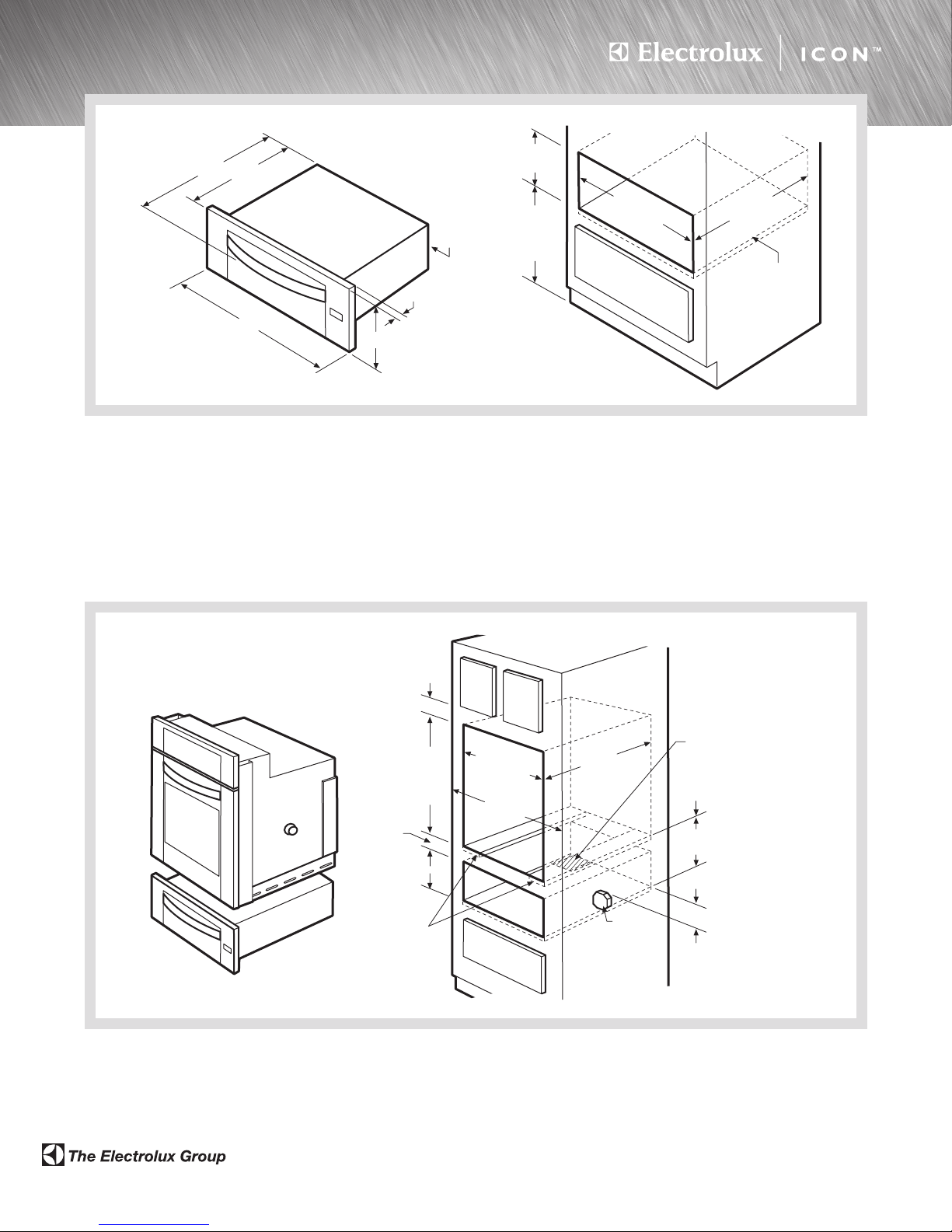

Warmer Drawer
Full plywood
base required to
support 100 lbs.
41/2" min.
required
distance
to floor
9
7
/8" min.
10 1/4"max.
281/2" min.
283/4" max.
23 5/8"min.
24"max.
9 7/8" min.
10
1
/4"max.
1
1
/
2
"
min.
*Critical dimension –
MUST be applied
**Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
†
Maximum height
depends on critical
dimension (
11
5
/
8
")
3"
max.**
30"min.
4" x 4"
opening
to route
armoured
cable
281/2"
min.
28
7
/8"
max.
Electrical
junction box
location
281/2"min.
28
3
/4"max.
Bottom
of oven
cutout
115/8"
min.*
24"*
(critical
dimension)
Two 3" wide
x 3/4" thick
planks must
be installed,
capable of
supporting
200 lbs.
1
3
/
4
"
min.
†
E30WD75GSS designer series
1
/4"
25
23
Warmer Drawer
Stand-Alone
3
/8"
Installation
Power cord
location (right
center rear)
7
/8"
Overall depth with
drawer fully extended
30"
11 1/4"
(including handle) – 441/8"
30" Warmer Drawer Specifications
•
Product Weight – 49 Lbs.
•
Voltage Rating –120V /450W/ 60 Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45 kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full plywood base required, capable of supporting 100 Lbs.
•
Base must be level and cabinet front must be square.
Warmer Drawer/Single Wall Oven
Combination Installation
•
Warmer Drawer can be used alone, or is approved to be used in
combination with any Electrolux ICON™Wall Oven. (Refer to
Combination Installation Specifications and drawing on this page.)
•
Warmer Drawer can be used alone, or is approved to be used in
combination with any Electrolux ICON™built-in product. (Refer to
Combination Installation Specifications pages on web.)
Optional Accessories
•
ServeWare – (5304447729).
Warmer Drawer/ Wall Oven Combination Specifications
•
To support Wall Oven when using in combination with Warmer Drawer,
two 3"-wide x 3/4" thick planks must be installed as a base, capable of
supporting 200 Lbs. Do NOT use full base, since planks are necessary
to allow for proper air displacement.
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
CANADA
E30WD75GSS 05/08 © 2008 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
•
electroluxicon.com
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Page 3
High-Speed Oven/Electric Single Wall Oven/
Warmer Drawer Combination Installation
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
E30SO75FPS
E30SO75ESS
High-Speed
21
22
11
/16"min.
3
/16"max.
Oven Cutout
2"
(visible
gap)*
E30EW75GPS
E30EW75GSS
Electric Single
Wall Oven Cutout
E30WD75GPS
E30WD75GSS
E30WD75GTT
Warmer Drawer
Cutout
281/2"min.
28
13/4"min.
10
1
4
/2" min.
7
/8"max.
†
97/8"min.
1
/4"max.
required
24"min.
223/8" min.
7
22
/8" max.
281/2" min.
3
28
/4" max.
281/2" min.
3
/4" max.
28
30"min.
1
20
/4"
C
L
24"min.**
(critical
dimension)
163/4"
240V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
Full plywood base
required to support
150 lbs.
Two 3" wide
3
/4" thick
by
planks must be
installed, capable
of supporting
200 lbs.
Bottom of
oven cutout
115/8"min.**
(critical
dimension)
††
3"max.
* Minimum 25/8"
clearance required
from bottom of
Built-In High-Speed
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible gap
between both product
faceplates
** Critical dimension –
MUST be applied
†
Maximum height
depends on critical
dimension (11
††
Electrical junction
5
/8")
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
Full plywood base
required to support
100 lbs.
High-Speed Oven/Electric Single Wall Oven/Warmer Drawer
Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" High-Speed Ovens Specifications
•
Product Weights – (E30SO75FPS/ E30SO75ESS) 115 Lbs.
•
Voltage Rating – 240V/ 60 Hz/15 or 20 Amps
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line.
•
Connected Load (kW Rating) @ 240 Volts = 3.3kW
•
Amps @ 240 Volts =13.2 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Minimum 2-5/8"clearance required from bottom of High-Speed Oven
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
Electrical junction
box location
4"x 4" opening to route
armoured cable
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0 kW
•
Amps @ 240/208 Volts =16.6/ 14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4" thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/ E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V /450W/ 60Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
CANADA
SO_EW_WD INST 05/08 © 2008 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
•
electroluxicon.com
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Page 4

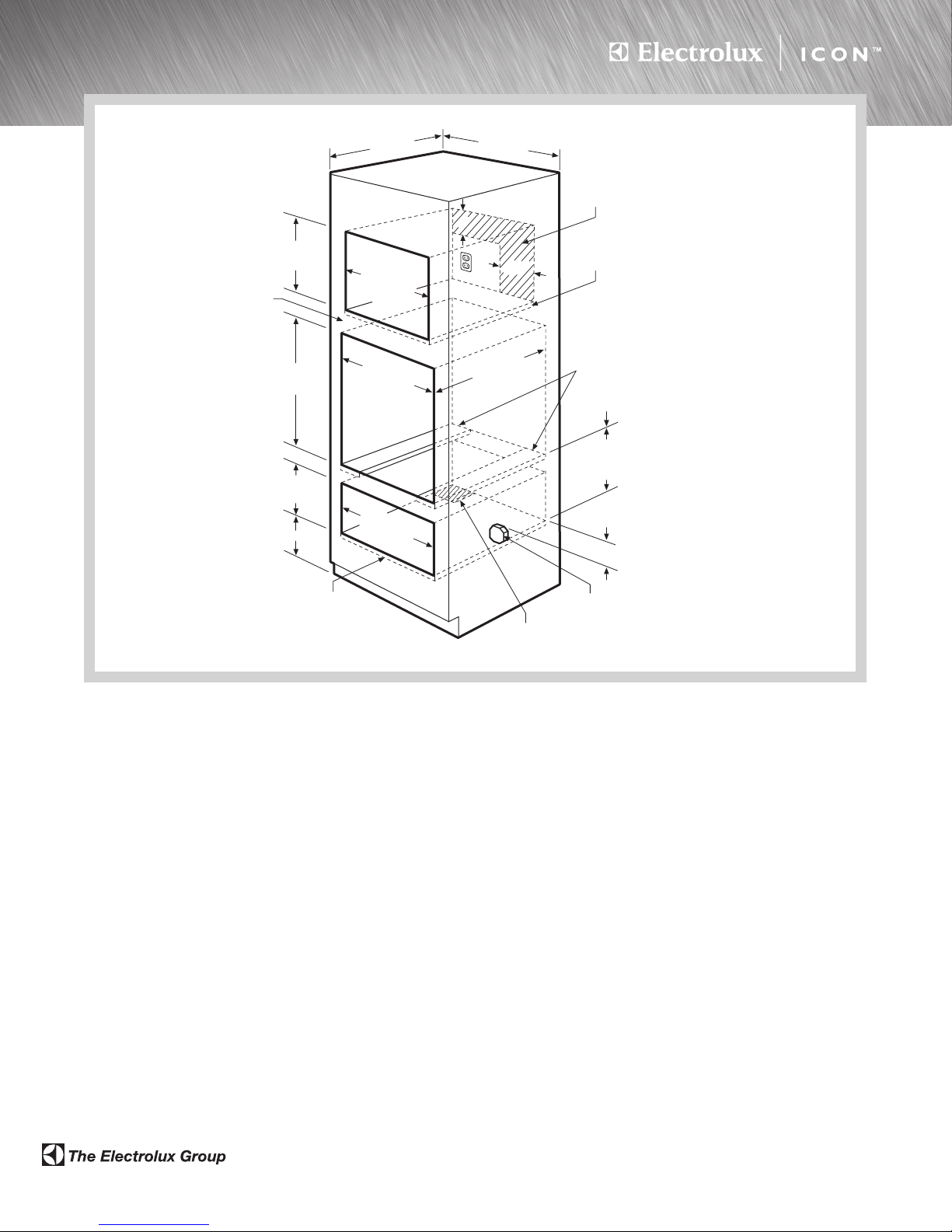

Microwave Oven/Electric Single Wall Oven/
Warmer Drawer Combination Installation
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
E30MO65GSS
Microwave Oven
Cutout
7
/8"min.
19
203/8"max.
2"
(visible
gap)*
E30EW75GPS
E30EW75GSS
Electric Single
Wall Oven Cutout
E30WD75GPS
E30WD75GSS
E30WD75GTT
Warmer Drawer
Cutout
28
13/4"min.
1
/2" min.
4
required
281/2"min.
7
/8"max.
†
97/8"min.
101/4"max.
24"min.
261/2"min.
27"max.
281/2" min.
3
28
/4" max.
281/2" min.
3
/4" max.
28
30"min.
5"
24"min.**
(critical
dimension)
111/2"
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
Full plywood base
required to support
100 lbs.
Two 3" wide
3
/4" thick
by
planks must be
installed, capable
of supporting
200 lbs.
Bottom of
oven cutout
115/8"min.**
(critical
dimension)
††
3"max.
* Minimum 31/8"
clearance required
from bottom of
Built-In Microwave
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible gap
between both product
faceplates
** Critical dimension –
MUST be applied
†
Maximum height
depends on critical
dimension (115/8")
††
Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
Full plywood base
required to support
100 lbs.
Microwave Oven/Electric Single Wall Oven/Warmer Drawer
Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating –120V / 60 Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 13 Amps
•
Consult local building code in the event that cutout opening may
be required to be enclosed with sides, ceiling and rear partition.
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 3-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
Electrical junction
box location
4"x 4" opening to route
armoured cable
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0 kW
•
Amps @ 240/208 Volts =16.6/ 14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4" thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/ E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V /450W/ 60Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
CANADA
MO_EW_WD INST 05/08 © 2008 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
•
electroluxicon.com
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Loading...
