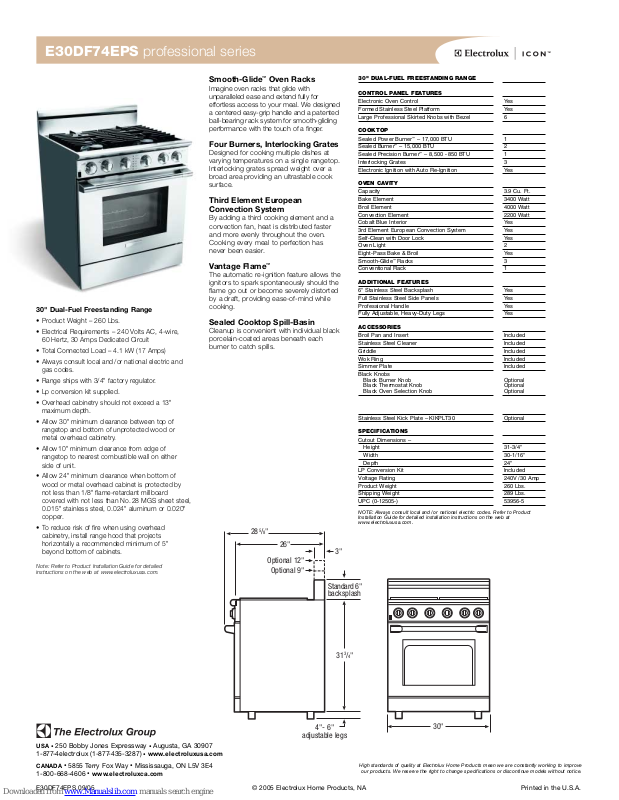

E30DF74EPS professional series
E30DF74EPS 09/05 © 2005 Electrolux Home Products, NA Printed in the U.S.A.
30" Dual-Fuel Freestanding Range
• Product Weight – 260 Lbs.
• Electrical Requirements – 240 Volts AC, 4-wire,
60 Hertz, 30 Amps Dedicated Circuit
• Total Connected Load – 4.1 kW (17 Amps)
• Always consult local and /or national electric and
gas codes.
• Range ships with 3/4" factory regulator.
• Lp conversion kit supplied.
• Overhead cabinetry should not exceed a 13"
maximum depth.
• Allow 30" minimum clearance between top of
rangetop and bottom of unprotected wood or
metal overhead cabinetry.
• Allow 10" minimum clearance from edge of
rangetop to nearest combustible wall on either
side of unit.
• Allow 24" minimum clearance when bottom of
wood or metal overhead cabinet is protected by
not less than 1/8" flame-retardant millboard
covered with not less than No.28 MGS sheet steel,
0.015" stainless steel, 0.024" aluminum or 0.020"
copper.
• To reduce risk of fire when using overhead
cabinetry, install range hood that projects
horizontally a recommended minimum of 5"
beyond bottom of cabinets.
Note: Refer to Product Installation Guide for detailed
instructions on the web at www.electroluxusa.com.
Smooth-Glide™Oven Racks
Imagine oven racks that glide with
unparalleled ease and extend fully for
effortless access to your meal. We designed
a centered easy-grip handle and a patented
ball-bearing rack system for smooth-gliding
performance with the touch of a finger.
Four Burners, Interlocking Grates
Designed for cooking multiple dishes at
varying temperatures on a single rangetop.
Interlocking grates spread weight over a
broad area providing an ultrastable cook
surface.
Third Element European
Convection System
By adding a third cooking element and a
convection fan, heat is distributed faster
and more evenly throughout the oven.
Cooking every meal to perfection has
never been easier.
Vantage Flame
™
The automatic re-ignition feature allows the
ignitors to spark spontaneously should the
flame go out or become severely distorted
by a draft, providing ease-of-mind while
cooking.
Sealed Cooktop Spill-Basin
Cleanup is convenient with individual black
porcelain-coated areas beneath each
burner to catch spills.
30" DUAL-FUEL FREESTANDING RANGE
CONTROL PANEL FEATURES
Electronic Oven Control Yes
Formed Stainless Steel Platform Yes
Large Professional Skirted Knobs with Bezel 6
COOKTOP
Sealed Power Burner™– 17,000 BTU 1
Sealed Burner™– 15,000 BTU 2
Sealed Precision Burner™– 8,500 - 850 BTU 1
Interlocking Grates 3
Electronic Ignition with Auto Re-Ignition Yes
OVEN CAVITY
Capacity 3.9 Cu. Ft.
Bake Element 3400 Watt
Broil Element 4000 Watt
Convection Element 2200 Watt
Cobalt Blue Interior Yes
3rd Element European Convection System Yes
Self-Clean with Door Lock Yes
Oven Light 2
Eight-Pass Bake & Broil Yes
Smooth-Glide™Racks 3
Conventional Rack 1
ADDITIONAL FEATURES
6" Stainless Steel Backsplash Yes
Full Stainless Steel Side Panels Yes
Professional Handle Yes
Fully Adjustable, Heavy-Duty Legs Yes
ACCESSORIES
Broil Pan and Insert Included
Stainless Steel Cleaner Included
Griddle Included
Wok Ring Included
Simmer Plate Included
Black Knobs
Black Burner Knob Optional
Black Thermostat Knob Optional
Black Oven Selection Knob Optional
Stainless Steel Kick Plate – KIKPLT30 Optional
SPECIFICATIONS
Cutout Dimensions –
Height 31-3/4"
Width 30-1/16"
Depth 24"
LP Conversion Kit Included
Voltage Rating 240V /30 Amp
Product Weight 260 Lbs.
Shipping Weight 289 Lbs.
UPC (0-12505-) 53956-5
NOTE: Always consult local and /or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
www.electroluxusa.com.
High standards of quality at Electrolux Home Products mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287)
•
www.electroluxusa.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4
1-800-668-4606
•
www.electroluxca.com
313/4"
30"
3"
285/8"
26"
4"- 6"
adjustable legs
Optional 12"
Optional 9"
Standard 6"
backsplash
