Page 1
electroluxicon.com

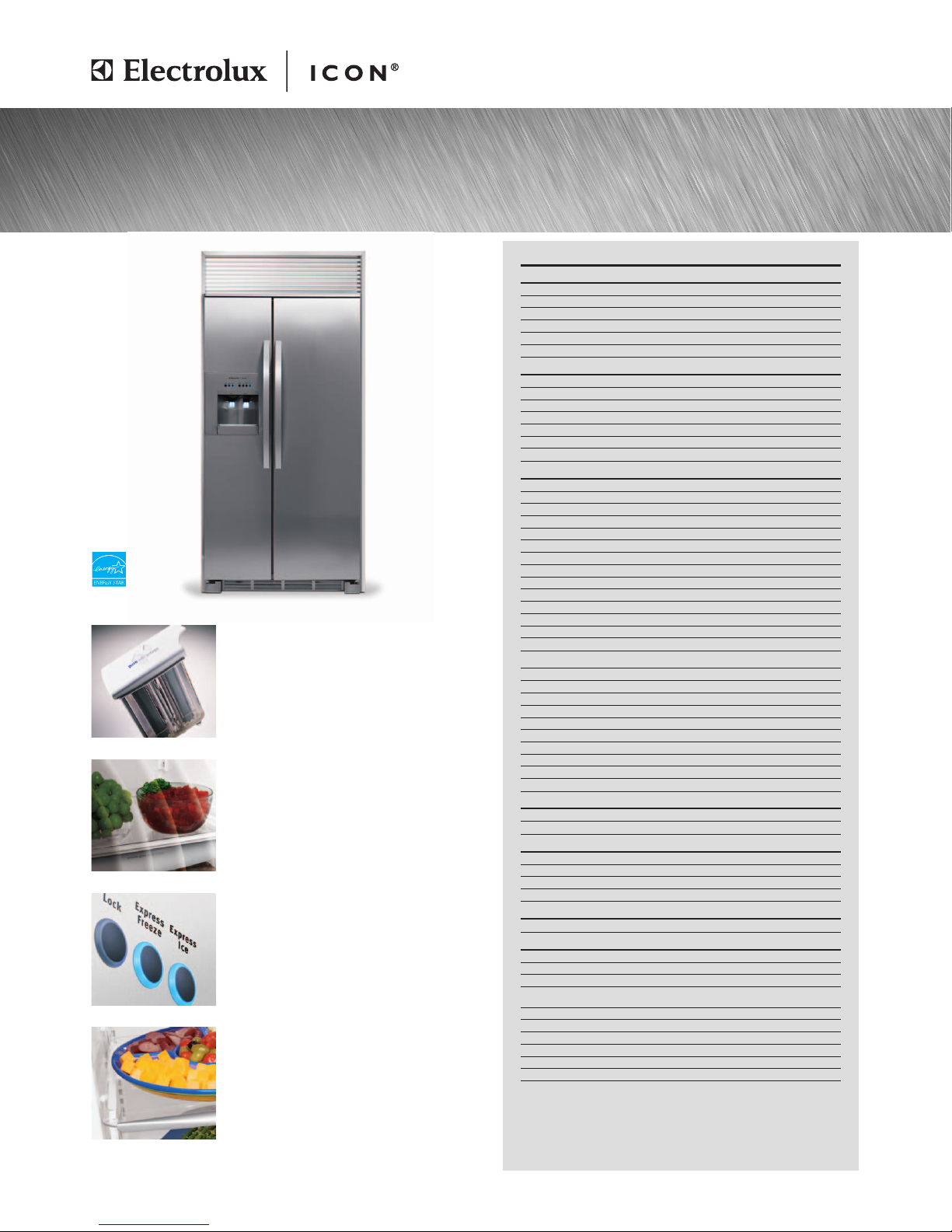

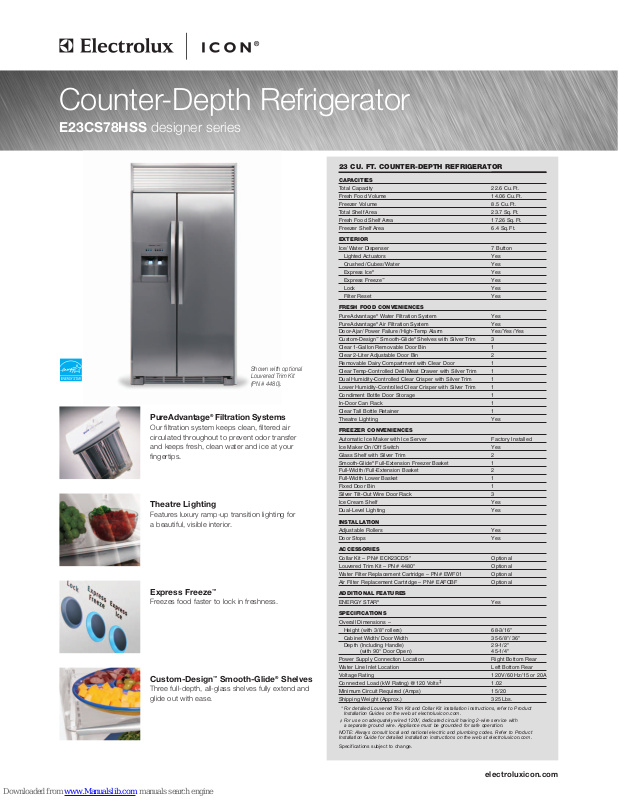

Counter-Depth Refrigerator
E23CS78HSS designer series
Shown with optional
Louvered Trim Kit
(PN# 4480).
PureAdvantage®Filtration Systems
Our filtration system keeps clean, filtered air
circulated throughout to prevent odor transfer
and keeps fresh, clean water and ice at your
fingertips.
Theatre Lighting
Features luxury ramp-up transition lighting for
a beautiful, visible interior.
Express Freeze
™
Freezes food faster to lock in freshness.
Custom-Design™Smooth-Glide®Shelves
Three full-depth, all-glass shelves fully extend and
glide out with ease.
23 CU. FT. COUNTER-DEPTH REFRIGERATOR
CAPACITIES
Total Capacity
Fresh Food Volume
Freezer Volume
Total Shelf Area
Fresh Food Shelf Area
Freezer Shelf Area
EXTERIOR
Ice/ Water Dispenser
Lighted Actuators
Crushed/ Cubes/ Water
Express Ice
®
Express Freeze
™
Lock
Filter Reset
FRESH FOOD CONVENIENCES
PureAdvantage®Water Filtration System
PureAdvantage®Air Filtration System
Door-Ajar/ Power Failure/High-Temp Alarm
Custom-Design™Smooth-Glide®Shelves with Silver Trim
Clear 1-Gallon Removable Door Bin
Clear 2-Liter Adjustable Door Bin
Removable Dairy Compartment with Clear Door
Clear Temp-Controlled Deli/ Meat Drawer with Silver Trim
Dual Humidity-Controlled Clear Crisper with Silver Trim
Lower Humidity-Controlled Clear Crisper with Silver Trim
Condiment Bottle Door Storage
In-Door Can Rack
Clear Tall Bottle Retainer
Theatre Lighting
FREEZER CONVENIENCES
Automatic Ice Maker with Ice Server
Ice Maker On/ Off Switch
Glass Shelf with Silver Trim
Smooth-Glide®Full-Extension Freezer Basket
Full-Width/ Full-Extension Basket
Full-Width Lower Basket
Fixed Door Bin
Silver Tilt-Out Wire Door Rack
Ice Cream Shelf
Dual-Level Lighting
INSTALLATION
Adjustable Rollers
Door Stops
ACCESSORIES
Collar Kit – PN# ECK23CDS*
Louvered Trim Kit – PN# 4480*
Water Filter Replacement Cartridge – PN# EWF01
Air Filter Replacement Cartridge – PN# EAFCBF
ADDITIONAL FEATURES
ENERGY STAR
®
SPECIFICATIONS
Overall Dimensions –
Height (with 3/8" rollers)
Cabinet Width/ Door Width
Depth (Including Handle)
(with 90° Door Open)
Power Supply Connection Location
Water Line Inlet Location
Voltage Rating
Connected Load (kW Rating)@ 120 Volts
‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
* For detailed Louvered Trim Kit and Collar Kit installation instructions, refer to Product
Installation Guides on the web at electroluxicon.com.
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
22.6 Cu.Ft.
14.06 Cu.Ft.
8.5 Cu.Ft.
23.7 Sq.Ft.
17.26 Sq.Ft.
6.4 Sq.Ft.
7 Button
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes / Yes / Yes
3
1
2
1
1
1
1
1
1
1
Yes
Factory Installed
Yes
2
1
2
1
1
3
Yes
Yes
Yes
Yes
Optional
Optional
Optional
Optional
Yes
68-3/16"
35-5/8"/ 36"
29-1/2"
45-1/4"
Right Bottom Rear
Left Bottom Rear
120V/ 60Hz /15 or 20A
1.02
15/ 20
325 Lbs.
Page 2
Counter-Depth Refrigerator
E23CS78HSS designer series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E23CS78HSS 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Counter-Depth Refrigerator Specifications
•
Product Weight – 300 Lbs.
•
Voltage Rating –120V / 60 Hz/ 15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.02kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
When installing next to wall allow 3-1/2" handle clearance.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer/crisper access and removal. (Absolute 4-1/2" minimum
clearance will ONLY allow for 90°door swing which will provide
drawer/crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water supply
line plus 7 additional feet. Optional Water Supply Installation Kits available.
•
Adjustable front rollers to assist with door alignment.
•
If optional Collar Kit (PN# ECK23CDS) is to be used, different cutout
dimensions are required. (Refer to Collar Kit ECK23CDS Installation
Specifications page on web.)
•
If optional Louvered Trim Kit (PN# 4480) is to be used, different cutout
dimensions are required. (Refer to Louvered Trim Kit 4480 Installation
Specifications page on web.)

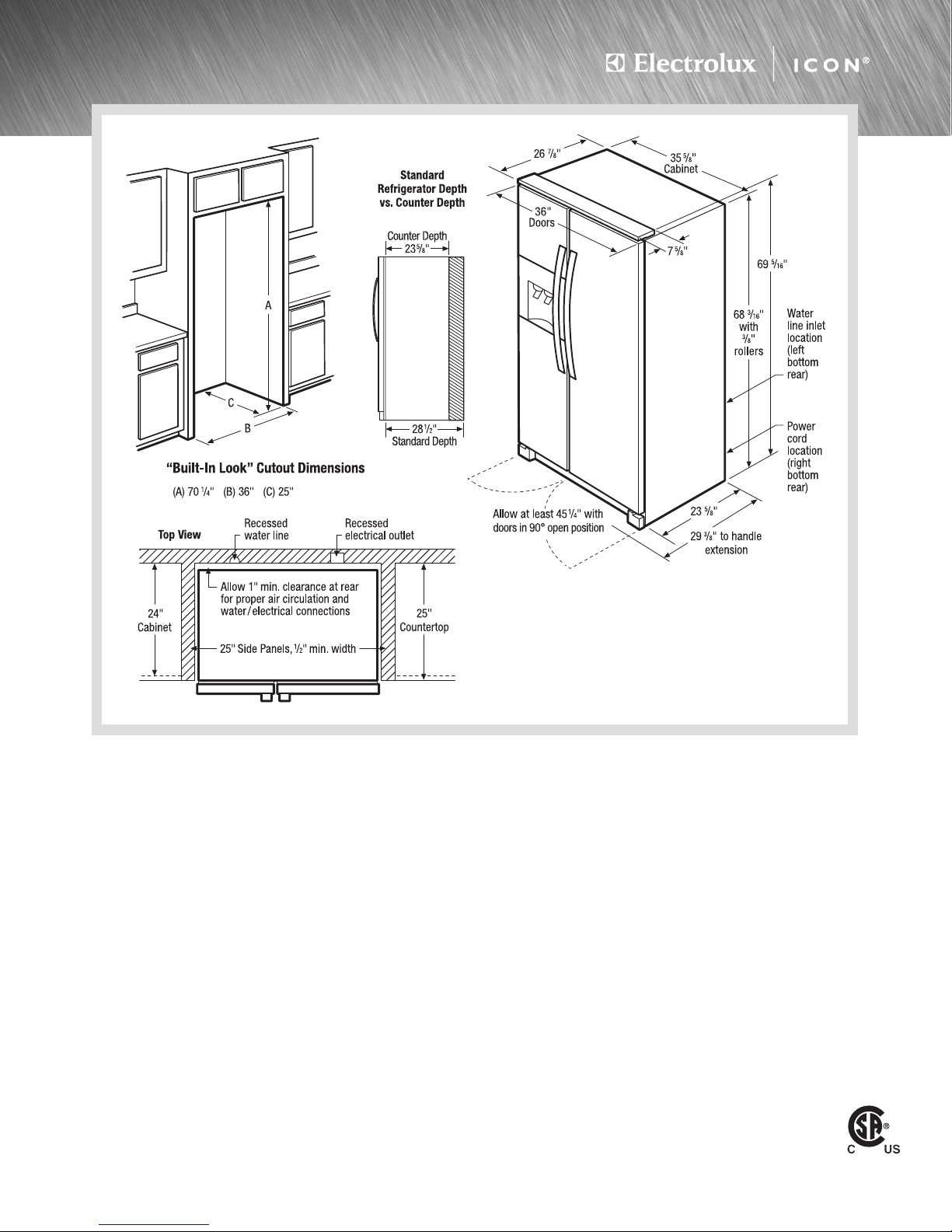

“Built-In Look” Specifications
•
Minimum opening of 70-1/4"H x 36"W x 25" D required to allow for ease
of installation, proper air circulation, and plumbing/ electrical connections.
•
Remove all wall/floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
Collar Kit – (PN# ECK23CDS).
•
Louvered Trim Kit – (PN# 4480).
•
PureAdvantage®Water Filter Replacement Cartridge – (PN# EWF01).
•
PureAdvantage®Air Filter Replacement Cartridge – (PN# EAFCBF).
Note: Optional Louvered Trim Kit and Collar Kit available
for Counter-Depth Refrigerator. For specifications, refer
to Louvered Trim Kit (4480) Installation page or Collar Kit
(ECK23CDS) Installation page on web.
Page 3
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Front
Top

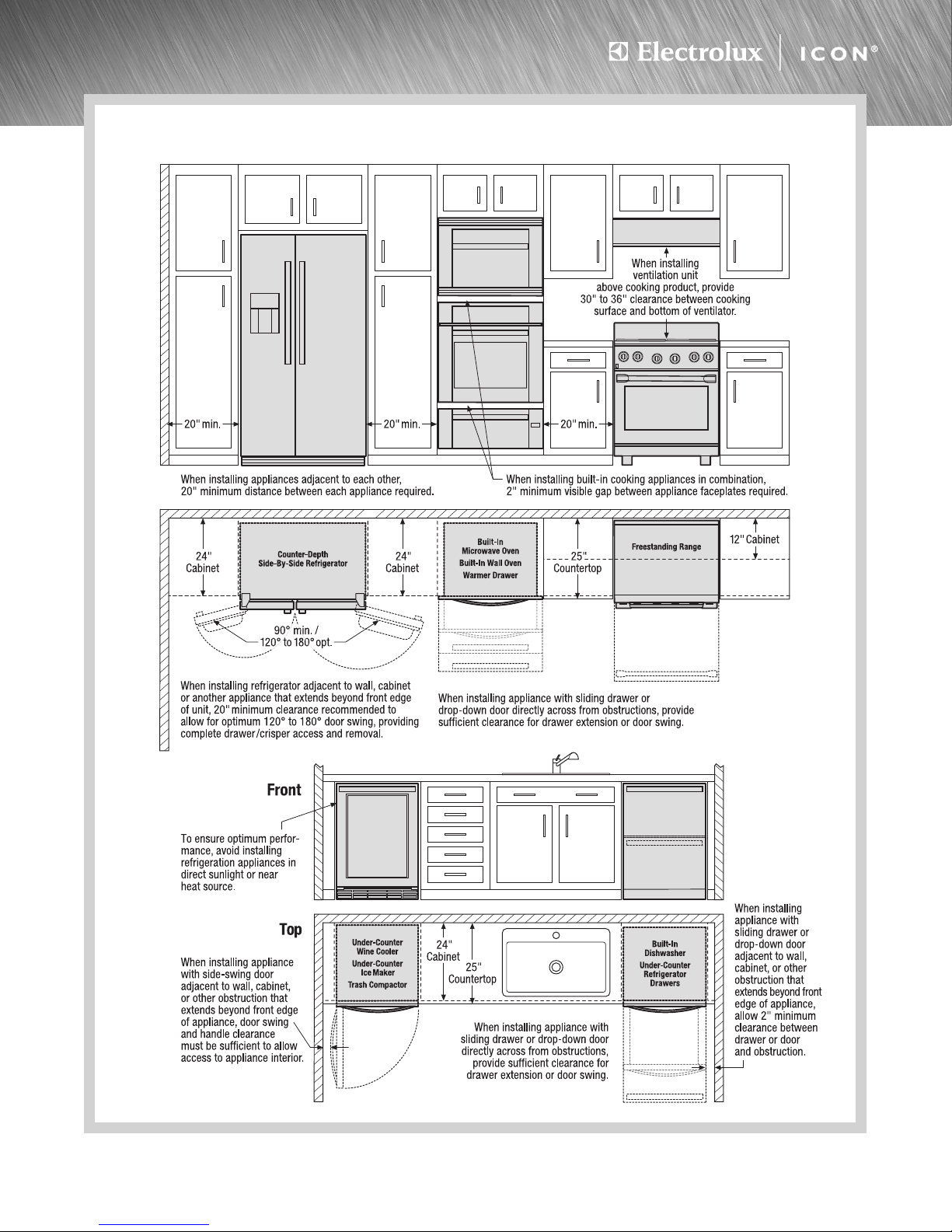

General Installation Guidelines
with Counter-Depth Side-by-Side Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
INSTGDLNS_SSR EI 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Page 4
Louvered Trim Kit (4480) Installation
E23CS78HPS, E23CS78HSS
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
4480 INST 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Counter-Depth Side-by-Side Refrigerator

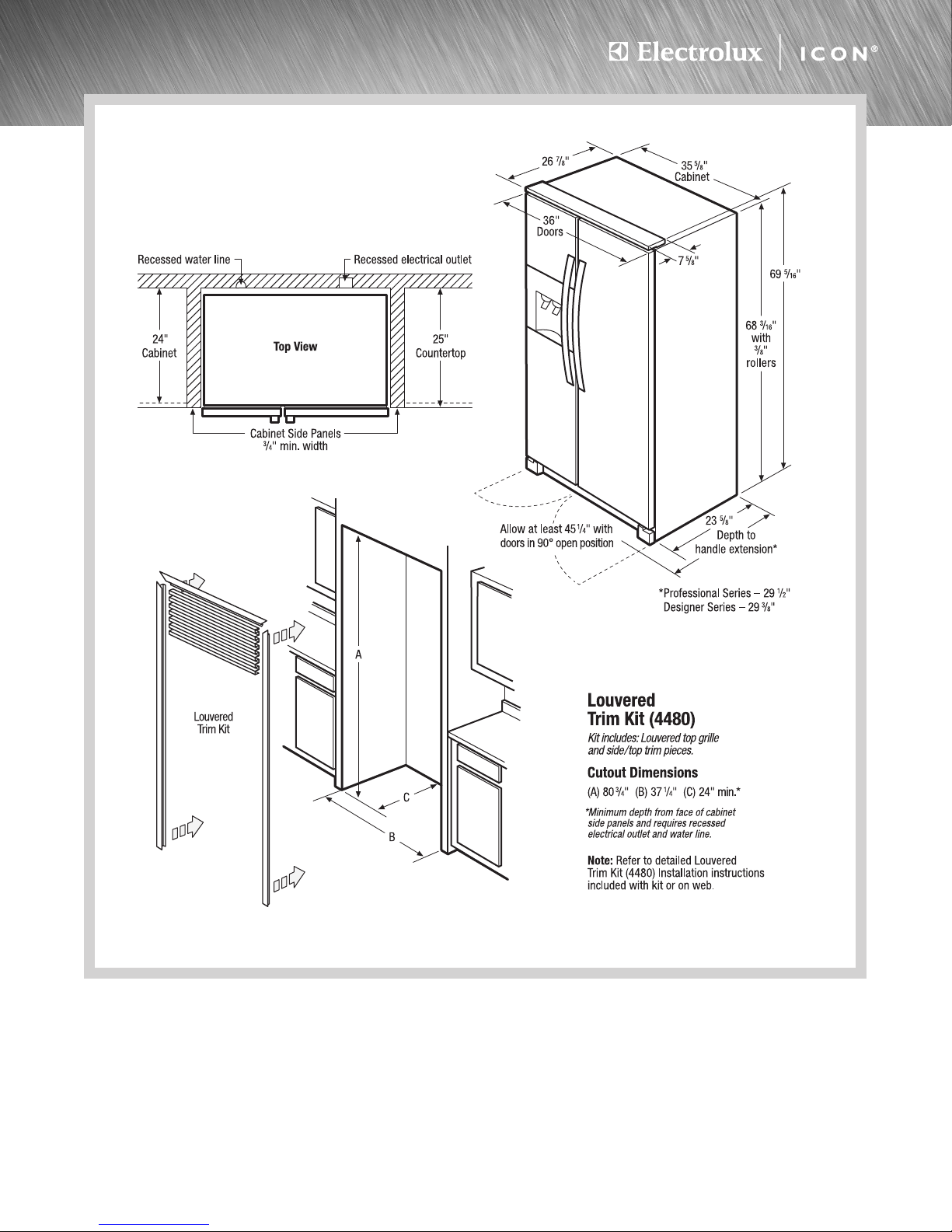

Optional Louvered Trim Kit (4480) Specifications
•
To use Louvered Trim Kit (PN # 4480), an enclosure is required around
Counter-Depth Side-by-Side Refrigerator having an opening of 80-3/4"H
x 37-1/4"W with minimum cabinet side panels of 24"D x 3/4" W.
•
Minimum 24" depth requires recessed electrical outlet and water line.
•
Cabinet or soffit above unit must extend out to same depth as
side panels.
•
Minimum 7' x 7' clear floor space required for Trim Kit assembly.
•
For detailed Counter-Depth Side-by-Side Refrigerator installation, refer to
model-specific product page and installation guide on web.
•
Louvered Trim Kit (PN# 4480) can also be used with Electrolux ICON
®
Counter-Depth Side-by-Side Refrigerator models E23CS75DSS,
E23CS78EPS, E23CS78ESS, E23CS78GPS and E23CS78GSS.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Page 5
Counter-Depth Side-by-Side Refrigerator

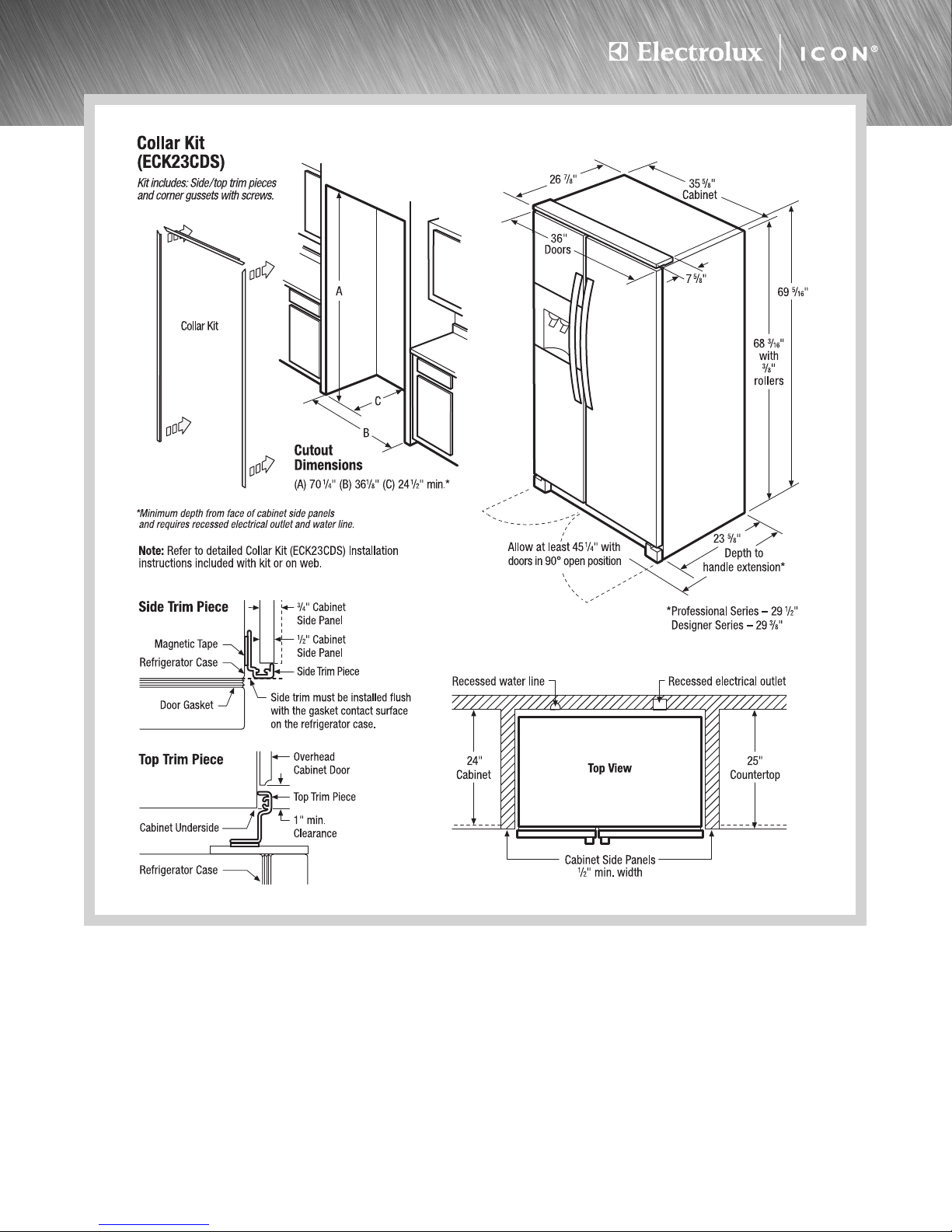

Optional Collar Kit (ECK23CDS) Specifications
•
To use Collar Kit (PN# ECK23CDS), an enclosure is required around
Counter-Depth Side-by-Side Refrigerator having an opening of 70-1/4"H
x 36-1/8"W with minimum cabinet side panels of 24-1/2"D x 1/2"W.
•
Minimum 24-1/2" depth requires recessed electrical outlet and water line.
•
Add maximum of 1/4" to 70-1/4" opening height when installed with
frameless-style overhead cabinets, for door opening clearance.
•
Cabinet or soffit above unit must extend out to same depth as
side panels.
•
To provide additional clearance for overhead cabinet doors when in open
position, allow 1" from underside of cabinet to bottom of cabinet door.
•
A minimum width of 36-1/8" is required for refrigerator installation with
an additional 1/2" or 3/4" added for each side panel.
•
If 1/2" side panels are used, then side trim piece and panel will be
even. If 3/4" side panels are used, then 1/4" of side panel will extend
beyond collar trim and must be finished.
•
For detailed Counter-Depth Side-by-Side Refrigerator installation, refer to
model-specific product page and installation guide on web.
•
Collar Kit (PN# ECK23CDS) can also be used with Electrolux ICON
®
Counter-Depth Side-by-Side Refrigerator models E23CS75DSS,
E23CS78EPS, E23CS78ESS, E23CS78GPS and E23CS78GSS.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Collar Kit (ECK23CDS) Installation
E23CS78HPS, E23CS78HSS
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
ECK23CDS INST_SSR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
