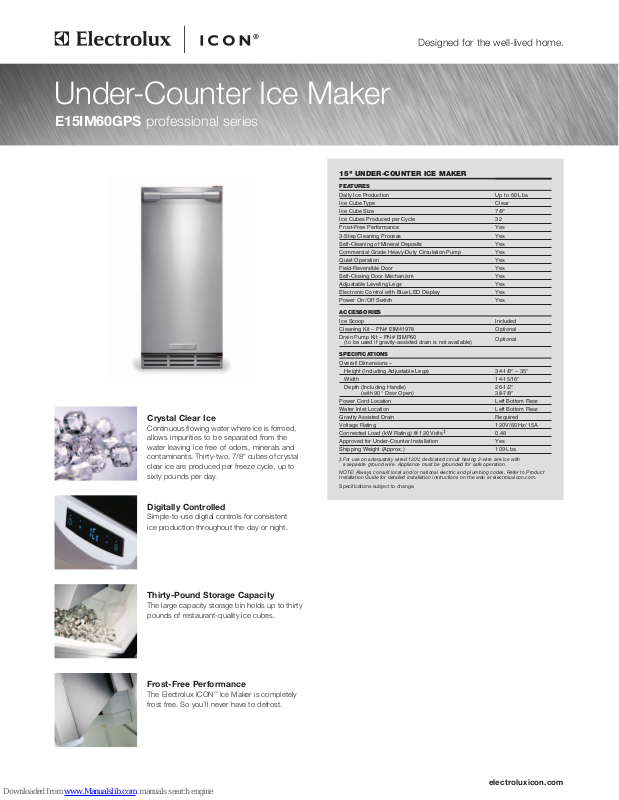

15" UNDER-COUNTER ICE MAKER
FEATURES
Daily Ice Production
Ice Cube Type
Ice Cube Size
Ice Cubes Produced per Cycle
Frost-Free Performance
3-Step Cleaning Process
Self-Cleaning of Mineral Deposits
Commercial Grade Heavy-Duty Circulation Pump
Quiet Operation
Field-Reversible Door
Self-Closing Door Mechanism
Adjustable Leveling Legs
Electronic Control with Blue LED Display
Power On/ Off Switch
ACCESSORIES
Ice Scoop
Cleaning Kit – PN# EIM41978
Drain Pump Kit – PN# EIMP60
(to be used if gravity-assisted drain is not available)
SPECIFICATIONS
Overall Dimensions –
Height (Including Adjustable Legs)
Width
Depth (Including Handle)
(with 90° Door Open)
Power Cord Location
Water Inlet Location
Gravity Assisted Drain
Voltage Rating
Connected Load (kW Rating) @120 Volts
‡
Approved for Under-Counter Installation
Shipping Weight (Approx.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/ or national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
Up to 60 Lbs.
Clear
7/8"
32
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Included
Optional
Optional
34-1/8" – 35"
14-15/16"
26-1/2"
38-7/8"
Left Bottom Rear
Left Bottom Rear
Required
120V/ 60Hz /15A
0.48
Yes
109 Lbs.
electroluxicon.com
Crystal Clear Ice
Continuous flowing water where ice is formed,
allows impurities to be separated from the
water leaving ice free of odors, minerals and
contaminants. Thirty-two, 7/8" cubes of crystal
clear ice are produced per freeze cycle, up to
sixty pounds per day.
Digitally Controlled
Simple-to-use digital controls for consistent
ice production throughout the day or night.
Thirty-Pound Storage Capacity
The large capacity storage bin holds up to thirty
pounds of restaurant-quality ice cubes.
Frost-Free Performance
The Electrolux ICON™Ice Maker is completely
frost free. So you’ll never have to defrost.
Designed for the well-lived home.
Under-Counter Ice Maker
E15IM60GPS professional series
Page 2
Under-Counter Ice Maker
E15IM60GPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E15IM60GPS 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Under-Counter Ice Maker Specifications
•
Product Weight – 100 Lbs.
•
Voltage Rating –120V /60 Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.48kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 4.0 Amps
•
Electrical cable supplied.
•
Water supply and electrical power source required.
•
Always consult local and/or national electric & plumbing codes.
•
Unit is designed for either freestanding or built-in, under-counter
installation.
•
Built-in, under-counter installation does not require additional airspace
for top, sides or rear of unit.
•
Allow 1-1/2" minimum clearance behind unit for electrical, water
supply and drain connections.
•
Front grille MUST remain unobstructed for proper ventilation.
•
Can be installed using gravity drain or optional Drain Pump Kit (PN# EIMP60).
•
Drain lines must have 5/8" inside diameter, 1" drop per 48" (1/4" per
foot) of run and must not create traps.
•
Floor drain must be large enough to accommodate drainage from
all drains.
•
Recommended water pressure between 30 and 120 pounds
per square inch (psi).
•
Unit MUST be level for proper operation, and positioned on flat surface,
capable of supporting entire weight when fully loaded.
•
Leveling legs supplied to adjust height and level unit.
•
Can be installed outdoors, out of direct sunlight. Do NOT install behind
closed doors.
•
Do not position unit near any heat source or in direct sunlight to ensure
optimum performance. Surrounding air temperature must be at least
50°F but must not exceed 110°F.
•
Unit requires zero clearance when installing flush with cabinet or wall.
•
When installing against cabinet or wall that extends beyond front edge
of unit, 2-7/8" minimum handle clearance required to allow for 90° door
swing, providing sufficient interior access. (Door is field reversible for
right- or left-hand opening.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.

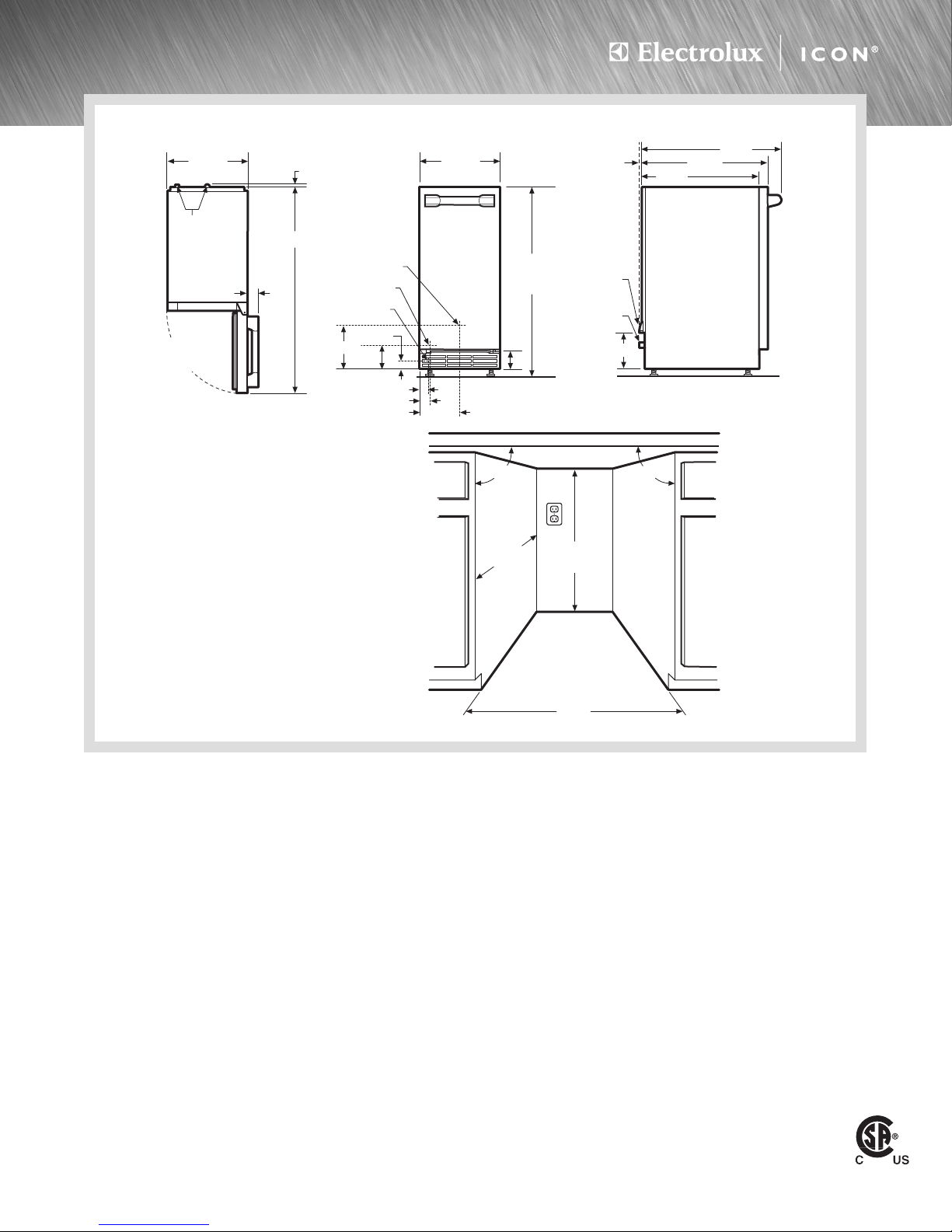

Optional Accessories
•
Drain Pump Kit – (PN# EIMP60).
•
Cleaning Kit – (PN# EIM41978).
341/8"
Adjustable
to 35"
14
15
/16"
Front
Drain outlet
Water inlet
Power cord
3
3
/8"
73/8"
1
5
/8"
2"
8
1
/8"
4
3
/8"
13/4"
341/4"
min.
24"
min.
151/8"
90
°
90
°
Allow 1-1/2"
minimum clearance
behind unit for electrical,
water supply and drain
connections
231/4"
Left
Water
inlet
Water
outlet
3
/4"
21
3
/4"
65/8"
253/4"
Top
Water supply
and drain
connections
1415/16"
3
/4"
381/8"
Door in 90
°
open position
21/2"
