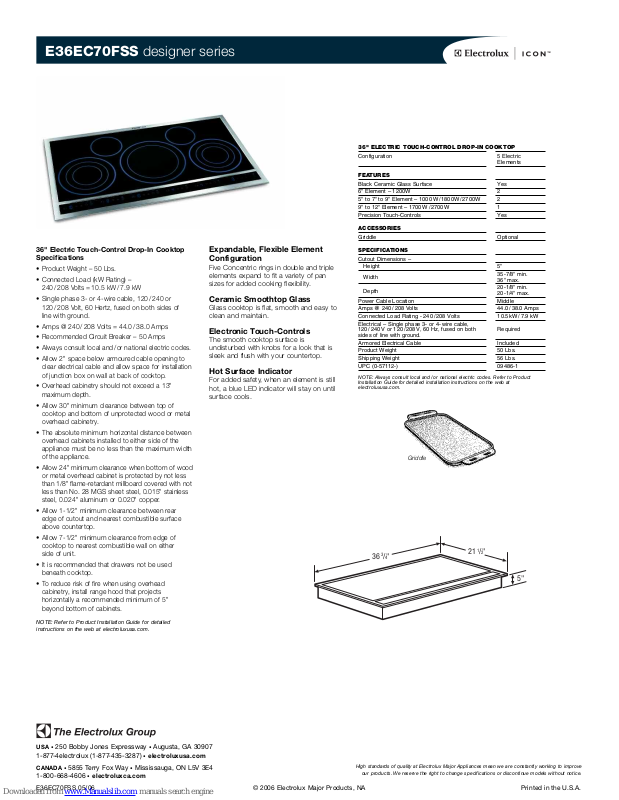

E36EC70FSS designer series
5"
363/4"
211/2"
36" Electric Touch-Control Drop-In Cooktop
pecifications
S
Product Weight – 50 Lbs.
•
• Connected Load (kW Rating) –
40 / 208 Volts =10.5 kW /7.9 kW
2
• Single phase 3- or 4-wire cable, 120/240 or
20 / 208 Volt, 60 Hertz, fused on both sides of
1
ine with ground.
l
Amps @ 240 / 208 Volts = 44.0/ 38.0 Amps
•
• Recommended Circuit Breaker – 50 Amps
• Always consult local and /or national electric codes.
• Allow 2" space below armoured cable opening to
clear electrical cable and allow space for installation
of junction box on wall at back of cooktop.
• Overhead cabinetry should not exceed a 13"
maximum depth.
• Allow 30" minimum clearance between top of
cooktop and bottom of unprotected wood or metal
overhead cabinetry.
• The absolute minimum horizontal distance between
overhead cabinets installed to either side of the
appliance must be no less than the maximum width
of the appliance.
• Allow 24" minimum clearance when bottom of wood
or metal overhead cabinet is protected by not less
than 1/8" flame-retardant millboard covered with not
less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
Allow 1-1/2" minimum clearance between rear
•
edge of cutout and nearest combustible surface
above counter
• Allow 7-1/2" minimum clearance from edge of
cooktop to nearest combustible wall on either
side of unit.
• It is recommended that drawers not be used
beneath cooktop.
• To reduce risk of fire when using overhead
cabinetry, install range hood that projects
horizontally a r
beyond bottom of cabinets.
NOTE: Refer to Product Installation Guide for detailed
instructions on the web at electroluxusa.com.
top.
ecommended minimum of 5"
Expandable, Flexible Element
Configuration
ive Concentric rings in double and triple
F
lements expand to fit a variety of pan
e
sizes for added cooking flexibility
.
Ceramic Smoothtop Glass
lass cooktop is flat, smooth and easy to
G
lean and maintain.
c
Electronic Touch-Controls
he smooth cooktop surface is
T
undisturbed with knobs for a look that is
sleek and flush with your countertop.
Hot Surface Indicator
For added safety, when an element is still
hot, a blue LED indicator will stay on until
surface cools.
3
6" ELECTRIC TOUCH-CONTROL DROP-IN COOKTOP
Configuration 5 Electric
F
EATURES
B
lack Ceramic Glass Surface Yes
6
" Element – 1200W 2
5
" to 7" to 9" Element – 1000 W/ 1800W/ 2700W 2
9
" to 12" Element – 1700 W/ 2700W 1
Precision Touch-Controls Yes
ACCESSORIES
Griddle Optional
S
PECIFICATIONS
Cutout Dimensions –
H
eight 5"
Width
Depth
P
ower Cable Location Middle
Amps @ 240 /208 Volts 44.0 /38.0 Amps
Connected Load Rating - 240 /208 Volts 10.5 kW/ 7.9 kW
Electrical – Single phase 3- or 4-
120 /240 V or 120/ 208V, 60 Hz, fused on both Required
s
ides of line with ground.
Armored Electrical Cable
Product Weight 50 Lbs.
eight 56 Lbs.
Shipping W
UPC (0-57112-) 09486-1
NOTE: Always consult local and/or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
lectroluxusa.com.
e
Griddle
wire cable,
Elements
35-7/8" min.
3
6" max.
2
0-1/8" min.
20-1/4" max.
Included
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287)
•
CANADA
1-800-668-4606
E36EC70FSS 05/06 © 2006 Electrolux Major Products, NA Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4
•
electroluxca.com
•
electroluxusa.com
ds of quality at Electr
High standar
our products. We reserve the right to change specifications or discontinue models without notice.
olux Major Appliances mean we ar
