Electrolux FSF 650 User Manual

ELECTRIC OVEN

FSF 650

35685-5601

INSTRUCTION BOOKLET

GB

Important Safety Information

You MUST read these warnings carefully before installing or using the oven. If you need
assistance, contact our Customer Care Department on 08705 950950

Installation

• This oven must be installed by qualified personnel to
the relevant British Standards.

• This oven is heavy. Take care when moving it.

• Remove all packaging, both inside and outside the
oven, before using the oven.

• Do not attempt to modify the oven in any way.

Child Safety

• This oven is designed to be operated by adults. Do not
allow children to play near or with the oven.

• The oven gets hot when it is in use. Children should be
kept away until it has cooled.

During Use

• This oven is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.

• Appliances become very hot with use, and retain their
heat for long periods after use. Care should be taken
to avoid touching heating elements inside the oven.

• Never line any part of the oven with aluminium foil.

Maintenance and Cleaning

• Only clean this oven in accordance with the instructions.

• The oven should be kept clean at all times. A build-up
of fats or other foodstuffs could result in a fire,
especially in the grill pan.

• Never use steam or high pressure steam cleaners to
clean the appliance.

• Always allow the oven to cool down and switch off
the electrical supply before carrying out any cleaning
or maintenance work.

Service

• This oven should only be repaired or serviced by an
authorised Service Engineer and only genuine approved
spare parts should be used.

Environmental Information

• After installation, please dispose of the packaging
with due regard to safety and the environment.

• When disposing of an old appliance, make it unusable,
by cutting off the cable. Remove any door catches,
to prevent small children being trapped inside.

• Do not allow heatproof cooking material, e.g. roasting
bags, to come into contact with oven elements.

• Never place plastic or any other material which may
melt in or on the oven.

• Do not place sealed cans or aerosols inside the oven.
They may explode if they are heated.

• Do not hang towels, dishcloths or clothes from the
oven or its handle.

• Do not use this oven if it is in contact with water and
never operate it with wet hands.

• Take great care when heating fats and oils as they will
ignite if they become too hot.

• Always use oven gloves to remove and replace food in
the oven.

• Ensure that all control knobs are in the OFF position
when not in use.

• Do not leave cookware containing foodstuffs, e.g. fat
or oil in or on the oven in case it is inadvertently
switched ON.

• When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the oven.

Keep this instruction book for future reference

and ensure it is passed on to any new owner.

2

Contents

For the User For the Installer

Important Safety Information 2

Description of the Oven 4

Controls 5

Before the First Use 5

Electronic programmer 6

Using the Oven 8

Hints and Tips 8

The Fan Oven 9

Grilling 11

Defrosting 12

Cleaning the Oven 13

Replacing the Oven Light 14

Something not working 15

Service and Spare Parts 15

Customer Care 16

Guarantee Conditions 16

Installation 17

Electrical Connection 17

Building In 18

Guide to use the instructions

The following symbols will be found in the text to guide
you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

)

Hints and Tips

Environmental information

This appliance complies with the following E.E.C.

Directives:
*73/23 - 90/683 (Low VoltageDirective);
*93/68 (General Directives);
*89/336 (Electromagnetical Compatibility Directive)

and subsequent modifications.

3

Description of the Oven

365

2

1

10

4

1. Control Panel

2. Thermostat Control Indicator

3. Mains on Indicator

7

8

9

4. Thermostat Control Knob

5. Electronic programmer

6. Oven Function Control Knob

7. Grill

8. Oven light

9. Oven fan

10. Rating plate

Oven accessories

Grill/roasting

pan

Removable

handles

Grill trivet

Anti-tip shelf (x 2)

4

Controls

Oven Function Control Knob

Oven light - The oven light will be on without

any cooking function.

Inner grill element only - Can be used for grilling

small quantities.

Full Grill - The full grill element will be on.

- Fan cooking/Defrost Setting

Defrost Setting - This setting is intended to
assist in thawing of frozen food. Ensure that
the thermostat knob is in the 'OFF' position.

Fan cooking - This allows you to roast or roast
and bake simoultaneously using any shelf,
without flavour transference.

Mains on indicator

The mains on light will come on when the oven function
control knob is set.

Thermostat Control Knob (°C)

Turn the thermostat control knob clockwise to select
temperatures between 50°C and MAX.

Thermostat Control Indicator

The thermostat control indicator will come on when the
thermostat control knob is turned. The indicator will remain
on until the correct temperature is reached. It will then cycle
on and off to show the temperature is being maintained.

The Safety Thermostat

This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent over­heating, the safety device will stop the power supply to the
appliance. If this happens, call your local Service Force
Centre. Under no circumstances should you attempt to repair
the appliance yourself.

FO 2824

MAX

200

50

100

150

Before the First Use

Remove all packaging, both inside and outside the
oven, before using the oven.

Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted. This
is quite normal.

The oven will work only if the time of day has
been set.

1. Set the time of day with the electronic programmer

))

)

))

(see chapter "Electronic Programmer").

2. Switch the oven function control knob to fan cooking

.

3. Set the thermostat control knob to MAX.

4. Open a window for ventilation.

5. Allow the oven to run empty for approximately 45
minutes.

This procedure should be repeated with the grill function

for approximately 5-10 minutes.

FO 2673

5

Electronic programmer

4

1. Push button for selecting a function

5
6

123

The oven will work only if the time of day has been set.

However, the oven can also be operated without any programme.

Setting the time of day

7
8

FO 2571

2. Decrease control button “ ”

3. Increase control button “ ”

4. Display

5. “Cooking Duration” indicator

6. “End of cooking” indicator

7. “Minute minder” indicator

8. “Time of day” indicator

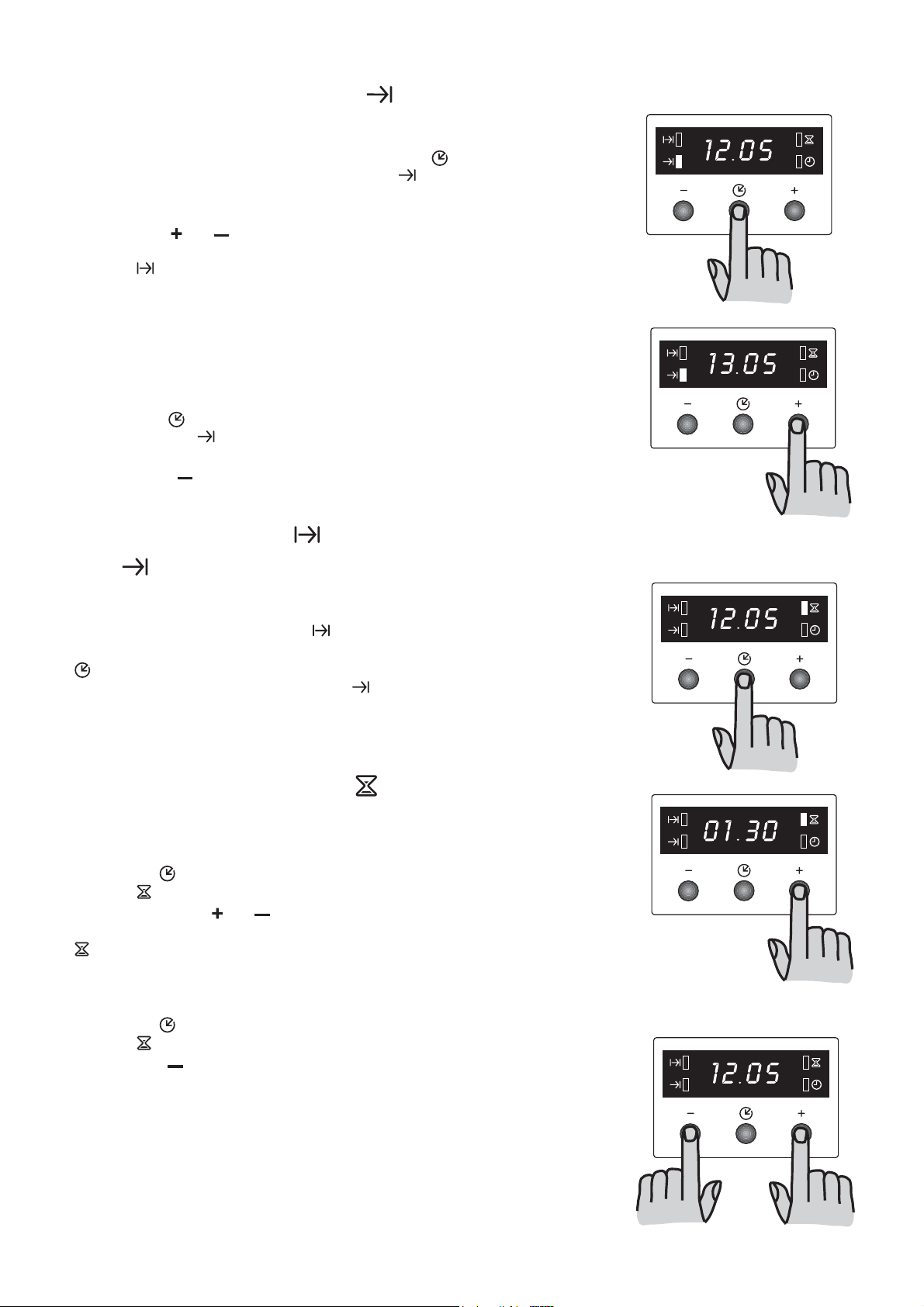

When the power supply is switched on, or after a power failure, the “Time of
day” indicator will flash on the display.

To set the correct time of day:

1. Press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds: the “Time of day”

indicator will go out and the display will show the set time. The
appliance is ready for use.

To reset the correct time of day:

1. Press button repeatedly to select the “Time of day” function. The

relevant indicator will start flashing. Then proceed as described above.
The time of day can only be reset if no automatic function (cook duration

or end of cooking ) has been set.

“Cooking Duration” function

This function allows the oven to automatically switch off at the end of a
programmed cooking duration time. Place food in the oven, select a cooking
function and adjust the cooking temperature. Press button repeatedly to
select the “Cooking Duration” function. The relevant indicator will start
flashing. Then, proceed as follows:

To set the duration time:

1. Press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds: the "Cooking Duration"

indicator will come on and the display will revert to the time of day.

3. When cooking time is over, the oven will be switched off automatically
and an acoustic alarm will be heard, while the indicator will start flashing.
Turn the oven function and the thermostat control knob to zero.
To switch off the acoustic alarm, press any button.
NOTE: turning the acoustic alarm off will reset the oven to manual, and
if the oven function and the thermostat knobs are not set to zero the
oven will start to heat again.

To cancel the duration time:

1. Press button repeatedly to select the “Cooking Duration” function.

The relevant indicator will flash and the display will show the remaining
cooking time.

2. Press button “ ” until the display shows “0:00”. After 5 seconds the
indicator will go out and the display will revert to the time of day.

6
