Electrolux FJD 1666 W, FJD 1466 S, FJD 1466 W, FJD 1266 W User Manual

0 (0)

WASHING MACHINE

FJD 1266 W

FJD 1466 W

FJD 1466 S

FJD 1666 W

E

132994630

INSTRUCTION BOOKLET

GB

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

Installation

This appliance is heavy. Care should be taken when moving it.

It is dangerous to alter the specifications or attempt to modify this product in any way.

All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in instructions.

Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.

Child Safety

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

Pets and children have been known to climb into washing machines. Please check your drum before use.

The glass door becomes very hot during the washing cycle. Keep children away from the vicinity of the appliance whilst it is in operation.

Keep all packaging well away from children.

Keep all detergents in a safe place out of children’s reach.

Use

Always unplug the appliance and turn off the water supply after use.

Do not overload the appliance. See relevant section in the instruction book.

Only wash fabrics which are designed to be machine washed. If in doubt, consult the care label on the clothes.

Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.

Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.

Only use the advised quantities of fabric softener. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer’s recommendations of quantities.

As some duvets and eiderdowns should be washed in large commercial machines because of their bulk, please check with the manufacturer of the item before washing in a domestic machine.

Leave the porthole door slightly ajar between washes to preserve the door seal.

Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Force Centre. Always insist on genuine Zanussi spare parts.

2

Contents

For the User

Important Safety Information

2

Your New Washing Machine

4

Description of the Appliance

5

Door locked light

5

Detergent dispenser drawer

5

Child safety feature

5

The Control Panel

6-9

Turning the acoustic signal off

6

Operating sequence

10-12

Load the laundry

10

Measure out the detergent

10

Measure out the fabric softener

10

Switch the machine on

10

Select the required programme/fabric

10

Select the temperature

11

Select the spin speed or the NIGHT WASH option 11

Select the desired options

11

Select the SUPER RINSE or AA40° option

11

Select the DELAY START

11

Start the programme

11

How to change a programme during its cycle

12

How to cancel a programme during its cycle

12

How to open the door during the cycle of



a programme

12

End of programme

12

Washing Hints

13-14

Which detergent?....

14

And in which form?

14

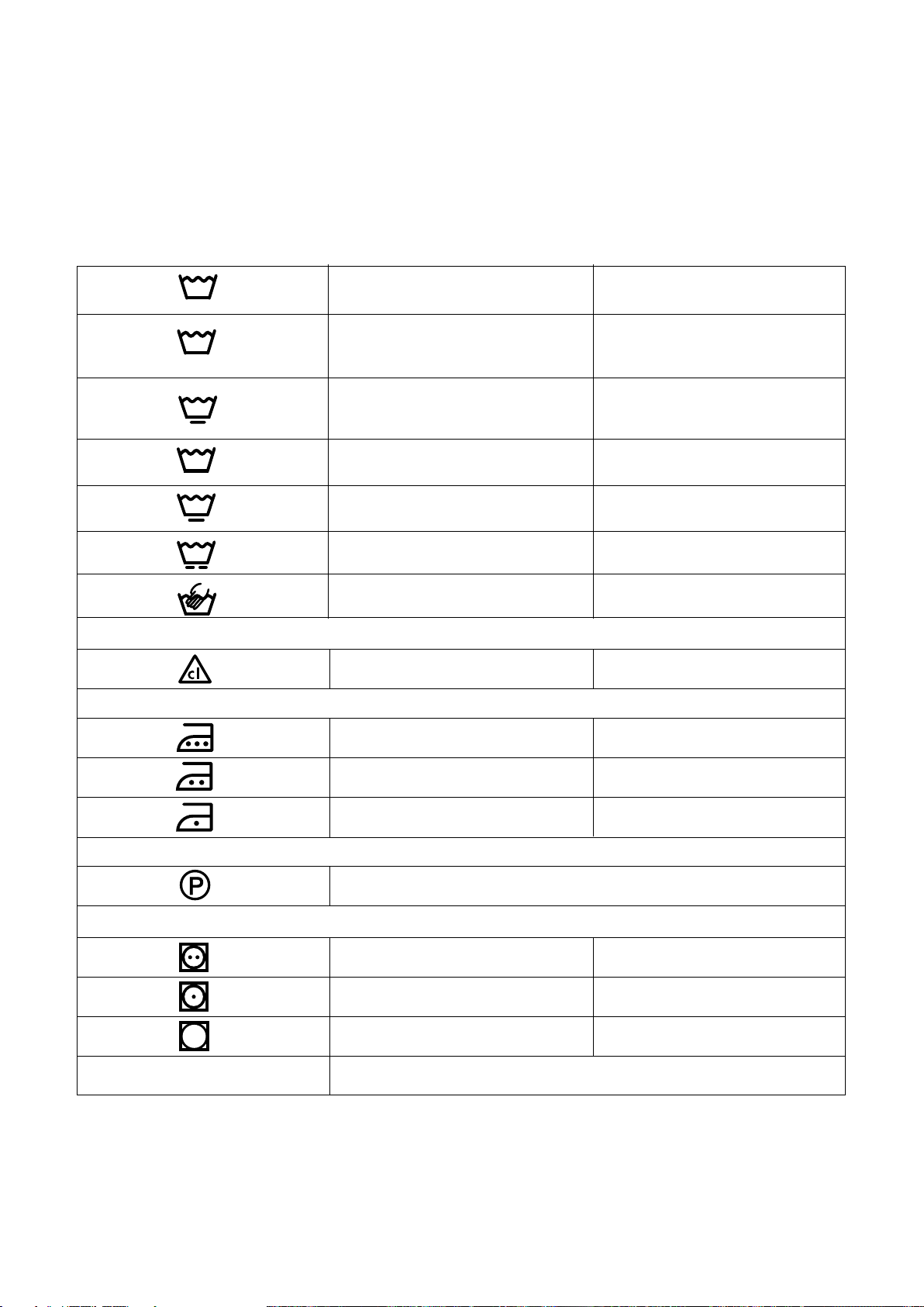

Wash Care Symbols

15

Washing Programmes

16

Maintenance and Cleaning

17-18

Descaling

17

After each wash

17

Maintenance Wash

17

External cleaning

17

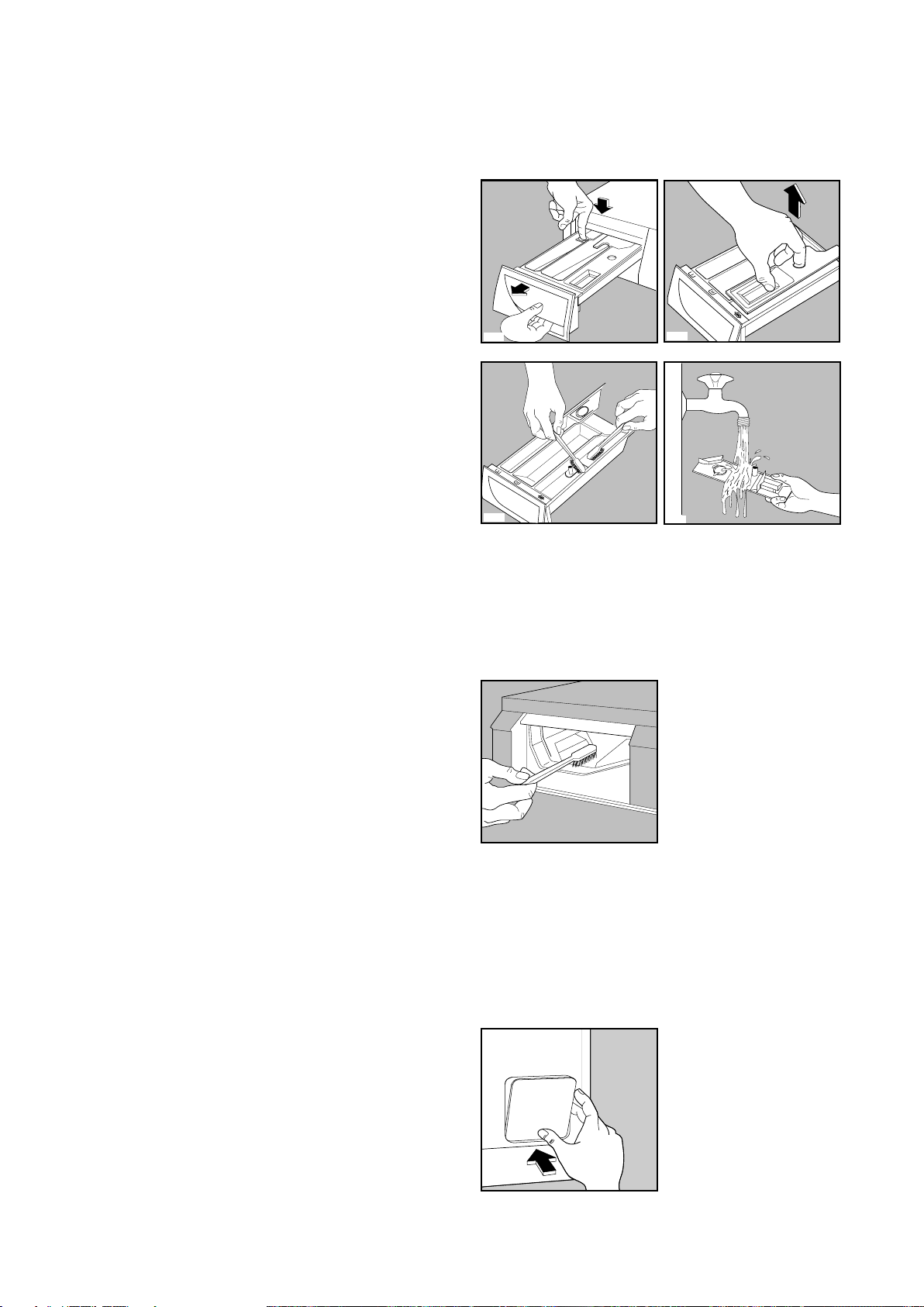

Cleaning the dispenser drawer

17

Cleaning the drawer recess

17

Cleaning the filter

17-18

The dangers of freezing

18

Something Not Working

19-20

Service and Spare Parts

20

Zanussi Guarantee Conditions

21

For the Installer

Installation Instructions

22

Technical Specifications

22

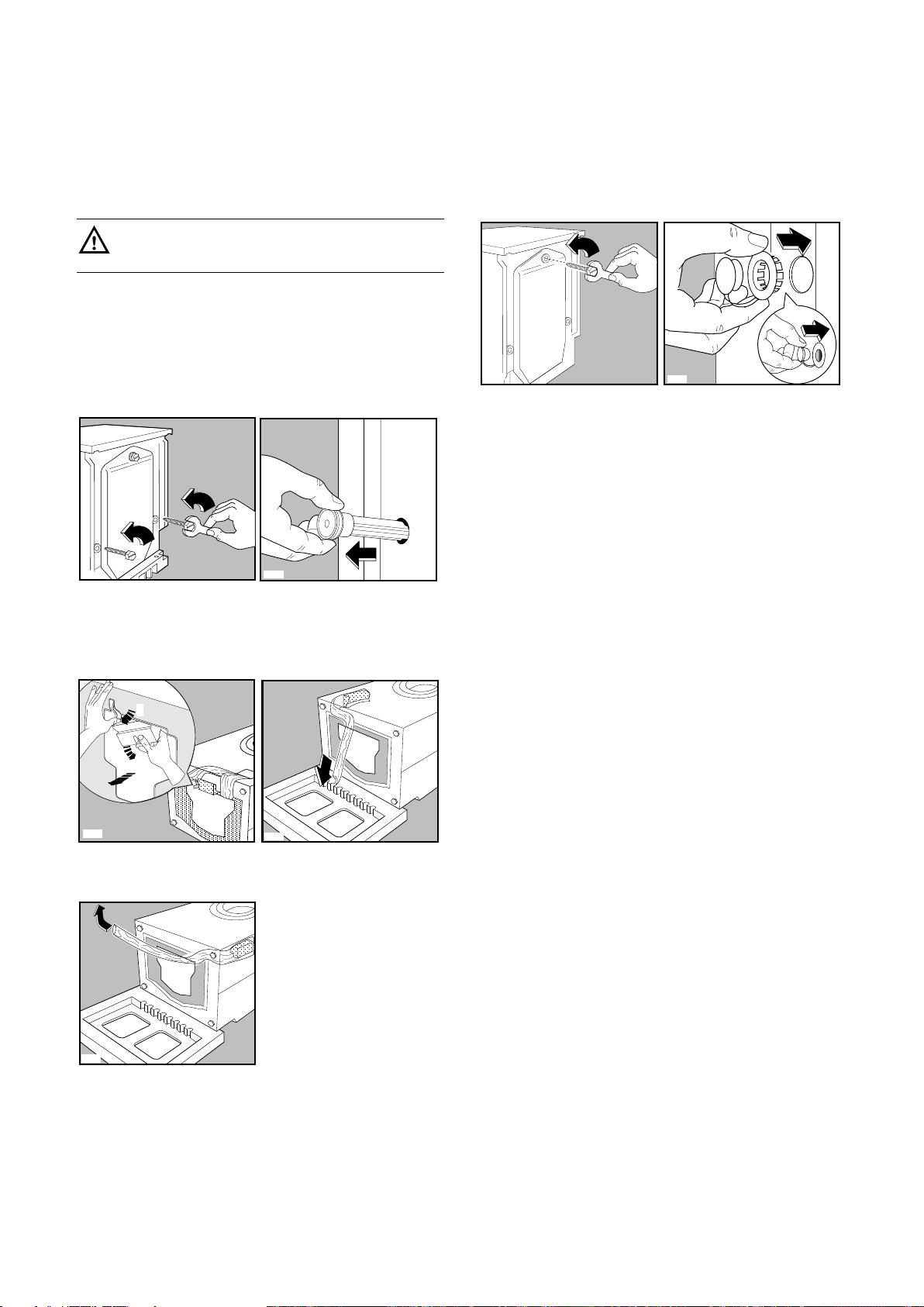

Unpacking

23

Positioning

23

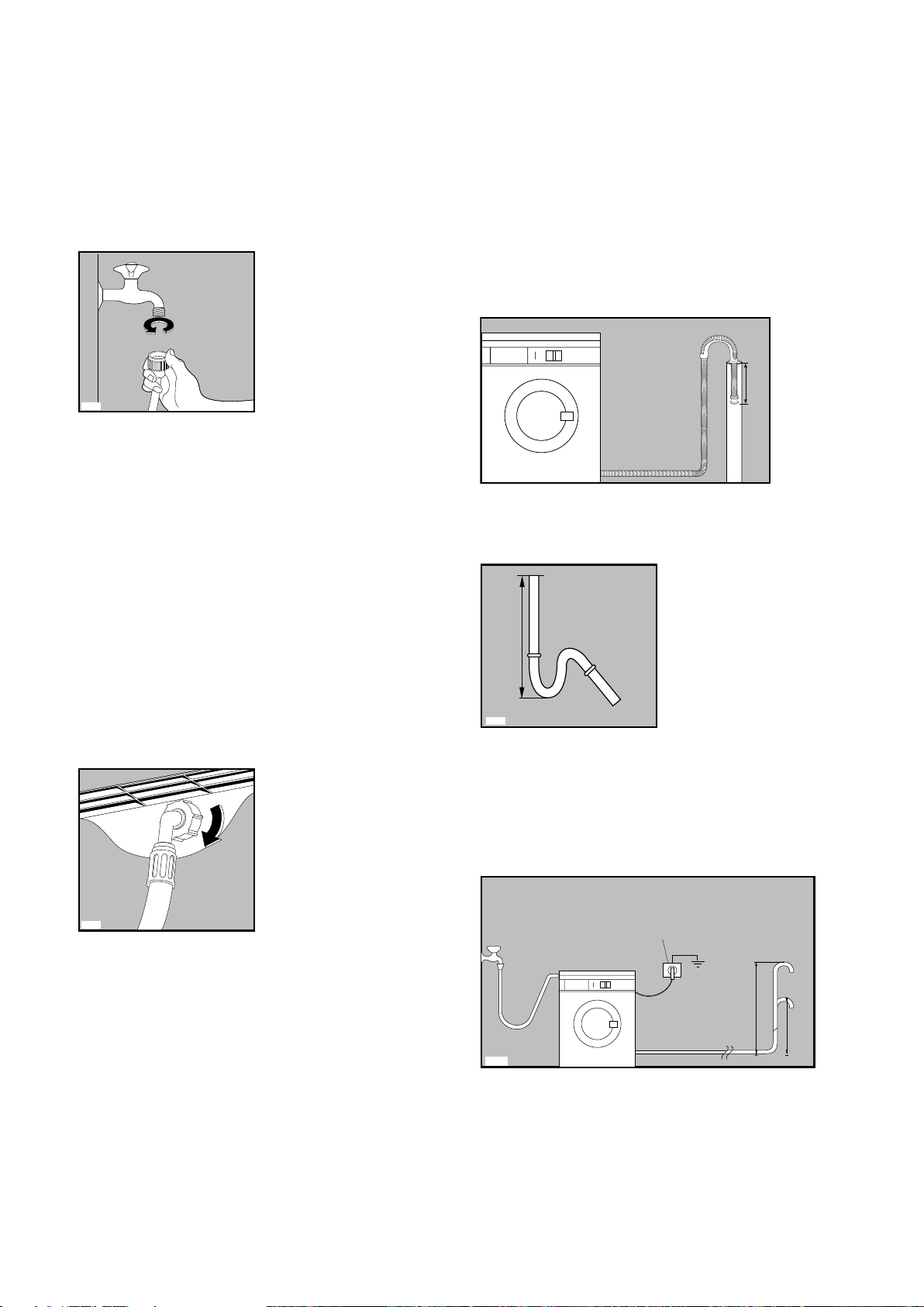

Water inlet

24

Water drainage

24-25

Levelling

25

Special conditions

25

In the interest of the environment

25

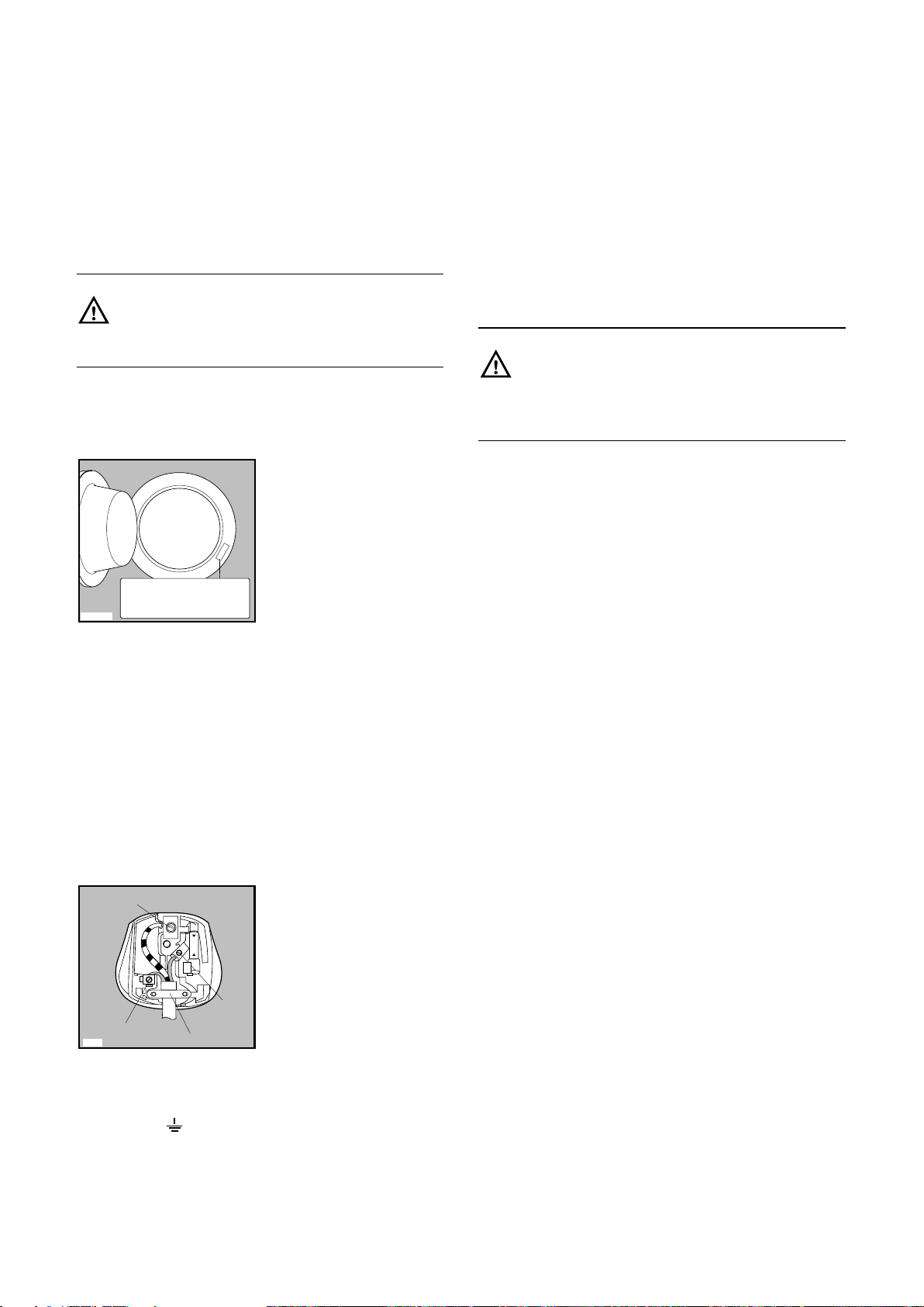

Electrical connection

26

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips Environmental information

3

Your New Washing Machine

Your new washing machine, fitted with the Zanussi “JET SYSTEM”, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric.

Automatic cooling of the wash water to 60°C before draining, with the 90°C programme. This reduces thermal shock to fabrics, helping to prevent creasing.

The special wool programme with its new delicate wash system treats your woollens with extreme care.

The anti-unbalance device ensures that the washing machine remains stable when spinning.

Ecological hints

To save water and energy and help protect the environment, we recommend that you follow these hints:

Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

The machine works more economically if it is fully loaded.

With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

In the interest of the environment

Materials marked with the symbol are recyclable.

Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.

When the appliance is to be scrapped, cut off the power supply cable and make the door lock device unusable to prevent young children from being trapped inside.

Help to keep your country tidy - use authorised disposal sites for your old appliance.

How do we help to protect the environment? We use recycled paper!

Important

Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.

If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the wash load manually and select a spin programme. For more detailed information see the section headed “Something Not Working”.

4

Electrolux FJD 1666 W, FJD 1466 S, FJD 1466 W, FJD 1266 W User Manual

Description of the Appliance

1Detergent dispenser drawer

2Control panel

3Door locked light

4Door opening handle

5Filter

6Adjustable feet

1













2









COTTONS







PREWASH







SYNTHETICS











N

/

OFF

DELICATES













WOOL

























QUICK

AA40°









TE

SPIN

W

O

START







FA

MPE

ASH



PTI

3

4

Door locked light

It stays on during the whole programme indicating that the door is locked.

When the light goes out, the door can be opened (see page 12).

5

6

Detergent dispenser drawer

Prewash

Main wash

Fabric softener

C0063

Child safety feature

This machine incorporates a special child safety feature to prevent small children from being trapped inside the machine.

To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

P1131

5

The Control Panel

N

/

O

FF

O





1

COTTONS

90°C





1200







PREWASH





SYNTHETICS

60°C





900







OUTDOOR





DELICATES

50°C







700









PREWASH

WOOL



40°C







500





SPORTS



























HAND



30°C





NIGHT



QUICK





AA40°

WASH











WASH













T





E









W



O





M







S





E

A

O



PTI ON

IC



TU



PI

PE



SH CH





S

FABR



PERA





N S













DELAY

START





SKIP







T

ST

SE

SE

RE





ART/PAU





FJD 1266 W

2

3

4

5

6

7

8

9

10 11 12

1 ON/OFF button

Press this button to switch the washing machine on. The display (8) will show three blinking dashes or a blinking zero. You will find more detailed explanations on pages 7-8 (see “DISPLAY”).

Press the ON/OFF button again to switch the machine off.

IMPORTANT!

By pressing the TEMPERATURE and SPIN SPEED buttons simultaneously, the acoustic signal is deactivated at the end of the cycle, when selecting the programmes and in case of an incorrect option selection .

By pressing these 2 buttons again the acoustic signal is reactivated.

2 MAINS-ON light

This light is connected to the ON/OFF button. It lights up when you press the button, and goes out when you press it again.

3 FABRIC button

Press this button repeatedly to select the programme on the basis of the type of laundry to be washed. The light relevant to the selected programme will light up. The washing machine will propose a temperature and automatically select the maximum spin value provided for the programme you have chosen. You can change these values by operating buttons 4 and 5.

Hand wash

When you select this programme, you obtain a particularly delicate washing, suitable for articles of clothing whose label indicates that they must be handwashed .

4 TEMPERATURE button

Press this button repeatedly to increase or decrease the temperature, if you want your laundry to be washed at a temperature different from the one proposed by the washing machine. The relevant light will light up. Maximum temperatures are 90°C for cotton, 60°C for synthetic fabrics, 40°C for delicate fabrics, wool and fabrics to be hand-washed (HAND WASH programme).

5 SPIN SPEED button

Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine. The relevant light will light up.

Maximum speeds are:

for cotton: 1,600, 1,400 or 1,200 rpm depending on the model;

for synthetic fabrics, wool and fabrics to be handwashed: 900 rpm;

for delicate fabrics: 700 rpm.

NIGHT WASH position : when you choose this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry.

As all spinning phases are suppressed, this washing cycle is very quiet and it can be useful at night or in times with a more economical power rate.

On cotton and synthetic programmes the rinses will be performed with more water.

At the end of the cycle, the light corresponding to the option NIGHT WASH is on and the START/PAUSE button light will flash, to indicate that the water must be drained. A static zero will appear on the display.

To complete the cycle, choose one of the following options:

6

Draining and spin:

-Press the START/PAUSE button. The machine will drain the water, then spin the laundry at the maximum speed provided for the selected programme.

-Select spin speed by means of button 5, and press the START/PAUSE button.

Drain only

-Press the SKIP/RESET button once, so as to cause the DRAIN light to light up, then press the START/PAUSE button.

If the water is not emptied out, the machine automatically empties itself after 18 hours.

Important! If you accidentally press the SKIP/RESET button more than once, the display will show three blinking dashes. To cause the washing machine to drain the water, select any washing programme by means of the FABRIC button, then press SKIP/RESET three times in order to select the DRAIN position (only the DRAIN light will remain lit).

6 WASH CHOICE button

Press this button to select the following options:

PREWASH: select this option if you wish your laundry to be prewashed before the main wash (not available for wool and hand-wash cycle).

The prewash ends with a short spin at 650 rpm in programmes for cotton and synthetic fabrics, whereas in the programme for delicate fabrics the water is only drained.

OUTDOOR SPORTS: select this option if you wish to perform a soak of about 30 minutes at 30°C to your laundry. By pressing the DELAY START button the soak time can be prolonged up to 24 hours max. After this time the wash cycle will automatically start.

This fonction is not available for wool and hand-wash cycle.

The soak ends with a short spin at 650 rpm in programmes for cotton and synthetic fabrics, whereas in the programme for delicate fabrics the water is only drained.

QUICK: select this option for laundry that is only slightly soiled (not for WOOL and HAND WASH programme).

The washing time will be reduced according to the type of fabric and the selected temperature.

The PREWASH, the OUTDOOR SPORTS and the QUICK options cannot be selected together.

7 OPTIONS button

Press this button to select the following options:

SUPER RINSE: this option can be selected with all programmes except the wool programme and hand wash. The machine performs 4 rinses instead of 3.

This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

AA 40°: this option can be selected for cottons and synthetics lightly or normally soiled with a temperature of 40°C or higher.

If you select 40°C together with option AA 40°, the machine will prolong the time at 40°C in the washing phase. On cotton programme this will allow an A class in energy efficiency and washing performance to be achieved.

If you select 90°C and press the AA 40° button, the washing temperature will be reduced from 90°C to 60°C.

If you select 60°C or 50°C and press the AA 40° button, the washing temperature will be reduced to 40°C. In both cases the washing time will be prolonged.

The SUPER RINSE and the AA 40°options can be selected together by means of the relevant button.

8 Display

The following pieces of information are shown on the display:

Three blinking dashes, when a programme is cancelled by means of the SKIP/RESET button.

The three blinking dashes will also appear when you press the ON/OFF button to switch the machine on, if the previously selected cycle has been erased.

---

Duration of washing programme in hours and minutes, after you have selected a programme.

While the programme is running (after you have pressed the START/PAUSE button), the displayed time value decreases by one unit every minute.

7

The washing machine has stopped with water in the tub, at the end of a programme with the NIGHT WASH option: this is indicated by a static zero.

The washing machine has completed the programme: this is indicated by a blinking zero. At the same time, the door locked light goes out. The zero will reappear when you switch the washing machine on, unless the previous programme has been erased by means of the SKIP RESET button.

Important!

The first time you use the washing machine, when you switch it on, it may display a blinking zero and give an audible warning signal. This is due to the fact that the washing machine has performed a washing cycle during the manufacturer’s inspection tests, and this cycle has not been erased after its completion.

Delay start, a time value indicated in hours and selected by means of the relevant button.

The delay time is displayed for 3 seconds, then the duration of the selected programme reappears.

After you have pressed the START/PAUSE button, the countdown begins, and the delay time value decreases by one unit every hour.

You can delay the start of the selected programme by up to 24 hours in one hour intervals.

An incorrect option selection has been made: this is indicated by the message Err when a function incompatible with the current programme is selected.

The incorrect selection is also indicated by an audible warning signal.

An alarm code indicates a fault in the machine operation (see the relevant chapter on page 19).

E20

9 START/PAUSE button

This button has three functions:

Start: after you have selected the desired programme and options, press this button to start the washing machine. The light above the button will stop flashing and remain lit.

If you have selected a delay time by means of button 11, the countdown will begin and will be shown on the display.

Pause: when you press this button again, the programme in progress is interrupted. The light above the button will start flashing. To restart the programme, press the button again.

When you PAUSE the cycle, the DOOR LOCKED light goes out, and it becomes possible to open the door, provided

the washing machine is not in the heating phase;

the level of the water is not high;

the drum is not turning.

Important! You must set the washing machine to PAUSE before you make any change in the programme in progress.

Draining of water and spinning after the completion of programmes with the NIGHT WASH option.

10 SKIP/RESET button

This button performs two functions:

-Clears the memory

-Selects special programmes

At the end of every programme the RESET button must be pressed once or repeatedly to clear the programme memory. This will be confirmed by three dashes, flashing in the display.

If the previous programme is not cleared, the display will show a “0” flashing and an audible signal will sound, when you switch the machine on.

Selecting a special programme:

A wash programme must be selected in the normal way. (START button not pressed)

8

S

T

A

R

T



E

S

/PAU



PREWASH

WASH

RINSES

SPIN

DRAIN

The SKIP button is then used to cancel or advance the programme to the required phase.

The SKIP button can only operate when the programme is in pause.

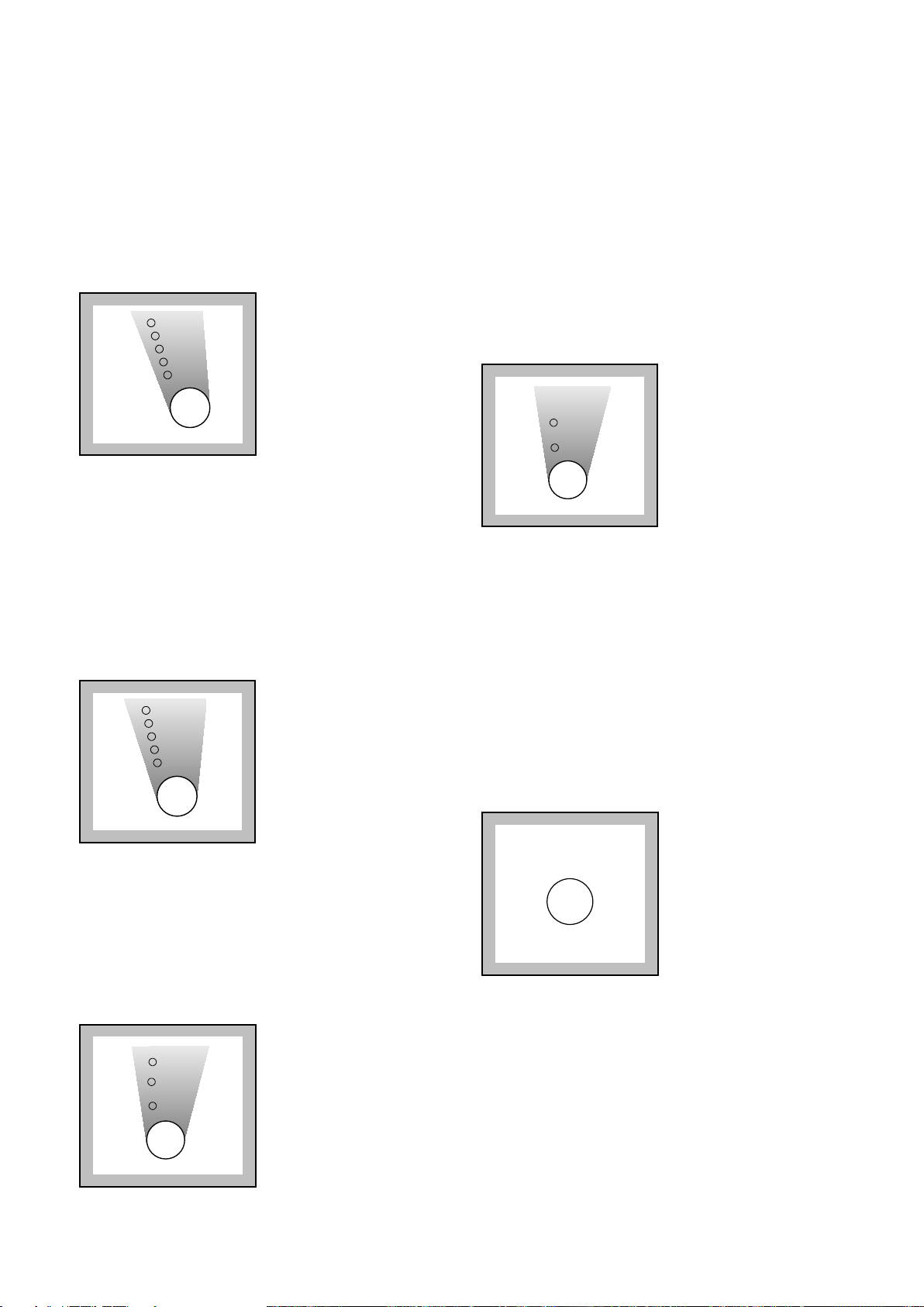

A normal wash cycle consists of the following phases, Wash - Rinses - Spin and is confirmed by the illumination of the corresponding LED,s.

PREWASH

WASH

RINSES

SPIN

DRAIN

To select rinses & spin, the programme must be paused, now press the SKIP button once, the wash LED goes out.

PREWASH

WASH

RINSES

SPIN

DRAIN

To select spin only, the programme must be paused, now press the SKIP button twice.

The wash & rinsess LED,s go out.

PREWASH

WASH

RINSES

SPIN

DRAIN

11 DELAY button

This button makes it possible to delay the starting of the programme by up to 24 hours. The delay you have selected is shown on the display for about 3 seconds; afterwards, the duration of the programme reappears.

If the button OUTDOOR SPORTS has been pressed the selected delay will correspond to the soak time. If no delay time is selected the soak programme will last about 30 minutes.

You must select this option after you have set the programme and before you press the START/PAUSE button.

The time value shown on the display will decrease by one unit every hour.

You can change the delay time at any moment, before you press the START/PAUSE button.

If you have already pressed the START/PAUSE button, and you wish to change or cancel the delay time, proceed as follows:

set the washing machine to PAUSE by pressing the START/PAUSE button;

press the DELAY button until the display shows the desired delay time or

press the DELAY button once, to erase the delay time. The display will indicate “0h”.

press the START/PAUSE button again.

Important!

The door will be locked throughout the delay time (DOOR LOCKED light lit).

If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again.

12 Programme phase indicator lights

To select Drain the programme must be paused, now press the SKIP button three times, the wash - rinses - spin LED,s go out.

When you select a programme, the lights relevant to the phases that form the programme light up.

After you have started the programme, only the light relevant to the phase that is currently being carried out will remain lit.

9

Loading...
+ 18 hidden pages
